Part Number
Manufacturer
Description
Unit Price
In Stock
SMD260F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, SMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.2A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 25 mOhms
Resistance - Post Trip (R1) (Max) : 75 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, SMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.2A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 25 mOhms
Resistance - Post Trip (R1) (Max) : 75 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
9317 in stock

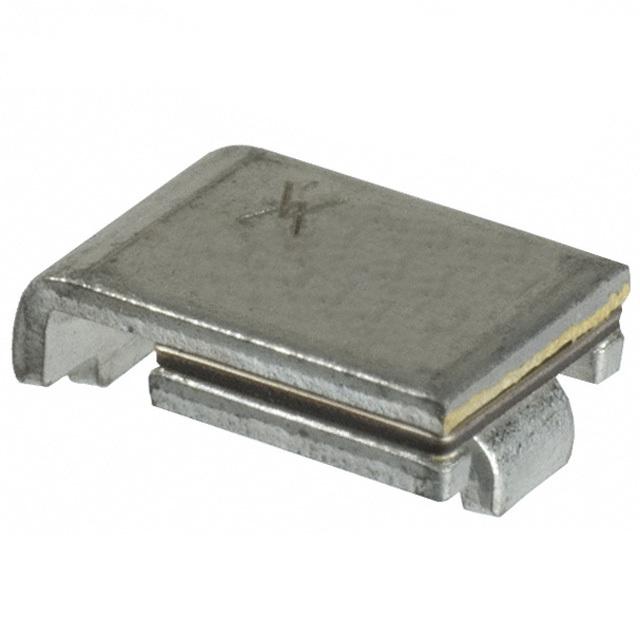

SMD300F/15-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, SMD
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 35s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, SMD
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 35s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
12532 in stock
SMD300F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, SMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 35s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 48 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, SMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 35s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 48 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
34961 in stock

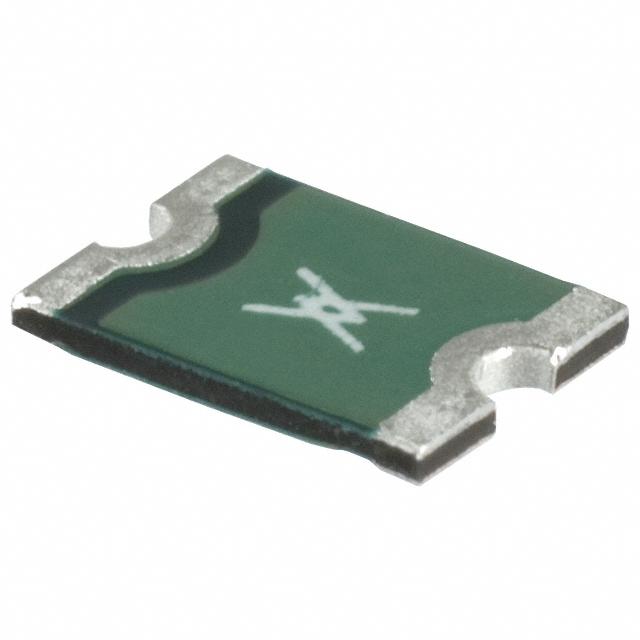

SMDC125F/33-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2920 (7351 Metric), Concave
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.71mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2920 (7351 Metric), Concave
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.71mm)
Lead Spacing : -
0
6473 in stock
SMDC185F/33-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2920 (7351 Metric), Concave
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.71mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2920 (7351 Metric), Concave
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.71mm)
Lead Spacing : -
0
9382 in stock
SMDC300F/24-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2920 (7351 Metric), Concave
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2920 (7351 Metric), Concave
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
21227 in stock
SMDC310F/18-02
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 18V
Current - Max : 50A
Current - Hold (Ih) (Max) : 3.1A
Current - Trip (It) : 6A
Time to Trip : 25s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2920 (7351 Metric), Concave
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.067" (1.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 18V
Current - Max : 50A
Current - Hold (Ih) (Max) : 3.1A
Current - Trip (It) : 6A
Time to Trip : 25s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2920 (7351 Metric), Concave
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.067" (1.70mm)
Lead Spacing : -
0
100 in stock

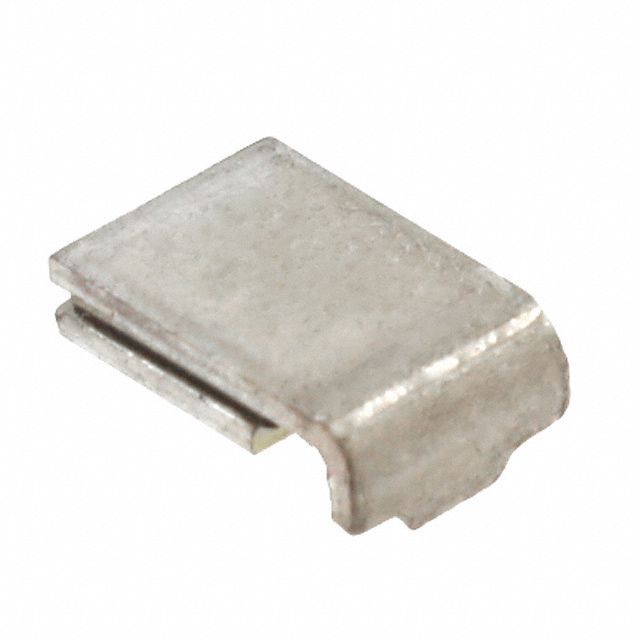

SMDH120-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, SMD
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.2A
Current - Trip (It) : 2.3A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, SMD
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.2A
Current - Trip (It) : 2.3A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
1727 in stock

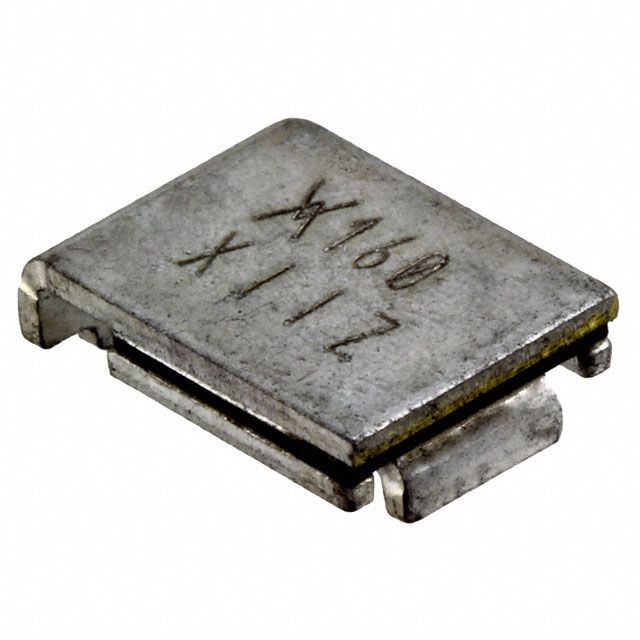

SMDH160-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, SMD
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 70A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 150 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.343" L x 0.250" W (8.70mm x 6.36mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, SMD
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 70A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 150 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.343" L x 0.250" W (8.70mm x 6.36mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
2351 in stock
SRP120F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, SRP
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.2A
Current - Trip (It) : 2.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 85 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.827" L x 0.199" W (21.00mm x 5.05mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, SRP
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.2A
Current - Trip (It) : 2.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 85 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.827" L x 0.199" W (21.00mm x 5.05mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
19710 in stock

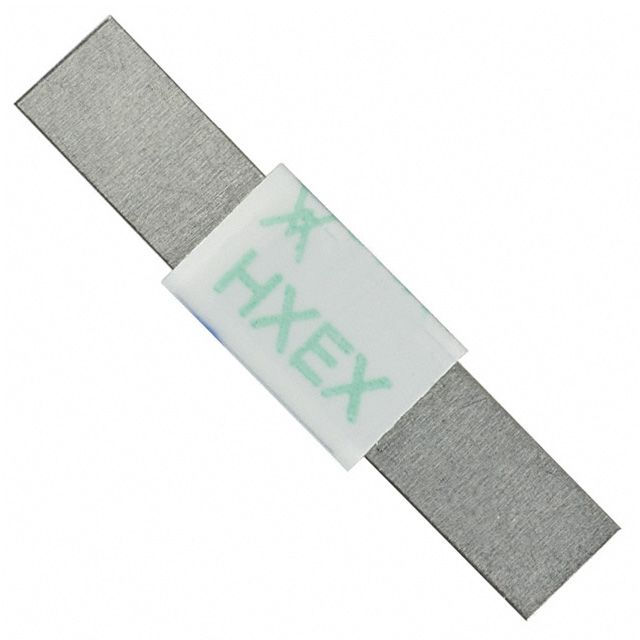

SRP175F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, SRP
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.199" W (22.00mm x 5.05mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, SRP
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.199" W (22.00mm x 5.05mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
23050 in stock

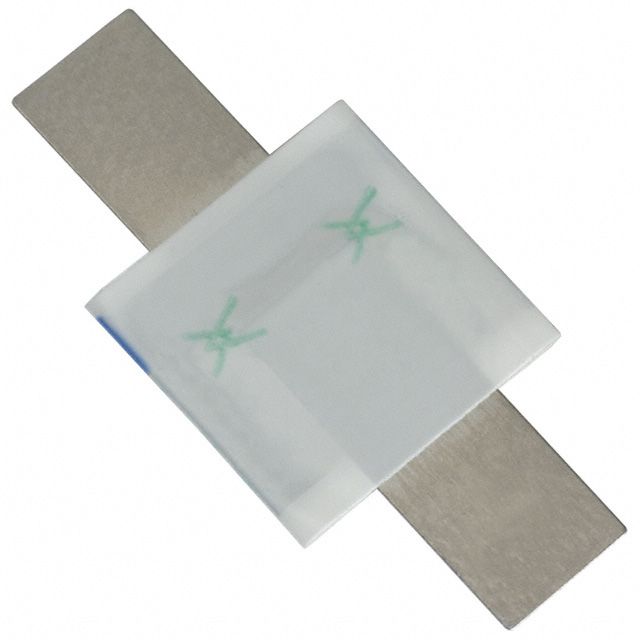

SRP200F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, SRP
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4.4A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.880" L x 0.417" W (22.35mm x 10.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, SRP
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4.4A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.880" L x 0.417" W (22.35mm x 10.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
51137 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
