Welcome to Weijie Semiconductor
- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock

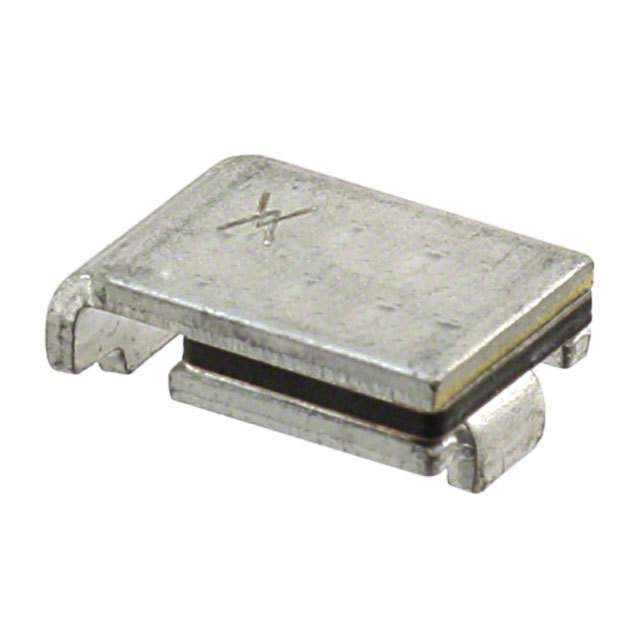

TS250-130F-RC-B-0.5-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TS250
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (600V Int)
Current - Max : 1A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : 260mA
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 7 Ohms
Resistance - Post Trip (R1) (Max) : 17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.352" L x 0.291" W (8.95mm x 7.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.134" (3.40mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TS250
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (600V Int)
Current - Max : 1A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : 260mA
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 7 Ohms
Resistance - Post Trip (R1) (Max) : 17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.352" L x 0.291" W (8.95mm x 7.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.134" (3.40mm)
Lead Spacing : -
0
2875 in stock

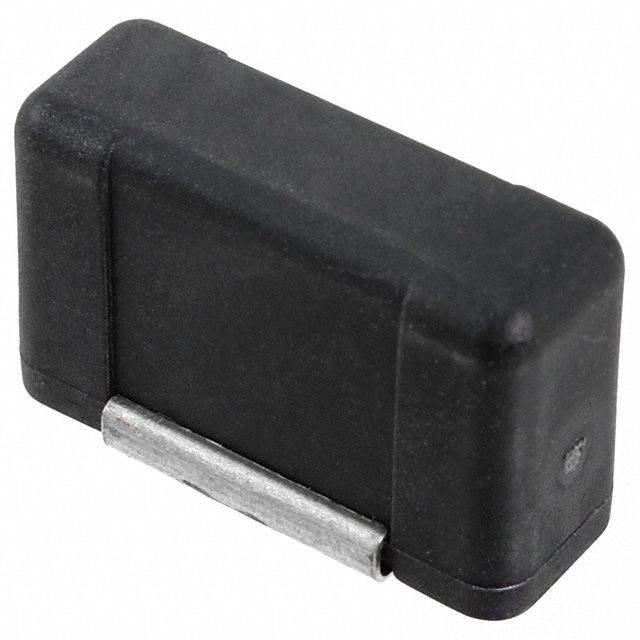

TS600-170F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TS600
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 170mA
Current - Trip (It) : 400mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 4 Ohms
Resistance - Post Trip (R1) (Max) : 18 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.742" L x 0.305" W (18.85mm x 7.75mm)
Height - Seated (Max) : -
Thickness (Max) : 0.485" (12.32mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TS600
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 170mA
Current - Trip (It) : 400mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 4 Ohms
Resistance - Post Trip (R1) (Max) : 18 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.742" L x 0.305" W (18.85mm x 7.75mm)
Height - Seated (Max) : -
Thickness (Max) : 0.485" (12.32mm)
Lead Spacing : -
0
2016 in stock

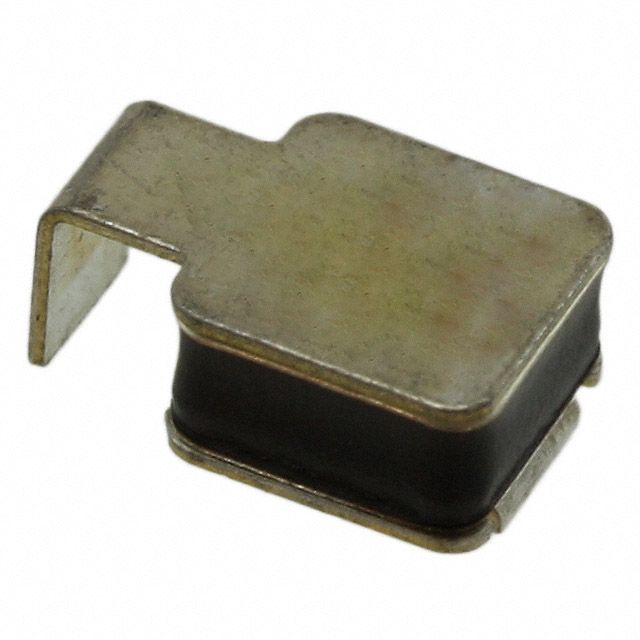

TSL250-080F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TS250
Part Status : Active
Type : Polymeric
Voltage - Max : 80V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 240mA
Time to Trip : 800ms
Resistance - Initial (Ri) (Min) : 5 Ohms
Resistance - Post Trip (R1) (Max) : 20 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.199" W (7.30mm x 5.05mm)
Height - Seated (Max) : -
Thickness (Max) : 0.146" (3.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TS250
Part Status : Active
Type : Polymeric
Voltage - Max : 80V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 240mA
Time to Trip : 800ms
Resistance - Initial (Ri) (Min) : 5 Ohms
Resistance - Post Trip (R1) (Max) : 20 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.199" W (7.30mm x 5.05mm)
Height - Seated (Max) : -
Thickness (Max) : 0.146" (3.70mm)
Lead Spacing : -
0
1245 in stock

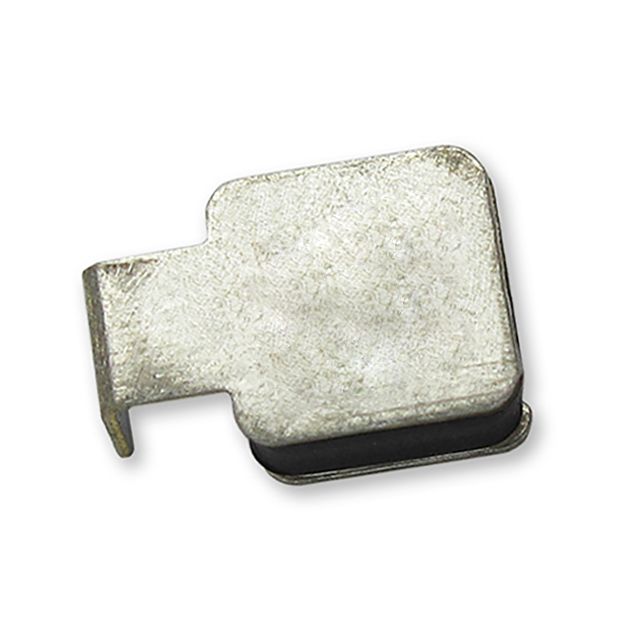

TSL250-080F-B-0.5-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TSL250
Part Status : Active
Type : Polymeric
Voltage - Max : 80V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 240mA
Time to Trip : 1.6s
Resistance - Initial (Ri) (Min) : 5 Ohms
Resistance - Post Trip (R1) (Max) : 20 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.199" W (7.30mm x 5.05mm)
Height - Seated (Max) : -
Thickness (Max) : 0.146" (3.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TSL250
Part Status : Active
Type : Polymeric
Voltage - Max : 80V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 240mA
Time to Trip : 1.6s
Resistance - Initial (Ri) (Min) : 5 Ohms
Resistance - Post Trip (R1) (Max) : 20 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.199" W (7.30mm x 5.05mm)
Height - Seated (Max) : -
Thickness (Max) : 0.146" (3.70mm)
Lead Spacing : -
0
2146 in stock
TSM600-250F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TSM
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 860mA
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 7 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.681" L x 0.425" W (17.30mm x 10.80mm)
Height - Seated (Max) : -
Thickness (Max) : 0.451" (11.45mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TSM
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 860mA
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 7 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.681" L x 0.425" W (17.30mm x 10.80mm)
Height - Seated (Max) : -
Thickness (Max) : 0.451" (11.45mm)
Lead Spacing : -
0
931 in stock

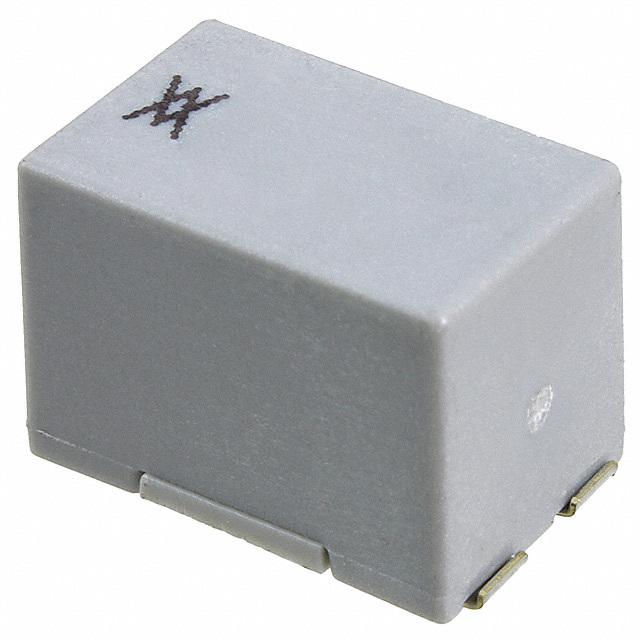

TSM600-250F-RA-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TSM
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 860mA
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.681" L x 0.425" W (17.30mm x 10.80mm)
Height - Seated (Max) : -
Thickness (Max) : 0.451" (11.45mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TSM
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 860mA
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.681" L x 0.425" W (17.30mm x 10.80mm)
Height - Seated (Max) : -
Thickness (Max) : 0.451" (11.45mm)
Lead Spacing : -
0
89 in stock
TSM600-400F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TSM
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 60A
Current - Hold (Ih) (Max) : 400mA
Current - Trip (It) : 1A
Time to Trip : 14s
Resistance - Initial (Ri) (Min) : 500 mOhms
Resistance - Post Trip (R1) (Max) : 2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.681" L x 0.425" W (17.30mm x 10.80mm)
Height - Seated (Max) : -
Thickness (Max) : 0.451" (11.45mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TSM
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 60A
Current - Hold (Ih) (Max) : 400mA
Current - Trip (It) : 1A
Time to Trip : 14s
Resistance - Initial (Ri) (Min) : 500 mOhms
Resistance - Post Trip (R1) (Max) : 2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD
Size / Dimension : 0.681" L x 0.425" W (17.30mm x 10.80mm)
Height - Seated (Max) : -
Thickness (Max) : 0.451" (11.45mm)
Lead Spacing : -
0
100 in stock

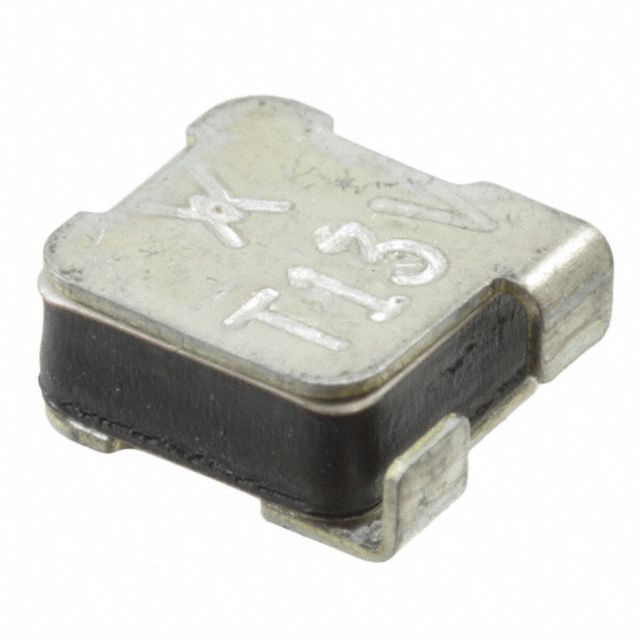

TSV250-130F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TS250
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : 260mA
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 4 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.240" L x 0.272" W (6.10mm x 6.90mm)
Height - Seated (Max) : -
Thickness (Max) : 0.126" (3.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TS250
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : 260mA
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 4 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.240" L x 0.272" W (6.10mm x 6.90mm)
Height - Seated (Max) : -
Thickness (Max) : 0.126" (3.20mm)
Lead Spacing : -
0
4290 in stock
TSV250-130F-B-0.5-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TSV250
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : 260mA
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 4 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.240" L x 0.272" W (6.10mm x 6.90mm)
Height - Seated (Max) : -
Thickness (Max) : 0.126" (3.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TSV250
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : 260mA
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 4 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.240" L x 0.272" W (6.10mm x 6.90mm)
Height - Seated (Max) : -
Thickness (Max) : 0.126" (3.20mm)
Lead Spacing : -
0
155 in stock
VLP210XLF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.1A
Current - Trip (It) : 4.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 18 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.648" L x 0.280" W (16.45mm x 7.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.1A
Current - Trip (It) : 4.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 18 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.648" L x 0.280" W (16.45mm x 7.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
9712 in stock
VLP270F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, VLP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 60A
Current - Hold (Ih) (Max) : 2.7A
Current - Trip (It) : 6.5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 12 mOhms
Resistance - Post Trip (R1) (Max) : 36 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.201" W (22.00mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, VLP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 60A
Current - Hold (Ih) (Max) : 2.7A
Current - Trip (It) : 6.5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 12 mOhms
Resistance - Post Trip (R1) (Max) : 36 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.201" W (22.00mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
88372 in stock
VLR170F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, VLR
Part Status : Active
Type : Polymeric
Voltage - Max : 12V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.7A
Current - Trip (It) : 4.1A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 18 mOhms
Resistance - Post Trip (R1) (Max) : 64 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 70°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.146" W (22.00mm x 3.70mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, VLR
Part Status : Active
Type : Polymeric
Voltage - Max : 12V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.7A
Current - Trip (It) : 4.1A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 18 mOhms
Resistance - Post Trip (R1) (Max) : 64 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 70°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.146" W (22.00mm x 3.70mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
5327 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
