Welcome to Weijie Semiconductor
- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock
0ZCG0150BF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.061" (1.55mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.061" (1.55mm)
Lead Spacing : -
0
213519 in stock
0ZCG0150FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.022" (0.55mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.022" (0.55mm)
Lead Spacing : -
0
9918 in stock
0ZCG0160AF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 12V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.053" (1.35mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 12V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.053" (1.35mm)
Lead Spacing : -
0
100 in stock
0ZCG0160BF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.053" (1.35mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.053" (1.35mm)
Lead Spacing : -
0
45439 in stock
0ZCG0160FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
0
100 in stock
0ZCG0200AF2B
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 85 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.051" (1.30mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 85 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.051" (1.30mm)
Lead Spacing : -
0
5764 in stock
0ZCG0200FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 70 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 70 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
0
18763 in stock
0ZCG0260AF2B
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.061" (1.55mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.061" (1.55mm)
Lead Spacing : -
0
62057 in stock
0ZCG0260BF2B
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.061" (1.55mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.061" (1.55mm)
Lead Spacing : -
0
134611 in stock
0ZCG0260FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 47 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 47 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
0
14495 in stock

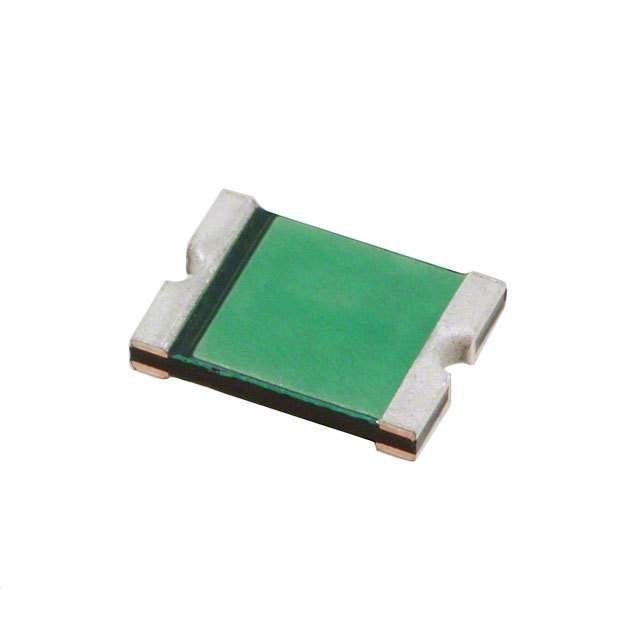

0ZCG0300FF2B
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 5A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 12 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.061" (1.55mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCG
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 5A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 12 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.061" (1.55mm)
Lead Spacing : -
0
154520 in stock

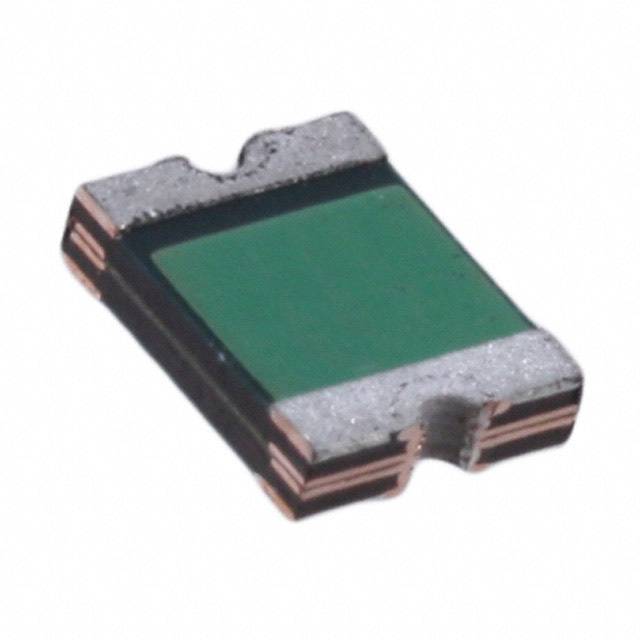

0ZCH0005FF2E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCH
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 3.6 Ohms
Resistance - Post Trip (R1) (Max) : 50 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCH
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 3.6 Ohms
Resistance - Post Trip (R1) (Max) : 50 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
0
35811 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
