FFC, FPC (Flat Flexible) Connectors Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

0520451745

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52045
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 17
Pitch : 0.049" (1.25mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.315" (8.00mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polybutylene Terephthalate (PBT), Polyester
Actuator Material : -
Features : -
Voltage Rating : 200V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

22680 in stock

0520452045

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52045
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 20
Pitch : 0.049" (1.25mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.315" (8.00mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polybutylene Terephthalate (PBT), Polyester
Actuator Material : -
Features : -
Voltage Rating : 200V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

7977 in stock

0520452145

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52045
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 21
Pitch : 0.049" (1.25mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.315" (8.00mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polybutylene Terephthalate (PBT), Polyester
Actuator Material : -
Features : -
Voltage Rating : 200V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

1982 in stock

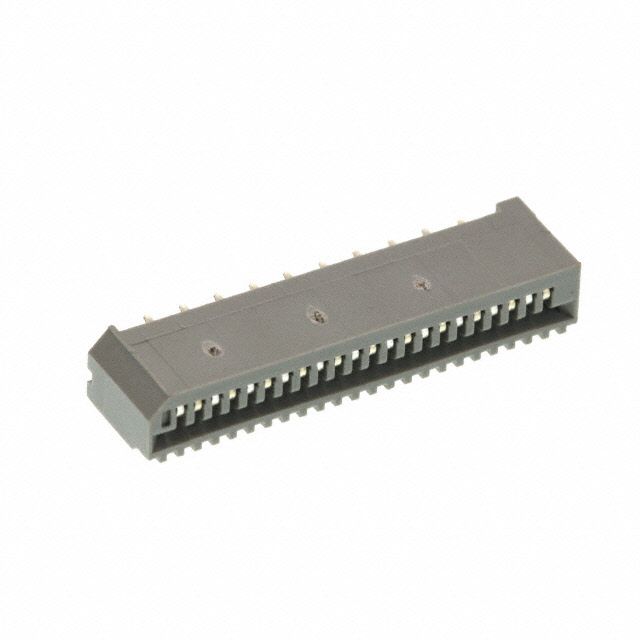

0520452245

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52045
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 22
Pitch : 0.049" (1.25mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.315" (8.00mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polybutylene Terephthalate (PBT), Polyester
Actuator Material : -
Features : -
Voltage Rating : 200V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

294 in stock

0520452445

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52045
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 24
Pitch : 0.049" (1.25mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.315" (8.00mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polybutylene Terephthalate (PBT), Polyester
Actuator Material : -
Features : -
Voltage Rating : 200V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

3220 in stock

0520452645

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52045
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 26
Pitch : 0.049" (1.25mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.315" (8.00mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polybutylene Terephthalate (PBT), Polyester
Actuator Material : -
Features : -
Voltage Rating : 200V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

1729 in stock

0520452845

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52045
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 28
Pitch : 0.049" (1.25mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.315" (8.00mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polybutylene Terephthalate (PBT), Polyester
Actuator Material : -
Features : -
Voltage Rating : 200V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

3830 in stock

0520453045

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52045
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 30
Pitch : 0.049" (1.25mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.315" (8.00mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polybutylene Terephthalate (PBT), Polyester
Actuator Material : -
Features : -
Voltage Rating : 200V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

2520 in stock

0520453245

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52045
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 32
Pitch : 0.049" (1.25mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.315" (8.00mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polybutylene Terephthalate (PBT), Polyester
Actuator Material : -
Features : -
Voltage Rating : 200V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

1767 in stock

0520890419

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52089
Part Status : Obsolete
Flat Flex Type : FPC
Mounting Type : Through Hole, Right Angle
Connector/Contact Type : Contacts, Top
Number of Positions : 4
Pitch : 0.039" (1.00mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.118" (3.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA66), Nylon 6/6
Actuator Material : Polyester
Features : Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

100 in stock

0520890519

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52089
Part Status : Obsolete
Flat Flex Type : FPC
Mounting Type : Through Hole, Right Angle
Connector/Contact Type : Contacts, Top
Number of Positions : 5
Pitch : 0.039" (1.00mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.118" (3.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA66), Nylon 6/6
Actuator Material : Polyester
Features : Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

100 in stock

0520890619

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52089
Part Status : Obsolete
Flat Flex Type : FPC
Mounting Type : Through Hole, Right Angle
Connector/Contact Type : Contacts, Top
Number of Positions : 6
Pitch : 0.039" (1.00mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.118" (3.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA66), Nylon 6/6
Actuator Material : Polyester
Features : Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

100 in stock
