Part Number

Manufacturer

Description

Unit Price

In Stock

0522073033

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Easy-On 52207
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Top
Number of Positions : 30
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.106" (2.70mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA), Nylon, Glass Filled
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 125V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

6783 in stock

0522073060

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 52207
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Top
Number of Positions : 30
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.106" (2.70mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 125V
Operating Temperature : -30°C ~ 85°C
Material Flammability Rating : UL94 V-0

6088 in stock

0522073085

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tape & Reel (TR)
Series : Easy-On 52207
Part Status : Obsolete
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Top
Number of Positions : 30
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.106" (2.70mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 125V
Operating Temperature : -30°C ~ 85°C
Material Flammability Rating : UL94 V-0

100 in stock

0522073433

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Easy-On 52207
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Top
Number of Positions : 34
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.106" (2.70mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA), Nylon, Glass Filled
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 125V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

2386 in stock

0522073485

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tape & Reel (TR)
Series : Easy-On 52207
Part Status : Obsolete
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Top
Number of Positions : 34
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.106" (2.70mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 125V
Operating Temperature : -30°C ~ 85°C
Material Flammability Rating : UL94 V-0

100 in stock

0522710469

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 52271
Part Status : Active
Flat Flex Type : FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 4
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.118" (3.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

14628 in stock

0522710479

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 52271
Part Status : Active
Flat Flex Type : FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 4
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.118" (3.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

1226 in stock

0522710569

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 52271
Part Status : Active
Flat Flex Type : FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 5
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.118" (3.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

4472 in stock

0522710579

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 52271
Part Status : Active
Flat Flex Type : FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 5
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.118" (3.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

7270 in stock

0522710669

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 52271
Part Status : Active
Flat Flex Type : FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 6
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.118" (3.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

3401 in stock

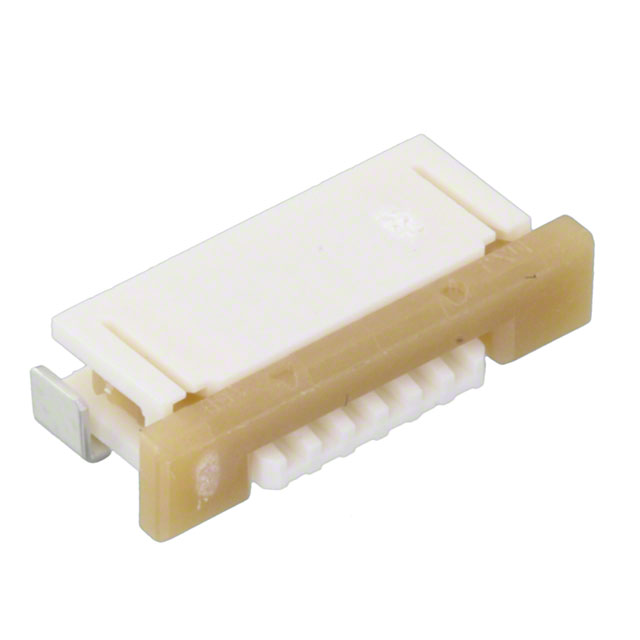

0522710679

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 52271
Part Status : Active
Flat Flex Type : FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 6
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.118" (3.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

154 in stock

0522710769

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 52271
Part Status : Active
Flat Flex Type : FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 7
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.118" (3.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyphenylene Sulfide (PPS)
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -40°C ~ 85°C
Material Flammability Rating : UL94 V-0

18519 in stock
