Rectangular Connectors - Headers, Male Pins Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

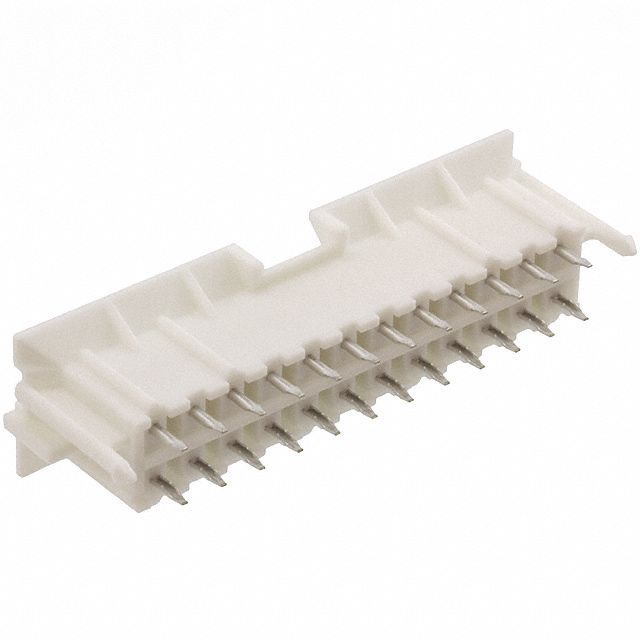

0015286242

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 24
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -

794 in stock

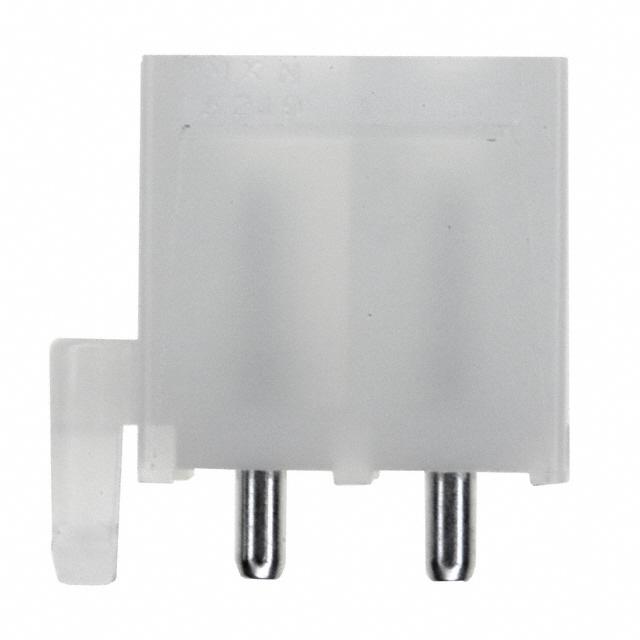

0015311026

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Bulk
Series : 5219
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.264" (6.71mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.591" (15.00mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 39.4µin (1.00µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -

3792 in stock

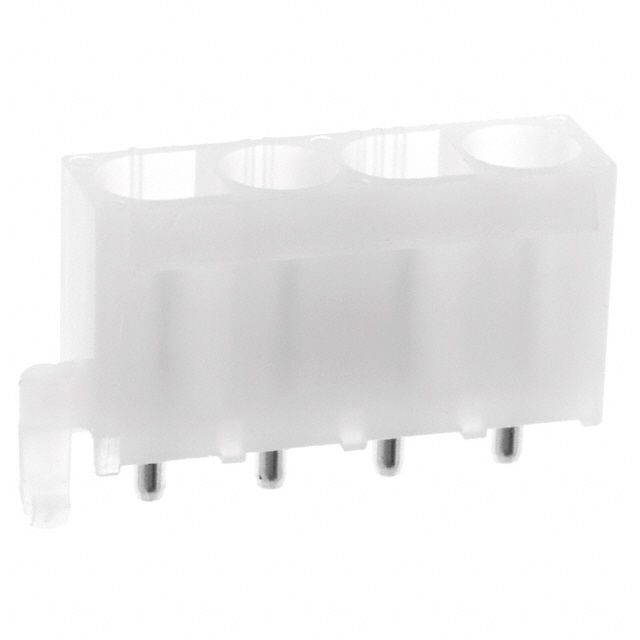

0015311046

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Bulk
Series : 5219
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.264" (6.71mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.591" (15.00mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 39.4µin (1.00µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -

1795 in stock

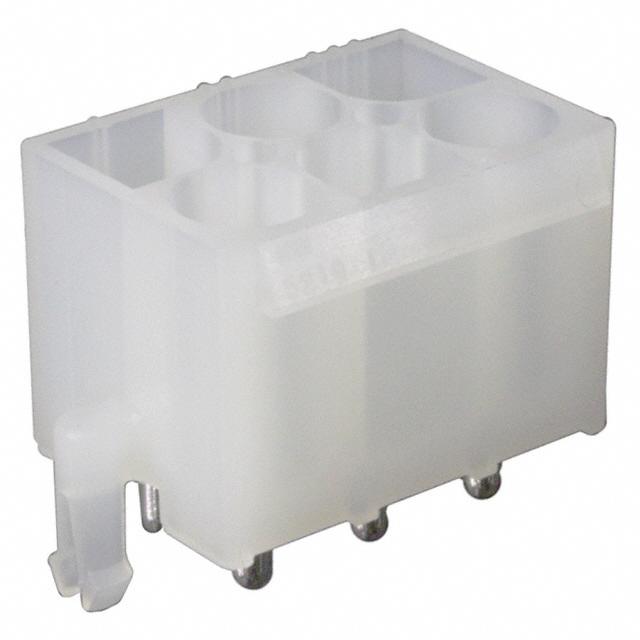

0015311066

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Bulk
Series : 5219
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.264" (6.71mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.264" (6.71mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.591" (15.00mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 39.4µin (1.00µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -

2320 in stock

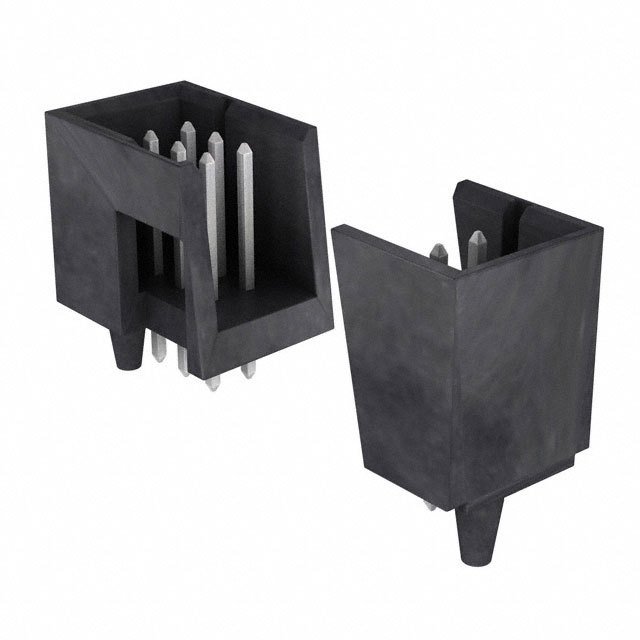

0015477510

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Series : C-Grid 70568
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.315" (8.00mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.570" (14.48mm)
Insulation Height : 0.475" (12.07mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

26 in stock

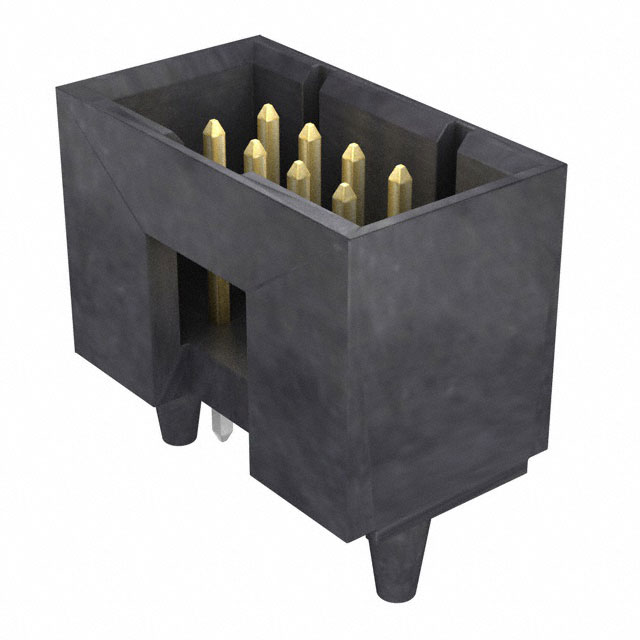

0015477608

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Series : C-Grid 70568
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.315" (8.00mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.570" (14.48mm)
Insulation Height : 0.475" (12.07mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

100 in stock

0015477610

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Series : C-Grid 70568
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.315" (8.00mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.570" (14.48mm)
Insulation Height : 0.475" (12.07mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

1270 in stock

0015477612

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Series : C-Grid 70568
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.315" (8.00mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.570" (14.48mm)
Insulation Height : 0.475" (12.07mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

100 in stock

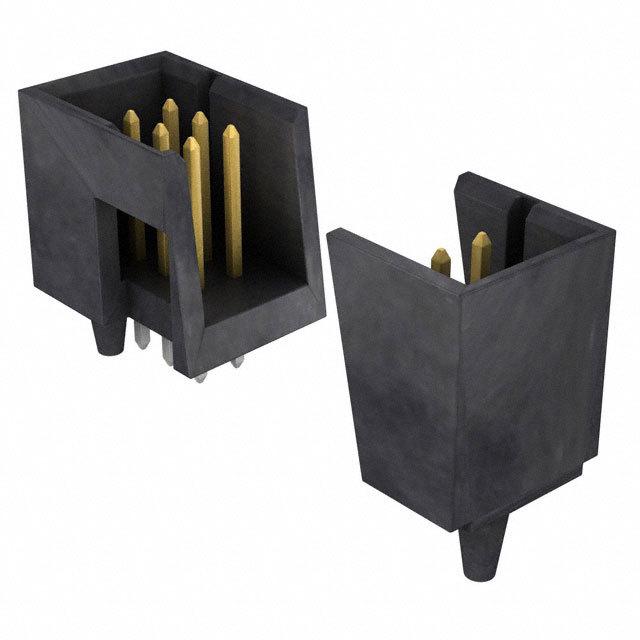

0015477616

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Series : C-Grid 70568
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.315" (8.00mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.570" (14.48mm)
Insulation Height : 0.475" (12.07mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

344 in stock

0015477628

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tube
Series : C-Grid 70568
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 28
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.315" (8.00mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.570" (14.48mm)
Insulation Height : 0.475" (12.07mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

2308 in stock

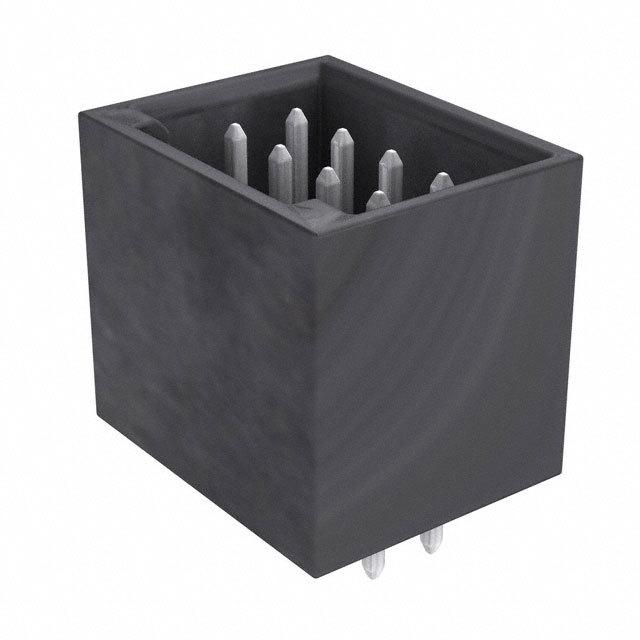

0015800081

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Series : C-Grid 70567
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.315" (8.00mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.570" (14.48mm)
Insulation Height : 0.475" (12.07mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

1920 in stock

0015800101

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tube
Series : C-Grid 70567
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : 0.315" (8.00mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.570" (14.48mm)
Insulation Height : 0.475" (12.07mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

1627 in stock
