Part Number
Manufacturer
Description
Unit Price
In Stock

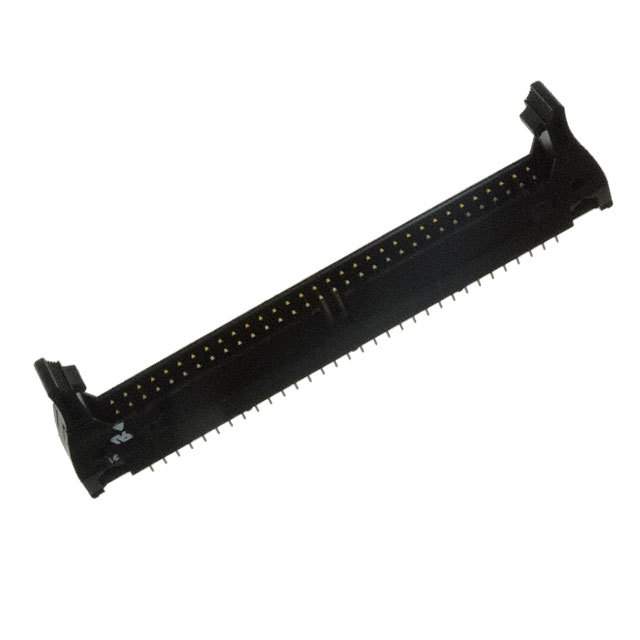

XG4A-6431
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 64
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock/Eject Hooks, Long
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.657" (16.70mm)
Insulation Height : 0.669" (17.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot, Mounting Flange
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 64
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Lock/Eject Hooks, Long
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.657" (16.70mm)
Insulation Height : 0.669" (17.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot, Mounting Flange
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
305 in stock

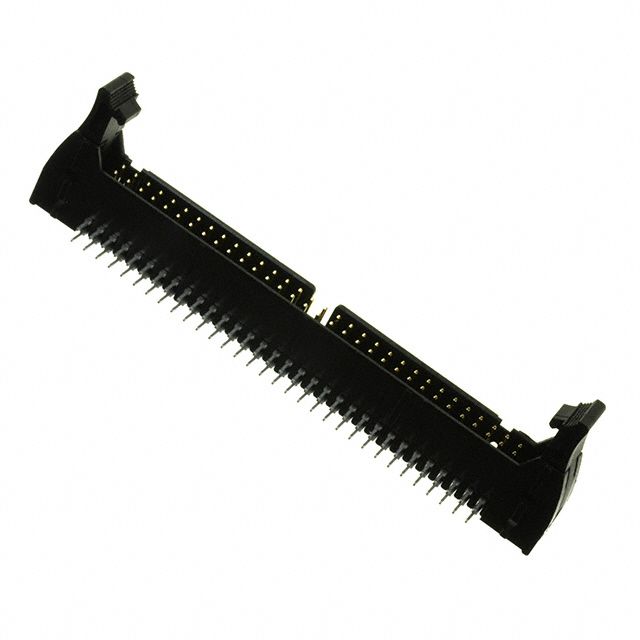

XG4A-6434
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 64
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock/Eject Hooks, Long
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot, Mounting Flange
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 64
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock/Eject Hooks, Long
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot, Mounting Flange
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
183 in stock

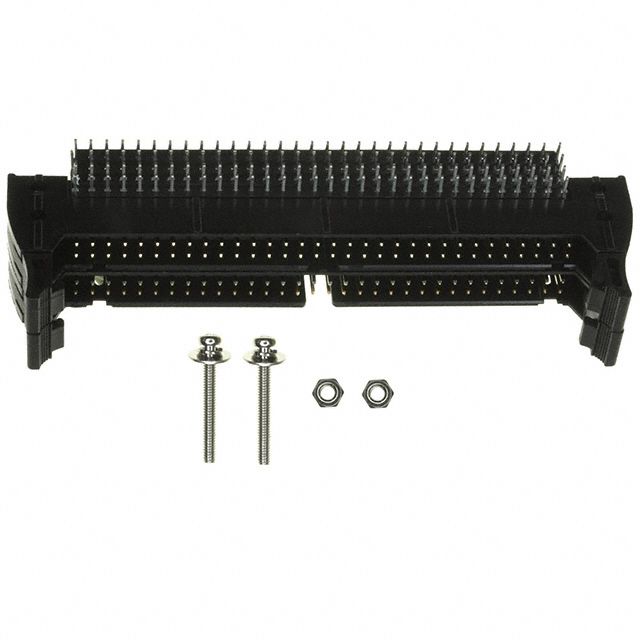

XG4A-6439-A
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header, Stackable (2)
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 64, 64
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock/Eject Hooks, Long
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.669" (17.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header, Stackable (2)
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 64, 64
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Lock/Eject Hooks, Long
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.669" (17.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot, Mounting Flange, Mounting Hardware
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
100 in stock

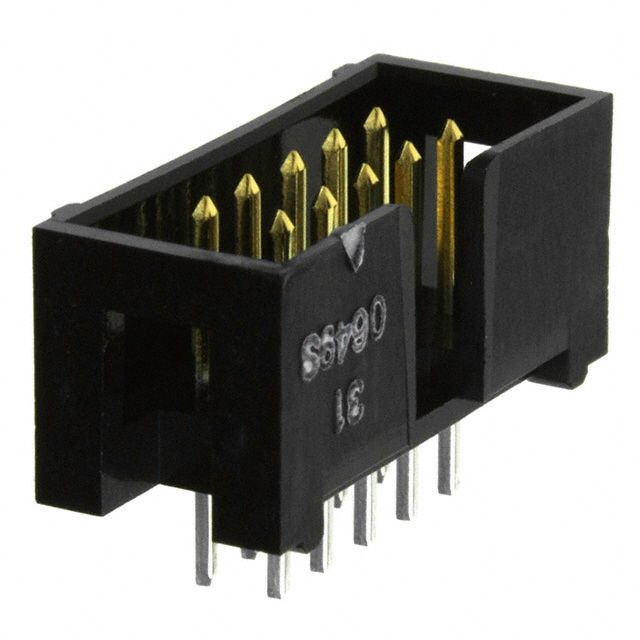

XG4C-1031
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
7860 in stock

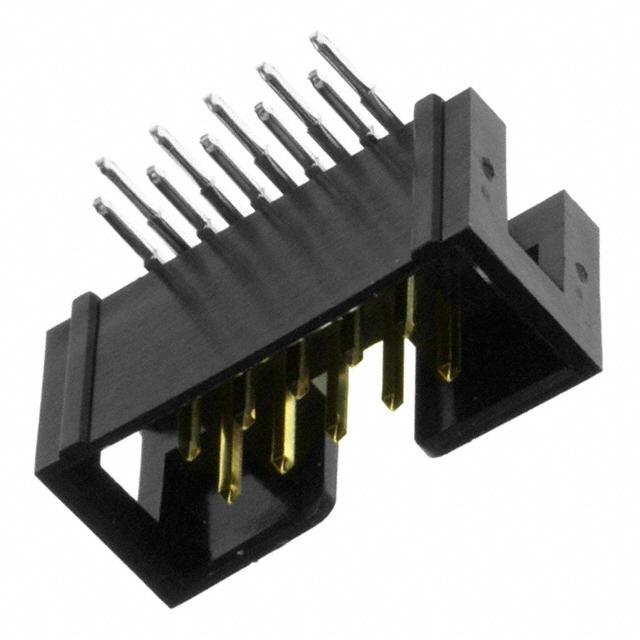

XG4C-1034
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.323" (8.20mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.323" (8.20mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
2246 in stock

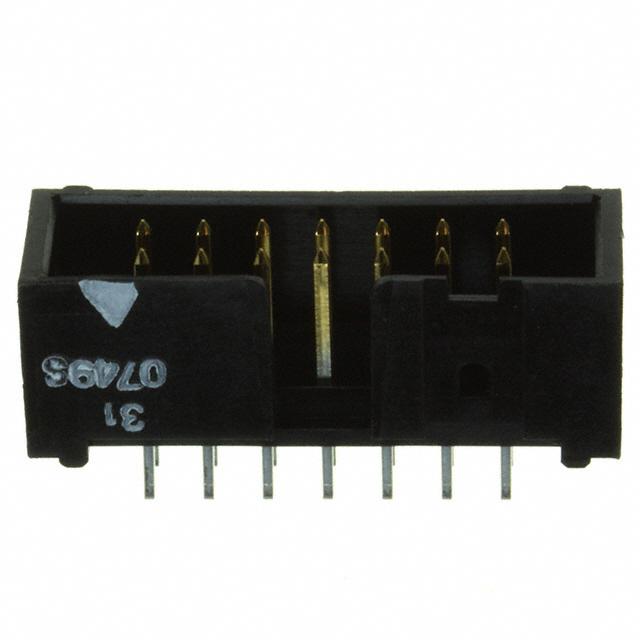

XG4C-1431
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
4181 in stock
XG4C-1434
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.323" (8.20mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.323" (8.20mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
2458 in stock
XG4C-1631
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
3548 in stock
XG4C-1634
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.323" (8.20mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.323" (8.20mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
550 in stock
XG4C-2031
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
7771 in stock
XG4C-2034
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.323" (8.20mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : -
Insulation Height : 0.323" (8.20mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
4404 in stock
XG4C-2631
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Tray
Series : XG4
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 26
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.335" (8.51mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : Keying Slot
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
3949 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
