- Connectors, Interconnects
- Rectangular Connectors - Headers, Male Pins
Part Number
Manufacturer
Description
Unit Price
In Stock

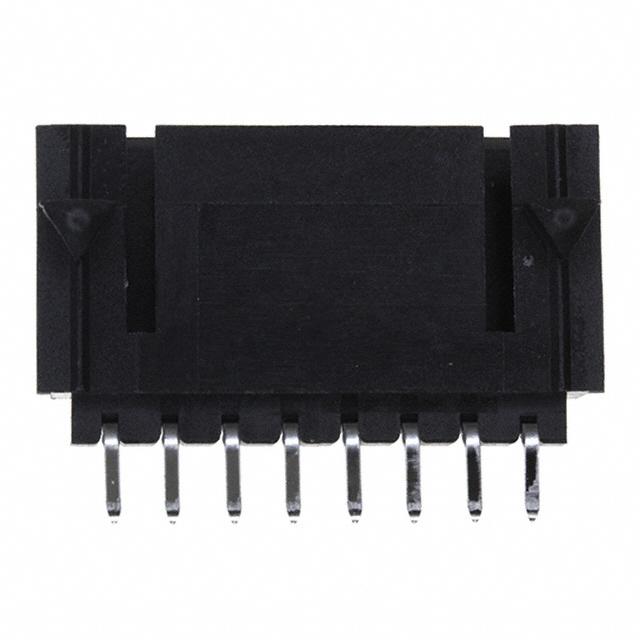

0015913084
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 74.8µin (1.90µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 74.8µin (1.90µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
19 in stock

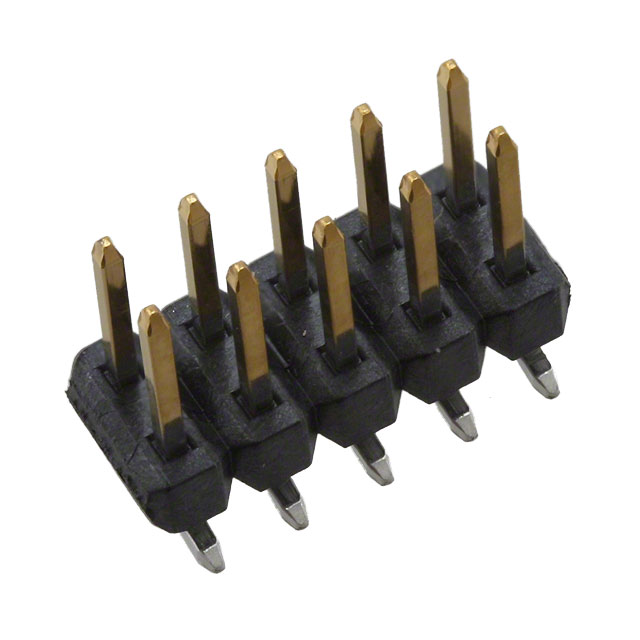

0015913100
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
5216 in stock

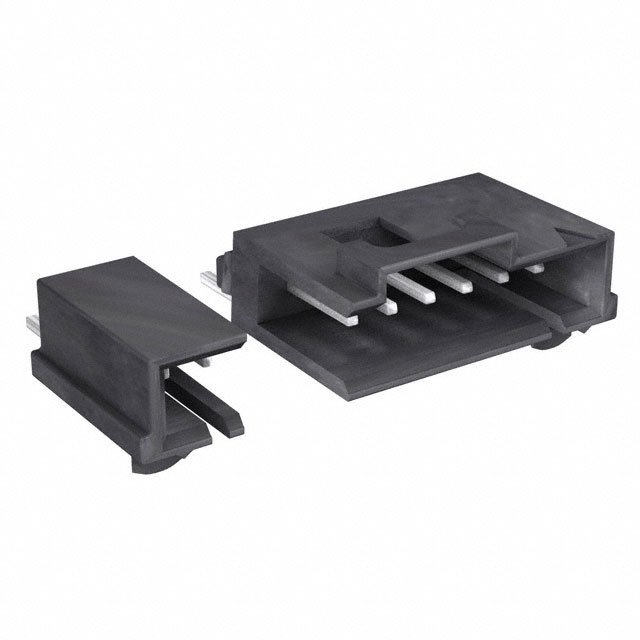

0015913104
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 74.8µin (1.90µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 74.8µin (1.90µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
5 in stock
0015913124
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tube
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 12
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 74.8µin (1.90µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 12
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 74.8µin (1.90µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
93 in stock

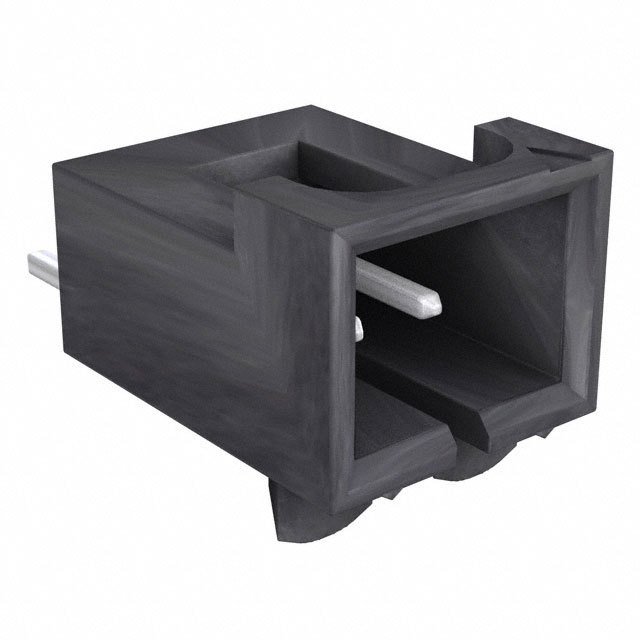

0015916029
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 74.8µin (1.90µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 74.8µin (1.90µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
723 in stock
0015916042
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.050" (1.27mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Pick and Place
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.050" (1.27mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Pick and Place
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
3891 in stock

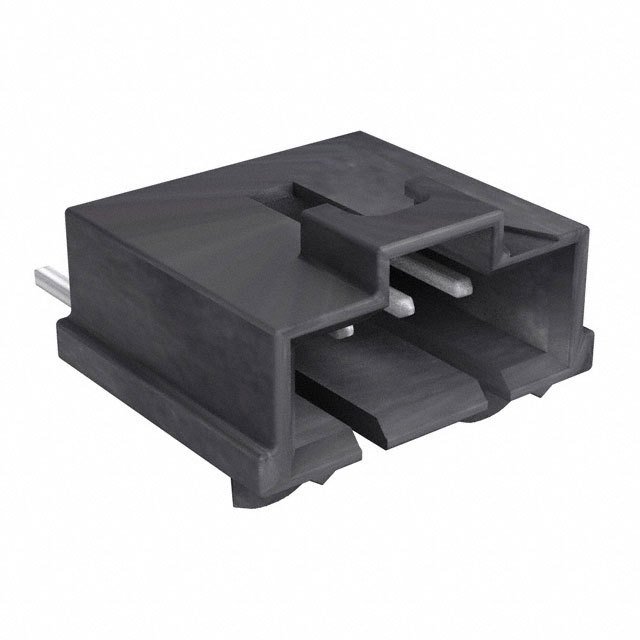

0015916049
Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 74.8µin (1.90µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SL 70634
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.215" (5.45mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 74.8µin (1.90µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyester, Glass Filled
Features : Board Guide
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
950 in stock

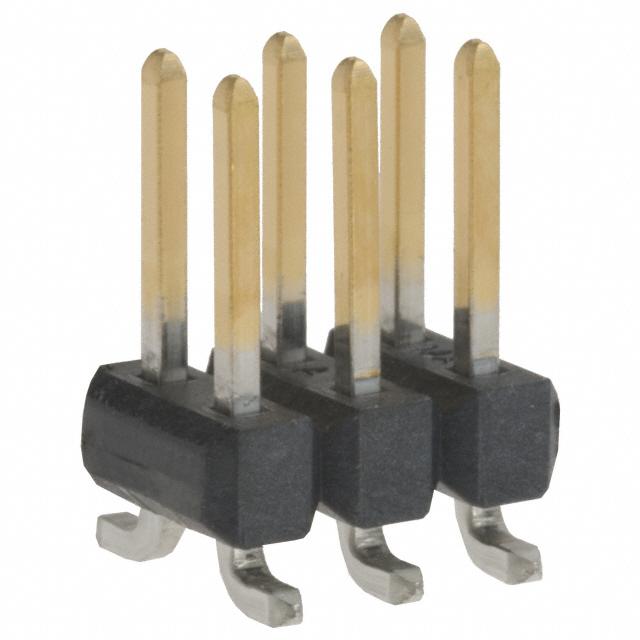

0015916062
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.050" (1.27mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Pick and Place
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.050" (1.27mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Pick and Place
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
8667 in stock

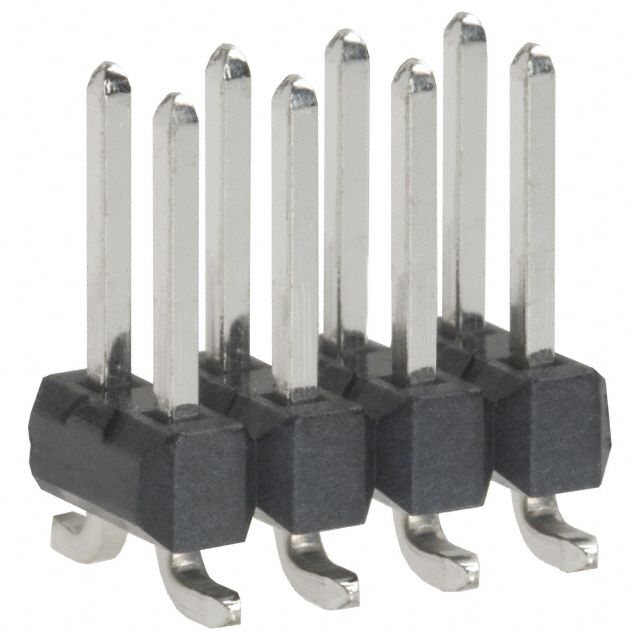

0015916080
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.050" (1.27mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Pick and Place
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.050" (1.27mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Pick and Place
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
10716 in stock

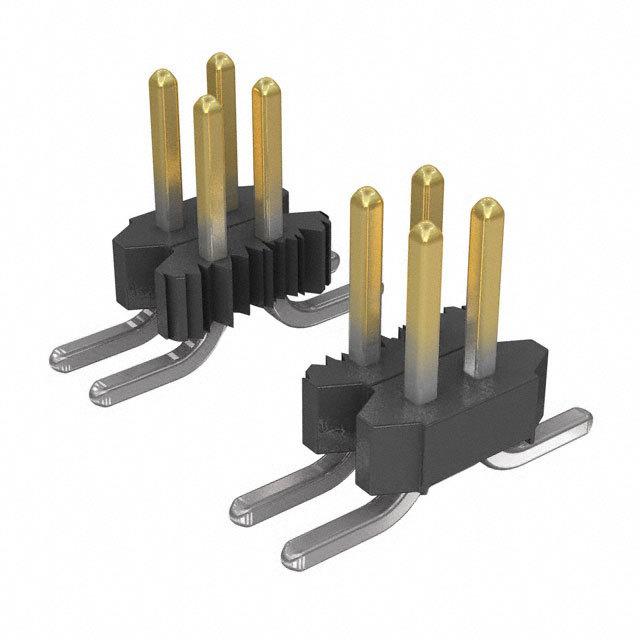

0015916082
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.050" (1.27mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Pick and Place
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.050" (1.27mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Pick and Place
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
12220 in stock

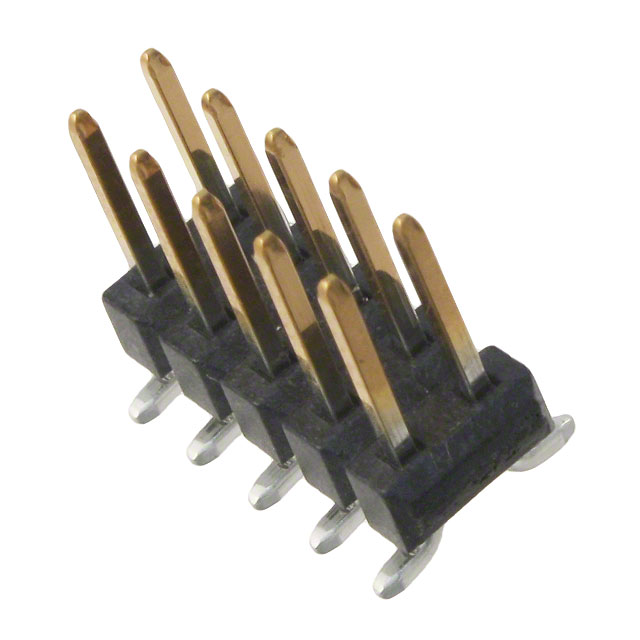

0015916102
Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.050" (1.27mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Pick and Place
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.050" (1.27mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : Pick and Place
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
12171 in stock

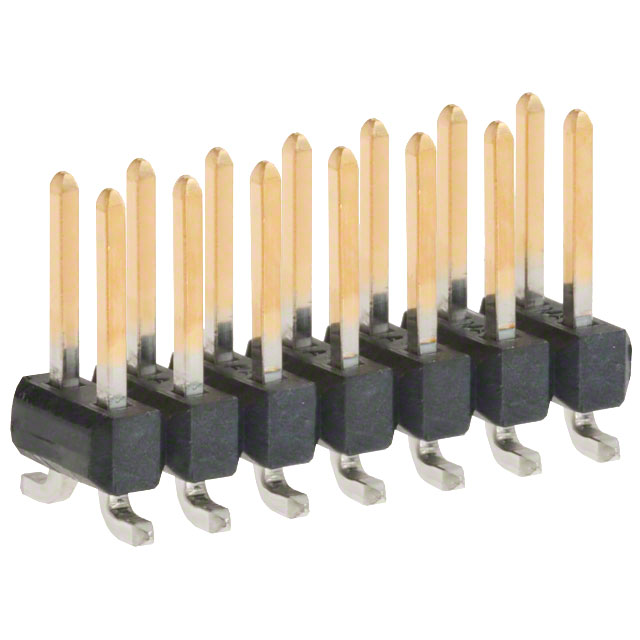

0015916142
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : C-Grid 71308
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.240" (6.10mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : Copper Alloy
Insulation Material : Liquid Crystal Polymer (LCP), Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
2782 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
