Part Number
Manufacturer
Description
Unit Price
In Stock

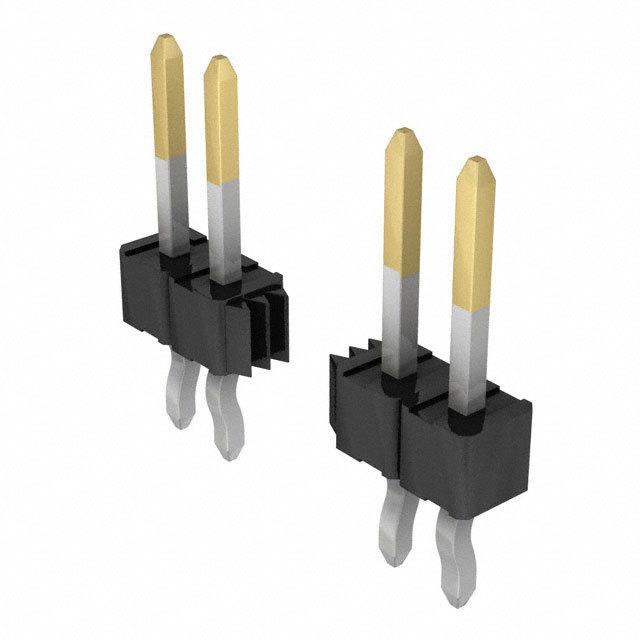

0022285364
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42375
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.320" (8.13mm)
Contact Length - Post : 0.135" (3.43mm)
Overall Contact Length : 0.545" (13.84mm)
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42375
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.320" (8.13mm)
Contact Length - Post : 0.135" (3.43mm)
Overall Contact Length : 0.545" (13.84mm)
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
2886 in stock

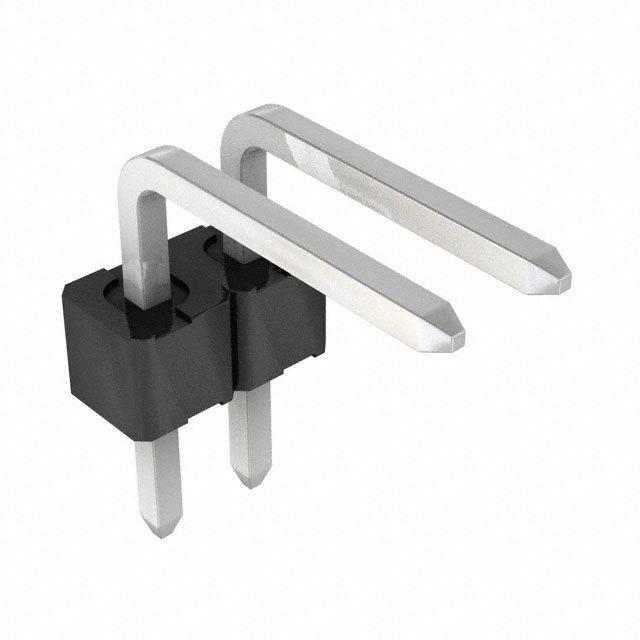

0022286020
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
11714 in stock
0022286030
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
29713 in stock

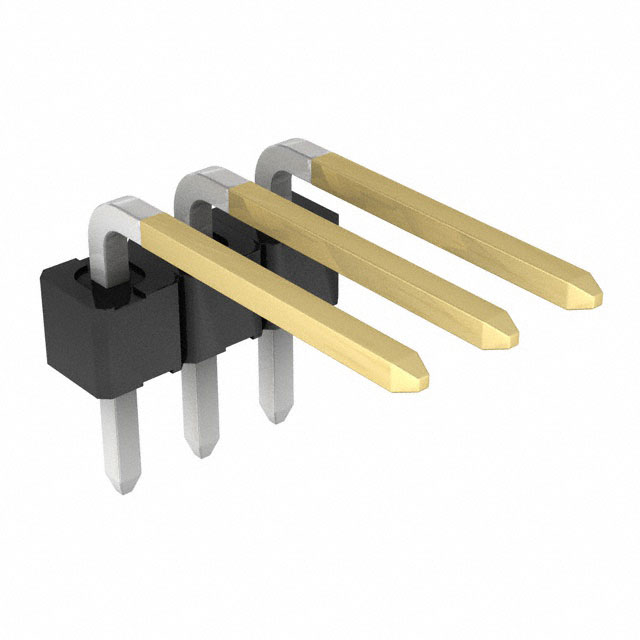

0022286033
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.405" (10.29mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.405" (10.29mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
100 in stock

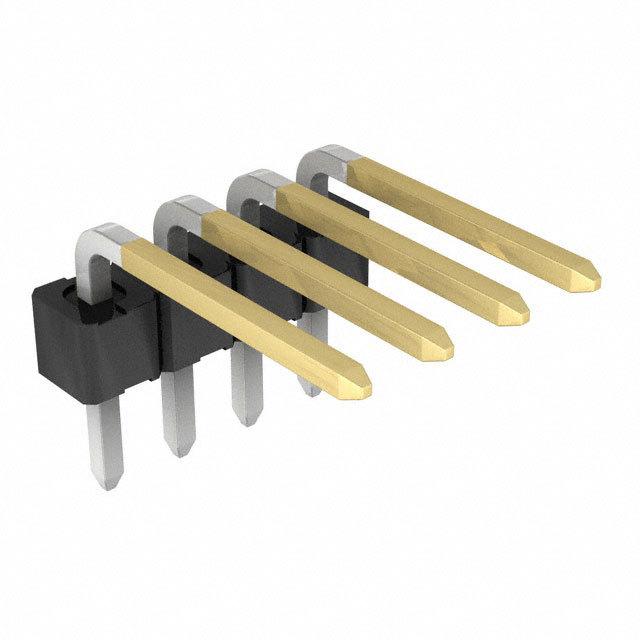

0022286043
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.405" (10.29mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.405" (10.29mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
100 in stock

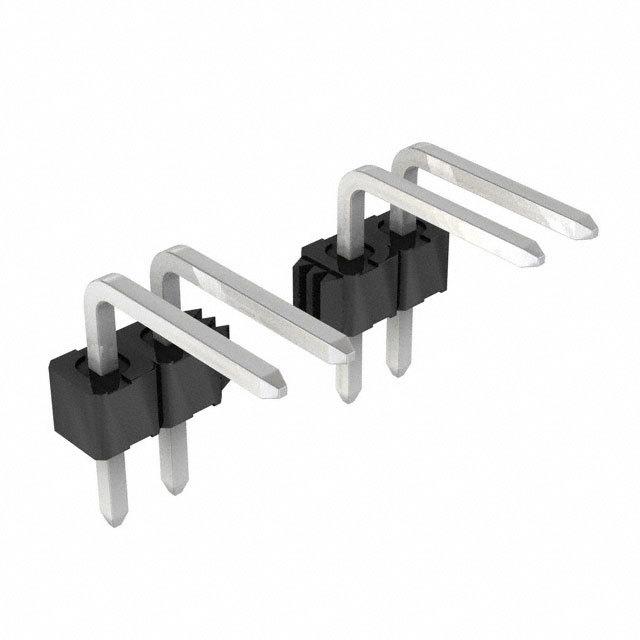

0022286050
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
8233 in stock
0022286060
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
100 in stock
0022286162
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
100 in stock
0022286220
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 22
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 22
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
1680 in stock
0022286283
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 28
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.405" (10.29mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 28
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.405" (10.29mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
100 in stock
0022286360
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
1788 in stock
0022286362
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 42376
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.361" (9.17mm)
Contact Length - Post : 0.120" (3.05mm)
Overall Contact Length : -
Insulation Height : 0.090" (2.29mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Contact Finish - Post : Tin
Contact Material : -
Insulation Material : Polyamide (PA), Nylon, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
1799 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
