0026481090
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41661
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.590" (14.99mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.890" (22.61mm)
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41661
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.590" (14.99mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.890" (22.61mm)
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
1050 in stock

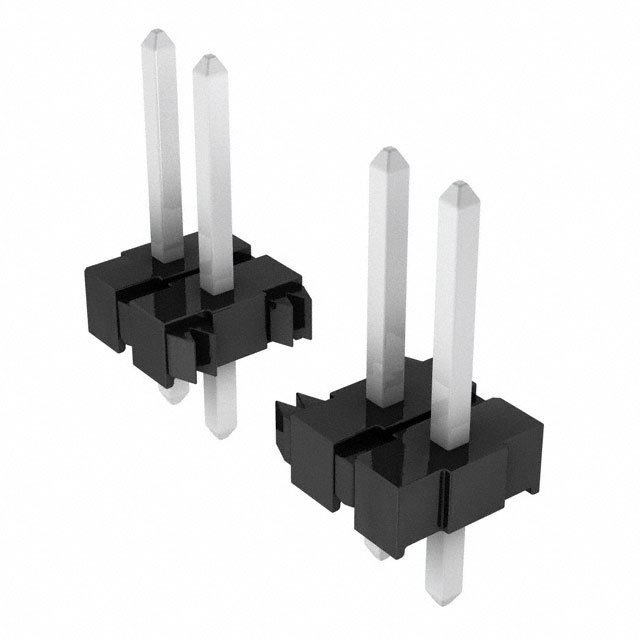

0026481091
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41661
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41661
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
2046 in stock
0026481095
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41671
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.500" (12.70mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41671
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.500" (12.70mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
1269 in stock

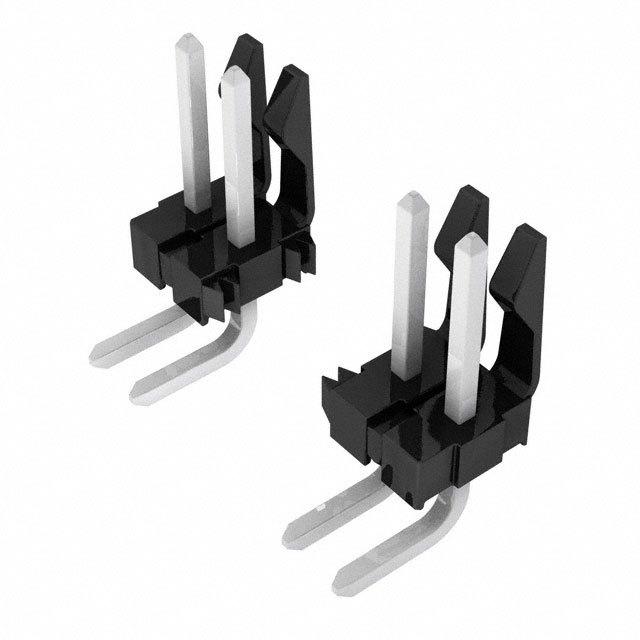

0026481096
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41672
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.212" (5.38mm)
Overall Contact Length : -
Insulation Height : 0.355" (9.02mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41672
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 9
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.212" (5.38mm)
Overall Contact Length : -
Insulation Height : 0.355" (9.02mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
1575 in stock
0026481100
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41661
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.590" (14.99mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.890" (22.61mm)
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41661
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.590" (14.99mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.890" (22.61mm)
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
182 in stock
0026481101
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41661
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41661
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
1152 in stock
0026481102
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41662
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.573" (14.55mm)
Contact Length - Post : 0.184" (4.67mm)
Overall Contact Length : -
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41662
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.573" (14.55mm)
Contact Length - Post : 0.184" (4.67mm)
Overall Contact Length : -
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
713 in stock
0026481103
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41681
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.360" (9.14mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41681
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.360" (9.14mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
1149 in stock
0026481105
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41671
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.500" (12.70mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41671
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.500" (12.70mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
1013 in stock
0026481106
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41672
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.212" (5.38mm)
Overall Contact Length : -
Insulation Height : 0.355" (9.02mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41672
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.212" (5.38mm)
Overall Contact Length : -
Insulation Height : 0.355" (9.02mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
305 in stock
0026481111
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41661
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 11
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41661
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 11
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.128" (3.25mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
1190 in stock
0026481113
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 41681
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 11
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.360" (9.14mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : KK 41681
Part Status : Active
Connector Type : Header, Breakaway
Contact Type : Male Pin
Pitch - Mating : 0.156" (3.96mm)
Number of Positions : 11
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.450" (11.43mm)
Contact Length - Post : 0.172" (4.37mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.360" (9.14mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyester, Glass Filled
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
0
185 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
