Rectangular Connectors - Headers, Receptacles, Female Sockets Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

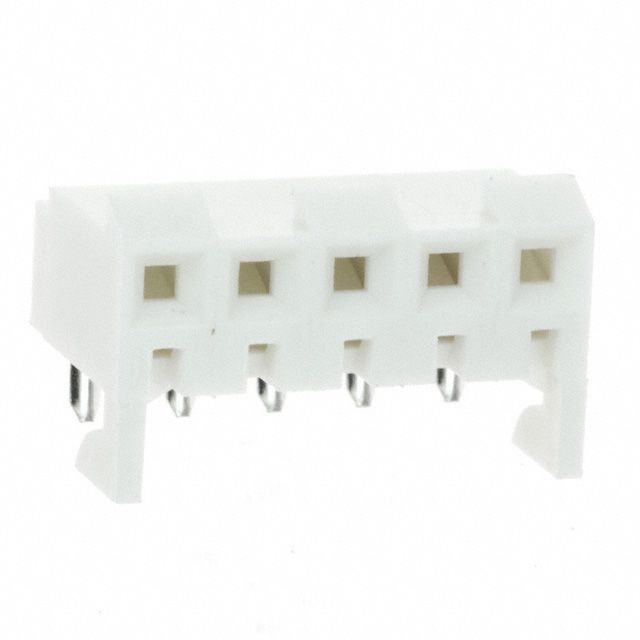

09-48-1054

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Insulation Color : Natural
Insulation Height : 0.308" (7.82mm)
Contact Length - Post : 0.145" (3.68mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 5A
Voltage Rating : 600V

100 in stock

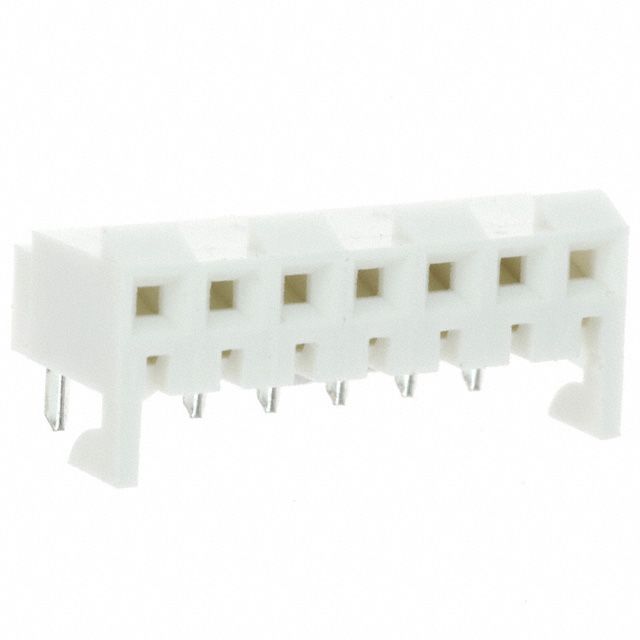

09-48-1074

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Insulation Color : Natural
Insulation Height : 0.308" (7.82mm)
Contact Length - Post : 0.145" (3.68mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 5A
Voltage Rating : 600V

175 in stock

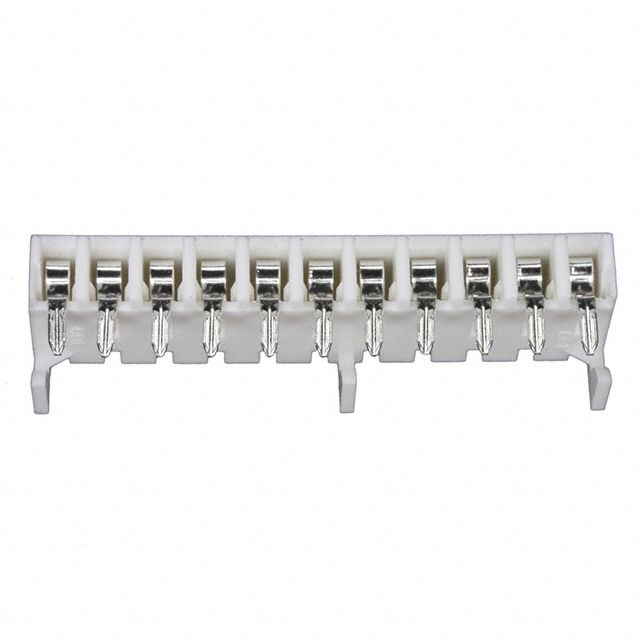

09-48-1114

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 11
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Insulation Color : Natural
Insulation Height : 0.308" (7.82mm)
Contact Length - Post : 0.145" (3.68mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 5A
Voltage Rating : 600V

20 in stock

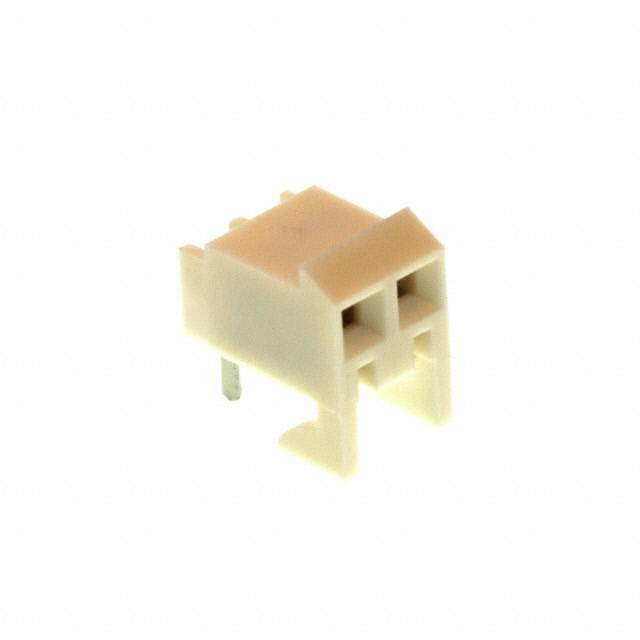

09-48-3025

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Natural
Insulation Height : 0.308" (7.82mm)
Contact Length - Post : 0.145" (3.68mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 4.5A
Voltage Rating : 600V

2606 in stock

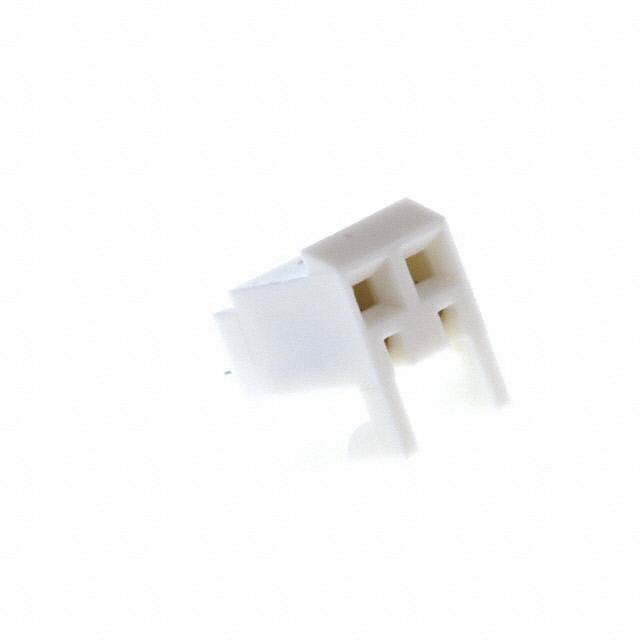

09-48-3026

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Natural
Insulation Height : 0.449" (11.40mm)
Contact Length - Post : 0.120" (3.05mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 4.5A
Voltage Rating : 600V

2207 in stock

09-48-3036

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Natural
Insulation Height : 0.449" (11.40mm)
Contact Length - Post : 0.120" (3.05mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 4.5A
Voltage Rating : 600V

141 in stock

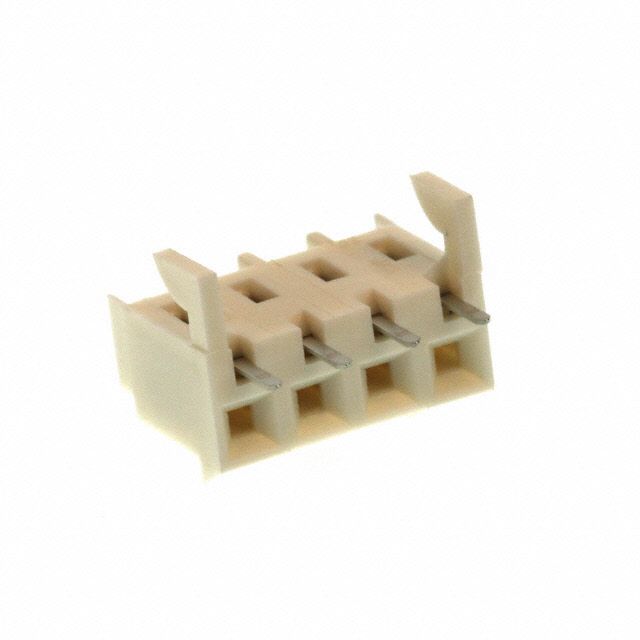

09-48-3044

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Natural
Insulation Height : 0.449" (11.40mm)
Contact Length - Post : 0.125" (3.18mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 4A
Voltage Rating : 600V

1455 in stock

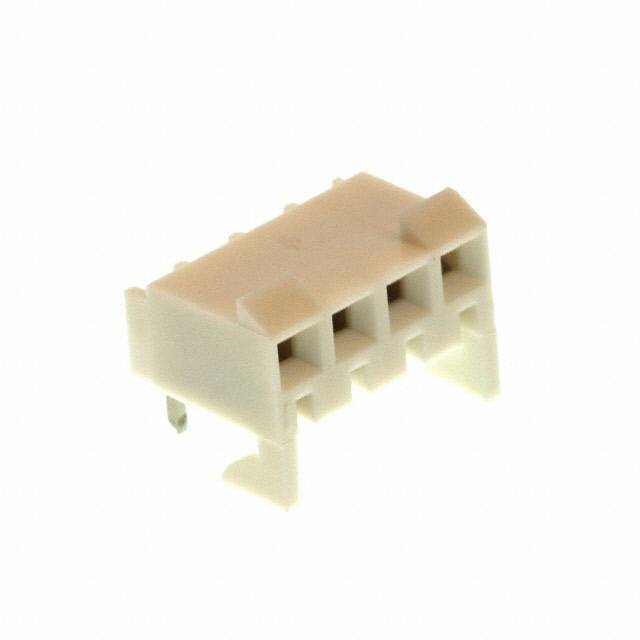

09-48-3045

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Natural
Insulation Height : 0.308" (7.82mm)
Contact Length - Post : 0.145" (3.68mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 4.5A
Voltage Rating : 600V

1592 in stock

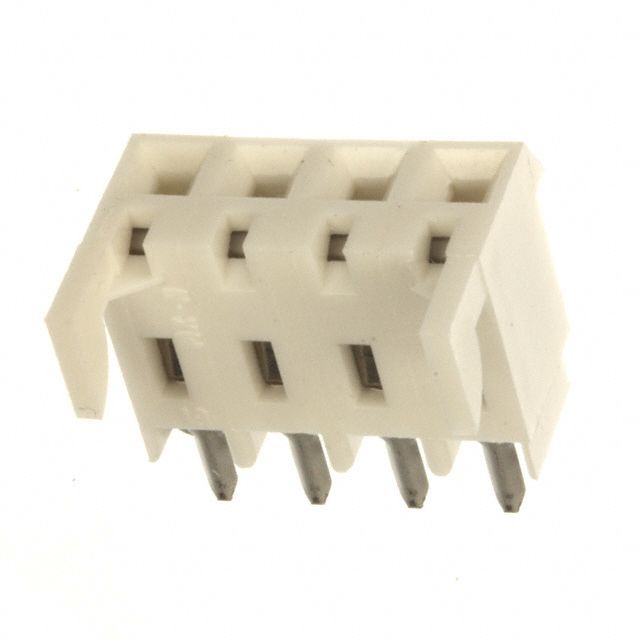

09-48-3046

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Natural
Insulation Height : 0.449" (11.40mm)
Contact Length - Post : 0.120" (3.05mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 4.5A
Voltage Rating : 600V

1401 in stock

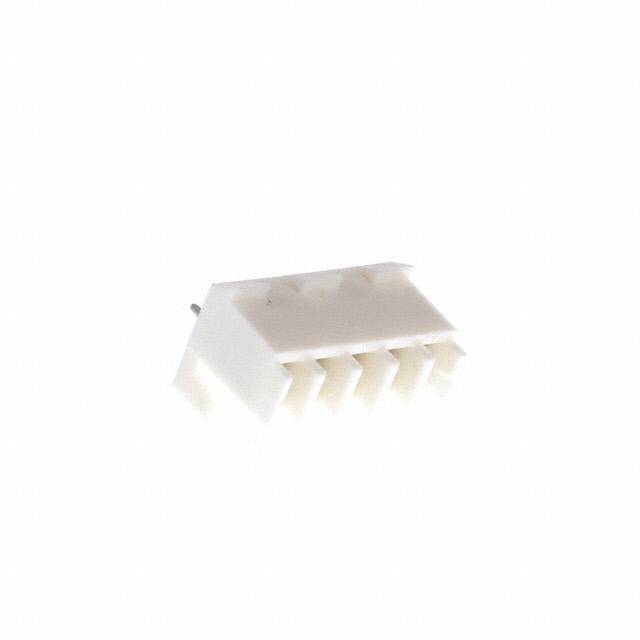

09-48-3054

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Natural
Insulation Height : 0.449" (11.40mm)
Contact Length - Post : 0.125" (3.18mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 4A
Voltage Rating : 600V

28 in stock

09-48-3056

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Natural
Insulation Height : 0.449" (11.40mm)
Contact Length - Post : 0.120" (3.05mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 4.5A
Voltage Rating : 600V

2461 in stock

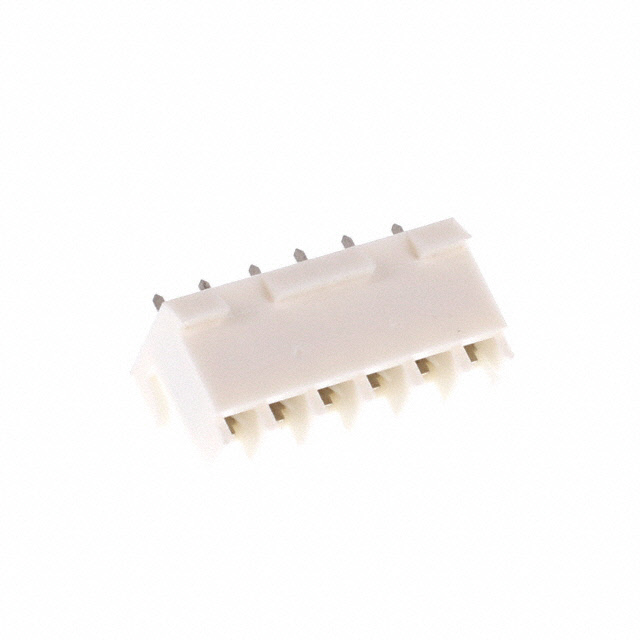

09-48-3064

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 41815
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.156" (3.96mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Natural
Insulation Height : 0.449" (11.40mm)
Contact Length - Post : 0.125" (3.18mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 4A
Voltage Rating : 600V

86 in stock
