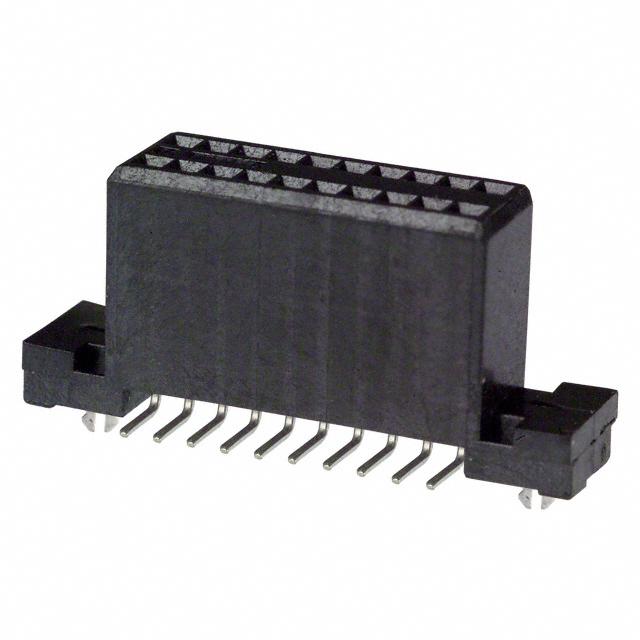

104550-2
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU System 50
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.370" (9.40mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 11.94mm, 13.08mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 30VAC
Packaging : Tube
Series : AMPMODU System 50
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.370" (9.40mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 11.94mm, 13.08mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 30VAC
0
1047 in stock

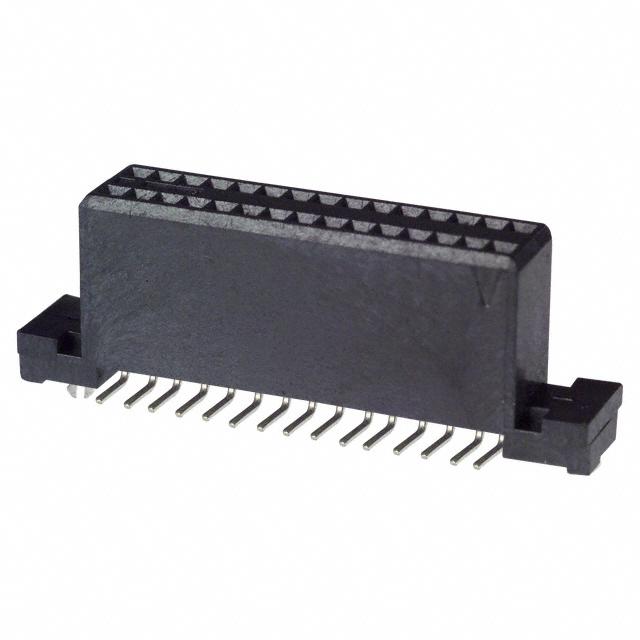

104550-4
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU System 50
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 30
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.370" (9.40mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 11.94mm, 13.08mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 30VAC
Packaging : Tube
Series : AMPMODU System 50
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 30
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.370" (9.40mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 11.94mm, 13.08mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 30VAC
0
753 in stock

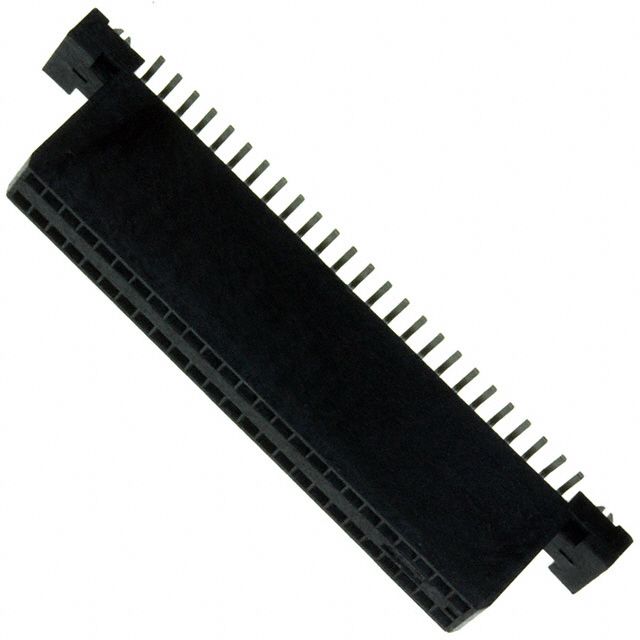

104550-6
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU System 50
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.370" (9.40mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 11.94mm, 13.08mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 30VAC
Packaging : Tube
Series : AMPMODU System 50
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.370" (9.40mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 11.94mm, 13.08mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 30VAC
0
30 in stock

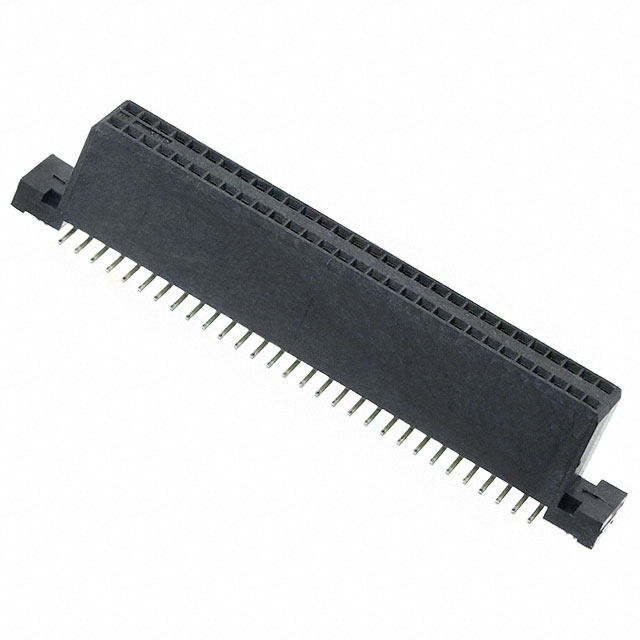

104550-7
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU System 50
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 60
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.370" (9.40mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 11.94mm, 13.08mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 30VAC
Packaging : Tube
Series : AMPMODU System 50
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 60
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.370" (9.40mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 11.94mm, 13.08mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 30VAC
0
914 in stock

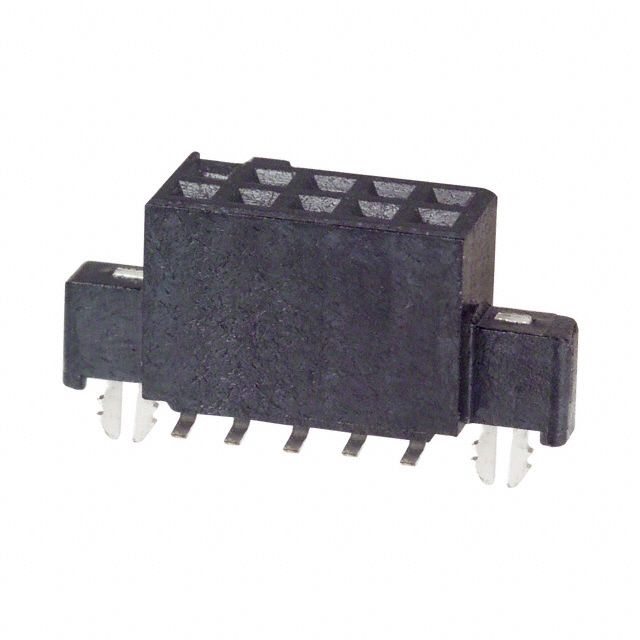

104652-1
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
0
62 in stock

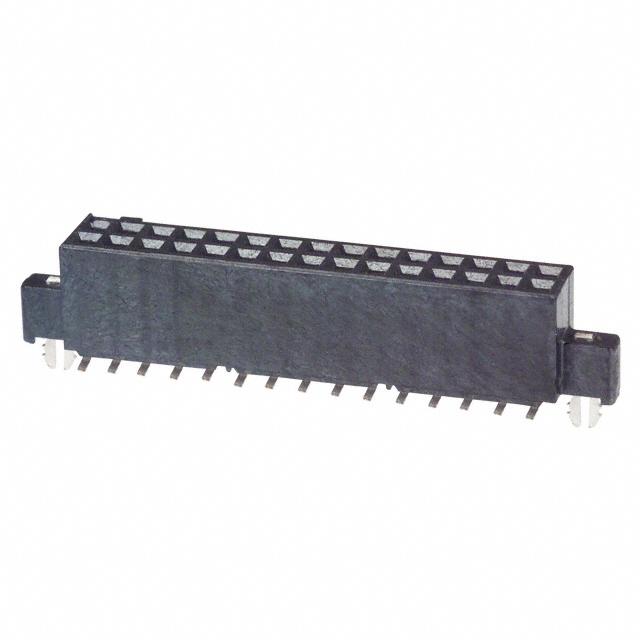

104652-3
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 30
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 30
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
0
43 in stock

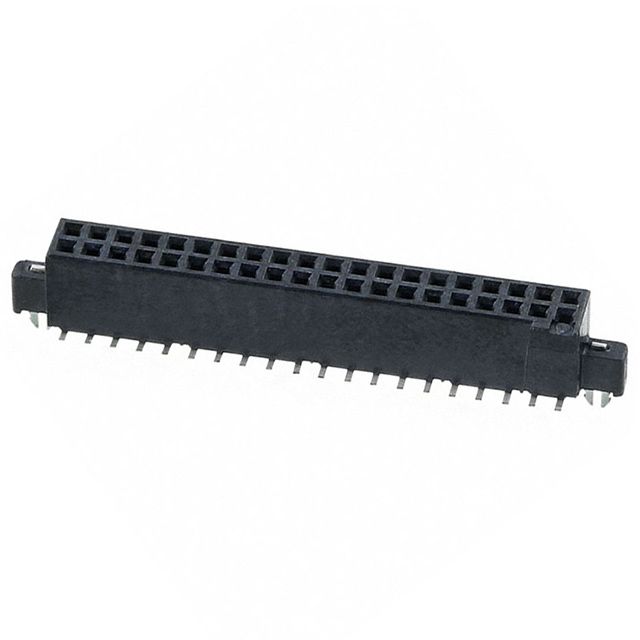

104652-4
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 40
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 40
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
0
291 in stock
104652-5
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
0
95 in stock
104652-6
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 60
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 60
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
0
77 in stock
104652-7
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 70
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 70
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
0
121 in stock
104652-8
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 80
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 80
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -65°C ~ 105°C
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : 6.35mm, 8.13mm, 9.91mm
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
0
121 in stock
104786-6
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 60
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
Packaging : Tube
Series : AMPMODU 50/50 Grid
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 60
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.187" (4.75mm)
Contact Length - Post : -
Operating Temperature : -
Material Flammability Rating : -
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : -
0
1231 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
