Part Number
Manufacturer
Description
Unit Price
In Stock
SSQ-107-01-G-S
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
281 in stock

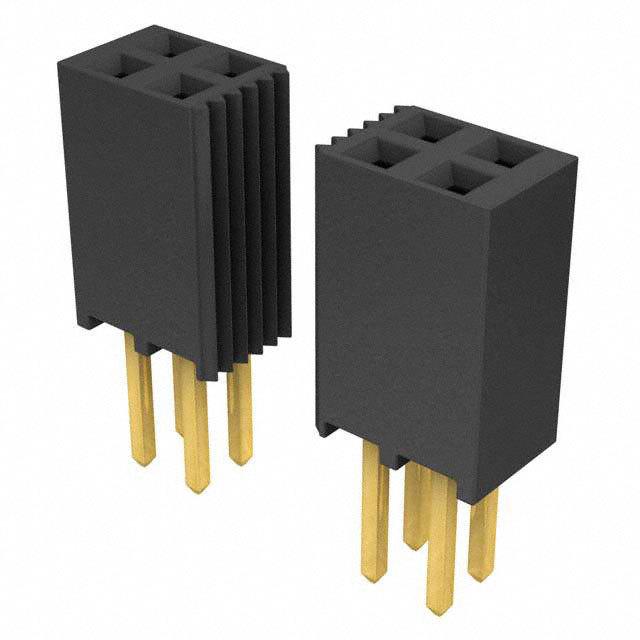

SSQ-107-02-G-D
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.194" (4.93mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.194" (4.93mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
165 in stock

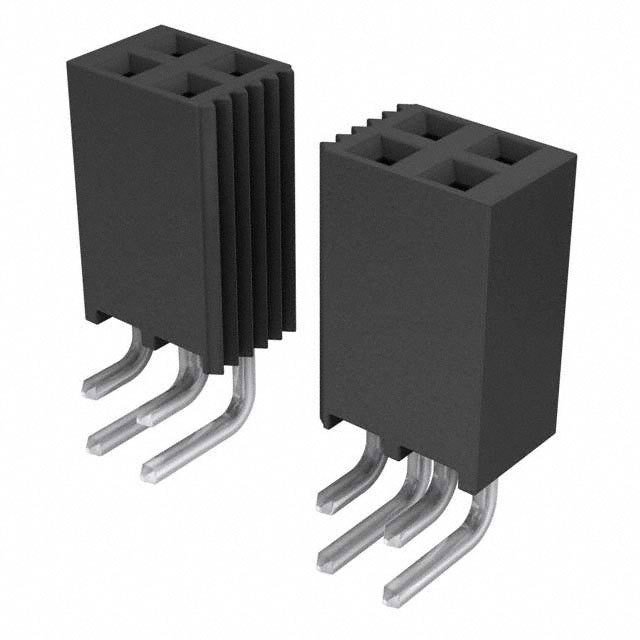

SSQ-107-02-T-D-RA
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.195" (4.95mm)
Contact Length - Post : 0.100" (2.54mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.195" (4.95mm)
Contact Length - Post : 0.100" (2.54mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
139 in stock

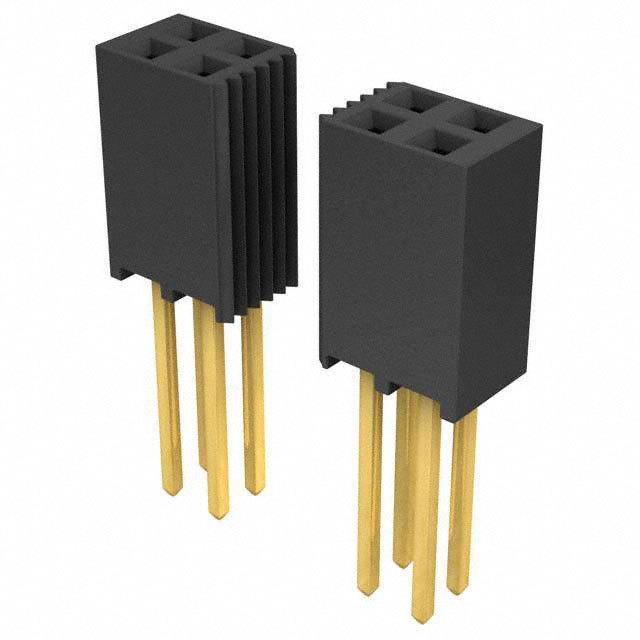

SSQ-107-03-G-D
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.394" (10.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.394" (10.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
1445 in stock
SSQ-107-03-T-D
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.394" (10.00mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.394" (10.00mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
176 in stock

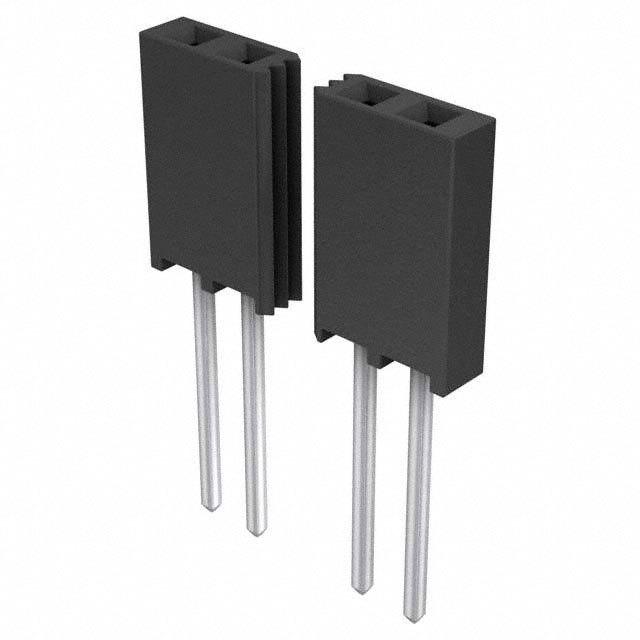

SSQ-107-03-T-S
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.394" (10.00mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.394" (10.00mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
364 in stock

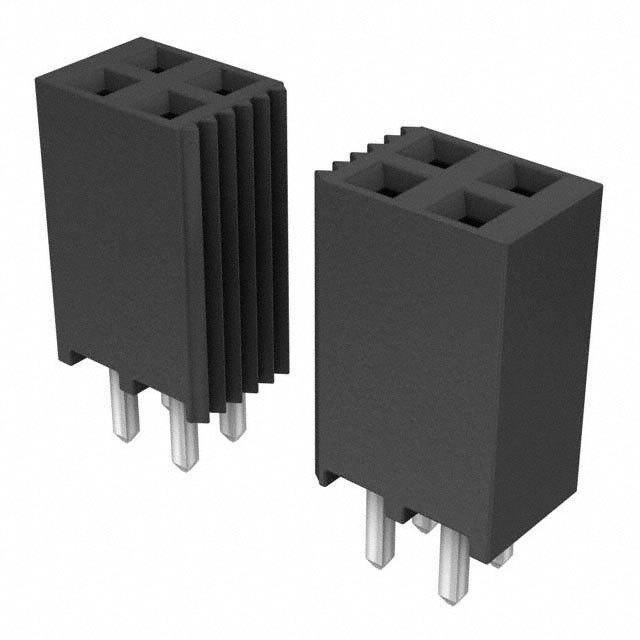

SSQ-108-01-F-D
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
485 in stock
SSQ-108-01-F-S
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
166 in stock
SSQ-108-01-G-D
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
137 in stock
SSQ-108-01-G-S
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
457 in stock
SSQ-108-01-S-S
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
591 in stock
SSQ-108-01-T-D
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
Packaging : Bulk
Series : SSQ
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 6.3A per Contact
Voltage Rating : 550VAC
0
1275 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
