Rectangular Connectors - Headers, Receptacles, Female Sockets Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

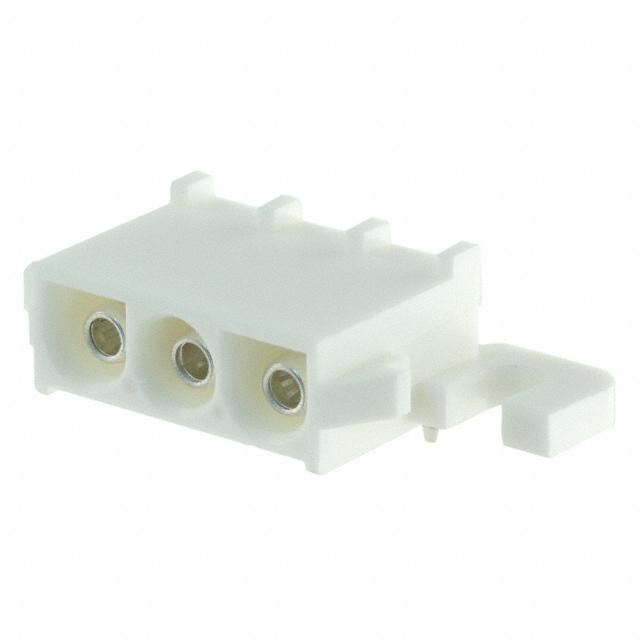

193839-2

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : Universal MATE-N-LOK
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Cable/Wire
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.250" (6.35mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Silver
Contact Finish Thickness - Mating : 200.0µin (5.08µm)
Insulation Color : Natural
Insulation Height : 0.680" (17.27mm)
Contact Length - Post : 0.160" (4.06mm)
Operating Temperature : -
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : -
Ingress Protection : -
Features : Mounting Flange
Current Rating : -
Voltage Rating : -

798 in stock

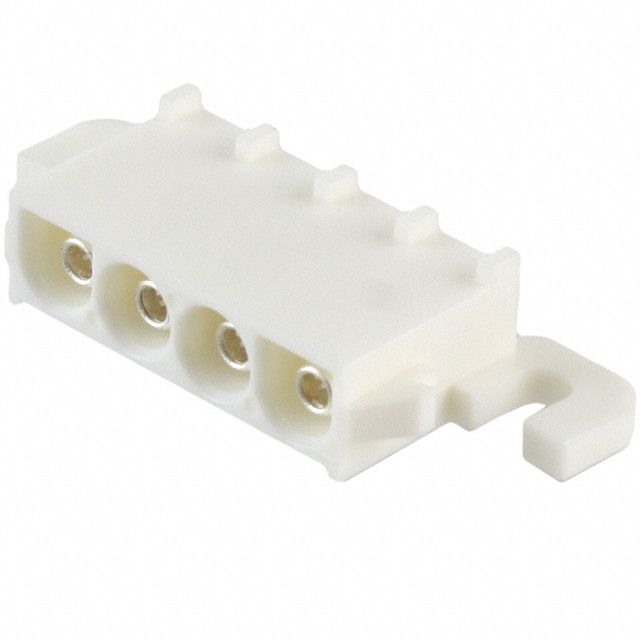

193839-3

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : Universal MATE-N-LOK
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Cable/Wire
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.250" (6.35mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Silver
Contact Finish Thickness - Mating : 200.0µin (5.08µm)
Insulation Color : Natural
Insulation Height : 0.680" (17.27mm)
Contact Length - Post : 0.160" (4.06mm)
Operating Temperature : -
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : -
Ingress Protection : -
Features : Mounting Flange
Current Rating : -
Voltage Rating : -

592 in stock

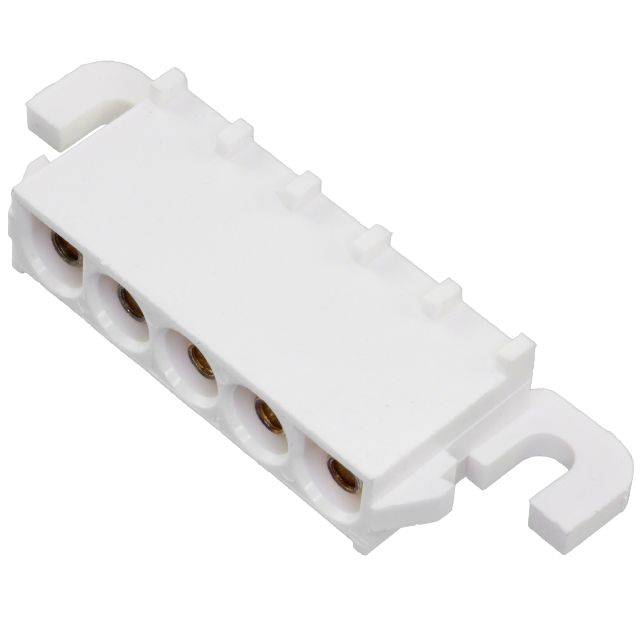

193839-4

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : Universal MATE-N-LOK
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Cable/Wire
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.250" (6.35mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Locking Ramp
Contact Finish - Mating : Silver
Contact Finish Thickness - Mating : 200.0µin (5.08µm)
Insulation Color : Natural
Insulation Height : 0.680" (17.27mm)
Contact Length - Post : 0.160" (4.06mm)
Operating Temperature : -
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : -
Ingress Protection : -
Features : Mounting Flange
Current Rating : -
Voltage Rating : -

51 in stock

1-969973-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AMPMODU HV-100
Part Status : Active
Connector Type : Receptacle, Bottom or Top Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 31.5µin (0.80µm)
Insulation Color : Black
Insulation Height : 0.244" (6.20mm)
Contact Length - Post : -
Operating Temperature : -
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

350 in stock

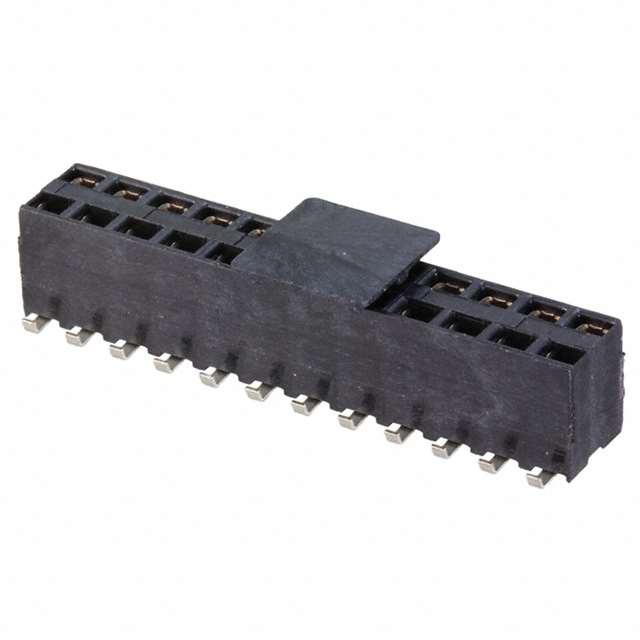

1-969973-2

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AMPMODU HV-100
Part Status : Active
Connector Type : Receptacle, Bottom or Top Entry
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 24
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 31.5µin (0.80µm)
Insulation Color : Black
Insulation Height : 0.244" (6.20mm)
Contact Length - Post : -
Operating Temperature : -
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

104 in stock

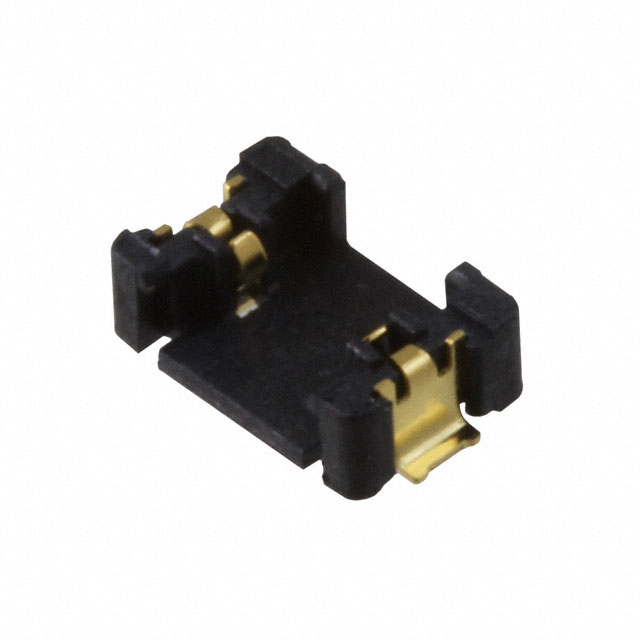

1981813-1

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Micro SLP
Part Status : Active
Connector Type : Receptacle
Contact Type : Outer Shroud Contact
Style : Board to Cable/Wire
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.031" (0.80mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Detent Lock
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 12.0µin (0.30µm)
Insulation Color : Black
Insulation Height : 0.055" (1.40mm)
Contact Length - Post : -
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Solder Retention
Current Rating : 0.5A
Voltage Rating : 30V

16018 in stock

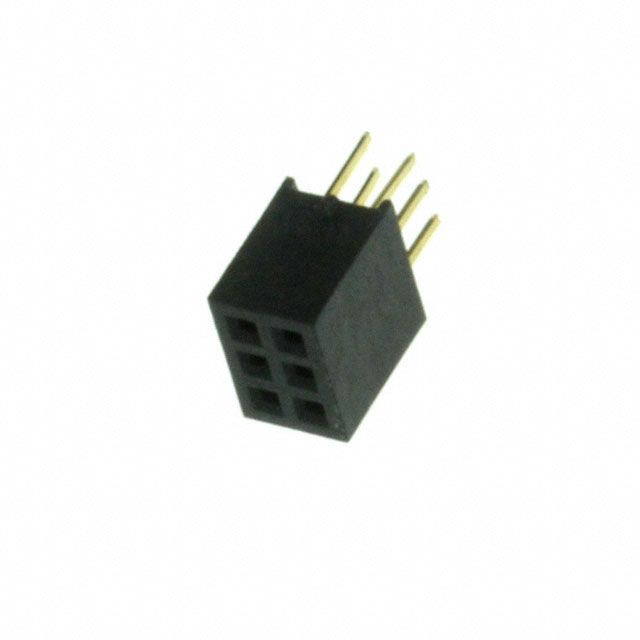

20021311-00006T4LF

Amphenol Information Communication & Commercial

Manufacturer : Amphenol FCI
Packaging : Tube
Series : Minitek 127® 20021311
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.173" (4.40mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

958 in stock

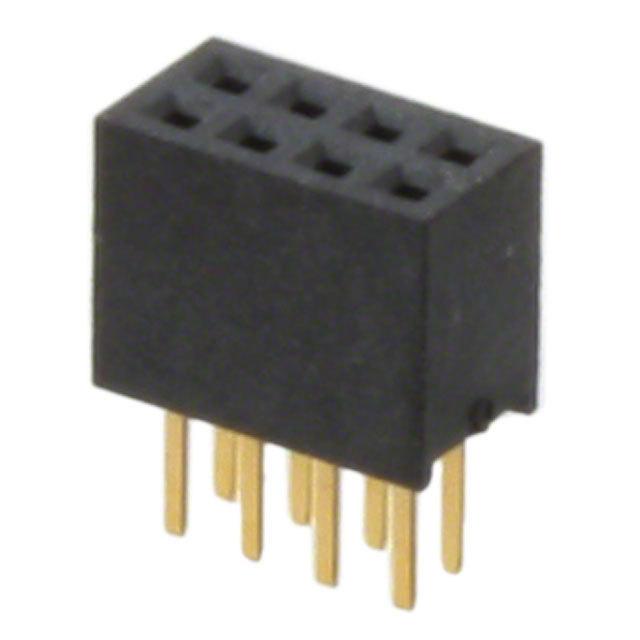

20021311-00008T4LF

Amphenol Information Communication & Commercial

Manufacturer : Amphenol FCI
Packaging : Tube
Series : Minitek 127® 20021311
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.173" (4.40mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

22276 in stock

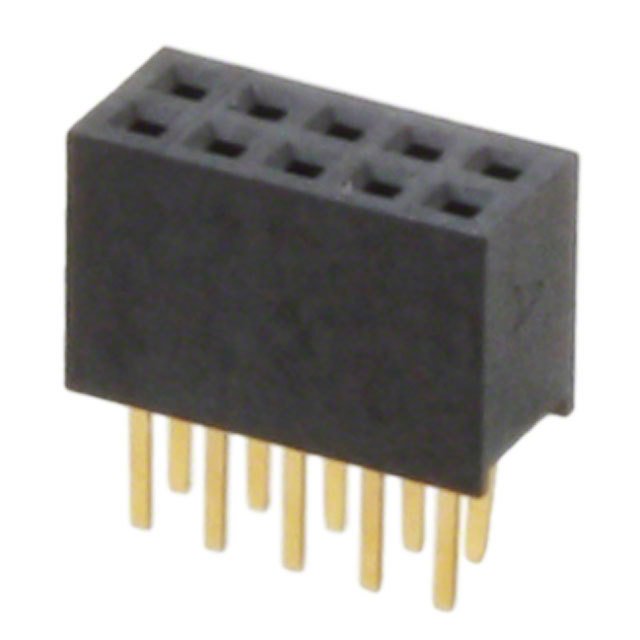

20021311-00010T4LF

Amphenol Information Communication & Commercial

Manufacturer : Amphenol FCI
Packaging : Tube
Series : Minitek 127® 20021311
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.173" (4.40mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

21699 in stock

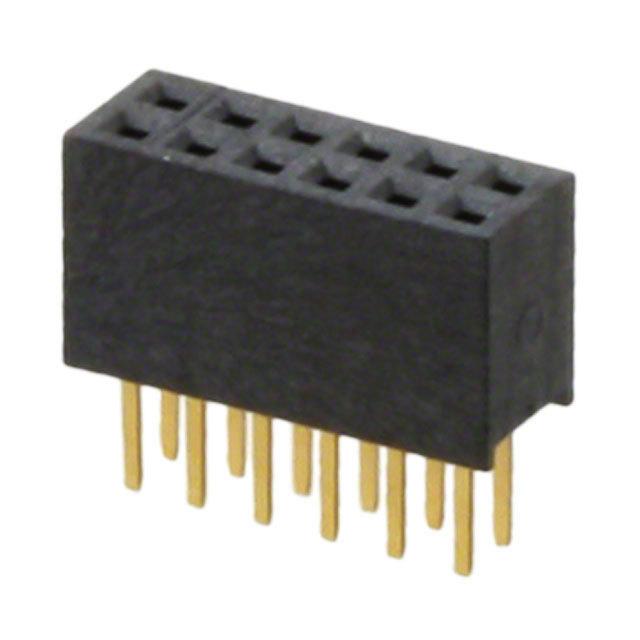

20021311-00012T4LF

Amphenol Information Communication & Commercial

Manufacturer : Amphenol FCI
Packaging : Tube
Series : Minitek 127® 20021311
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.173" (4.40mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

3264 in stock

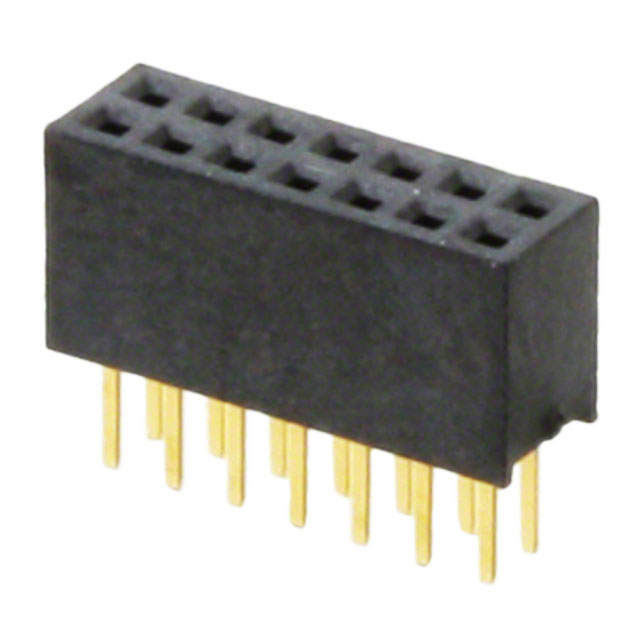

20021311-00014T4LF

Amphenol Information Communication & Commercial

Manufacturer : Amphenol FCI
Packaging : Tube
Series : Minitek 127® 20021311
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.173" (4.40mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

1598 in stock

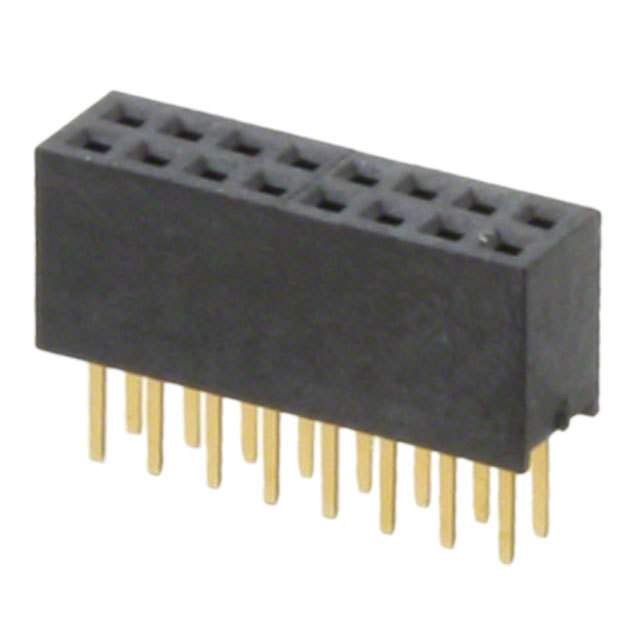

20021311-00016T4LF

Amphenol Information Communication & Commercial

Manufacturer : Amphenol FCI
Packaging : Tube
Series : Minitek 127® 20021311
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.050" (1.27mm)
Number of Rows : 2
Row Spacing - Mating : 0.050" (1.27mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.173" (4.40mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

1133 in stock
