Rectangular Connectors - Headers, Receptacles, Female Sockets Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

SSW-113-01-G-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 13
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

2021 in stock

SSW-113-01-T-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 13
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

607 in stock

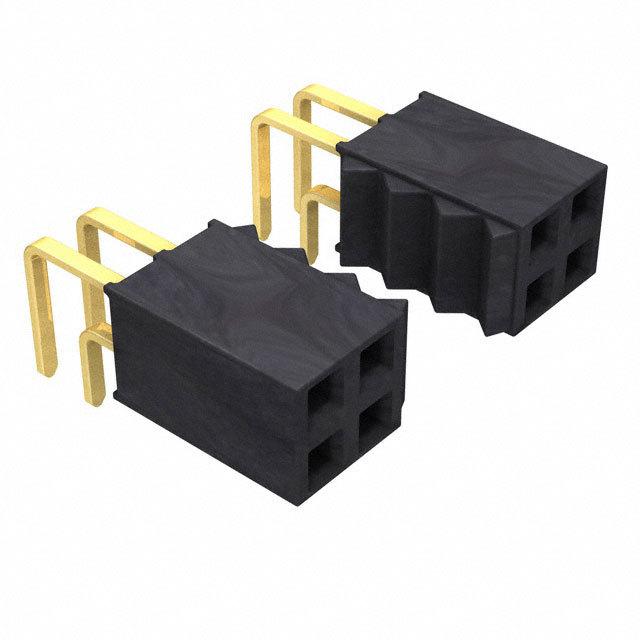

SSW-113-02-G-D-RA

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 26
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.195" (4.95mm)
Contact Length - Post : 0.100" (2.54mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

2503 in stock

SSW-114-01-G-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 28
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

253 in stock

SSW-114-01-G-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

291 in stock

SSW-114-02-G-D-RA

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 28
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.195" (4.95mm)
Contact Length - Post : 0.100" (2.54mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

266 in stock

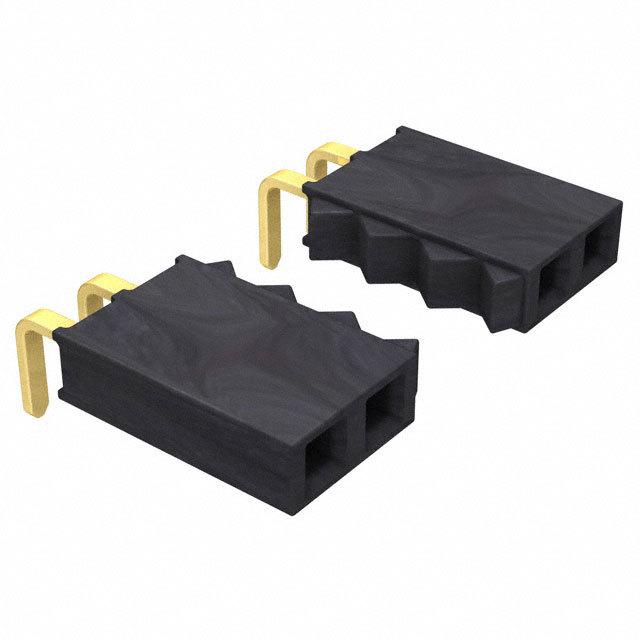

SSW-114-02-G-S-RA

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.095" (2.41mm)
Contact Length - Post : 0.100" (2.54mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

158 in stock

SSW-115-01-F-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 30
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

103 in stock

SSW-115-01-T-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 15
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

154 in stock

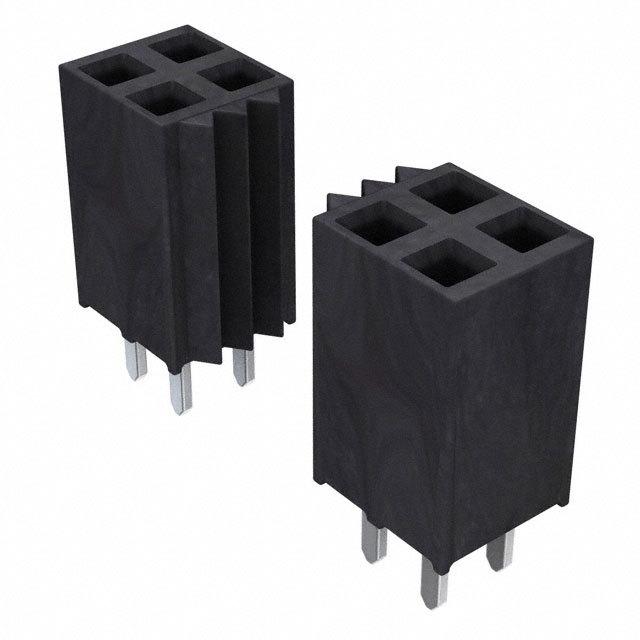

SSW-116-01-F-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 32
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

72 in stock

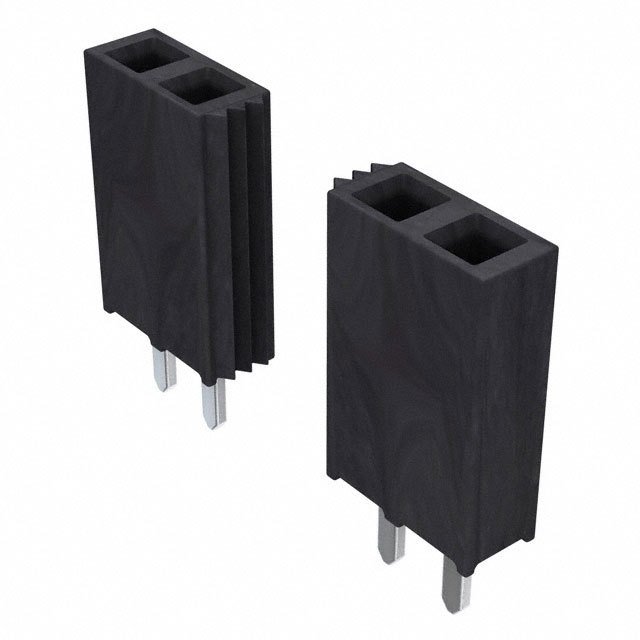

SSW-116-01-F-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

124 in stock

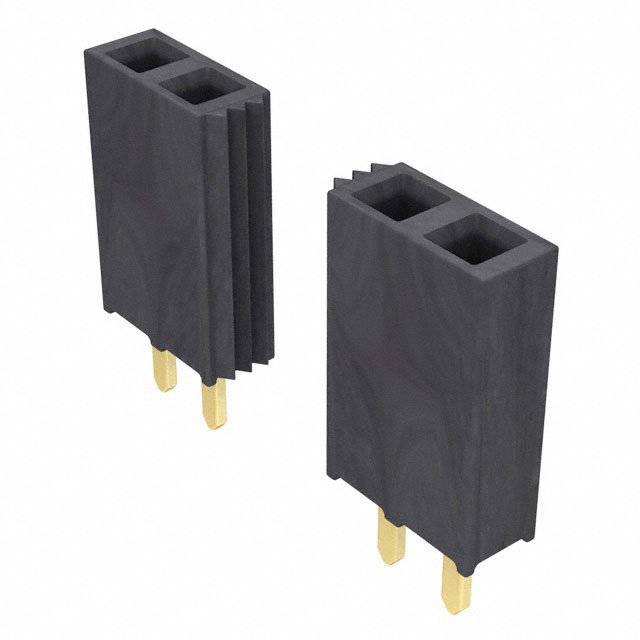

SSW-116-01-G-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

338 in stock
