Rectangular Connectors - Headers, Receptacles, Female Sockets Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

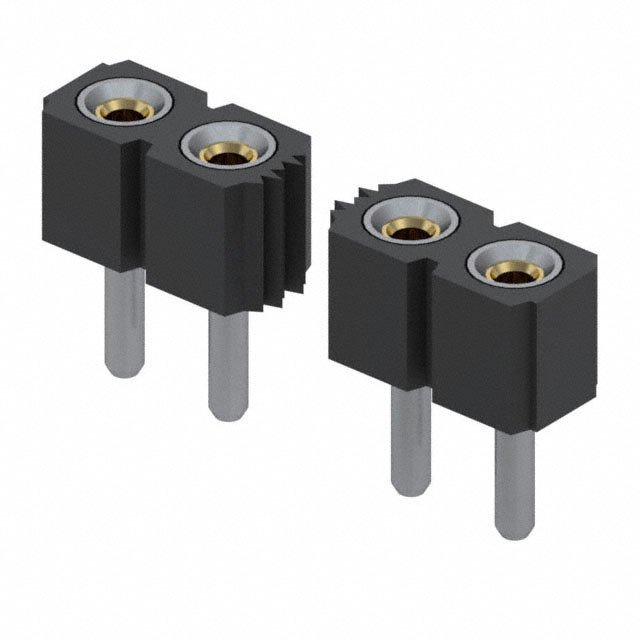

315-93-104-41-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 315
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.110" (2.79mm)
Contact Length - Post : 0.108" (2.75mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 100V, 150VDC

195 in stock

315-93-104-41-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 315
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.071" (1.80mm)
Contact Length - Post : 0.095" (2.41mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 100V, 150VDC

454 in stock

315-93-108-41-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 315
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.071" (1.80mm)
Contact Length - Post : 0.095" (2.41mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 100V, 150VDC

238 in stock

315-93-112-41-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 315
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.071" (1.80mm)
Contact Length - Post : 0.095" (2.41mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 100V, 150VDC

447 in stock

315-93-164-41-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 315
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 64
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.110" (2.79mm)
Contact Length - Post : 0.108" (2.75mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin-Lead
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 100V, 150VDC

580 in stock

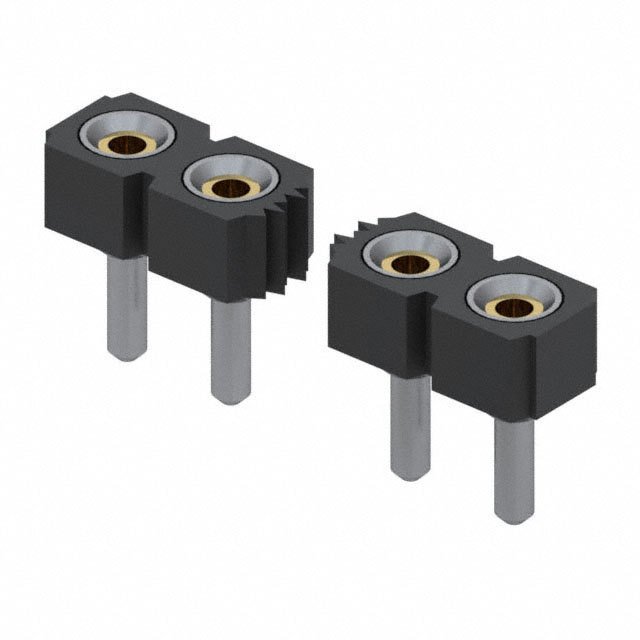

315-93-164-41-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 315
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 64
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.071" (1.80mm)
Contact Length - Post : 0.095" (2.41mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : 100V, 150VDC

1683 in stock

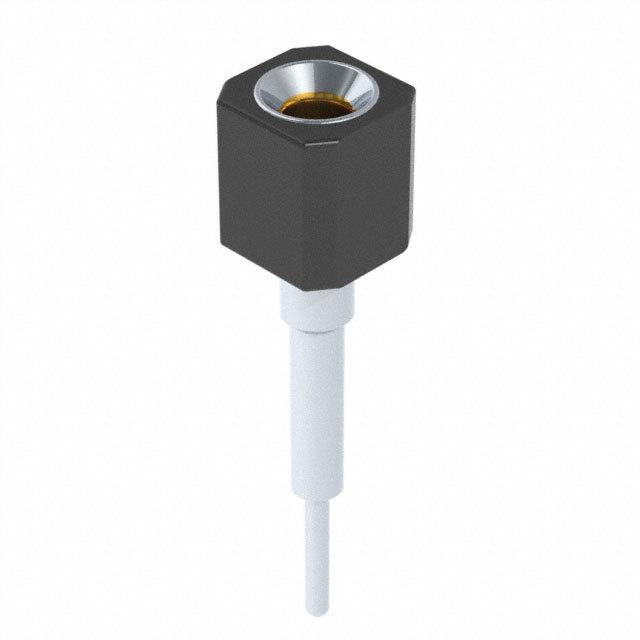

316-43-101-41-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 316
Part Status : Active
Connector Type : Elevated Socket
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 1
Number of Positions Loaded : All
Pitch - Mating : -
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.315" (8.00mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

101 in stock

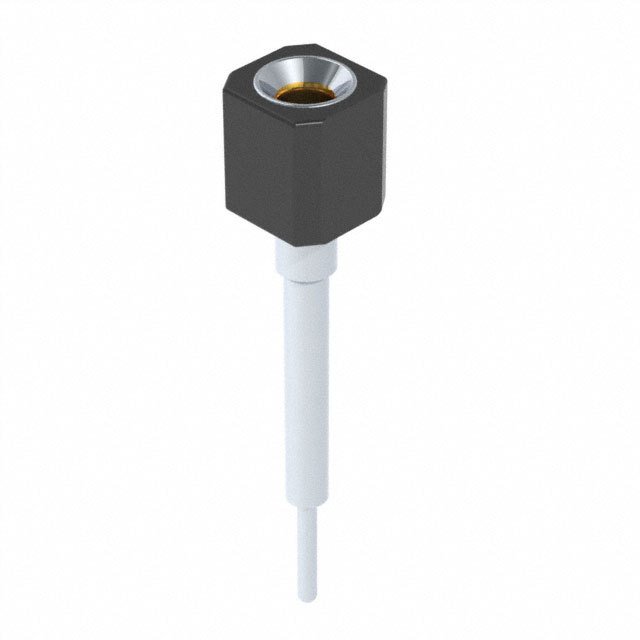

316-43-101-41-007000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 316
Part Status : Active
Connector Type : Elevated Socket
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 1
Number of Positions Loaded : All
Pitch - Mating : -
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.402" (10.20mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

304 in stock

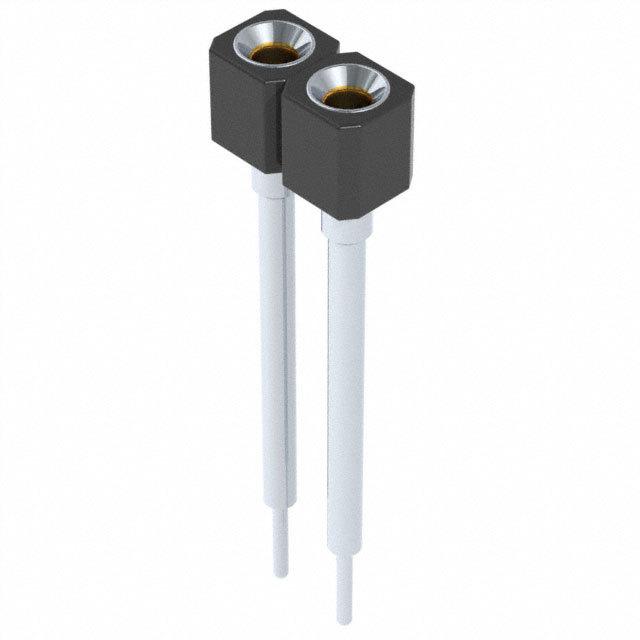

316-43-102-41-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 316
Part Status : Active
Connector Type : Elevated Socket
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.594" (15.09mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

102 in stock

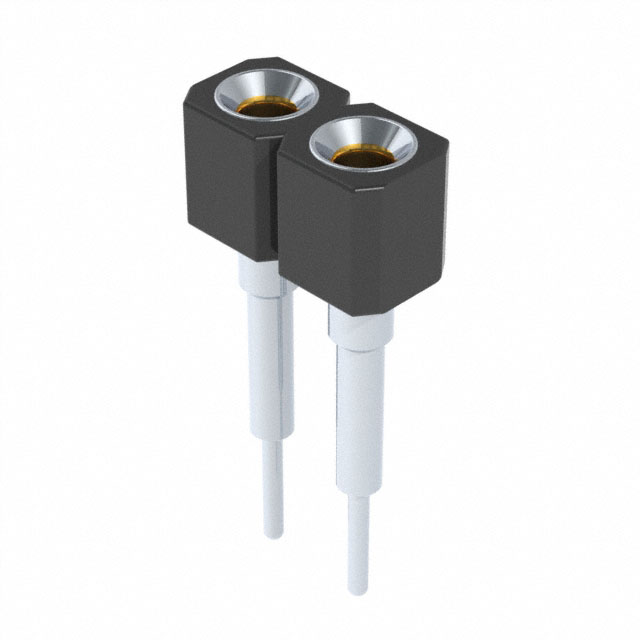

316-43-102-41-003000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 316
Part Status : Active
Connector Type : Elevated Socket
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.315" (8.00mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

195 in stock

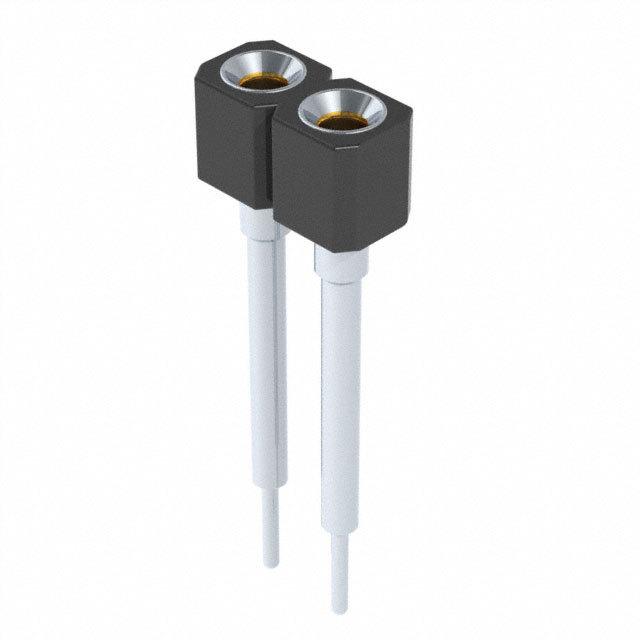

316-43-102-41-008000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 316
Part Status : Active
Connector Type : Elevated Socket
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.472" (12.00mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

115 in stock

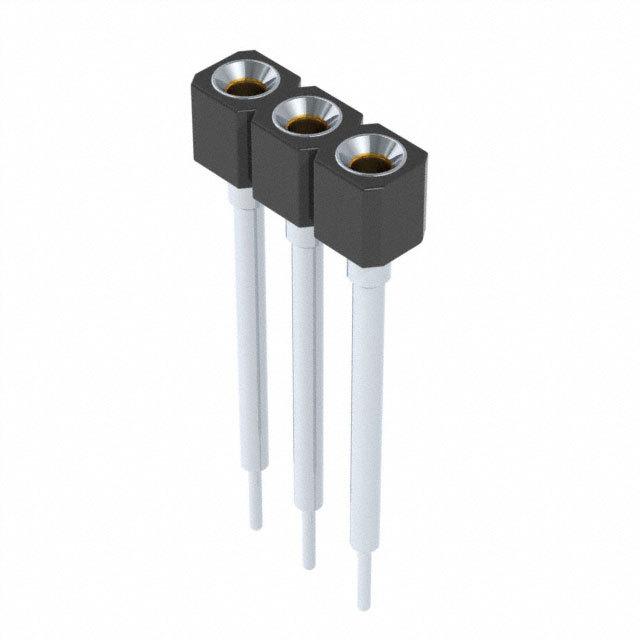

316-43-103-41-001000

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 316
Part Status : Active
Connector Type : Elevated Socket
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.594" (15.09mm)
Contact Length - Post : 0.118" (3.00mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 3A
Voltage Rating : -

101 in stock
