Part Number
Manufacturer
Description
Unit Price
In Stock

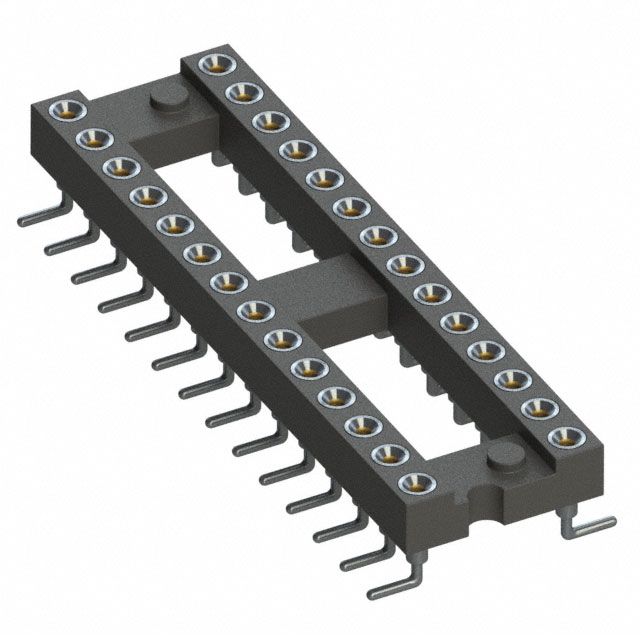

110-47-328-41-105000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Surface Mount
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Surface Mount
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
481 in stock

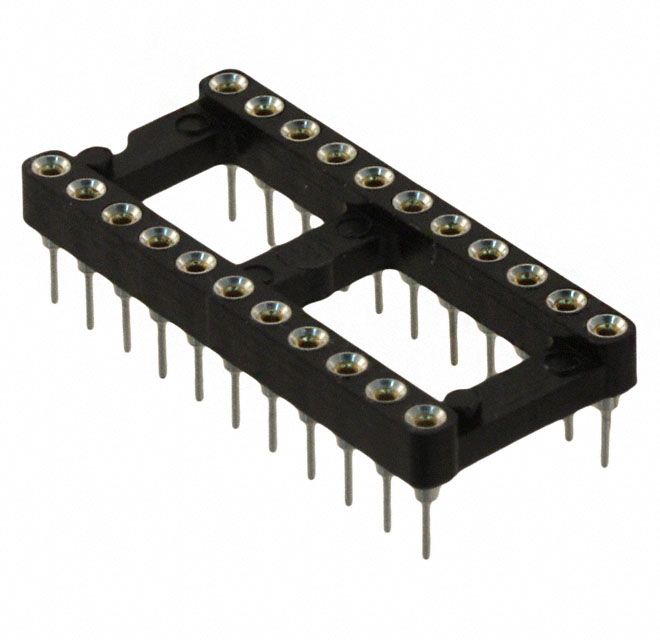

110-47-422-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.4" (10.16mm) Row Spacing
Number of Positions or Pins (Grid) : 22 (2 x 11)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.4" (10.16mm) Row Spacing
Number of Positions or Pins (Grid) : 22 (2 x 11)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
924 in stock

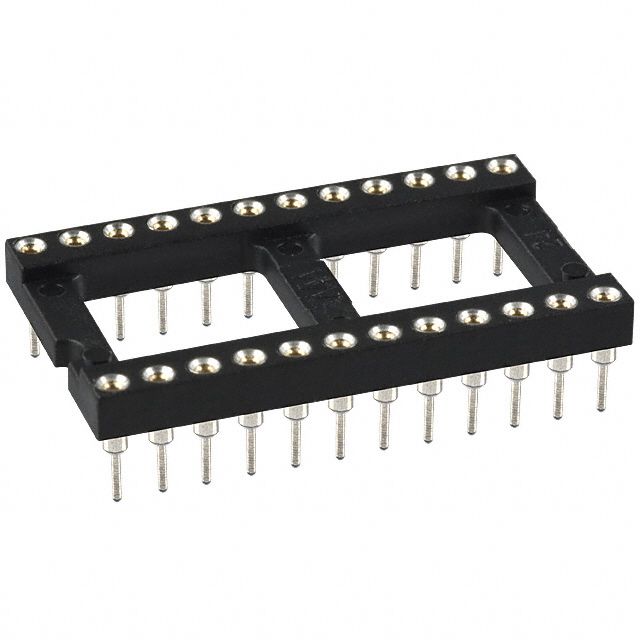

110-47-624-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
1023 in stock

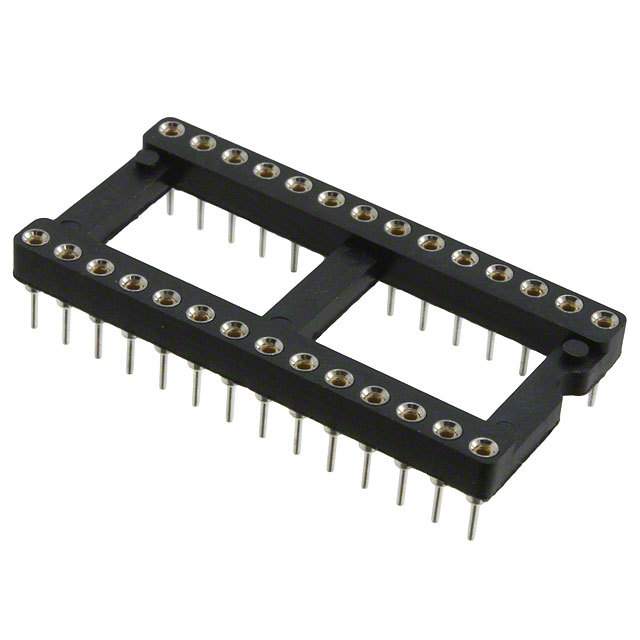

110-47-628-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
901 in stock

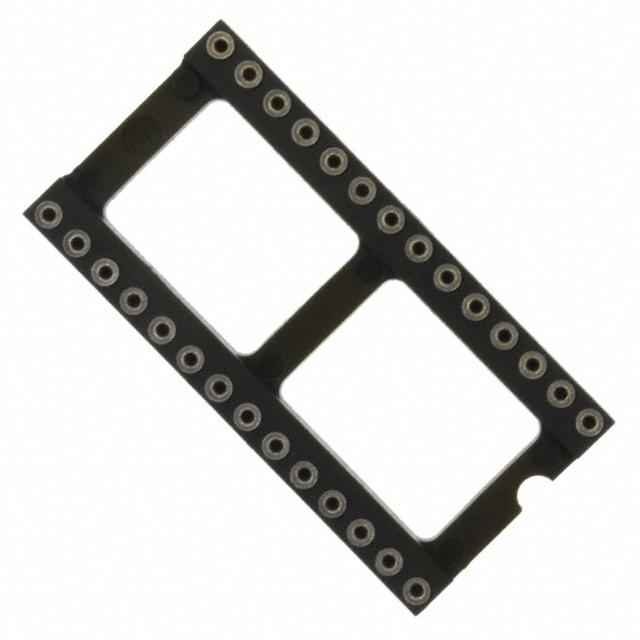

110-47-628-41-605000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
140 in stock

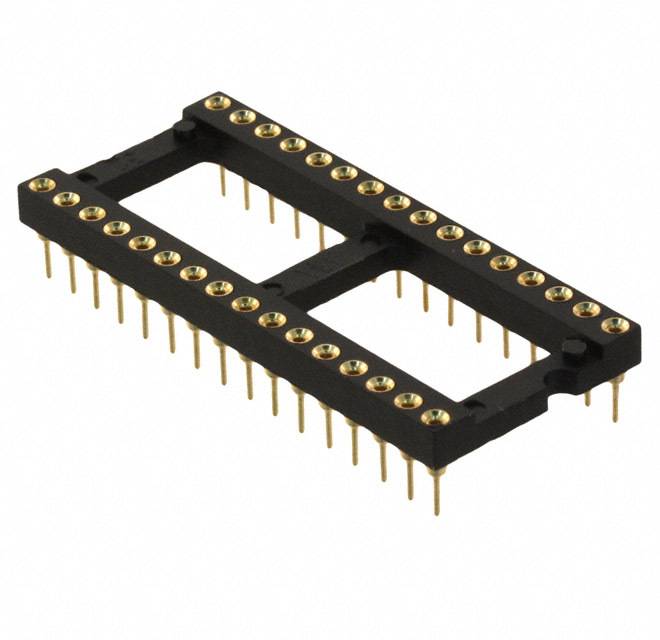

110-47-632-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 32 (2 x 16)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 32 (2 x 16)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
821 in stock

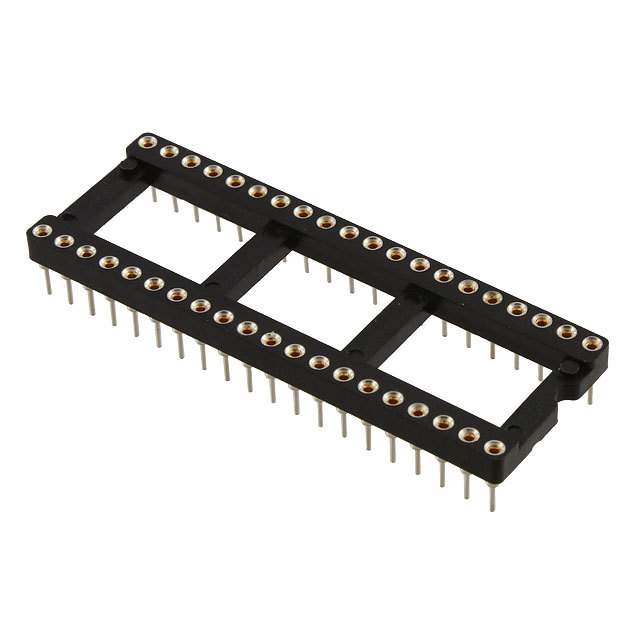

110-47-640-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 40 (2 x 20)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 40 (2 x 20)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
665 in stock

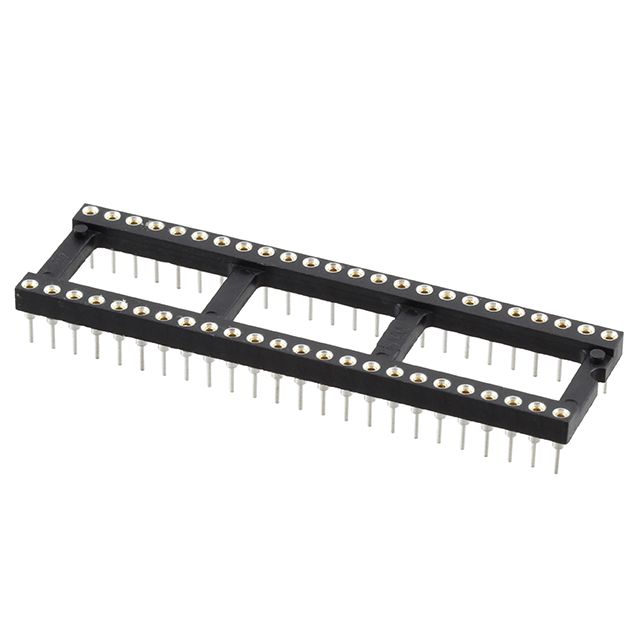

110-47-648-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 48 (1 x 24)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 48 (1 x 24)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
85 in stock
110-47-950-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.9" (22.86mm) Row Spacing
Number of Positions or Pins (Grid) : 50 (2 x 25)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.9" (22.86mm) Row Spacing
Number of Positions or Pins (Grid) : 50 (2 x 25)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
62 in stock
110-47-964-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.9" (22.86mm) Row Spacing
Number of Positions or Pins (Grid) : 64 (2 x 32)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.9" (22.86mm) Row Spacing
Number of Positions or Pins (Grid) : 64 (2 x 32)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
297 in stock
110-83-308-41-530000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 8 (2 x 4)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 300.0µin (7.62µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 8 (2 x 4)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 300.0µin (7.62µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
22 in stock
110-83-314-41-530000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 14 (2 x 7)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 300.0µin (7.62µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 110
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 14 (2 x 7)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 300.0µin (7.62µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
46 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
