Part Number
Manufacturer
Description
Unit Price
In Stock

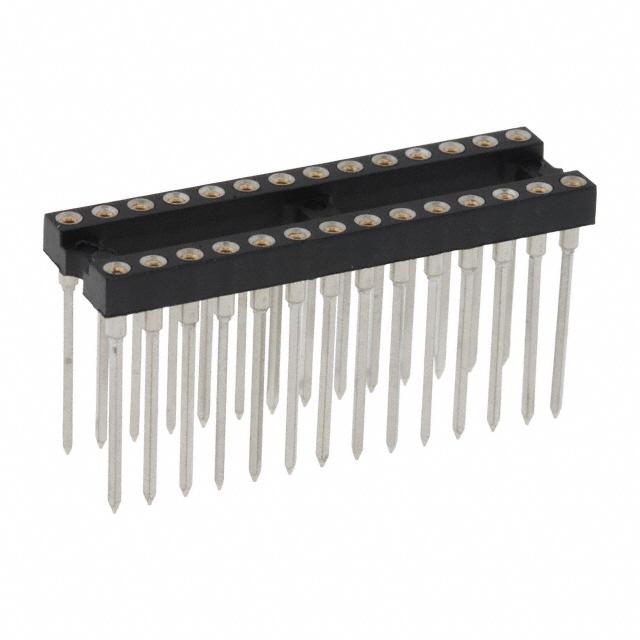

123-47-628-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
79 in stock

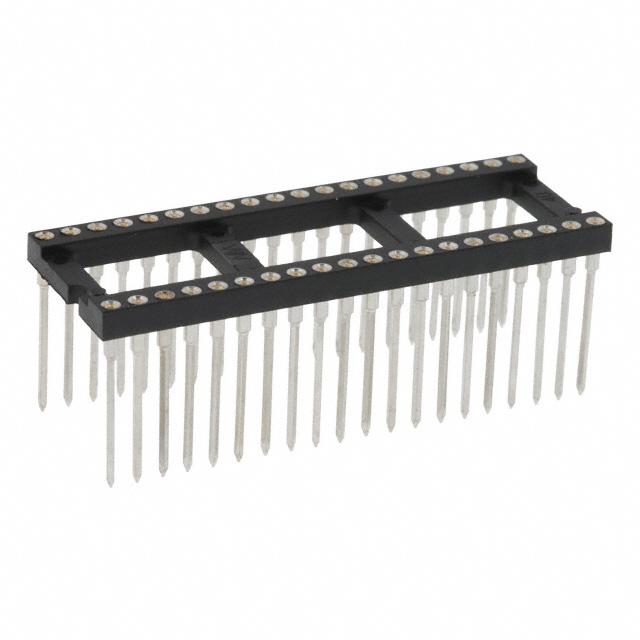

123-47-640-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 40 (2 x 20)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 40 (2 x 20)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
60 in stock

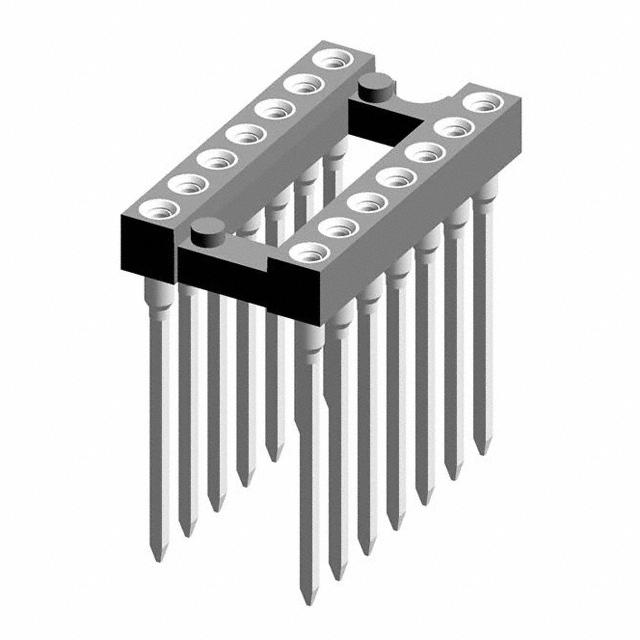

123-87-314-41-001101
Preci-Dip
Manufacturer : Preci-Dip
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 14 (2 x 7)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : -
Contact Material - Post : Brass
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 14 (2 x 7)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : -
Contact Material - Post : Brass
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature : -55°C ~ 125°C
0
160 in stock

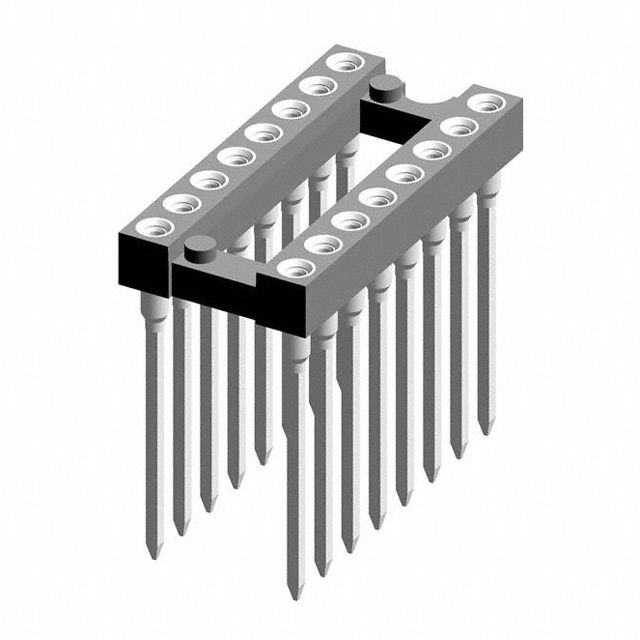

123-87-316-41-001101
Preci-Dip
Manufacturer : Preci-Dip
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 16 (2 x 8)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : -
Contact Material - Post : Brass
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 16 (2 x 8)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : -
Contact Material - Post : Brass
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature : -55°C ~ 125°C
0
1463 in stock

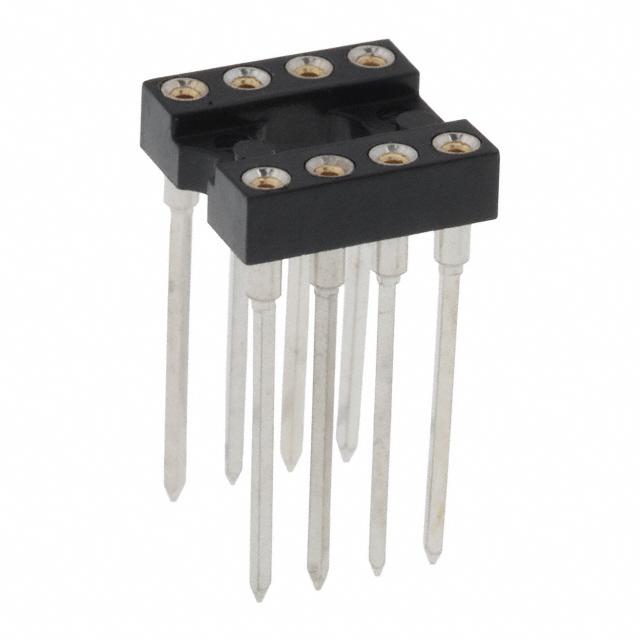

123-93-308-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 8 (2 x 4)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 8 (2 x 4)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
757 in stock

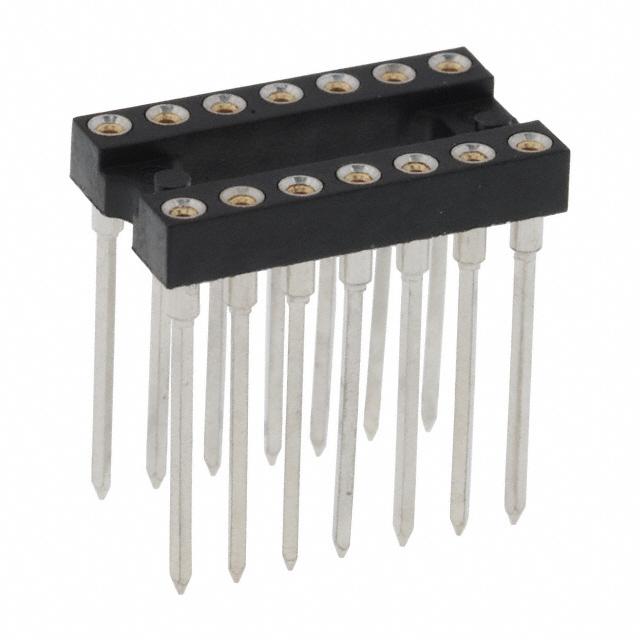

123-93-314-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 14 (2 x 7)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 14 (2 x 7)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
763 in stock

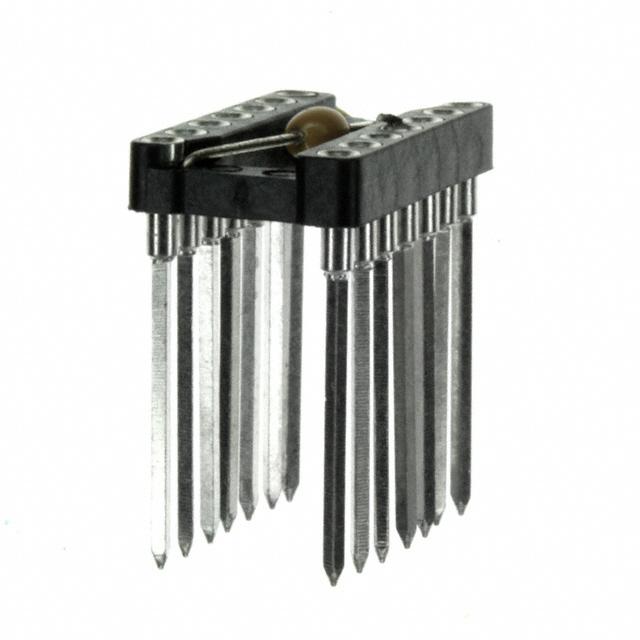

123-93-314-41-801000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 14 (2 x 7)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame, Decoupling Capacitor
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 14 (2 x 7)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame, Decoupling Capacitor
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
25 in stock

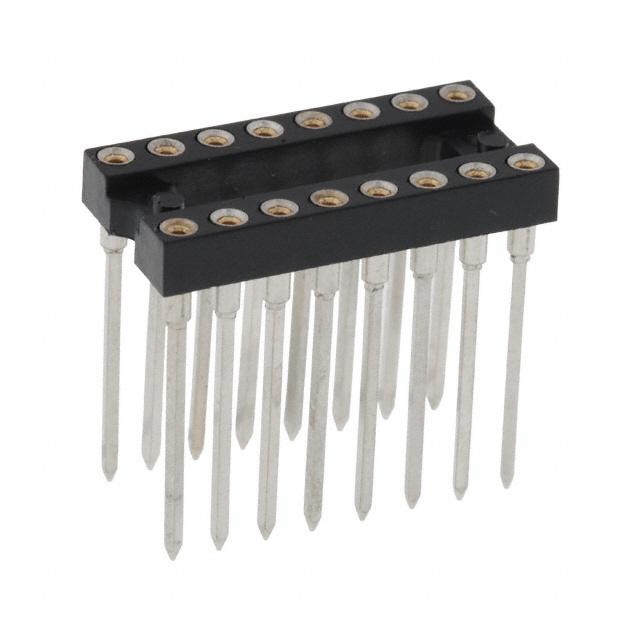

123-93-316-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 16 (2 x 8)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 16 (2 x 8)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
512 in stock
123-93-316-41-801000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 16 (2 x 8)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame, Decoupling Capacitor
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 16 (2 x 8)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame, Decoupling Capacitor
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
166 in stock
123-93-318-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 18 (2 x 9)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 18 (2 x 9)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
478 in stock

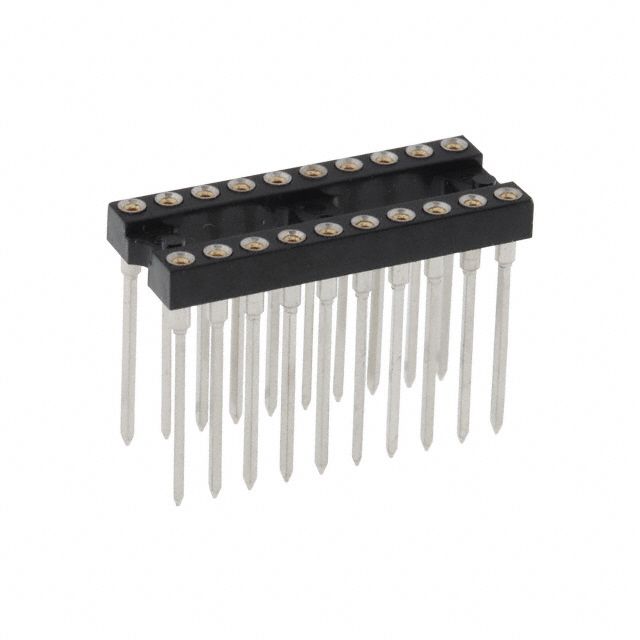

123-93-320-41-001000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 20 (2 x 10)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 20 (2 x 10)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
109 in stock

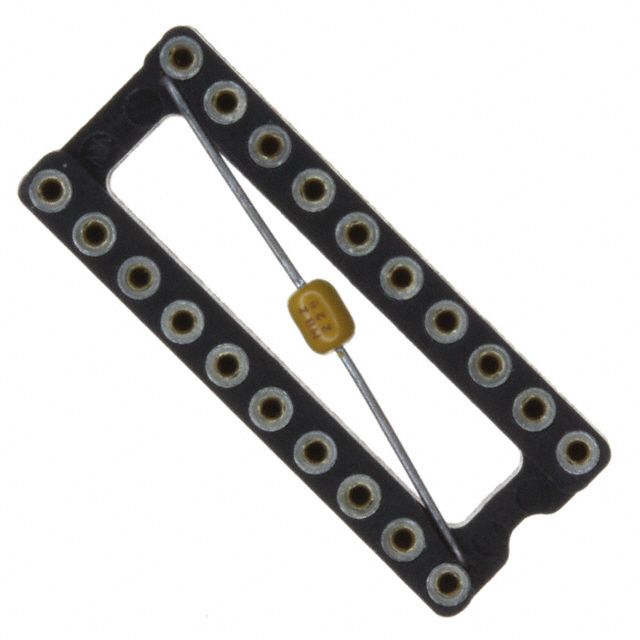

123-93-320-41-801000
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 20 (2 x 10)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame, Decoupling Capacitor
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
Packaging : Tube
Series : 123
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 20 (2 x 10)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame, Decoupling Capacitor
Termination : Wire Wrap
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin-Lead
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass Alloy
Housing Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature : -55°C ~ 125°C
0
213 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
