Welcome to Weijie Semiconductor
- Connectors, Interconnects
- Terminal Blocks - Headers, Plugs and Sockets
Part Number
Manufacturer
Description
Unit Price
In Stock
1754481
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 4
Positions Per Level : 4
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screw - Clamping Yoke (Tension Sleeve)
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 12-30 AWG
Wire Gauge or Range - mm² : 0.2-2.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 4
Positions Per Level : 4
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screw - Clamping Yoke (Tension Sleeve)
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 12-30 AWG
Wire Gauge or Range - mm² : 0.2-2.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
0
672 in stock

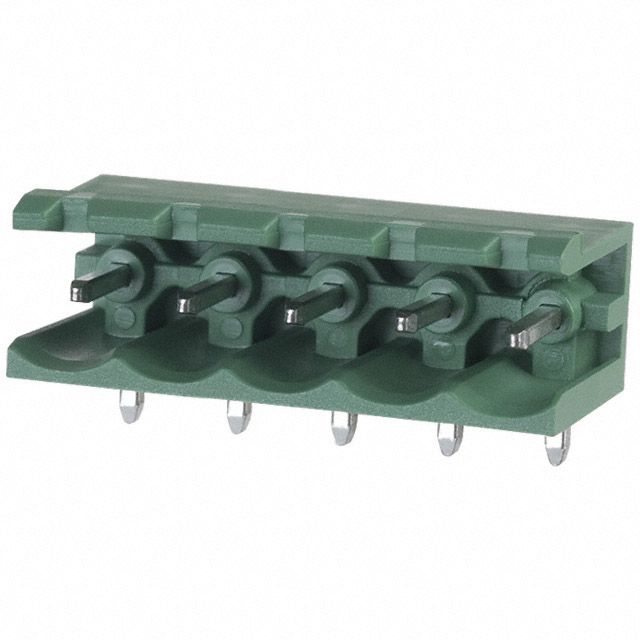

1754494
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Header, Male Pins, Shrouded (2 Side)
Number of Positions : 5
Positions Per Level : 5
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : 90°, Right Angle
Plug Wire Entry : -
Termination Style : Solder
Mounting Type : Through Hole
Current - IEC : 12A
Voltage - IEC : 400V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : -
Wire Gauge or Range - mm² : -
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : -
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Header, Male Pins, Shrouded (2 Side)
Number of Positions : 5
Positions Per Level : 5
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : 90°, Right Angle
Plug Wire Entry : -
Termination Style : Solder
Mounting Type : Through Hole
Current - IEC : 12A
Voltage - IEC : 400V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : -
Wire Gauge or Range - mm² : -
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : -
0
813 in stock
1754504
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 5
Positions Per Level : 5
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screw - Clamping Yoke (Tension Sleeve)
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 12-30 AWG
Wire Gauge or Range - mm² : 0.2-2.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 5
Positions Per Level : 5
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screw - Clamping Yoke (Tension Sleeve)
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 12-30 AWG
Wire Gauge or Range - mm² : 0.2-2.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
0
5886 in stock

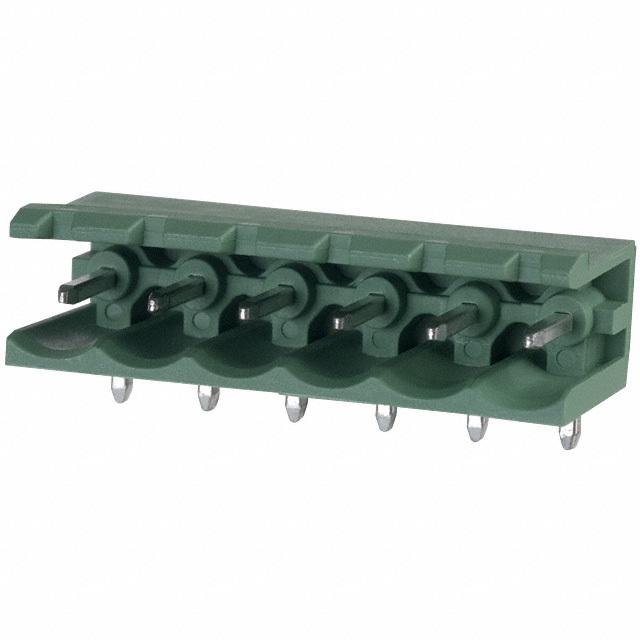

1754517
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Header, Male Pins, Shrouded (2 Side)
Number of Positions : 6
Positions Per Level : 6
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : 90°, Right Angle
Plug Wire Entry : -
Termination Style : Solder
Mounting Type : Through Hole
Current - IEC : 12A
Voltage - IEC : 400V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : -
Wire Gauge or Range - mm² : -
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : -
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Header, Male Pins, Shrouded (2 Side)
Number of Positions : 6
Positions Per Level : 6
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : 90°, Right Angle
Plug Wire Entry : -
Termination Style : Solder
Mounting Type : Through Hole
Current - IEC : 12A
Voltage - IEC : 400V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : -
Wire Gauge or Range - mm² : -
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : -
0
203 in stock

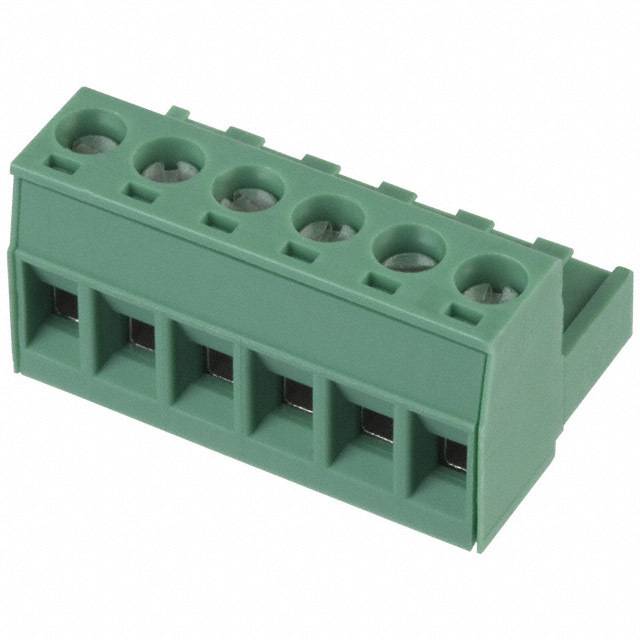

1754520
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 6
Positions Per Level : 6
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screw - Clamping Yoke (Tension Sleeve)
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 12-30 AWG
Wire Gauge or Range - mm² : 0.2-2.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 6
Positions Per Level : 6
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screw - Clamping Yoke (Tension Sleeve)
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 12-30 AWG
Wire Gauge or Range - mm² : 0.2-2.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
0
969 in stock
1754533
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Header, Male Pins, Shrouded (2 Side)
Number of Positions : 7
Positions Per Level : 7
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : 90°, Right Angle
Plug Wire Entry : -
Termination Style : Solder
Mounting Type : Through Hole
Current - IEC : 12A
Voltage - IEC : 400V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : -
Wire Gauge or Range - mm² : -
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : -
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Header, Male Pins, Shrouded (2 Side)
Number of Positions : 7
Positions Per Level : 7
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : 90°, Right Angle
Plug Wire Entry : -
Termination Style : Solder
Mounting Type : Through Hole
Current - IEC : 12A
Voltage - IEC : 400V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : -
Wire Gauge or Range - mm² : -
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : -
0
1500 in stock
1754546
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 7
Positions Per Level : 7
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screw - Clamping Yoke (Tension Sleeve)
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 12-30 AWG
Wire Gauge or Range - mm² : 0.2-2.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 7
Positions Per Level : 7
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screw - Clamping Yoke (Tension Sleeve)
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 12-30 AWG
Wire Gauge or Range - mm² : 0.2-2.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
0
100 in stock

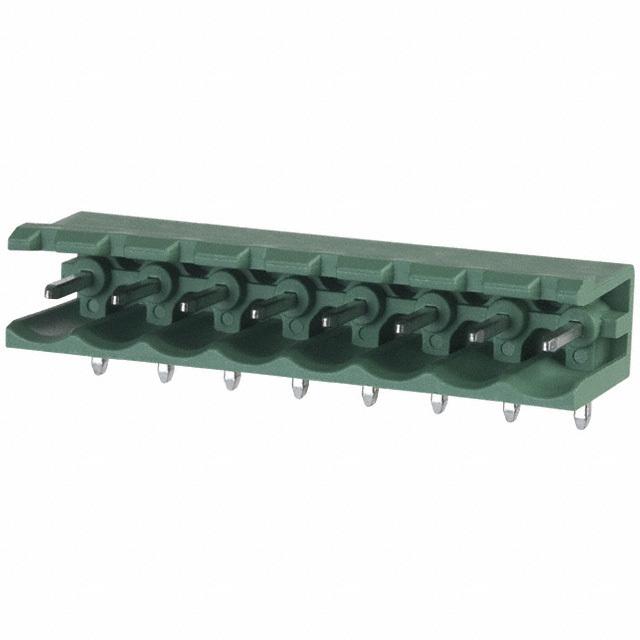

1754559
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Header, Male Pins, Shrouded (2 Side)
Number of Positions : 8
Positions Per Level : 8
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : 90°, Right Angle
Plug Wire Entry : -
Termination Style : Solder
Mounting Type : Through Hole
Current - IEC : 12A
Voltage - IEC : 400V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : -
Wire Gauge or Range - mm² : -
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : -
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Header, Male Pins, Shrouded (2 Side)
Number of Positions : 8
Positions Per Level : 8
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : 90°, Right Angle
Plug Wire Entry : -
Termination Style : Solder
Mounting Type : Through Hole
Current - IEC : 12A
Voltage - IEC : 400V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : -
Wire Gauge or Range - mm² : -
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : -
0
129 in stock

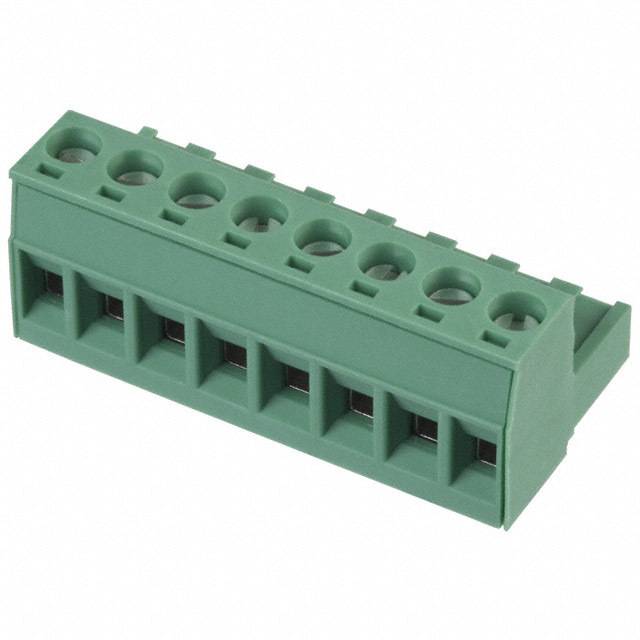

1754562
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 8
Positions Per Level : 8
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screw - Clamping Yoke (Tension Sleeve)
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 12-30 AWG
Wire Gauge or Range - mm² : 0.2-2.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 8
Positions Per Level : 8
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screw - Clamping Yoke (Tension Sleeve)
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 12-30 AWG
Wire Gauge or Range - mm² : 0.2-2.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
0
522 in stock

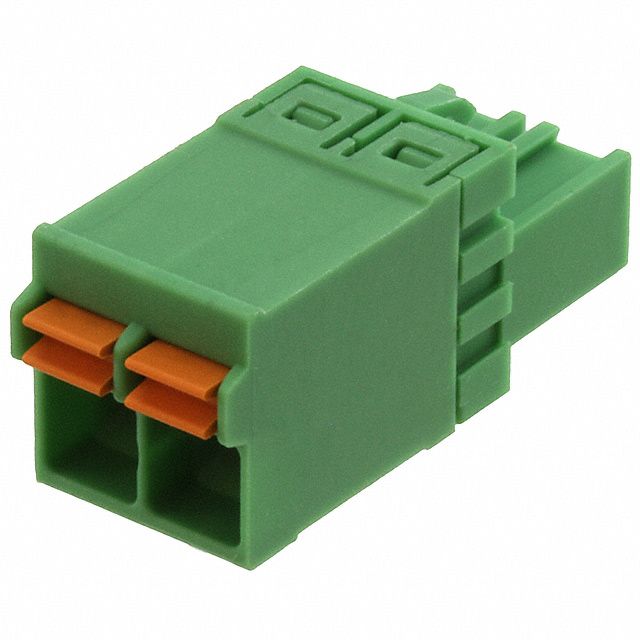

1754568
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON FKCN
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 2
Positions Per Level : 2
Number of Levels : 1
Pitch : 0.200" (5.08mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Leg Spring, Push-In Spring
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 14-24 AWG
Wire Gauge or Range - mm² : 0.2-1.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
Packaging : Bulk
Series : COMBICON FKCN
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 2
Positions Per Level : 2
Number of Levels : 1
Pitch : 0.200" (5.08mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Leg Spring, Push-In Spring
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 14-24 AWG
Wire Gauge or Range - mm² : 0.2-1.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
0
475 in stock

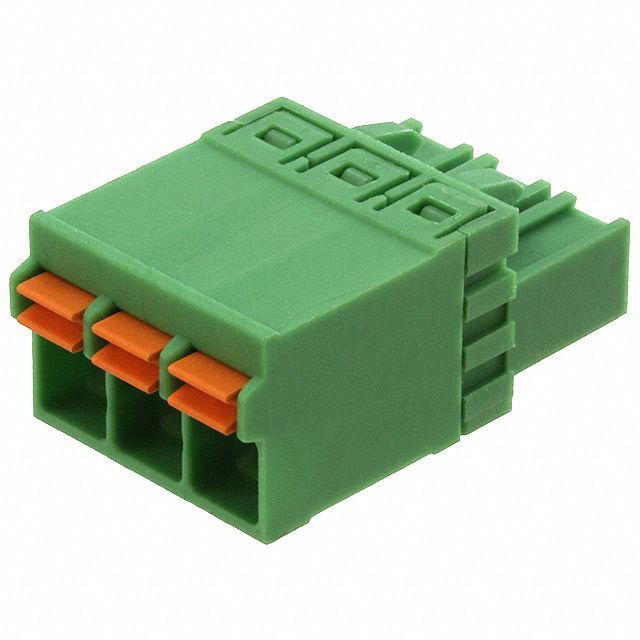

1754571
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON FKCN
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 3
Positions Per Level : 3
Number of Levels : 1
Pitch : 0.200" (5.08mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Leg Spring, Push-In Spring
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 14-24 AWG
Wire Gauge or Range - mm² : 0.2-1.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
Packaging : Bulk
Series : COMBICON FKCN
Part Status : Active
Type : Plug, Female Sockets
Number of Positions : 3
Positions Per Level : 3
Number of Levels : 1
Pitch : 0.200" (5.08mm)
Header Orientation : -
Plug Wire Entry : 180°
Termination Style : Screwless - Leg Spring, Push-In Spring
Mounting Type : Free Hanging (In-Line)
Current - IEC : 12A
Voltage - IEC : 630V
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 14-24 AWG
Wire Gauge or Range - mm² : 0.2-1.5mm²
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : Retention Latches (Non-Wire Side)
0
85 in stock
1754575
Phoenix Contact
Manufacturer : Phoenix Contact
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Header, Male Pins, Shrouded (2 Side)
Number of Positions : 9
Positions Per Level : 9
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : 90°, Right Angle
Plug Wire Entry : -
Termination Style : Solder
Mounting Type : Through Hole
Current - IEC : 12A
Voltage - IEC : 400V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : -
Wire Gauge or Range - mm² : -
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : -
Packaging : Bulk
Series : COMBICON MSTB
Part Status : Active
Type : Header, Male Pins, Shrouded (2 Side)
Number of Positions : 9
Positions Per Level : 9
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : 90°, Right Angle
Plug Wire Entry : -
Termination Style : Solder
Mounting Type : Through Hole
Current - IEC : 12A
Voltage - IEC : 400V
Current - UL : 15A
Voltage - UL : 300V
Wire Gauge or Range - AWG : -
Wire Gauge or Range - mm² : -
Color : Green
Operating Temperature : -
Contact Mating Finish : Tin
Features : -
0
133 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
