- Connectors, Interconnects
- Terminals - PC Pin, Single Post Connectors
Part Number
Manufacturer
Description
Unit Price
In Stock
3115-1-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3115
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.300" (7.62mm)
Length - Below Flange : 0.051" (1.30mm)
Length - Overall : 0.371" (9.42mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3115
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.300" (7.62mm)
Length - Below Flange : 0.051" (1.30mm)
Length - Overall : 0.371" (9.42mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
1000 in stock

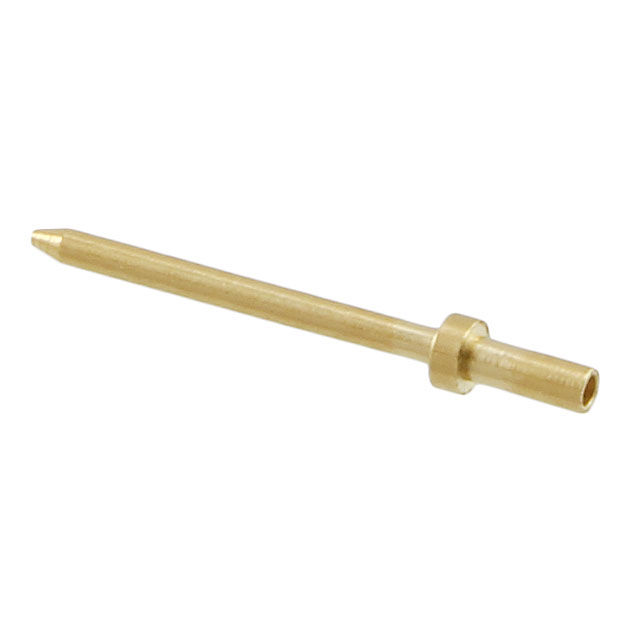

3115-2-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3115
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.300" (7.62mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.402" (10.20mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3115
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.300" (7.62mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.402" (10.20mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
24253 in stock
3116-2-00-21-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3116
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.268" (6.81mm)
Flange Diameter : 0.077" (1.96mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
Packaging : Bulk
Series : 3116
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.268" (6.81mm)
Flange Diameter : 0.077" (1.96mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
0
650 in stock

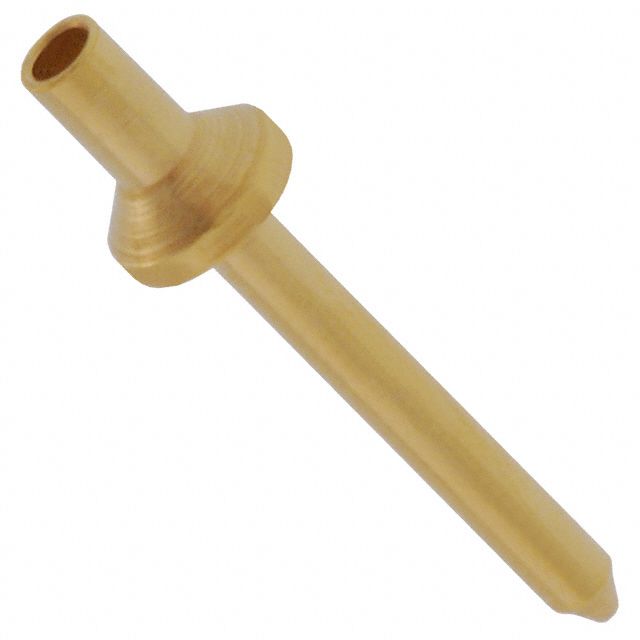

3117-1-00-21-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3117
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.024" (0.61mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.047" (1.19mm)
Length - Overall : 0.260" (6.60mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
Packaging : Bulk
Series : 3117
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.024" (0.61mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.047" (1.19mm)
Length - Overall : 0.260" (6.60mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
0
2838 in stock

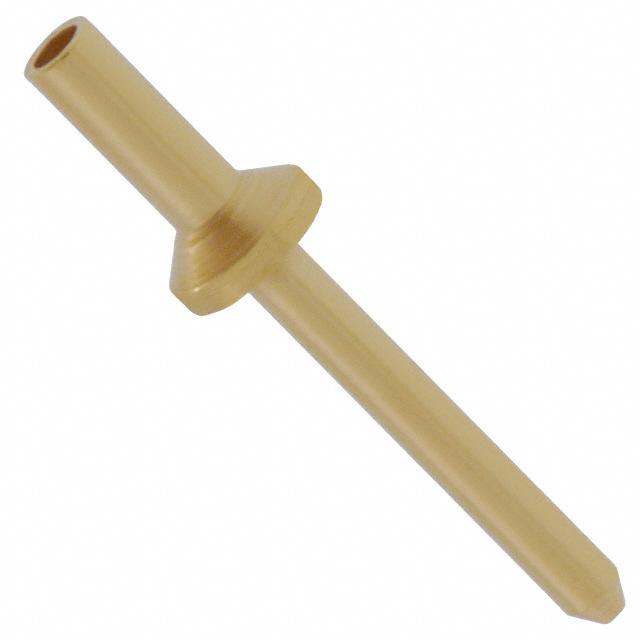

3117-2-00-21-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3117
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.024" (0.61mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.078" (1.98mm)
Length - Overall : 0.291" (7.39mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
Packaging : Bulk
Series : 3117
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.024" (0.61mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.078" (1.98mm)
Length - Overall : 0.291" (7.39mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
0
5440 in stock

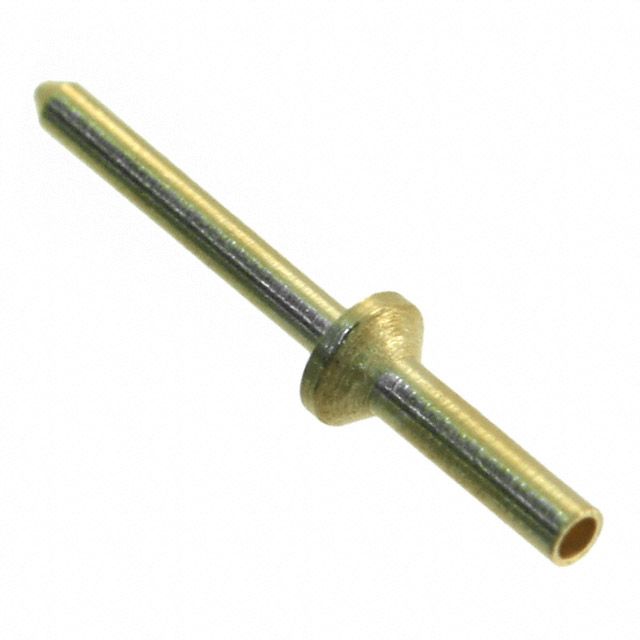

3117-3-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3117
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.024" (0.61mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.110" (2.79mm)
Length - Overall : 0.323" (8.20mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3117
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.024" (0.61mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.110" (2.79mm)
Length - Overall : 0.323" (8.20mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
2564 in stock

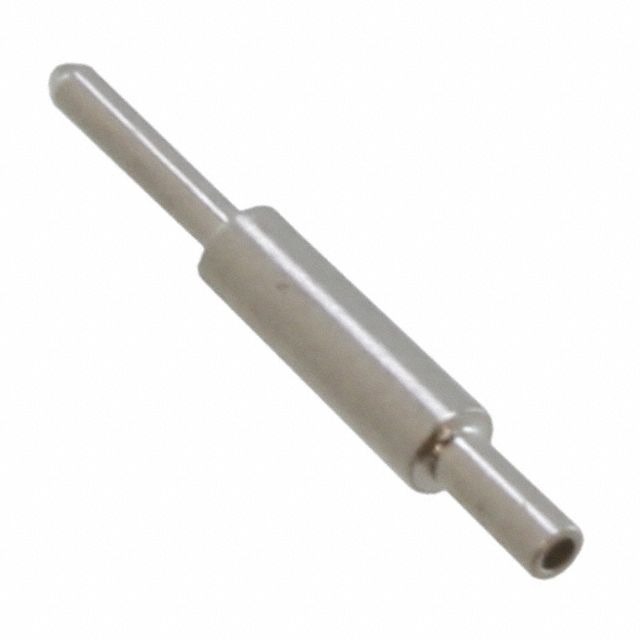

3118-2-00-01-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3118
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.150" (3.81mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.402" (10.20mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)
Packaging : Bulk
Series : 3118
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.150" (3.81mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.402" (10.20mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)
0
1270 in stock
3121-1-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.061" (1.55mm)
Length - Overall : 0.234" (5.94mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.025" (0.64mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.061" (1.55mm)
Length - Overall : 0.234" (5.94mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.025" (0.64mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
1000 in stock

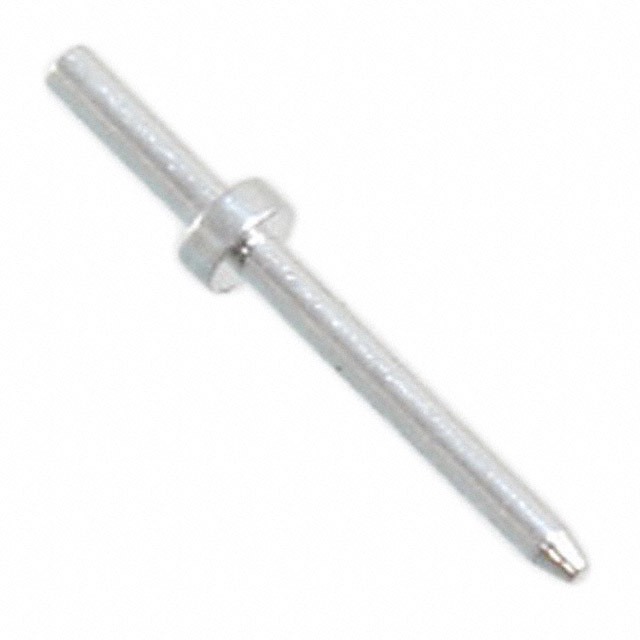

3121-2-00-01-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.075" (1.91mm)
Length - Overall : 0.248" (6.30mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.040" (1.02mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.075" (1.91mm)
Length - Overall : 0.248" (6.30mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.040" (1.02mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)
0
891 in stock
3121-2-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.075" (1.91mm)
Length - Overall : 0.248" (6.30mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.040" (1.02mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.075" (1.91mm)
Length - Overall : 0.248" (6.30mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.040" (1.02mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
34809 in stock
3121-2-00-21-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.075" (1.91mm)
Length - Overall : 0.248" (6.30mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.040" (1.02mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.075" (1.91mm)
Length - Overall : 0.248" (6.30mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.040" (1.02mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
0
1000 in stock
3121-2-00-34-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.075" (1.91mm)
Length - Overall : 0.248" (6.30mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.040" (1.02mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.075" (1.91mm)
Length - Overall : 0.248" (6.30mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.040" (1.02mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)
0
900 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
