Part Number
Manufacturer
Description
Unit Price
In Stock
CRBV55CL-0550-0700
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 550 ~ 700MHz
Frequency - Center : 625MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 10.5V
2nd Harmonic, Typ (dBc) : -12
Icc Max : 25mA
Pushing (MHz/V) : 1
Power (dBm) : 6.5 ±1.5
Phase Noise Typ (dBc/Hz) : -100
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 550 ~ 700MHz
Frequency - Center : 625MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 10.5V
2nd Harmonic, Typ (dBc) : -12
Icc Max : 25mA
Pushing (MHz/V) : 1
Power (dBm) : 6.5 ±1.5
Phase Noise Typ (dBc/Hz) : -100
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
0
100 in stock
CRBV55CL-0575-0675
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 575 ~ 675MHz
Frequency - Center : 625MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.3V ~ 4.7V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 24mA
Pushing (MHz/V) : 3
Power (dBm) : 2.5 ±2.5
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 575 ~ 675MHz
Frequency - Center : 625MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.3V ~ 4.7V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 24mA
Pushing (MHz/V) : 3
Power (dBm) : 2.5 ±2.5
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
0
100 in stock
CRBV55CL-0600-0880
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 600 ~ 880MHz
Frequency - Center : 740MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -10
Icc Max : 20mA
Pushing (MHz/V) : 2
Power (dBm) : 0 ±3
Phase Noise Typ (dBc/Hz) : -98
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 600 ~ 880MHz
Frequency - Center : 740MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -10
Icc Max : 20mA
Pushing (MHz/V) : 2
Power (dBm) : 0 ±3
Phase Noise Typ (dBc/Hz) : -98
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
0
100 in stock
CRBV55CL-0640-0690
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 640 ~ 690MHz
Frequency - Center : 665MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -12
Icc Max : 25mA
Pushing (MHz/V) : 1
Power (dBm) : 6.5 ±1.5
Phase Noise Typ (dBc/Hz) : -100
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 640 ~ 690MHz
Frequency - Center : 665MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -12
Icc Max : 25mA
Pushing (MHz/V) : 1
Power (dBm) : 6.5 ±1.5
Phase Noise Typ (dBc/Hz) : -100
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
0
100 in stock
CRBV55CL-0805-0900
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 805 ~ 900MHz
Frequency - Center : 852.5MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 20mA
Pushing (MHz/V) : 1
Power (dBm) : 2 ±3
Phase Noise Typ (dBc/Hz) : -105
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 805 ~ 900MHz
Frequency - Center : 852.5MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 20mA
Pushing (MHz/V) : 1
Power (dBm) : 2 ±3
Phase Noise Typ (dBc/Hz) : -105
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
0
100 in stock
CRBV55CL-0900-0940
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Obsolete
Frequency Range : 900 ~ 940MHz
Frequency - Center : 920MHz
Voltage - Supply : -
Tuning Voltage (VDC) : -
2nd Harmonic, Typ (dBc) : -
Icc Max : -
Pushing (MHz/V) : -
Power (dBm) : -
Phase Noise Typ (dBc/Hz) : -
Operating Temperature : -
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Obsolete
Frequency Range : 900 ~ 940MHz
Frequency - Center : 920MHz
Voltage - Supply : -
Tuning Voltage (VDC) : -
2nd Harmonic, Typ (dBc) : -
Icc Max : -
Pushing (MHz/V) : -
Power (dBm) : -
Phase Noise Typ (dBc/Hz) : -
Operating Temperature : -
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
0
100 in stock
CRBV55CL-0902-0928
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 902 ~ 928MHz
Frequency - Center : 915MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 20mA
Pushing (MHz/V) : 1.7
Power (dBm) : 5 ±3
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 902 ~ 928MHz
Frequency - Center : 915MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 20mA
Pushing (MHz/V) : 1.7
Power (dBm) : 5 ±3
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
0
100 in stock
CRBV55CL-1032-1088
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 1032 ~ 1088MHz
Frequency - Center : 1060MHZ
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 30mA
Pushing (MHz/V) : 0.5
Power (dBm) : 0 ±2
Phase Noise Typ (dBc/Hz) : -109
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 1032 ~ 1088MHz
Frequency - Center : 1060MHZ
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 30mA
Pushing (MHz/V) : 0.5
Power (dBm) : 0 ±2
Phase Noise Typ (dBc/Hz) : -109
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
0
100 in stock
CRBV55CL-1088-1144
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 1088 ~ 1144MHz
Frequency - Center : 1116MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 30mA
Pushing (MHz/V) : 0.5
Power (dBm) : 0 ±2
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 1088 ~ 1144MHz
Frequency - Center : 1116MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 30mA
Pushing (MHz/V) : 0.5
Power (dBm) : 0 ±2
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
0
100 in stock

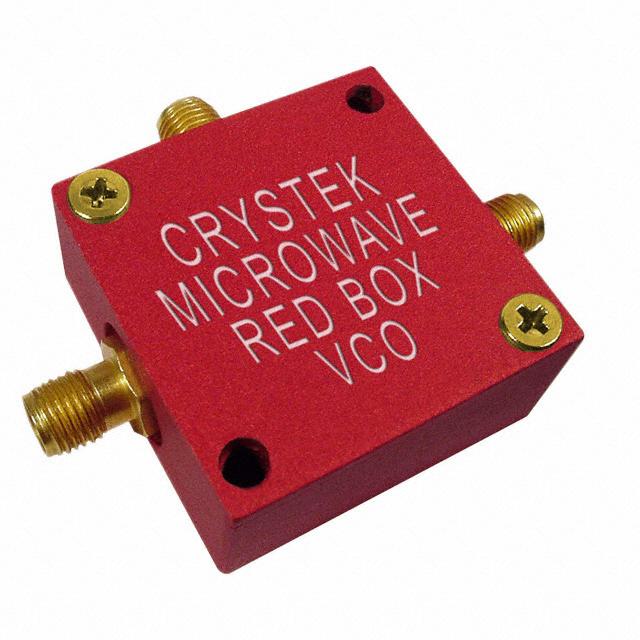

CRBV55CL-1188-1212
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 1188 ~ 1212MHz
Frequency - Center : 1200MHz
Voltage - Supply : 12V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -20
Icc Max : 20mA
Pushing (MHz/V) : 1
Power (dBm) : 8 ±2
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
Packaging : Tray
Series : CRBV55, RedBox
Part Status : Active
Frequency Range : 1188 ~ 1212MHz
Frequency - Center : 1200MHz
Voltage - Supply : 12V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -20
Icc Max : 20mA
Pushing (MHz/V) : 1
Power (dBm) : 8 ±2
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : Module Adapter, SMA F (3)
Size / Dimension : 1.250" L x 0.590" W (31.75mm x 14.99mm)
Height : 1.250" (31.75mm)
0
100 in stock
CVCO33BE-2400-2500
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO33
Part Status : Active
Frequency Range : 2400 ~ 2500 MHz
Frequency - Center : 2450MHz
Voltage - Supply : 3V
Tuning Voltage (VDC) : 0V ~ 3V
2nd Harmonic, Typ (dBc) : -20
Icc Max : 19mA (Typ)
Pushing (MHz/V) : 5
Power (dBm) : 3 ±2
Phase Noise Typ (dBc/Hz) : -96
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-QFN, Variant
Size / Dimension : 0.300" L x 0.300" W (7.62mm x 7.62mm)
Height : 0.079" (2.00mm)
Packaging : Strip
Series : CVCO33
Part Status : Active
Frequency Range : 2400 ~ 2500 MHz
Frequency - Center : 2450MHz
Voltage - Supply : 3V
Tuning Voltage (VDC) : 0V ~ 3V
2nd Harmonic, Typ (dBc) : -20
Icc Max : 19mA (Typ)
Pushing (MHz/V) : 5
Power (dBm) : 3 ±2
Phase Noise Typ (dBc/Hz) : -96
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-QFN, Variant
Size / Dimension : 0.300" L x 0.300" W (7.62mm x 7.62mm)
Height : 0.079" (2.00mm)
0
45 in stock
CVCO33CL-0110-0150
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO33
Part Status : Active
Frequency Range : 110 ~ 150MHz
Frequency - Center : 130MHz
Voltage - Supply : 3V
Tuning Voltage (VDC) : 0V ~ 5V
2nd Harmonic, Typ (dBc) : -10
Icc Max : 10mA
Pushing (MHz/V) : 1
Power (dBm) : 0 ±3
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-QFN, Variant
Size / Dimension : 0.300" L x 0.300" W (7.62mm x 7.62mm)
Height : 0.079" (2.00mm)
Packaging : Strip
Series : CVCO33
Part Status : Active
Frequency Range : 110 ~ 150MHz
Frequency - Center : 130MHz
Voltage - Supply : 3V
Tuning Voltage (VDC) : 0V ~ 5V
2nd Harmonic, Typ (dBc) : -10
Icc Max : 10mA
Pushing (MHz/V) : 1
Power (dBm) : 0 ±3
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-QFN, Variant
Size / Dimension : 0.300" L x 0.300" W (7.62mm x 7.62mm)
Height : 0.079" (2.00mm)
0
76 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
