Welcome to Weijie Semiconductor
- Development Boards, Kits, Programmers
- Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Part Number
Manufacturer
Description
Unit Price
In Stock

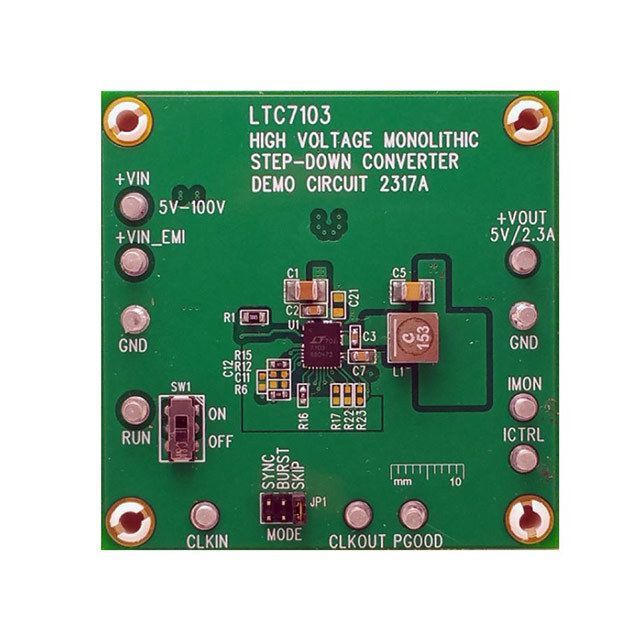

DC2317A
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 5V
Current - Output : 2.3A
Voltage - Input : 5 V ~ 100 V
Regulator Topology : Buck
Frequency - Switching : 400kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTC7103
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 5V
Current - Output : 2.3A
Voltage - Input : 5 V ~ 100 V
Regulator Topology : Buck
Frequency - Switching : 400kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTC7103
0
19 in stock

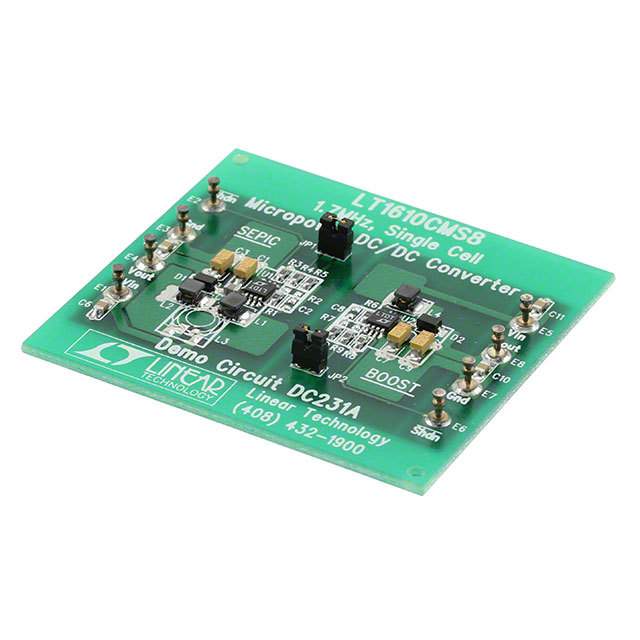

DC231A
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 3.3V
Current - Output : 100mA
Voltage - Input : 3 V ~ 4.2 V
Regulator Topology : Boost
Frequency - Switching : 1.7MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT1610
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 3.3V
Current - Output : 100mA
Voltage - Input : 3 V ~ 4.2 V
Regulator Topology : Boost
Frequency - Switching : 1.7MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT1610
0
1 in stock
DC2324A-A
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 24V
Current - Output : 5A
Voltage - Input : 36 V ~ 72 V
Regulator Topology : Forward Converter
Frequency - Switching : 240kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT3753
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 24V
Current - Output : 5A
Voltage - Input : 36 V ~ 72 V
Regulator Topology : Forward Converter
Frequency - Switching : 240kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT3753
0
2 in stock
DC2324A-B
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 24V
Current - Output : 5A
Voltage - Input : 18 V ~ 36 V
Regulator Topology : Forward Converter
Frequency - Switching : 240kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT3753
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 24V
Current - Output : 5A
Voltage - Input : 18 V ~ 36 V
Regulator Topology : Forward Converter
Frequency - Switching : 240kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT3753
0
4 in stock
DC2324A-C
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 24V
Current - Output : 5A
Voltage - Input : 9 V ~ 18 V
Regulator Topology : Forward Converter
Frequency - Switching : 240kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT3753
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 24V
Current - Output : 5A
Voltage - Input : 9 V ~ 18 V
Regulator Topology : Forward Converter
Frequency - Switching : 240kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT3753
0
3 in stock
DC2327A
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 24V
Current - Output : 4A
Voltage - Input : 28 V ~ 58 V
Regulator Topology : Buck
Frequency - Switching : 1.2MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTM4653
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 24V
Current - Output : 4A
Voltage - Input : 28 V ~ 58 V
Regulator Topology : Buck
Frequency - Switching : 1.2MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTM4653
0
3 in stock

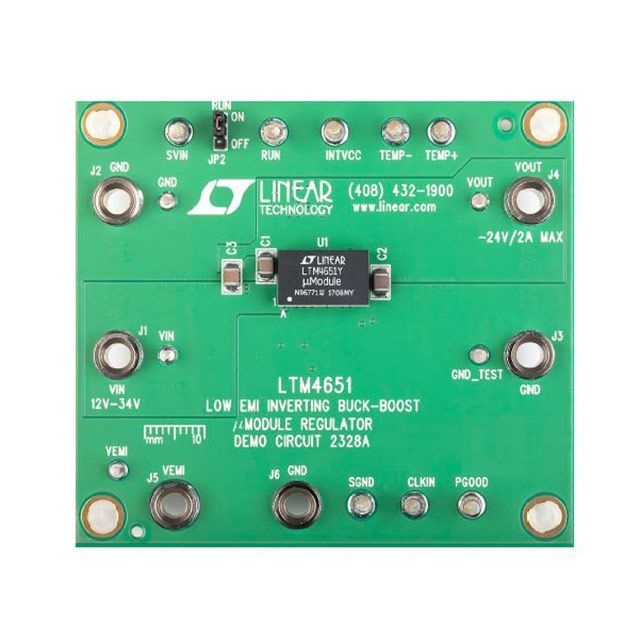

DC2328A
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : µModule®
Part Status : Active
Main Purpose : DC/DC, Negative Inverter
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : -24V
Current - Output : 2A
Voltage - Input : 12 V ~ 34 V
Regulator Topology : Inverting
Frequency - Switching : 1.2MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTM4651
Series : µModule®
Part Status : Active
Main Purpose : DC/DC, Negative Inverter
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : -24V
Current - Output : 2A
Voltage - Input : 12 V ~ 34 V
Regulator Topology : Inverting
Frequency - Switching : 1.2MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTM4651
0
10 in stock
DC2329A
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 1.8V, 2.5V
Current - Output : 3.5A, 3.5A
Voltage - Input : 3.1 V ~ 17 V
Regulator Topology : Buck
Frequency - Switching : 1MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTC7124
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 1.8V, 2.5V
Current - Output : 3.5A, 3.5A
Voltage - Input : 3.1 V ~ 17 V
Regulator Topology : Buck
Frequency - Switching : 1MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTC7124
0
2 in stock

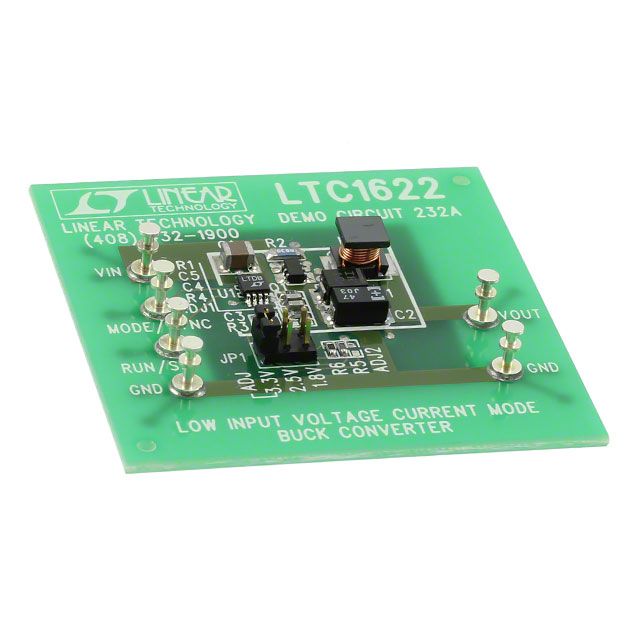

DC232A
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 1.8V, 2.5V or 3.3V
Current - Output : 800mA
Voltage - Input : 2 V ~ 8.5 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTC1622
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 1.8V, 2.5V or 3.3V
Current - Output : 800mA
Voltage - Input : 2 V ~ 8.5 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTC1622
0
2 in stock

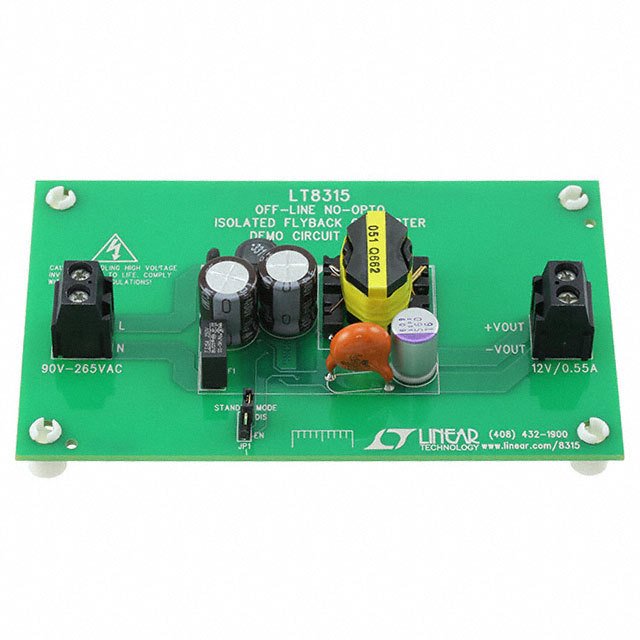

DC2337A
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : -
Part Status : Active
Main Purpose : AC/DC, Primary Side
Outputs and Type : 1, Isolated
Power - Output : -
Voltage - Output : 12V
Current - Output : 550mA
Voltage - Input : 90 ~ 265 VAC
Regulator Topology : Flyback
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT8315
Series : -
Part Status : Active
Main Purpose : AC/DC, Primary Side
Outputs and Type : 1, Isolated
Power - Output : -
Voltage - Output : 12V
Current - Output : 550mA
Voltage - Input : 90 ~ 265 VAC
Regulator Topology : Flyback
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT8315
0
119 in stock
DC233A
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up or Down
Outputs and Type : 3, Non-Isolated
Power - Output : -
Voltage - Output : 3.3V, 5V, -5V
Current - Output : 120mA, 160mA, 200mA
Voltage - Input : 1 V ~ 6 V
Regulator Topology : Boost, Inverting, SEPIC
Frequency - Switching : 1.4MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT1611, LT1613
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up or Down
Outputs and Type : 3, Non-Isolated
Power - Output : -
Voltage - Output : 3.3V, 5V, -5V
Current - Output : 120mA, 160mA, 200mA
Voltage - Input : 1 V ~ 6 V
Regulator Topology : Boost, Inverting, SEPIC
Frequency - Switching : 1.4MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LT1611, LT1613
0
2 in stock
DC2343A
ADI (Analog Devices, Inc.)
Manufacturer : Linear Technology/Analog Devices
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up or Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 3.3V
Current - Output : 15mA
Voltage - Input : 1.8 V ~ 5.5 V
Regulator Topology : Buck-Boost
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTC3335
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up or Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 3.3V
Current - Output : 15mA
Voltage - Input : 1.8 V ~ 5.5 V
Regulator Topology : Buck-Boost
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LTC3335
0
2 in stock
