Thyristors - SCRs - Modules Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

TD305N16KOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Series : -
Part Status : Active
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 305A
Current - On State (It (RMS)) (Max) : 520A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 10500A @ 50Hz
Current - Hold (Ih) (Max) : 300mA
Operating Temperature : -40°C ~ 130°C
Mounting Type : Chassis Mount
Package / Case : Module

100 in stock

TD310N20KOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Series : -
Part Status : Active
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 2.6kV
Current - On State (It (AV)) (Max) : 446A
Current - On State (It (RMS)) (Max) : 700A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 250mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 10000A @ 50Hz
Current - Hold (Ih) (Max) : 300mA
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis Mount
Package / Case : Module

100 in stock

TD310N22KOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Series : -
Part Status : Active
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 2.6kV
Current - On State (It (AV)) (Max) : 446A
Current - On State (It (RMS)) (Max) : 700A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 250mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 10000A @ 50Hz
Current - Hold (Ih) (Max) : 300mA
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis Mount
Package / Case : Module

100 in stock

TD310N26KOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Series : -
Part Status : Active
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 2.6kV
Current - On State (It (AV)) (Max) : 446A
Current - On State (It (RMS)) (Max) : 700A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 250mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 10000A @ 50Hz
Current - Hold (Ih) (Max) : 300mA
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis Mount
Package / Case : Module

100 in stock

TD320N16SOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Bulk
Series : -
Part Status : Active
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 320A
Current - On State (It (RMS)) (Max) : 520A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Hold (Ih) (Max) : 150mA
Operating Temperature : 130°C (TJ)
Mounting Type : Surface Mount
Package / Case : Module

2 in stock

TD320N18SOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Series : -
Part Status : Active
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 1.8kV
Current - On State (It (AV)) (Max) : 320A
Current - On State (It (RMS)) (Max) : 520A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 9500A @ 50Hz
Current - Hold (Ih) (Max) : 150mA
Operating Temperature : -40°C ~ 130°C
Mounting Type : Chassis Mount
Package / Case : Module

100 in stock

TD330N16AOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : -
Series : -
Part Status : Active
Structure : -
Number of SCRs, Diodes : -
Voltage - Off State : -
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : -
Current - Gate Trigger (Igt) (Max) : -
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Hold (Ih) (Max) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -

100 in stock

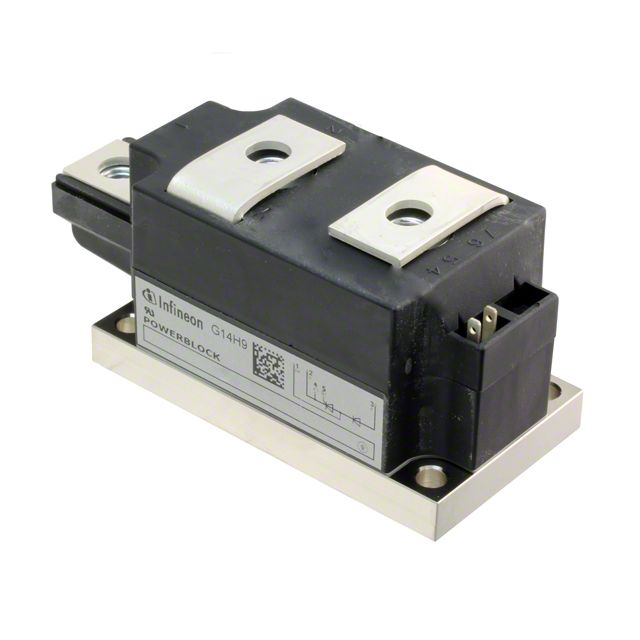

TD330N16KOFHPSA2

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Bulk
Series : -
Part Status : Active
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 330A
Current - On State (It (RMS)) (Max) : 520A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Hold (Ih) (Max) : 300mA
Operating Temperature : 130°C (TJ)
Mounting Type : Surface Mount
Package / Case : Module

22 in stock

TD330N16KOFTIMHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Series : -
Part Status : Active
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 330A
Current - On State (It (RMS)) (Max) : 520A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 12500A @ 50Hz
Current - Hold (Ih) (Max) : 300mA
Operating Temperature : -40°C ~ 130°C
Mounting Type : Chassis Mount
Package / Case : Module

100 in stock

TD400N26KOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Series : -
Part Status : Active
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 2.6kV
Current - On State (It (AV)) (Max) : 510A
Current - On State (It (RMS)) (Max) : 800A
Voltage - Gate Trigger (Vgt) (Max) : 2.2V
Current - Gate Trigger (Igt) (Max) : 250mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 13000A @ 50Hz
Current - Hold (Ih) (Max) : 300mA
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis Mount
Package / Case : Module

100 in stock

TD425N16KOFHPSA2

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Series : -
Part Status : Active
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 1.8kV
Current - On State (It (AV)) (Max) : 471A
Current - On State (It (RMS)) (Max) : 800A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 250mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 14500A @ 50Hz
Current - Hold (Ih) (Max) : 300mA
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis Mount
Package / Case : Module

100 in stock

TD425N18KOFHPSA2

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Series : -
Part Status : Active
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 1.8kV
Current - On State (It (AV)) (Max) : 471A
Current - On State (It (RMS)) (Max) : 800A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 250mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 14500A @ 50Hz
Current - Hold (Ih) (Max) : 300mA
Operating Temperature : 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module

100 in stock
