Part Number

Manufacturer

Description

Unit Price

In Stock

Picture of TM400DZ-24

TM400DZ-24

Powerex, Inc.

Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 400A
Current - On State (It (RMS)) (Max) : 620A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8000A @ 60Hz
Current - Hold (Ih) (Max) : -
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module

0

100 in stock

Picture of TM400DZ-2H

TM400DZ-2H

Powerex, Inc.

Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 400A
Current - On State (It (RMS)) (Max) : 620A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8000A @ 60Hz
Current - Hold (Ih) (Max) : -
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module

0

100 in stock

Picture of TM400DZ-H

TM400DZ-H

Powerex, Inc.

Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 800V
Current - On State (It (AV)) (Max) : 400A
Current - On State (It (RMS)) (Max) : 620A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8000A @ 60Hz
Current - Hold (Ih) (Max) : -
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module

0

100 in stock

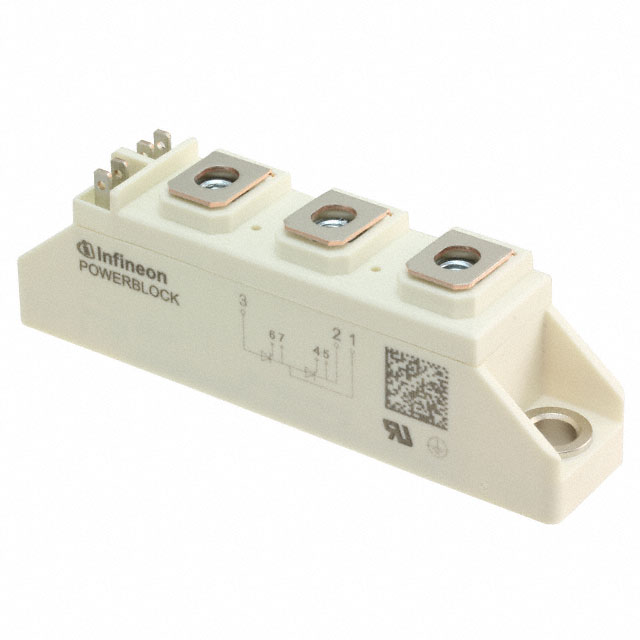

Picture of TT120N16SOFHPSA1

TT120N16SOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Bulk
Series : -
Part Status : Active
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 119A
Current - On State (It (RMS)) (Max) : 190A
Voltage - Gate Trigger (Vgt) (Max) : 2.5V
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
Current - Hold (Ih) (Max) : 250mA
Operating Temperature : -40°C ~ 130°C
Mounting Type : Surface Mount
Package / Case : Module

0

15 in stock

Picture of TT122N18KOF

TT122N18KOF

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Bulk
Series : -
Part Status : Active
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.8kV
Current - On State (It (AV)) (Max) : 104A
Current - On State (It (RMS)) (Max) : 160A
Voltage - Gate Trigger (Vgt) (Max) : 1.4V
Current - Gate Trigger (Igt) (Max) : 120mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 1050A @ 50Hz
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 140°C
Mounting Type : Chassis Mount
Package / Case : Module

0

100 in stock

Picture of TT122N22KOFHPSA1

TT122N22KOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Bulk
Series : -
Part Status : Active
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 2.2kV
Current - On State (It (AV)) (Max) : 104A
Current - On State (It (RMS)) (Max) : 160A
Voltage - Gate Trigger (Vgt) (Max) : 1.4V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 1050A @ 50Hz
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 140°C
Mounting Type : Chassis Mount
Package / Case : Module

0

100 in stock

Picture of TT140N16SOFHPSA1

TT140N16SOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Tray
Series : -
Part Status : Active
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 140A
Current - On State (It (RMS)) (Max) : 220A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 4700A @ 50Hz
Current - Hold (Ih) (Max) : 400mA
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis Mount
Package / Case : Module

0

100 in stock

Picture of TT140N18KOFHPSA1

TT140N18KOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Bulk
Series : -
Part Status : Active
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.8kV
Current - On State (It (AV)) (Max) : 159A
Current - On State (It (RMS)) (Max) : 250A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 4000A @ 50Hz
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis Mount
Package / Case : Module

0

100 in stock

Picture of TT140N22KOFHPSA1

TT140N22KOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Bulk
Series : -
Part Status : Active
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 2.2kV
Current - On State (It (AV)) (Max) : 159A
Current - On State (It (RMS)) (Max) : 250A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 4000A @ 50Hz
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis Mount
Package / Case : Module

0

100 in stock

Picture of TT142N06KOFKHPSA1

TT142N06KOFKHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Bulk
Series : -
Part Status : Active
Structure : Common Cathode - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 600V
Current - On State (It (AV)) (Max) : 142A
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 4800A @ 50Hz
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis Mount
Package / Case : Module

0

100 in stock

Picture of TT142N12KOFHPSA1

TT142N12KOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Bulk
Series : -
Part Status : Active
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 142A
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 4800A @ 50Hz
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis Mount
Package / Case : Module

0

100 in stock

Picture of TT142N14KOFHPSA1

TT142N14KOFHPSA1

International Rectifier (Infineon Technologies)

Manufacturer : Infineon Technologies
Packaging : Bulk
Series : -
Part Status : Active
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.4kV
Current - On State (It (AV)) (Max) : 142A
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 4800A @ 50Hz
Current - Hold (Ih) (Max) : 200mA
Operating Temperature : -40°C ~ 125°C
Mounting Type : Chassis Mount
Package / Case : Module

0

100 in stock
