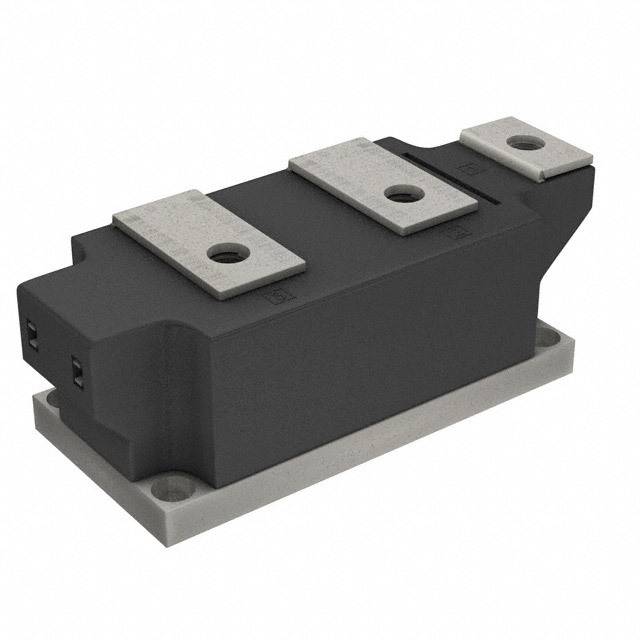

VSKT500-16
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 500A
Current - On State (It (RMS)) (Max) : 785A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 17800A, 18700A
Current - Hold (Ih) (Max) : 500mA
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SUPER MAGN-A-PAK
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 500A
Current - On State (It (RMS)) (Max) : 785A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 17800A, 18700A
Current - Hold (Ih) (Max) : 500mA
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SUPER MAGN-A-PAK
0
100 in stock
VSKTF180-08HK
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 800V
Current - On State (It (AV)) (Max) : 180A
Current - On State (It (RMS)) (Max) : 400A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7130A, 7470A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 800V
Current - On State (It (AV)) (Max) : 180A
Current - On State (It (RMS)) (Max) : 400A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7130A, 7470A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
0
100 in stock
VSKTF180-12HJ
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 180A
Current - On State (It (RMS)) (Max) : 400A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7130A, 7470A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 180A
Current - On State (It (RMS)) (Max) : 400A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7130A, 7470A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
0
100 in stock
VSKTF180-12HK
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 180A
Current - On State (It (RMS)) (Max) : 400A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7130A, 7470A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 180A
Current - On State (It (RMS)) (Max) : 400A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7130A, 7470A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
0
100 in stock
VSKTF200-08HJ
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 800V
Current - On State (It (AV)) (Max) : 200A
Current - On State (It (RMS)) (Max) : 444A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7600A, 8000A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 800V
Current - On State (It (AV)) (Max) : 200A
Current - On State (It (RMS)) (Max) : 444A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7600A, 8000A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
0
100 in stock
VSKTF200-08HK
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 800V
Current - On State (It (AV)) (Max) : 200A
Current - On State (It (RMS)) (Max) : 444A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7600A, 8000A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 800V
Current - On State (It (AV)) (Max) : 200A
Current - On State (It (RMS)) (Max) : 444A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7600A, 8000A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
0
100 in stock
VSKTF200-12HJ
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 200A
Current - On State (It (RMS)) (Max) : 444A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7600A, 8000A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 200A
Current - On State (It (RMS)) (Max) : 444A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7600A, 8000A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
0
100 in stock

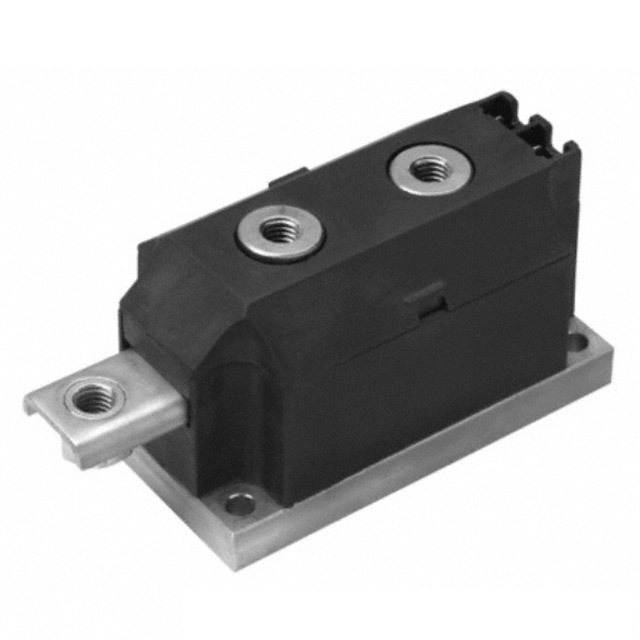

VSKTF200-12HK
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 200A
Current - On State (It (RMS)) (Max) : 444A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7600A, 8000A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
Packaging : Bulk
Series : -
Part Status : Obsolete
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.2kV
Current - On State (It (AV)) (Max) : 200A
Current - On State (It (RMS)) (Max) : 444A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 7600A, 8000A
Current - Hold (Ih) (Max) : 600mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 3-MAGN-A-PAK™
0
100 in stock
VS-P101
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes : 2 SCRs, 2 Diodes
Voltage - Off State : 400V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 357A, 375A
Current - Hold (Ih) (Max) : 130mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 8-PACE-PAK
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes : 2 SCRs, 2 Diodes
Voltage - Off State : 400V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 357A, 375A
Current - Hold (Ih) (Max) : 130mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 8-PACE-PAK
0
100 in stock
VS-P101KW
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes : 2 SCRs, 2 Diodes
Voltage - Off State : 400V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 357A, 375A
Current - Hold (Ih) (Max) : 130mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 8-PACE-PAK
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes : 2 SCRs, 2 Diodes
Voltage - Off State : 400V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 357A, 375A
Current - Hold (Ih) (Max) : 130mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 8-PACE-PAK
0
100 in stock
VS-P101W
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes : 2 SCRs, 2 Diodes
Voltage - Off State : 400V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 357A, 375A
Current - Hold (Ih) (Max) : 130mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 8-PACE-PAK
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes : 2 SCRs, 2 Diodes
Voltage - Off State : 400V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 357A, 375A
Current - Hold (Ih) (Max) : 130mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 8-PACE-PAK
0
100 in stock
VS-P102
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes : 2 SCRs, 2 Diodes
Voltage - Off State : 600V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 357A, 375A
Current - Hold (Ih) (Max) : 130mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 8-PACE-PAK
Packaging : Bulk
Series : -
Part Status : Active
Structure : Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes : 2 SCRs, 2 Diodes
Voltage - Off State : 600V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 357A, 375A
Current - Hold (Ih) (Max) : 130mA
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 8-PACE-PAK
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
