Part Number
Manufacturer
Description
Unit Price
In Stock
Q4025R5
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : -
Part Status : Discontinued at
Triac Type : Standard
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 25A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 167A, 200A
Current - Gate Trigger (Igt) (Max) : 50mA
Current - Hold (Ih) (Max) : 100mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220 Non-Isolated Tab
Packaging : Bulk
Series : -
Part Status : Discontinued at
Triac Type : Standard
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 25A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 167A, 200A
Current - Gate Trigger (Igt) (Max) : 50mA
Current - Hold (Ih) (Max) : 100mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220 Non-Isolated Tab
0
100 in stock
Q4025R6
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : -
Part Status : Discontinued at
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 25A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 208A, 250A
Current - Gate Trigger (Igt) (Max) : 80mA
Current - Hold (Ih) (Max) : 100mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220 Non-Isolated Tab
Packaging : Bulk
Series : -
Part Status : Discontinued at
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 25A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 208A, 250A
Current - Gate Trigger (Igt) (Max) : 80mA
Current - Hold (Ih) (Max) : 100mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220 Non-Isolated Tab
0
100 in stock
Q4025RH5
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : -
Part Status : Discontinued at
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 25A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 208A, 250A
Current - Gate Trigger (Igt) (Max) : 50mA
Current - Hold (Ih) (Max) : 50mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Bulk
Alternate Packaging
Series : -
Part Status : Discontinued at
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 25A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 208A, 250A
Current - Gate Trigger (Igt) (Max) : 50mA
Current - Hold (Ih) (Max) : 50mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
Q4030LH5
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : -
Part Status : Discontinued at
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 30A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 290A, 350A
Current - Gate Trigger (Igt) (Max) : 50mA
Current - Hold (Ih) (Max) : 75mA
Configuration : Single
Operating Temperature : -25°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Isolated Tab
Supplier Device Package : TO-220 Isolated Tab
Packaging : Bulk
Alternate Packaging
Series : -
Part Status : Discontinued at
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 30A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 290A, 350A
Current - Gate Trigger (Igt) (Max) : 50mA
Current - Hold (Ih) (Max) : 75mA
Configuration : Single
Operating Temperature : -25°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Isolated Tab
Supplier Device Package : TO-220 Isolated Tab
0
100 in stock
Q4035RH5
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : -
Part Status : Discontinued at
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 35A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 290A, 350A
Current - Gate Trigger (Igt) (Max) : 50mA
Current - Hold (Ih) (Max) : 75mA
Configuration : Single
Operating Temperature : -25°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220 Non-Isolated Tab
Packaging : Bulk
Series : -
Part Status : Discontinued at
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 35A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 290A, 350A
Current - Gate Trigger (Igt) (Max) : 50mA
Current - Hold (Ih) (Max) : 75mA
Configuration : Single
Operating Temperature : -25°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220 Non-Isolated Tab
0
100 in stock

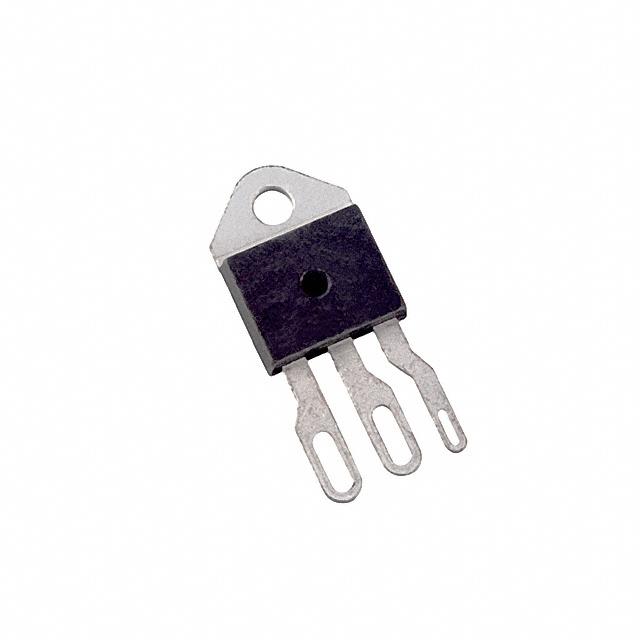

Q4040J7TP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 40A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 335A, 400A
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Hold (Ih) (Max) : 100mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-218X-3 Isolated Tab
Supplier Device Package : TO-218X Isolated
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 40A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 335A, 400A
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Hold (Ih) (Max) : 100mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-218X-3 Isolated Tab
Supplier Device Package : TO-218X Isolated
0
3247 in stock

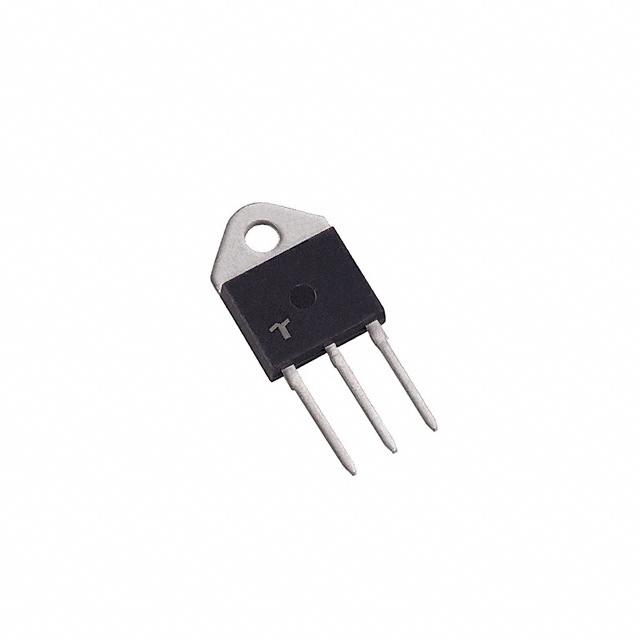

Q4040K7TP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 40A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 335A, 400A
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Hold (Ih) (Max) : 100mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-218-3 Isolated Tab, TO-218AC
Supplier Device Package : TO-218 Isolated Tab
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Alternistor - Snubberless
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 40A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 335A, 400A
Current - Gate Trigger (Igt) (Max) : 100mA
Current - Hold (Ih) (Max) : 100mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-218-3 Isolated Tab, TO-218AC
Supplier Device Package : TO-218 Isolated Tab
0
3130 in stock

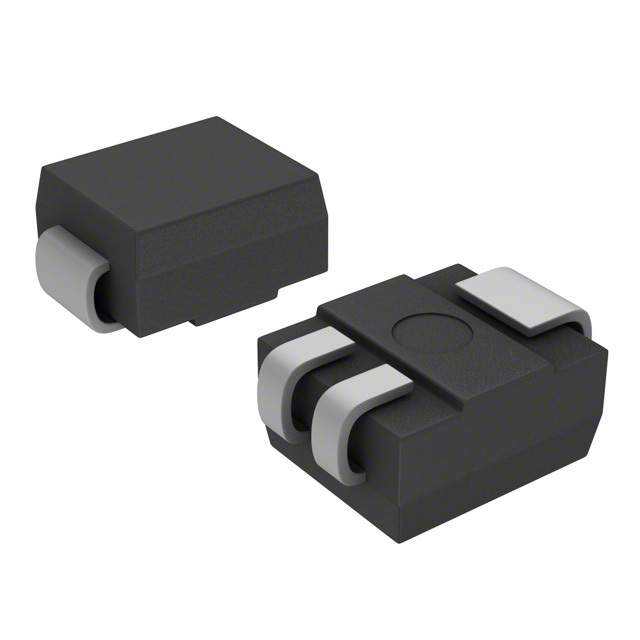

Q4N3RP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 1A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 16.7A, 20A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 15mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB (3 Leads), Compak
Supplier Device Package : DO-214 (Compak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 1A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 16.7A, 20A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 15mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB (3 Leads), Compak
Supplier Device Package : DO-214 (Compak)
0
75268 in stock
Q4X3RP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 800mA
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8.3A, 10A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 15mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB (3 Leads), Compak
Supplier Device Package : DO-214 (Compak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 800mA
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8.3A, 10A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 15mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB (3 Leads), Compak
Supplier Device Package : DO-214 (Compak)
0
1972 in stock
Q6004D3RP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 4A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 46A, 55A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 20mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 4A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 46A, 55A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 20mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
0
3189 in stock
Q6004D4RP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Standard
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 4A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 46A, 55A
Current - Gate Trigger (Igt) (Max) : 25mA
Current - Hold (Ih) (Max) : 30mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Standard
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 4A
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 46A, 55A
Current - Gate Trigger (Igt) (Max) : 25mA
Current - Hold (Ih) (Max) : 30mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
0
2658 in stock

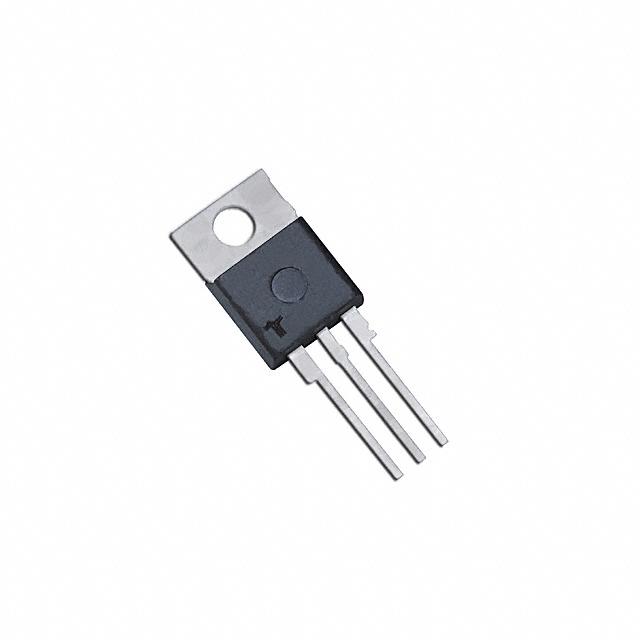

Q6004F31
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 4A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 46A, 55A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 20mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-202 Long Tab
Supplier Device Package : TO-202
Packaging : Bulk
Series : -
Part Status : Obsolete
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 4A
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 46A, 55A
Current - Gate Trigger (Igt) (Max) : 10mA
Current - Hold (Ih) (Max) : 20mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-202 Long Tab
Supplier Device Package : TO-202
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
