Part Number
Manufacturer
Description
Unit Price
In Stock

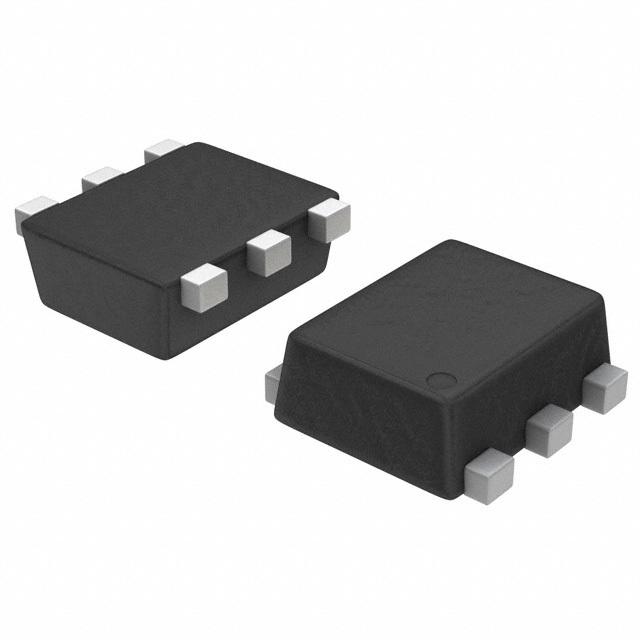

NSBC143ZDP6T5G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 339mW
Package / Case : SOT-963
Supplier Device Package : SOT-963
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 339mW
Package / Case : SOT-963
Supplier Device Package : SOT-963
0
8000 in stock
NSBC143ZDXV6T1
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
100 in stock
NSBC143ZDXV6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
7953 in stock
NSBC143ZPDP6T5G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 339mW
Package / Case : SOT-963
Supplier Device Package : SOT-963
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 339mW
Package / Case : SOT-963
Supplier Device Package : SOT-963
0
8000 in stock
NSBC143ZPDXV6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
4000 in stock
NSBC143ZPDXV6T5
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
100 in stock
NSBC143ZPDXV6T5G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
100 in stock
NSBC144EDXV6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 47 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 47 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
8000 in stock
NSBC144EPDXV6T1
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 47 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 47 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
100 in stock
NSBC144EPDXV6T5
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 47 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 47 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 500mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
100 in stock
NSM11156DW6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 PNP Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 65V
Resistor - Base (R1) : 10 kOhms
Resistor - Emitter Base (R2) : 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 35 @ 5mA, 10V / 220 @ 2mA, 5V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA / 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 230mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 PNP Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 65V
Resistor - Base (R1) : 10 kOhms
Resistor - Emitter Base (R2) : 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 35 @ 5mA, 10V / 220 @ 2mA, 5V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA / 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 230mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
0
100 in stock
NSM21156DW6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 65V
Resistor - Base (R1) : 10 kOhms
Resistor - Emitter Base (R2) : 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 35 @ 5mA, 10V / 220 @ 2mA, 5V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA / 300mV @ 500µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 230mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 65V
Resistor - Base (R1) : 10 kOhms
Resistor - Emitter Base (R2) : 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 35 @ 5mA, 10V / 220 @ 2mA, 5V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA / 300mV @ 500µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 230mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
