Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Part Number
Manufacturer
Description
Unit Price
In Stock
NSVMUN5316DW1T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 160 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 250mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : -
DC Current Gain (hFE) (Min) @ Ic, Vce : 160 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 250mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
0
3000 in stock
NSVMUN5332DW1T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 15 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 250mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 15 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 250mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
0
2281 in stock
NSVMUN5333DW1T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 250mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 250mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
0
8183 in stock
NSVMUN5334DW1T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 22 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 250mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 22 kOhms
Resistor - Emitter Base (R2) : 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 250mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-88/SC70-6/SOT-363
0
3000 in stock

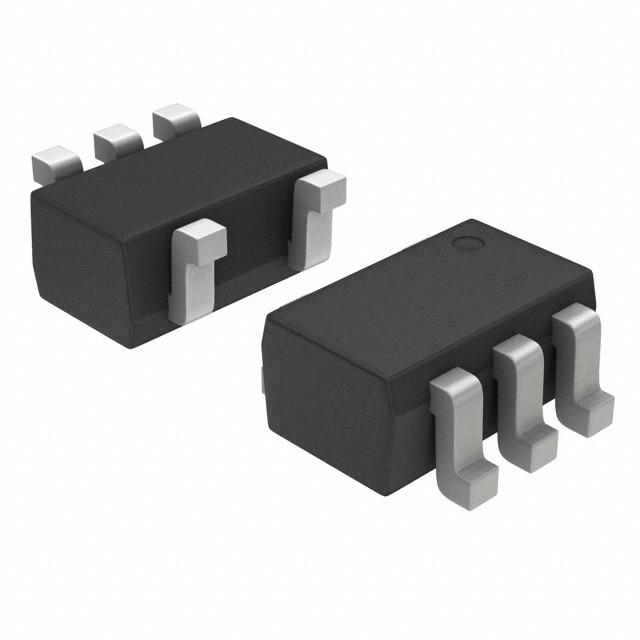

NSVUMC5NT2G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 47 kOhms, 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms, 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V / 20 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 150mW
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : SC-88A (SC-70-5/SOT-353)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max) : 100mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 47 kOhms, 4.7 kOhms
Resistor - Emitter Base (R2) : 47 kOhms, 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 5mA, 10V / 20 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 150mW
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : SC-88A (SC-70-5/SOT-353)
0
3000 in stock
NUS2401SNT1
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 2 NPN, 1 PNP - Pre-Biased
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 175 Ohms, 10 kOhms
Resistor - Emitter Base (R2) : 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : -
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA / 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 350mW
Package / Case : SC-74, SOT-457
Supplier Device Package : SC-74
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 2 NPN, 1 PNP - Pre-Biased
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 50V
Resistor - Base (R1) : 175 Ohms, 10 kOhms
Resistor - Emitter Base (R2) : 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : -
Vce Saturation (Max) @ Ib, Ic : 250mV @ 1mA, 10mA / 250mV @ 300µA, 10mA
Current - Collector Cutoff (Max) : 500nA
Frequency - Transition : -
Power - Max : 350mW
Package / Case : SC-74, SOT-457
Supplier Device Package : SC-74
0
100 in stock
PBLS1501V,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 2.2 kOhms
Resistor - Emitter Base (R2) : 2.2 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 20mA, 5V / 150 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 2.2 kOhms
Resistor - Emitter Base (R2) : 2.2 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 20mA, 5V / 150 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
0
100 in stock
PBLS1501Y,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 2.2 kOhms
Resistor - Emitter Base (R2) : 2.2 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 20mA, 5V / 150 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 2.2 kOhms
Resistor - Emitter Base (R2) : 2.2 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 20mA, 5V / 150 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
0
11450 in stock
PBLS1502V,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 10mA, 5V / 150 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 10mA, 5V / 150 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
0
100 in stock
PBLS1502Y,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 10mA, 5V / 150 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 4.7 kOhms
Resistor - Emitter Base (R2) : 4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 10mA, 5V / 150 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
0
4807 in stock
PBLS1503V,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 10 kOhms
Resistor - Emitter Base (R2) : 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 5mA, 5V / 150 @ 100mA. 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 10 kOhms
Resistor - Emitter Base (R2) : 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 5mA, 5V / 150 @ 100mA. 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
0
100 in stock
PBLS1503Y,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 10 kOhms
Resistor - Emitter Base (R2) : 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 5mA, 5V / 150 @ 100mA. 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : 1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max) : 100mA, 500mA
Voltage - Collector Emitter Breakdown (Max) : 50V, 15V
Resistor - Base (R1) : 10 kOhms
Resistor - Emitter Base (R2) : 10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 5mA, 5V / 150 @ 100mA. 2V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 500µA, 10mA / 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA, 100nA
Frequency - Transition : 280MHz
Power - Max : 300mW
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
0
6347 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
