Part Number
Manufacturer
Description
Unit Price
In Stock
ZXTP25040DFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 220mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 270MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 220mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 270MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
100 in stock
ZXTP25040DFLTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 350mW
Frequency - Transition : 270MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 350mW
Frequency - Transition : 270MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
14410 in stock

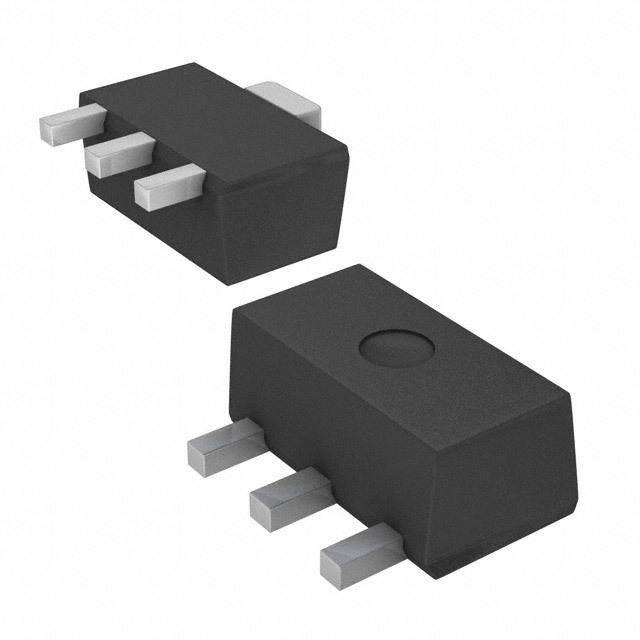

ZXTP25040DZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 350mV @ 350mA, 3.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 2.4W
Frequency - Transition : 270MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 350mV @ 350mA, 3.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 2.4W
Frequency - Transition : 270MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
1494 in stock
ZXTP25060BFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 235mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 250MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 235mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 250MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
25022 in stock
ZXTP25100BFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 295mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 295mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
13581 in stock
ZXTP25100CFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 220mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 220mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
7219 in stock
ZXTP25100CZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 225mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 10mA, 2V
Power - Max : 2.4W
Frequency - Transition : 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 225mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 10mA, 2V
Power - Max : 2.4W
Frequency - Transition : 180MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
26666 in stock
ZXTP25140BFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 140V
Vce Saturation (Max) @ Ib, Ic : 260mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 75MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 140V
Vce Saturation (Max) @ Ib, Ic : 260mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 75MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
4127 in stock

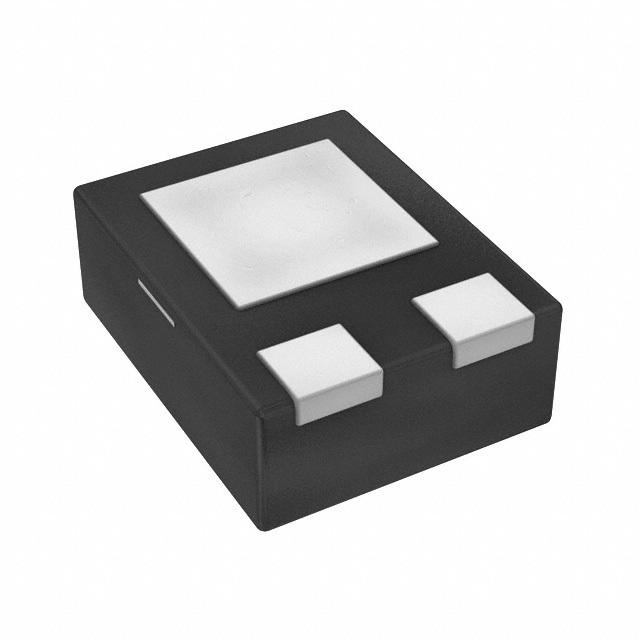

ZXTP26020DMFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.25A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 235mV @ 62.5mA, 1.25A
Current - Collector Cutoff (Max) : 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 235 @ 500mA, 2V
Power - Max : 1W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 3-UDFN
Supplier Device Package : 3-DFN1411 (1.4x1.1)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.25A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 235mV @ 62.5mA, 1.25A
Current - Collector Cutoff (Max) : 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 235 @ 500mA, 2V
Power - Max : 1W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 3-UDFN
Supplier Device Package : 3-DFN1411 (1.4x1.1)
0
1184 in stock
ZXTP4003GTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : -
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 200mV
Power - Max : 2W
Frequency - Transition : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : -
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 200mV
Power - Max : 2W
Frequency - Transition : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
300 in stock
ZXTP4003ZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : -
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 200mV
Power - Max : 1.5W
Frequency - Transition : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : -
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 200mV
Power - Max : 1.5W
Frequency - Transition : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89
0
23077 in stock
ZXTP5240F-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 350mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 730mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 350mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 730mW
Frequency - Transition : 100MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
2915 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
