Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - FETs, MOSFETs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
TSM900N10CH X0G
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 90 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1480pF @ 50V
FET Feature : -
Power Dissipation (Max) : 50W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-251 (IPAK)
Package / Case : TO-251-3 Stub Leads, IPak
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 90 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1480pF @ 50V
FET Feature : -
Power Dissipation (Max) : 50W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-251 (IPAK)
Package / Case : TO-251-3 Stub Leads, IPak
0
3696 in stock
TSM900N10CP ROG
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 90 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1480pF @ 50V
FET Feature : -
Power Dissipation (Max) : 50W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252, (D-Pak)
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 90 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1480pF @ 50V
FET Feature : -
Power Dissipation (Max) : 50W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252, (D-Pak)
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
7200 in stock
TSM9409CS RLG
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 155 mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 540pF @ 30V
FET Feature : -
Power Dissipation (Max) : 3W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 155 mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 540pF @ 30V
FET Feature : -
Power Dissipation (Max) : 3W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP
Package / Case : 8-SOIC (0.154", 3.90mm Width)
0
4934 in stock
TSM9435CS RLG
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 5.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 60 mOhm @ 5.3A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 551.57pF @ 15V
FET Feature : -
Power Dissipation (Max) : 5.3W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 5.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 60 mOhm @ 5.3A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 27nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 551.57pF @ 15V
FET Feature : -
Power Dissipation (Max) : 5.3W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SOP
Package / Case : 8-SOIC (0.154", 3.90mm Width)
0
4997 in stock
TSM950N10CW RPG
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 95 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1480pF @ 50V
FET Feature : -
Power Dissipation (Max) : 9W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 95 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1480pF @ 50V
FET Feature : -
Power Dissipation (Max) : 9W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
0
10000 in stock
TSM9N90ECI C0G
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 9A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 2470pF @ 25V
FET Feature : -
Power Dissipation (Max) : 89W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : ITO-220
Package / Case : TO-220-3 Full Pack, Isolated Tab
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 9A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 2470pF @ 25V
FET Feature : -
Power Dissipation (Max) : 89W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : ITO-220
Package / Case : TO-220-3 Full Pack, Isolated Tab
0
980 in stock
TSM9N90ECZ C0G
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 9A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 2470pF @ 25V
FET Feature : -
Power Dissipation (Max) : 89W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 9A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 2470pF @ 25V
FET Feature : -
Power Dissipation (Max) : 89W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3
0
976 in stock
TSM9ND50CI
Taiwan Semiconductor
Manufacturer : Taiwan Semiconductor Corporation
Packaging : -
Series : *
Part Status : Active
FET Type : -
Technology : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : -
Supplier Device Package : -
Package / Case : -
Packaging : -
Series : *
Part Status : Active
FET Type : -
Technology : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : -
Supplier Device Package : -
Package / Case : -
0
100 in stock

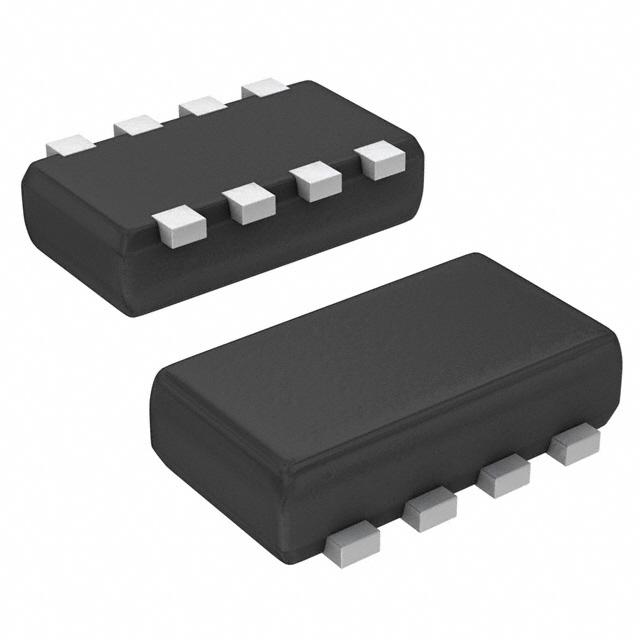

TT8U1TR
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.5V, 4.5V
Rds On (Max) @ Id, Vgs : 105 mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 6.7nC @ 4.5V
Vgs (Max) : ±10V
Input Capacitance (Ciss) (Max) @ Vds : 850pF @ 10V
FET Feature : Schottky Diode (Isolated)
Power Dissipation (Max) : 1.25W (Ta)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSST
Package / Case : 8-SMD, Flat Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.5V, 4.5V
Rds On (Max) @ Id, Vgs : 105 mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 6.7nC @ 4.5V
Vgs (Max) : ±10V
Input Capacitance (Ciss) (Max) @ Vds : 850pF @ 10V
FET Feature : Schottky Diode (Isolated)
Power Dissipation (Max) : 1.25W (Ta)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSST
Package / Case : 8-SMD, Flat Lead
0
8357 in stock
TT8U2TR
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.5V, 4.5V
Rds On (Max) @ Id, Vgs : 105 mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 6.7nC @ 4.5V
Vgs (Max) : ±10V
Input Capacitance (Ciss) (Max) @ Vds : 850pF @ 10V
FET Feature : Schottky Diode (Isolated)
Power Dissipation (Max) : 1.25W (Ta)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSST
Package / Case : 8-SMD, Flat Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.5V, 4.5V
Rds On (Max) @ Id, Vgs : 105 mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 6.7nC @ 4.5V
Vgs (Max) : ±10V
Input Capacitance (Ciss) (Max) @ Vds : 850pF @ 10V
FET Feature : Schottky Diode (Isolated)
Power Dissipation (Max) : 1.25W (Ta)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSST
Package / Case : 8-SMD, Flat Lead
0
2952 in stock
T-TD1R4N60P 11
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : -
Series : -
Part Status : Obsolete
FET Type : -
Technology : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : -
Supplier Device Package : -
Package / Case : -
Packaging : -
Series : -
Part Status : Obsolete
FET Type : -
Technology : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : -
Supplier Device Package : -
Package / Case : -
0
100 in stock
UPA1727G-E1-A
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : -
Series : *
Part Status : Last Time Buy
FET Type : -
Technology : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : -
Supplier Device Package : -
Package / Case : -
Packaging : -
Series : *
Part Status : Last Time Buy
FET Type : -
Technology : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : -
Supplier Device Package : -
Package / Case : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
