ZXMN6A25KTC
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 50 mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20.4nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1063pF @ 30V
FET Feature : -
Power Dissipation (Max) : 2.11W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252-3
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 50 mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20.4nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1063pF @ 30V
FET Feature : -
Power Dissipation (Max) : 2.11W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252-3
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
671 in stock
ZXMN7A11GTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 70V
Current - Continuous Drain (Id) @ 25°C : 2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 130 mOhm @ 4.4A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.4nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 298pF @ 40V
FET Feature : -
Power Dissipation (Max) : 2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 70V
Current - Continuous Drain (Id) @ 25°C : 2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 130 mOhm @ 4.4A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.4nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 298pF @ 40V
FET Feature : -
Power Dissipation (Max) : 2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
0
29539 in stock
ZXMN7A11KTC
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 70V
Current - Continuous Drain (Id) @ 25°C : 4.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 130 mOhm @ 4.4A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.4nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 298pF @ 40V
FET Feature : -
Power Dissipation (Max) : 2.11W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252-3
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 70V
Current - Continuous Drain (Id) @ 25°C : 4.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 130 mOhm @ 4.4A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.4nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 298pF @ 40V
FET Feature : -
Power Dissipation (Max) : 2.11W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252-3
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
359 in stock

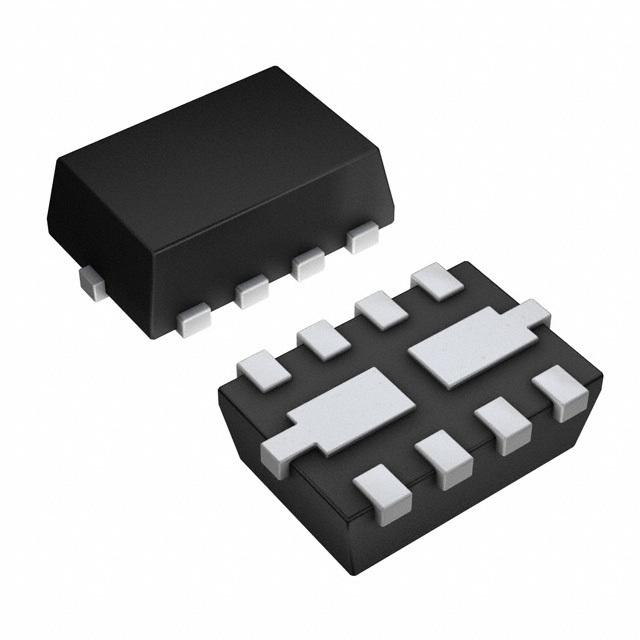

ZXMNS3BM832TA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 180 mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id : 700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.9nC @ 4.5V
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 314pF @ 15V
FET Feature : Schottky Diode (Isolated)
Power Dissipation (Max) : 1W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-MLP, MicroFET (3x2)
Package / Case : 8-VDFN Exposed Pad
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V
Rds On (Max) @ Id, Vgs : 180 mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id : 700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.9nC @ 4.5V
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 314pF @ 15V
FET Feature : Schottky Diode (Isolated)
Power Dissipation (Max) : 1W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-MLP, MicroFET (3x2)
Package / Case : 8-VDFN Exposed Pad
0
100 in stock
ZXMP10A13FQTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 600mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 1 Ohm @ 600mA, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.8nC @ 5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 141pF @ 50V
FET Feature : -
Power Dissipation (Max) : 625mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 600mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 1 Ohm @ 600mA, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.8nC @ 5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 141pF @ 50V
FET Feature : -
Power Dissipation (Max) : 625mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
936 in stock
ZXMP10A13FTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 600mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 1 Ohm @ 600mA, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.5nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 141pF @ 50V
FET Feature : -
Power Dissipation (Max) : 625mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3
Package / Case : TO-236-3, SC-59, SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 600mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 1 Ohm @ 600mA, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.5nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 141pF @ 50V
FET Feature : -
Power Dissipation (Max) : 625mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3
Package / Case : TO-236-3, SC-59, SOT-23-3
0
100 in stock

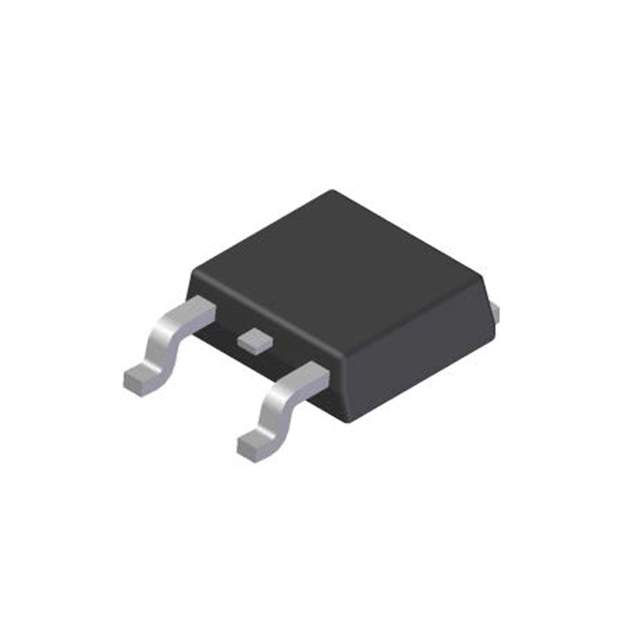

ZXMP10A16KTC
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 235 mOhm @ 2.1A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 16.5nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 717pF @ 50V
FET Feature : -
Power Dissipation (Max) : 2.15W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252-3
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 235 mOhm @ 2.1A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 16.5nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 717pF @ 50V
FET Feature : -
Power Dissipation (Max) : 2.15W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252-3
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock
ZXMP10A17E6QTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 1.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 424pF @ 50V
FET Feature : -
Power Dissipation (Max) : 1.1W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-26
Package / Case : SOT-23-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 1.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 424pF @ 50V
FET Feature : -
Power Dissipation (Max) : 1.1W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-26
Package / Case : SOT-23-6
0
27 in stock
ZXMP10A17E6TA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 1.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.1nC @ 5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 424pF @ 50V
FET Feature : -
Power Dissipation (Max) : 1.1W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-26
Package / Case : SOT-23-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 1.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.1nC @ 5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 424pF @ 50V
FET Feature : -
Power Dissipation (Max) : 1.1W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-26
Package / Case : SOT-23-6
0
6520 in stock
ZXMP10A17GQTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 424pF @ 50V
FET Feature : -
Power Dissipation (Max) : 2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 424pF @ 50V
FET Feature : -
Power Dissipation (Max) : 2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
0
803 in stock

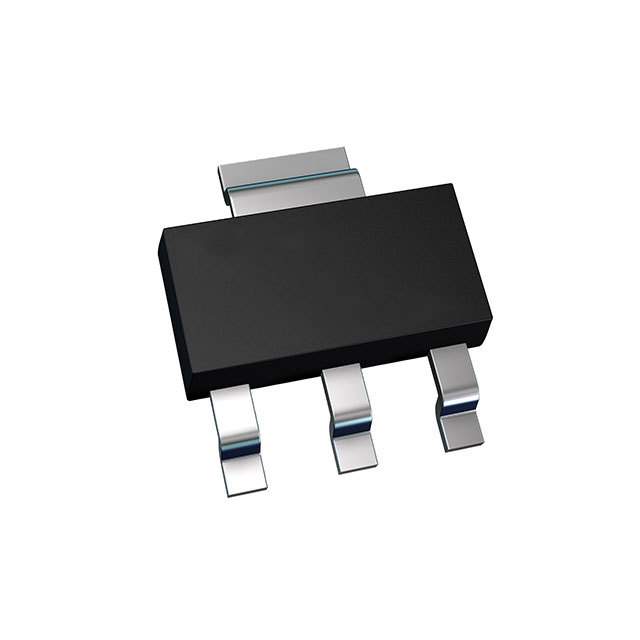

ZXMP10A17GTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 424pF @ 50V
FET Feature : -
Power Dissipation (Max) : 2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 424pF @ 50V
FET Feature : -
Power Dissipation (Max) : 2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-223
Package / Case : TO-261-4, TO-261AA
0
100 in stock
ZXMP10A17KTC
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 424pF @ 50V
FET Feature : -
Power Dissipation (Max) : 2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252-3
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6V, 10V
Rds On (Max) @ Id, Vgs : 350 mOhm @ 1.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 424pF @ 50V
FET Feature : -
Power Dissipation (Max) : 2W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252-3
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
904 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
