- Discrete Semiconductor Products
- Transistors - IGBTs - Modules
Part Number
Manufacturer
Description
Unit Price
In Stock
VIO25-12P1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Power - Max : 130W
Vce(on) (Max) @ Vge, Ic : 3.3V @ 15V, 25A
Current - Collector Cutoff (Max) : 900µA
Input Capacitance (Cies) @ Vce : 1nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Power - Max : 130W
Vce(on) (Max) @ Vge, Ic : 3.3V @ 15V, 25A
Current - Collector Cutoff (Max) : 900µA
Input Capacitance (Cies) @ Vce : 1nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
0
100 in stock
VIO50-06P1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 42.5A
Power - Max : 130W
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 50A
Current - Collector Cutoff (Max) : 600µA
Input Capacitance (Cies) @ Vce : 16nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 42.5A
Power - Max : 130W
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 50A
Current - Collector Cutoff (Max) : 600µA
Input Capacitance (Cies) @ Vce : 16nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
0
100 in stock
VIO50-12P1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 49A
Power - Max : 208W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Current - Collector Cutoff (Max) : 1.1mA
Input Capacitance (Cies) @ Vce : 1.65nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 49A
Power - Max : 208W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Current - Collector Cutoff (Max) : 1.1mA
Input Capacitance (Cies) @ Vce : 1.65nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
0
100 in stock
VIO75-06P1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 69A
Power - Max : 208W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 75A
Current - Collector Cutoff (Max) : 800µA
Input Capacitance (Cies) @ Vce : 2.8nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 69A
Power - Max : 208W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 75A
Current - Collector Cutoff (Max) : 800µA
Input Capacitance (Cies) @ Vce : 2.8nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
0
100 in stock
VIO75-12P1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 92A
Power - Max : 379W
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 75A
Current - Collector Cutoff (Max) : 3.7mA
Input Capacitance (Cies) @ Vce : 3.3nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 92A
Power - Max : 379W
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 75A
Current - Collector Cutoff (Max) : 3.7mA
Input Capacitance (Cies) @ Vce : 3.3nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
0
100 in stock
VKI50-12P1
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Full Bridge Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 49A
Power - Max : 208W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Current - Collector Cutoff (Max) : 1.1mA
Input Capacitance (Cies) @ Vce : 1.65nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Full Bridge Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 49A
Power - Max : 208W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Current - Collector Cutoff (Max) : 1.1mA
Input Capacitance (Cies) @ Vce : 1.65nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : ECO-PAC2
Supplier Device Package : ECO-PAC2
0
100 in stock
VS-40MT120UHAPBF
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Active
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Power - Max : 463W
Vce(on) (Max) @ Vge, Ic : 4.91V @ 15V, 80A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 8.28nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 12-MTP Module
Supplier Device Package : MTP
Series : -
Part Status : Active
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Power - Max : 463W
Vce(on) (Max) @ Vge, Ic : 4.91V @ 15V, 80A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 8.28nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 12-MTP Module
Supplier Device Package : MTP
0
76 in stock

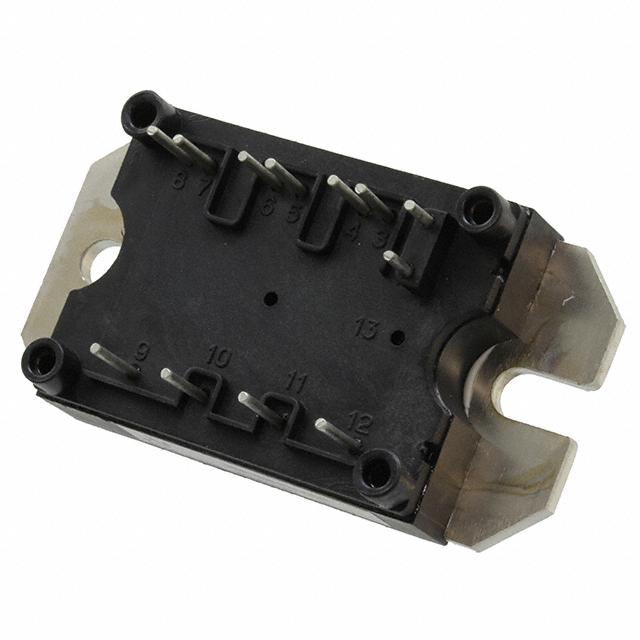

VS-50MT060WHTAPBF
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 114A
Power - Max : 658W
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 100A
Current - Collector Cutoff (Max) : 400µA
Input Capacitance (Cies) @ Vce : 7.1nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 12-MTP Module
Supplier Device Package : MTP
Series : -
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 114A
Power - Max : 658W
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 100A
Current - Collector Cutoff (Max) : 400µA
Input Capacitance (Cies) @ Vce : 7.1nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 12-MTP Module
Supplier Device Package : MTP
0
218 in stock

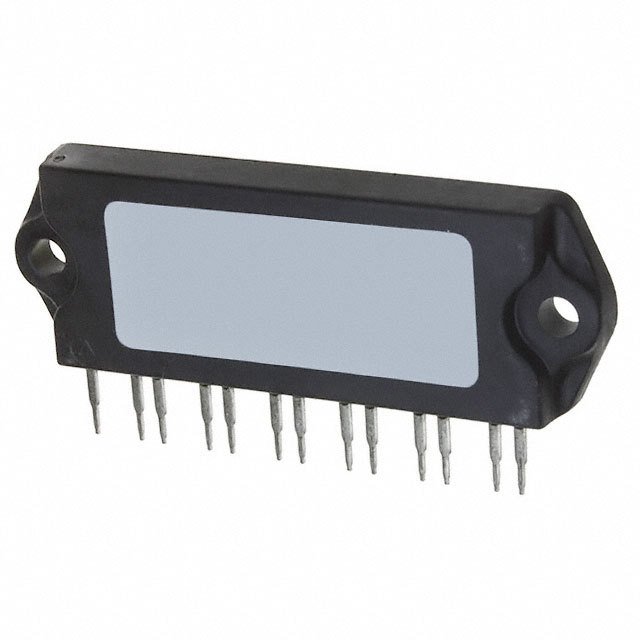

VS-CPV363M4KPBF
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 11A
Power - Max : 36W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 0.74nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 19-SIP (13 Leads), IMS-2
Supplier Device Package : IMS-2
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 11A
Power - Max : 36W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 6A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 0.74nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 19-SIP (13 Leads), IMS-2
Supplier Device Package : IMS-2
0
100 in stock
VS-CPV364M4FPBF
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Active
IGBT Type : -
Configuration : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 27A
Power - Max : 63W
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 15A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 2.2nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 19-SIP (13 Leads), IMS-2
Supplier Device Package : IMS-2
Series : -
Part Status : Active
IGBT Type : -
Configuration : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 27A
Power - Max : 63W
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 15A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 2.2nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 19-SIP (13 Leads), IMS-2
Supplier Device Package : IMS-2
0
100 in stock
VS-CPV364M4KPBF
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Active
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 24A
Power - Max : 63W
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 24A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 1.6nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 19-SIP (13 Leads), IMS-2
Supplier Device Package : IMS-2
Series : -
Part Status : Active
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 24A
Power - Max : 63W
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 24A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 1.6nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 19-SIP (13 Leads), IMS-2
Supplier Device Package : IMS-2
0
102 in stock
VS-EMF050J60U
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 88A
Power - Max : 338W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 9.5nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK2
Supplier Device Package : EMIPAK2
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 88A
Power - Max : 338W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 9.5nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK2
Supplier Device Package : EMIPAK2
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
