Part Number
Manufacturer
Description
Unit Price
In Stock
VS-EMG050J60N
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 88A
Power - Max : 338W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 9.5nF @ 30V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK2
Supplier Device Package : EMIPAK2
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 88A
Power - Max : 338W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 9.5nF @ 30V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK2
Supplier Device Package : EMIPAK2
0
100 in stock

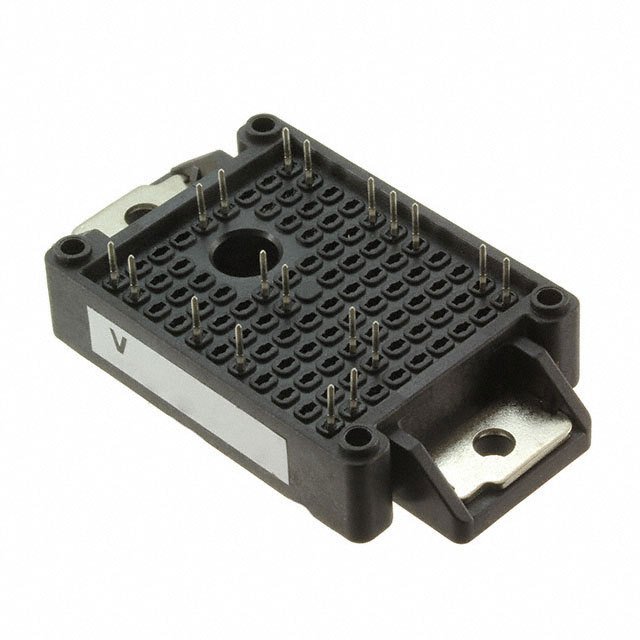

VS-ENQ030L120S
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Active
IGBT Type : Trench
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 61A
Power - Max : 216W
Vce(on) (Max) @ Vge, Ic : 2.52V @ 15V, 30A
Current - Collector Cutoff (Max) : 230µA
Input Capacitance (Cies) @ Vce : 3.34nF @ 30V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK-1B
Supplier Device Package : EMIPAK-1B
Series : -
Part Status : Active
IGBT Type : Trench
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 61A
Power - Max : 216W
Vce(on) (Max) @ Vge, Ic : 2.52V @ 15V, 30A
Current - Collector Cutoff (Max) : 230µA
Input Capacitance (Cies) @ Vce : 3.34nF @ 30V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK-1B
Supplier Device Package : EMIPAK-1B
0
2 in stock

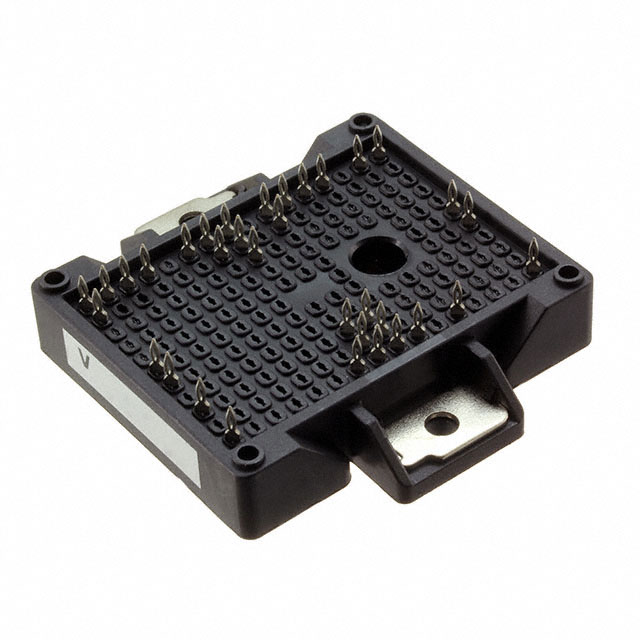

VS-ETF075Y60U
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Active
IGBT Type : Trench
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 109A
Power - Max : 294W
Vce(on) (Max) @ Vge, Ic : 1.93V @ 15V, 75A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 4.44nF @ 30V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK-2B
Supplier Device Package : EMIPAK-2B
Series : -
Part Status : Active
IGBT Type : Trench
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 109A
Power - Max : 294W
Vce(on) (Max) @ Vge, Ic : 1.93V @ 15V, 75A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 4.44nF @ 30V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK-2B
Supplier Device Package : EMIPAK-2B
0
15 in stock

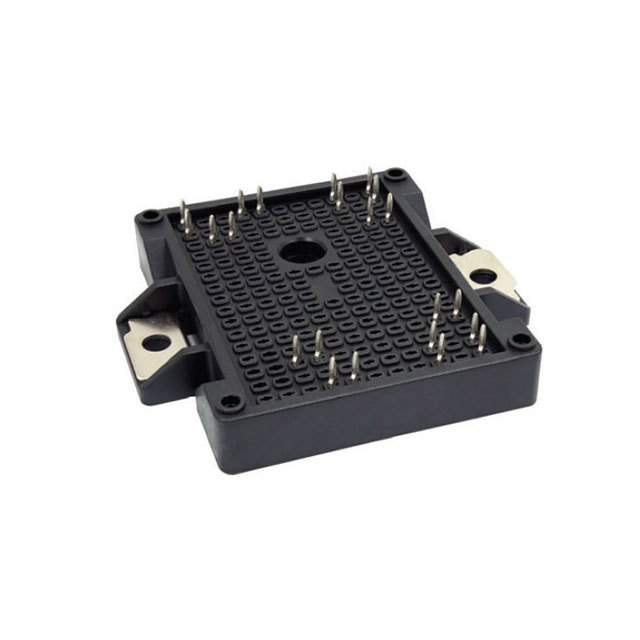

VS-ETF150Y65N
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : FRED Pt®
Part Status : Active
IGBT Type : NPT
Configuration : Half Bridge Inverter
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 201A
Power - Max : 600W
Vce(on) (Max) @ Vge, Ic : 2.17V @ 15V, 150A
Current - Collector Cutoff (Max) : -
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : Yes
Operating Temperature : 175°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
Series : FRED Pt®
Part Status : Active
IGBT Type : NPT
Configuration : Half Bridge Inverter
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 201A
Power - Max : 600W
Vce(on) (Max) @ Vge, Ic : 2.17V @ 15V, 150A
Current - Collector Cutoff (Max) : -
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : Yes
Operating Temperature : 175°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
0
9 in stock

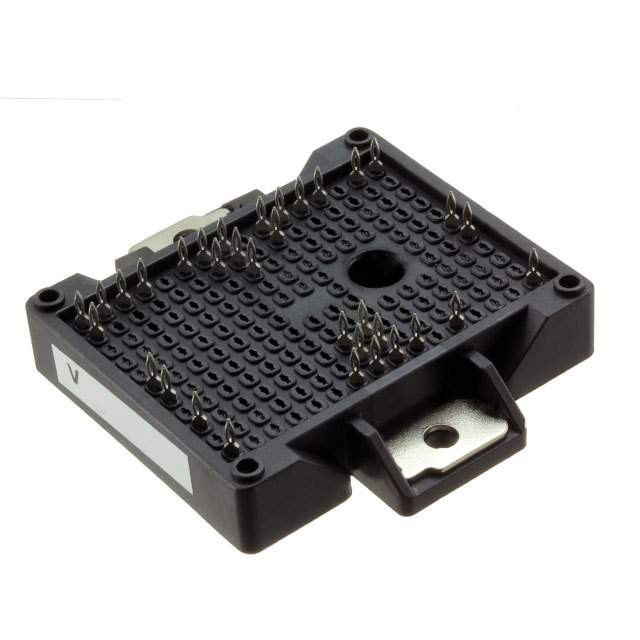

VS-ETF150Y65U
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Active
IGBT Type : Trench
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 142A
Power - Max : 417W
Vce(on) (Max) @ Vge, Ic : 2.06V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 6.6nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK-2B
Supplier Device Package : EMIPAK-2B
Series : -
Part Status : Active
IGBT Type : Trench
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 142A
Power - Max : 417W
Vce(on) (Max) @ Vge, Ic : 2.06V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 6.6nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK-2B
Supplier Device Package : EMIPAK-2B
0
15 in stock

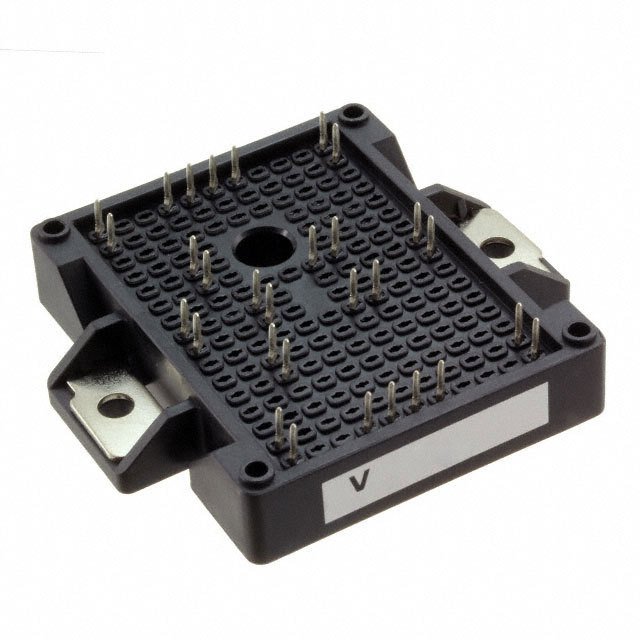

VS-ETL015Y120H
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Active
IGBT Type : Trench
Configuration : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 22A
Power - Max : 89W
Vce(on) (Max) @ Vge, Ic : 3.03V @ 15V, 15A
Current - Collector Cutoff (Max) : 75µA
Input Capacitance (Cies) @ Vce : 1.07nF @ 30V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK-2B
Supplier Device Package : EMIPAK-2B
Series : -
Part Status : Active
IGBT Type : Trench
Configuration : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 22A
Power - Max : 89W
Vce(on) (Max) @ Vge, Ic : 3.03V @ 15V, 15A
Current - Collector Cutoff (Max) : 75µA
Input Capacitance (Cies) @ Vce : 1.07nF @ 30V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : EMIPAK-2B
Supplier Device Package : EMIPAK-2B
0
5 in stock
VS-GA100NA60UP
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Power - Max : 250W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 7.4nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Power - Max : 250W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 7.4nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
100 in stock
VS-GA100TS120UPBF
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 182A
Power - Max : 520W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 100A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 18.67nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-Pak
Supplier Device Package : INT-A-PAK
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 182A
Power - Max : 520W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 100A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 18.67nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-Pak
Supplier Device Package : INT-A-PAK
0
100 in stock
VS-GA100TS60SF
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : PT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 220A
Power - Max : 780W
Vce(on) (Max) @ Vge, Ic : 1.28V @ 15V, 100A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 16.25nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-Pak
Supplier Device Package : INT-A-PAK
Series : -
Part Status : Obsolete
IGBT Type : PT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 220A
Power - Max : 780W
Vce(on) (Max) @ Vge, Ic : 1.28V @ 15V, 100A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 16.25nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-Pak
Supplier Device Package : INT-A-PAK
0
100 in stock
VS-GA100TS60SFPBF
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : PT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 220A
Power - Max : 780W
Vce(on) (Max) @ Vge, Ic : 1.28V @ 15V, 100A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 16.25nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-Pak
Supplier Device Package : INT-A-PAK
Series : -
Part Status : Obsolete
IGBT Type : PT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 220A
Power - Max : 780W
Vce(on) (Max) @ Vge, Ic : 1.28V @ 15V, 100A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 16.25nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-Pak
Supplier Device Package : INT-A-PAK
0
100 in stock
VS-GA200HS60S1
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 480A
Power - Max : 830W
Vce(on) (Max) @ Vge, Ic : 1.21V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 32.5nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-Pak
Supplier Device Package : INT-A-PAK
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 480A
Power - Max : 830W
Vce(on) (Max) @ Vge, Ic : 1.21V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 32.5nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-Pak
Supplier Device Package : INT-A-PAK
0
100 in stock
VS-GA200HS60S1PBF
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 480A
Power - Max : 830W
Vce(on) (Max) @ Vge, Ic : 1.21V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 32.5nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-Pak
Supplier Device Package : INT-A-PAK
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 480A
Power - Max : 830W
Vce(on) (Max) @ Vge, Ic : 1.21V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 32.5nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-Pak
Supplier Device Package : INT-A-PAK
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
