VS-GB75LP120N
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 170A
Power - Max : 658W
Vce(on) (Max) @ Vge, Ic : 1.82V @ 15V, 75A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 5.52nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-PAK (3 + 4)
Supplier Device Package : INT-A-PAK
Series : -
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 170A
Power - Max : 658W
Vce(on) (Max) @ Vge, Ic : 1.82V @ 15V, 75A (Typ)
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 5.52nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-PAK (3 + 4)
Supplier Device Package : INT-A-PAK
0
100 in stock
VS-GB75SA120UP
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Power - Max : 658W
Vce(on) (Max) @ Vge, Ic : 3.8V @ 15V, 75A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Power - Max : 658W
Vce(on) (Max) @ Vge, Ic : 3.8V @ 15V, 75A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
100 in stock
VS-GB90DA120U
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Active
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 149A
Power - Max : 862W
Vce(on) (Max) @ Vge, Ic : 3.8V @ 15V, 75A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
Series : -
Part Status : Active
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 149A
Power - Max : 862W
Vce(on) (Max) @ Vge, Ic : 3.8V @ 15V, 75A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
100 in stock

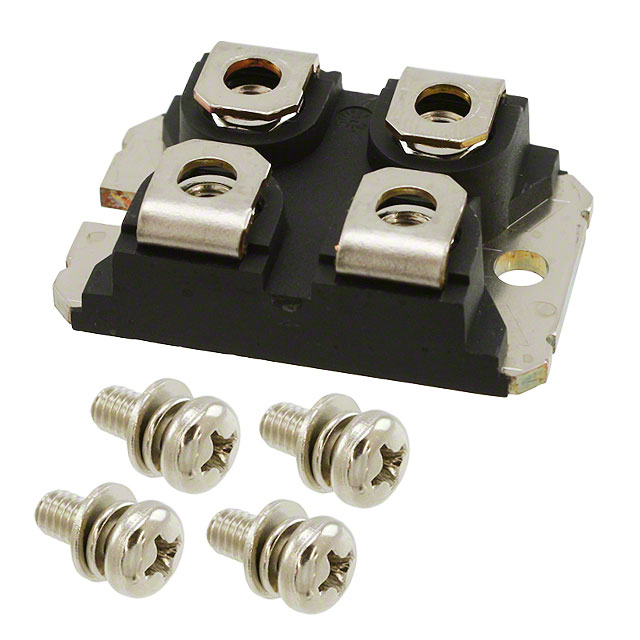

VS-GB90SA120U
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Active
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 149A
Power - Max : 862W
Vce(on) (Max) @ Vge, Ic : 3.9V @ 15V, 75A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4
Supplier Device Package : SOT-227
Series : -
Part Status : Active
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 149A
Power - Max : 862W
Vce(on) (Max) @ Vge, Ic : 3.9V @ 15V, 75A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4
Supplier Device Package : SOT-227
0
6 in stock

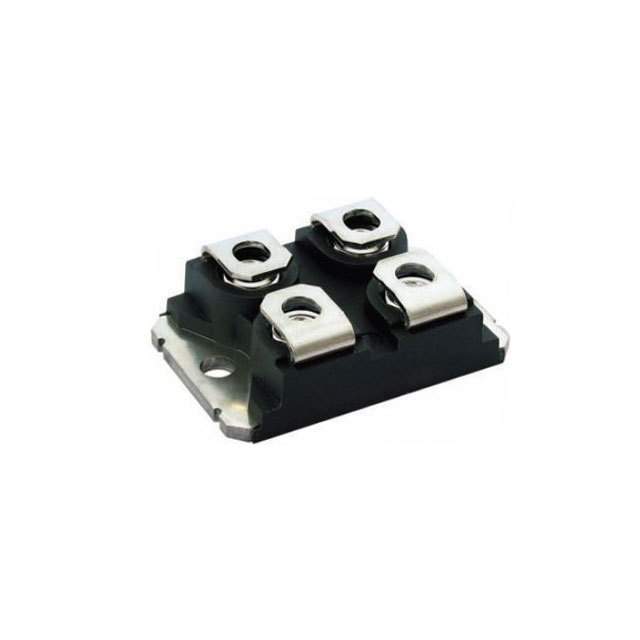

VS-GP250SA60S
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Active
IGBT Type : PT, Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 380A
Power - Max : 893W
Vce(on) (Max) @ Vge, Ic : 1.3V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
Series : -
Part Status : Active
IGBT Type : PT, Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 380A
Power - Max : 893W
Vce(on) (Max) @ Vge, Ic : 1.3V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
100 in stock
VS-GT100DA120U
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 258A
Power - Max : 893W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
Series : -
Part Status : Obsolete
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 258A
Power - Max : 893W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
100 in stock
VS-GT100DA120UF
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : HEXFRED®
Part Status : Active
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 187A
Power - Max : 890W
Vce(on) (Max) @ Vge, Ic : 2.55V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 6.15nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
Series : HEXFRED®
Part Status : Active
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 187A
Power - Max : 890W
Vce(on) (Max) @ Vge, Ic : 2.55V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : 6.15nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
100 in stock
VS-GT100DA60U
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 184A
Power - Max : 577W
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
Series : -
Part Status : Obsolete
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 184A
Power - Max : 577W
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
100 in stock
VS-GT100LA120UX
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 134A
Power - Max : 463W
Vce(on) (Max) @ Vge, Ic : 2.85V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
Series : -
Part Status : Obsolete
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 134A
Power - Max : 463W
Vce(on) (Max) @ Vge, Ic : 2.85V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
100 in stock
VS-GT100NA120UX
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 134A
Power - Max : 463W
Vce(on) (Max) @ Vge, Ic : 2.85V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
Series : -
Part Status : Obsolete
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 134A
Power - Max : 463W
Vce(on) (Max) @ Vge, Ic : 2.85V @ 15V, 100A
Current - Collector Cutoff (Max) : 100µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
100 in stock
VS-GT100TP120N
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 180A
Power - Max : 652W
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 100A
Current - Collector Cutoff (Max) : 5mA
Input Capacitance (Cies) @ Vce : 12.8nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-PAK (3 + 4)
Supplier Device Package : INT-A-PAK
Series : -
Part Status : Obsolete
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 180A
Power - Max : 652W
Vce(on) (Max) @ Vge, Ic : 2.35V @ 15V, 100A
Current - Collector Cutoff (Max) : 5mA
Input Capacitance (Cies) @ Vce : 12.8nF @ 30V
Input : Standard
NTC Thermistor : No
Operating Temperature : 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : INT-A-PAK (3 + 4)
Supplier Device Package : INT-A-PAK
0
100 in stock
VS-GT105LA120UX
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 134A
Power - Max : 463W
Vce(on) (Max) @ Vge, Ic : -
Current - Collector Cutoff (Max) : 75µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 134A
Power - Max : 463W
Vce(on) (Max) @ Vge, Ic : -
Current - Collector Cutoff (Max) : 75µA
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
