- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
FGD3N60LSDTM
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 10V, 3A
Power - Max : 40W
Switching Energy : 250µJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 12.5nC
Td (on/off) @ 25°C : 40ns/600ns
Test Condition : 480V, 3A, 470 Ohm, 10V
Reverse Recovery Time (trr) : 234ns
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : D-Pak
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 10V, 3A
Power - Max : 40W
Switching Energy : 250µJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 12.5nC
Td (on/off) @ 25°C : 40ns/600ns
Test Condition : 480V, 3A, 470 Ohm, 10V
Reverse Recovery Time (trr) : 234ns
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : D-Pak
0
799 in stock
FGD3N60LSDTM-T
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 10V, 3A
Power - Max : 40W
Switching Energy : 250µJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 12.5nC
Td (on/off) @ 25°C : 40ns/600ns
Test Condition : 480V, 3A, 470 Ohm, 10V
Reverse Recovery Time (trr) : 234ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
Packaging : -
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 10V, 3A
Power - Max : 40W
Switching Energy : 250µJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 12.5nC
Td (on/off) @ 25°C : 40ns/600ns
Test Condition : 480V, 3A, 470 Ohm, 10V
Reverse Recovery Time (trr) : 234ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
0
100 in stock
FGD3N60UNDF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 9A
Vce(on) (Max) @ Vge, Ic : 2.52V @ 15V, 3A
Power - Max : 60W
Switching Energy : 52µJ (on), 30µJ (off)
Input Type : Standard
Gate Charge : 1.6nC
Td (on/off) @ 25°C : 5.5ns/22ns
Test Condition : 400V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 9A
Vce(on) (Max) @ Vge, Ic : 2.52V @ 15V, 3A
Power - Max : 60W
Switching Energy : 52µJ (on), 30µJ (off)
Input Type : Standard
Gate Charge : 1.6nC
Td (on/off) @ 25°C : 5.5ns/22ns
Test Condition : 400V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
0
2381 in stock

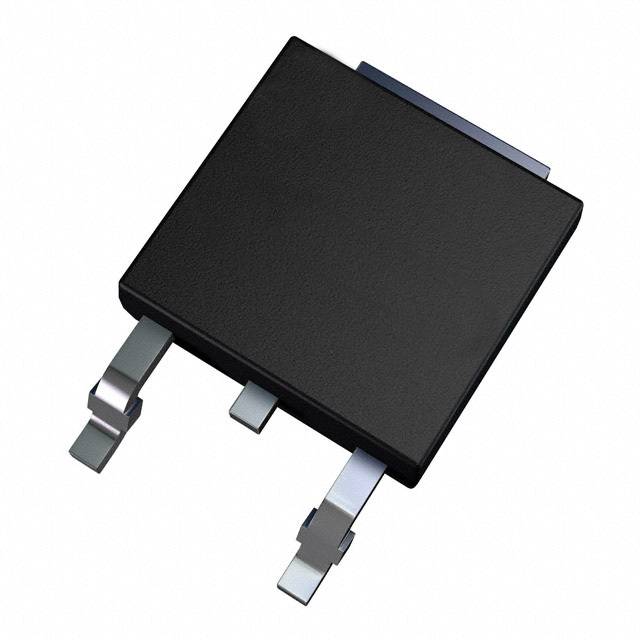

FGD4536TM
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 360V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 125W
Switching Energy : -
Input Type : Standard
Gate Charge : 47nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 360V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 125W
Switching Energy : -
Input Type : Standard
Gate Charge : 47nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
0
100 in stock
FGD4536TM_SN00306
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 360V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 125W
Switching Energy : -
Input Type : Standard
Gate Charge : 47nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
Packaging : -
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 360V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 125W
Switching Energy : -
Input Type : Standard
Gate Charge : 47nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
0
100 in stock
FGD5T120SH
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 12.5A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 5A
Power - Max : 69W
Switching Energy : 247µJ (on), 94µJ (off)
Input Type : Standard
Gate Charge : 6.7nC
Td (on/off) @ 25°C : 4.8ns/24.8ns
Test Condition : 600V, 5A, 30 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 12.5A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 5A
Power - Max : 69W
Switching Energy : 247µJ (on), 94µJ (off)
Input Type : Standard
Gate Charge : 6.7nC
Td (on/off) @ 25°C : 4.8ns/24.8ns
Test Condition : 600V, 5A, 30 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
367 in stock
FGH12040WD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 428W
Switching Energy : 4.1mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 226nC
Td (on/off) @ 25°C : 45ns/560ns
Test Condition : 600V, 40A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 71ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 428W
Switching Energy : 4.1mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 226nC
Td (on/off) @ 25°C : 45ns/560ns
Test Condition : 600V, 40A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 71ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
416 in stock

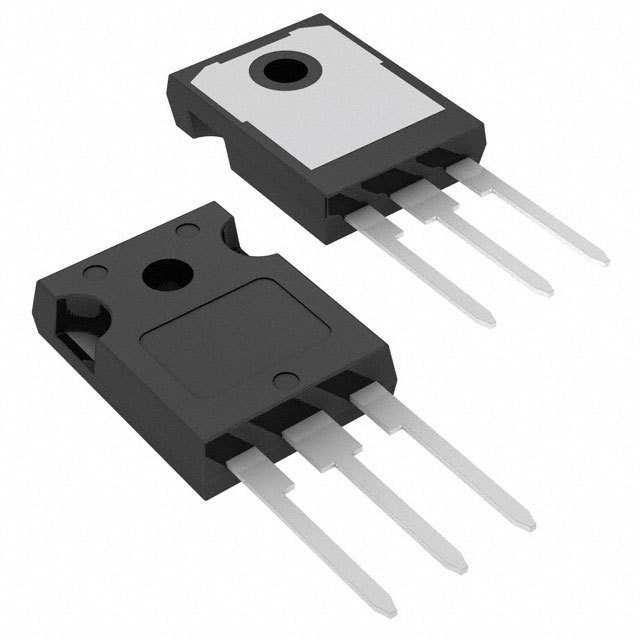

FGH15T120SMD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 15A
Power - Max : 333W
Switching Energy : 1.15mJ (on), 460µJ (off)
Input Type : Standard
Gate Charge : 128nC
Td (on/off) @ 25°C : 32ns/490ns
Test Condition : 600V, 15A, 34 Ohm, 15V
Reverse Recovery Time (trr) : 72ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 15A
Power - Max : 333W
Switching Energy : 1.15mJ (on), 460µJ (off)
Input Type : Standard
Gate Charge : 128nC
Td (on/off) @ 25°C : 32ns/490ns
Test Condition : 600V, 15A, 34 Ohm, 15V
Reverse Recovery Time (trr) : 72ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
450 in stock
FGH20N60SFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 165W
Switching Energy : 370µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 65nC
Td (on/off) @ 25°C : 13ns/90ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 165W
Switching Energy : 370µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 65nC
Td (on/off) @ 25°C : 13ns/90ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
450 in stock
FGH20N60SFDTU-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 165W
Switching Energy : 430µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 66nC
Td (on/off) @ 25°C : 13ns/90ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 165W
Switching Energy : 430µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 66nC
Td (on/off) @ 25°C : 13ns/90ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
269 in stock
FGH20N6S2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 28A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 7A
Power - Max : 125W
Switching Energy : 25µJ (on), 58µJ (off)
Input Type : Standard
Gate Charge : 30nC
Td (on/off) @ 25°C : 7.7ns/87ns
Test Condition : 390V, 7A, 25 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 28A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 7A
Power - Max : 125W
Switching Energy : 25µJ (on), 58µJ (off)
Input Type : Standard
Gate Charge : 30nC
Td (on/off) @ 25°C : 7.7ns/87ns
Test Condition : 390V, 7A, 25 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
FGH20N6S2D
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 28A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 7A
Power - Max : 125W
Switching Energy : 25µJ (on), 58µJ (off)
Input Type : Standard
Gate Charge : 30nC
Td (on/off) @ 25°C : 7.7ns/87ns
Test Condition : 390V, 7A, 25 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 28A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 7A
Power - Max : 125W
Switching Energy : 25µJ (on), 58µJ (off)
Input Type : Standard
Gate Charge : 30nC
Td (on/off) @ 25°C : 7.7ns/87ns
Test Condition : 390V, 7A, 25 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
