- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

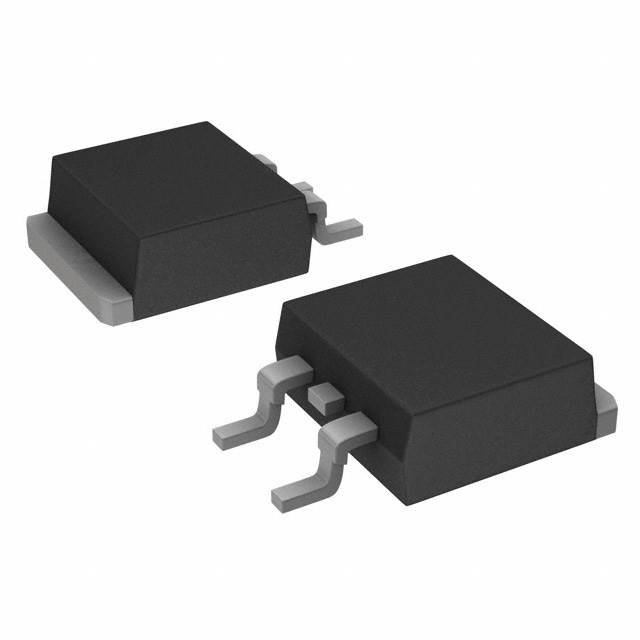

IGB03N120H2ATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 9.6A
Current - Collector Pulsed (Icm) : 9.9A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 62.5W
Switching Energy : 290µJ
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 9.2ns/281ns
Test Condition : 800V, 3A, 82 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 9.6A
Current - Collector Pulsed (Icm) : 9.9A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 62.5W
Switching Energy : 290µJ
Input Type : Standard
Gate Charge : 22nC
Td (on/off) @ 25°C : 9.2ns/281ns
Test Condition : 800V, 3A, 82 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
0
100 in stock
IGB10N60TATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 10A
Power - Max : 110W
Switching Energy : 430µJ
Input Type : Standard
Gate Charge : 62nC
Td (on/off) @ 25°C : 12ns/215ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3-2
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 10A
Power - Max : 110W
Switching Energy : 430µJ
Input Type : Standard
Gate Charge : 62nC
Td (on/off) @ 25°C : 12ns/215ns
Test Condition : 400V, 10A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3-2
0
3 in stock
IGB20N60H3ATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Discontinued at
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 20A
Power - Max : 170W
Switching Energy : 690µJ
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 16ns/194ns
Test Condition : 400V, 20A, 14.6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK (TO-263AB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Discontinued at
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 20A
Power - Max : 170W
Switching Energy : 690µJ
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 16ns/194ns
Test Condition : 400V, 20A, 14.6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK (TO-263AB)
0
100 in stock
IGB30N60H3ATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 187W
Switching Energy : 1.17mJ
Input Type : Standard
Gate Charge : 165nC
Td (on/off) @ 25°C : 18ns/207ns
Test Condition : 400V, 30A, 10.5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 187W
Switching Energy : 1.17mJ
Input Type : Standard
Gate Charge : 165nC
Td (on/off) @ 25°C : 18ns/207ns
Test Condition : 400V, 30A, 10.5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
0
199 in stock
IGB50N60TATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 50A
Power - Max : 333W
Switching Energy : 2.6mJ
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 26ns/299ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3-2
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop®
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 50A
Power - Max : 333W
Switching Energy : 2.6mJ
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 26ns/299ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3-2
0
1723 in stock
IGB50N65H5ATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop?
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 1.59mJ (on), 750µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 23ns/173ns
Test Condition : 400V, 50A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop?
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 1.59mJ (on), 750µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 23ns/173ns
Test Condition : 400V, 50A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
0
200 in stock
IGB50N65S5ATMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop?
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 50A
Power - Max : 270W
Switching Energy : 1.23mJ (on), 740µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 20ns/139ns
Test Condition : 400V, 50A, 8.2 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchStop?
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 50A
Power - Max : 270W
Switching Energy : 1.23mJ (on), 740µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 20ns/139ns
Test Condition : 400V, 50A, 8.2 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : PG-TO263-3
0
140 in stock
IGC07T120T8LX1SA2
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Bulk
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.02V @ 15V, 4A
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
Packaging : Bulk
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.02V @ 15V, 4A
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
0
100 in stock
IGC11T120T8LX1SA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Bulk
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.07V @ 15V, 8A
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
Packaging : Bulk
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.07V @ 15V, 8A
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
0
100 in stock
IGC13T120T8LX1SA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Bulk
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.07V @ 15V, 8A
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
Packaging : Bulk
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.07V @ 15V, 8A
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
0
100 in stock
IGC142T120T8RLX1SA2
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Bulk
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 450A
Vce(on) (Max) @ Vge, Ic : 1.74V @ 90A, 15V
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
Packaging : Bulk
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 450A
Vce(on) (Max) @ Vge, Ic : 1.74V @ 90A, 15V
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
0
100 in stock
IGC18T120T8LX1SA2
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Bulk
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.07V @ 15V, 15A
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
Packaging : Bulk
Series : TrenchStop?br/>Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.07V @ 15V, 15A
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Die
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
