Part Number
Manufacturer
Description
Unit Price
In Stock

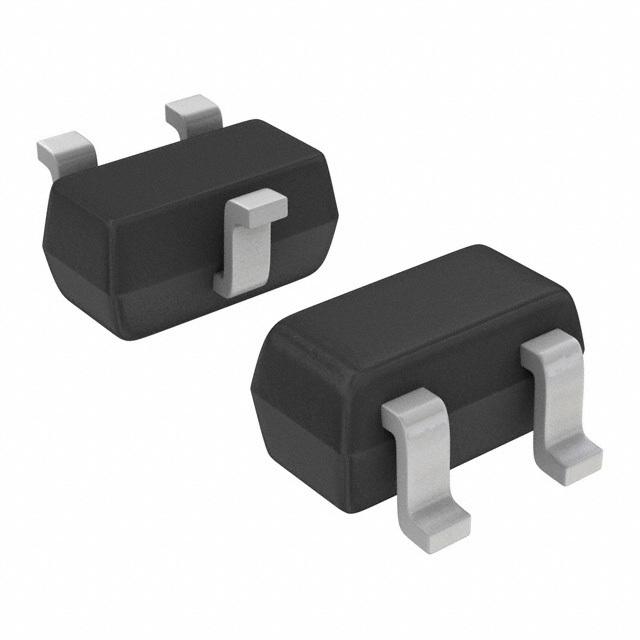

2SK3796-3-TL-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 30V
Current - Drain (Idss) @ Vds (Vgs=0) : 1.2mA @ 10V
Current Drain (Id) - Max : 10mA
Voltage - Cutoff (VGS off) @ Id : 180mV @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 4pF @ 10V
Resistance - RDS(On) : 200 Ohms
Power - Max : 100mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-75, SOT-416
Supplier Device Package : SMCP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 30V
Current - Drain (Idss) @ Vds (Vgs=0) : 1.2mA @ 10V
Current Drain (Id) - Max : 10mA
Voltage - Cutoff (VGS off) @ Id : 180mV @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 4pF @ 10V
Resistance - RDS(On) : 200 Ohms
Power - Max : 100mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-75, SOT-416
Supplier Device Package : SMCP
0
100 in stock
2SK3796-4-TL-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 30V
Current - Drain (Idss) @ Vds (Vgs=0) : 2.5mA @ 10V
Current Drain (Id) - Max : 10mA
Voltage - Cutoff (VGS off) @ Id : 180mV @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 4pF @ 10V
Resistance - RDS(On) : 200 Ohms
Power - Max : 100mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-75, SOT-416
Supplier Device Package : SMCP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 30V
Current - Drain (Idss) @ Vds (Vgs=0) : 2.5mA @ 10V
Current Drain (Id) - Max : 10mA
Voltage - Cutoff (VGS off) @ Id : 180mV @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 4pF @ 10V
Resistance - RDS(On) : 200 Ohms
Power - Max : 100mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-75, SOT-416
Supplier Device Package : SMCP
0
100 in stock
2SK545-11D-TB-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 60µA @ 10V
Current Drain (Id) - Max : 1mA
Voltage - Cutoff (VGS off) @ Id : 1.5V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 1.7pF @ 10V
Resistance - RDS(On) : -
Power - Max : 125mW
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : 3-CP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 60µA @ 10V
Current Drain (Id) - Max : 1mA
Voltage - Cutoff (VGS off) @ Id : 1.5V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 1.7pF @ 10V
Resistance - RDS(On) : -
Power - Max : 125mW
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : 3-CP
0
5761 in stock
2SK596S-A
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 100µA @ 5V
Current Drain (Id) - Max : 1mA
Voltage - Cutoff (VGS off) @ Id : 500mV @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 4.1pF @ 5V
Resistance - RDS(On) : -
Power - Max : 100mW
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 100µA @ 5V
Current Drain (Id) - Max : 1mA
Voltage - Cutoff (VGS off) @ Id : 500mV @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 4.1pF @ 5V
Resistance - RDS(On) : -
Power - Max : 100mW
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
0
100 in stock
2SK596S-B
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 150µA @ 5V
Current Drain (Id) - Max : 1mA
Voltage - Cutoff (VGS off) @ Id : 500mV @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 4.1pF @ 5V
Resistance - RDS(On) : -
Power - Max : 100mW
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 150µA @ 5V
Current Drain (Id) - Max : 1mA
Voltage - Cutoff (VGS off) @ Id : 500mV @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 4.1pF @ 5V
Resistance - RDS(On) : -
Power - Max : 100mW
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
0
100 in stock
2SK596S-C
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 210µA @ 5V
Current Drain (Id) - Max : 1mA
Voltage - Cutoff (VGS off) @ Id : 500mV @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 4.1pF @ 5V
Resistance - RDS(On) : -
Power - Max : 100mW
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 210µA @ 5V
Current Drain (Id) - Max : 1mA
Voltage - Cutoff (VGS off) @ Id : 500mV @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 4.1pF @ 5V
Resistance - RDS(On) : -
Power - Max : 100mW
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
0
100 in stock
2SK715U
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 7.3mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 7.3mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
0
100 in stock
2SK715U-AC
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 7.3mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 7.3mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
0
100 in stock
2SK715V
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 10mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 10mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
0
100 in stock
2SK715V-AC
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 10mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 10mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
0
100 in stock
2SK715W
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 14.5mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 14.5mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
0
100 in stock
2SK715W-AC
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 14.5mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : -
Drain to Source Voltage (Vdss) : 15V
Current - Drain (Idss) @ Vds (Vgs=0) : 14.5mA @ 5V
Current Drain (Id) - Max : 50mA
Voltage - Cutoff (VGS off) @ Id : 600mV @ 100µA
Input Capacitance (Ciss) (Max) @ Vds : 10pF @ 5V
Resistance - RDS(On) : -
Power - Max : 300mW
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-72
Supplier Device Package : 3-SPA
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
