Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - JFETs
Part Number
Manufacturer
Description
Unit Price
In Stock
PF5103
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 10mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 1.2V @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 16pF @ 15V
Resistance - RDS(On) : -
Power - Max : 625mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 10mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 1.2V @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 16pF @ 15V
Resistance - RDS(On) : -
Power - Max : 625mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
0
100 in stock
PF53012
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 30V
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 30µA @ 10V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 1.7V @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : -
Resistance - RDS(On) : -
Power - Max : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 30V
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 30µA @ 10V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 1.7V @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : -
Resistance - RDS(On) : -
Power - Max : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
0
100 in stock

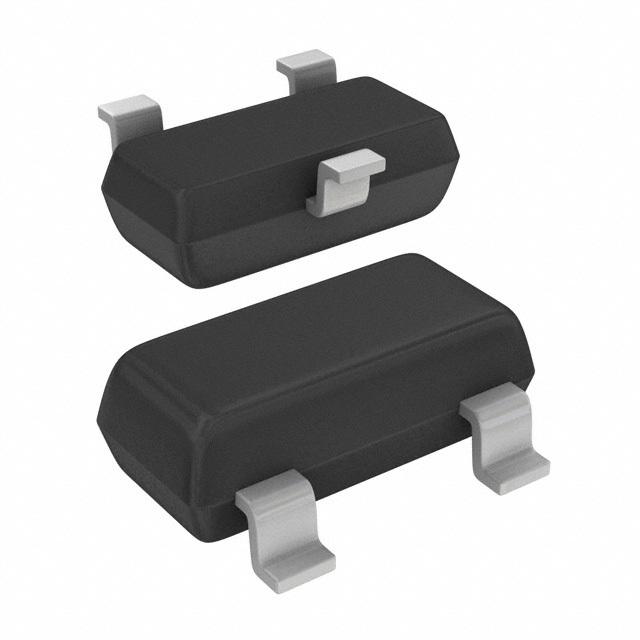

PMBF4391,215
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 50mA @ 20V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 4V @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 14pF @ 20V
Resistance - RDS(On) : 30 Ohms
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 50mA @ 20V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 4V @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 14pF @ 20V
Resistance - RDS(On) : 30 Ohms
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
0
3000 in stock
PMBF4392,215
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 25mA @ 20V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 2V @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 14pF @ 20V
Resistance - RDS(On) : -
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 25mA @ 20V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 2V @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 14pF @ 20V
Resistance - RDS(On) : -
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
0
100 in stock
PMBF4393,215
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 5mA @ 20V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 500mV @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 14pF @ 20V
Resistance - RDS(On) : 100 Ohms
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 5mA @ 20V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 500mV @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 14pF @ 20V
Resistance - RDS(On) : 100 Ohms
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
0
30317 in stock
PMBFJ108,215
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 25V
Drain to Source Voltage (Vdss) : 25V
Current - Drain (Idss) @ Vds (Vgs=0) : 80mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 10V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 30pF @ 10V (VGS)
Resistance - RDS(On) : 8 Ohms
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 25V
Drain to Source Voltage (Vdss) : 25V
Current - Drain (Idss) @ Vds (Vgs=0) : 80mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 10V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 30pF @ 10V (VGS)
Resistance - RDS(On) : 8 Ohms
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
0
100 in stock
PMBFJ109,215
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 25V
Drain to Source Voltage (Vdss) : 25V
Current - Drain (Idss) @ Vds (Vgs=0) : 40mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 6V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 30pF @ 10V (VGS)
Resistance - RDS(On) : 12 Ohms
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 25V
Drain to Source Voltage (Vdss) : 25V
Current - Drain (Idss) @ Vds (Vgs=0) : 40mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 6V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 30pF @ 10V (VGS)
Resistance - RDS(On) : 12 Ohms
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
0
22405 in stock
PMBFJ110,215
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 25V
Drain to Source Voltage (Vdss) : 25V
Current - Drain (Idss) @ Vds (Vgs=0) : 10mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 4V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 30pF @ 10V (VGS)
Resistance - RDS(On) : 18 Ohms
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 25V
Drain to Source Voltage (Vdss) : 25V
Current - Drain (Idss) @ Vds (Vgs=0) : 10mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 4V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 30pF @ 10V (VGS)
Resistance - RDS(On) : 18 Ohms
Power - Max : 250mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
0
12224 in stock
PMBFJ111,215
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 20mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 10V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 6pF @ 10V (VGS)
Resistance - RDS(On) : 30 Ohms
Power - Max : 300mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 20mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 10V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 6pF @ 10V (VGS)
Resistance - RDS(On) : 30 Ohms
Power - Max : 300mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
0
100 in stock
PMBFJ112,215
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 5mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 5V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 6pF @ 10V (VGS)
Resistance - RDS(On) : 50 Ohms
Power - Max : 300mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 5mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 5V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 6pF @ 10V (VGS)
Resistance - RDS(On) : 50 Ohms
Power - Max : 300mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
0
100 in stock
PMBFJ113,215
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 2mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 3V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 6pF @ 10V (VGS)
Resistance - RDS(On) : 100 Ohms
Power - Max : 300mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : 40V
Current - Drain (Idss) @ Vds (Vgs=0) : 2mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 3V @ 1µA
Input Capacitance (Ciss) (Max) @ Vds : 6pF @ 10V (VGS)
Resistance - RDS(On) : 100 Ohms
Power - Max : 300mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
0
100 in stock
PMBFJ174,215
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : P-Channel
Voltage - Breakdown (V(BR)GSS) : 30V
Drain to Source Voltage (Vdss) : 30V
Current - Drain (Idss) @ Vds (Vgs=0) : 20mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 5V @ 10nA
Input Capacitance (Ciss) (Max) @ Vds : 8pF @ 10V (VGS)
Resistance - RDS(On) : 85 Ohms
Power - Max : 300mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : P-Channel
Voltage - Breakdown (V(BR)GSS) : 30V
Drain to Source Voltage (Vdss) : 30V
Current - Drain (Idss) @ Vds (Vgs=0) : 20mA @ 15V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 5V @ 10nA
Input Capacitance (Ciss) (Max) @ Vds : 8pF @ 10V (VGS)
Resistance - RDS(On) : 85 Ohms
Power - Max : 300mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23 (TO-236AB)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
