Single Board Computers (SBCs) Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

AIMB-285L-00A1E

Advantech

Manufacturer : Advantech Corp
Series : -
Part Status : Active
Core Processor : Intel Core i7/i5/i3/Celeron/Pentium
Speed : 2.3GHz ~ 3.9GHz
Number of Cores : 2/4
Power (Watts) : -
Cooling Type : Heat Sink
Size / Dimension : 6.69" x 6.69" (170mm x 170mm)
Form Factor : mini-ITX
Expansion Site/Bus : Mini-PCIe, PCIe
RAM Capacity/Installed : 32GB/0GB
Storage Interface : SATA 3.0 (3)
Video Outputs : DP, HDMI, LVDS, VGA
Ethernet : 10/100/1000 Mbps
USB : USB 2.0 (2), USB 3.0 (4)
RS-232 (422, 485) : 2
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

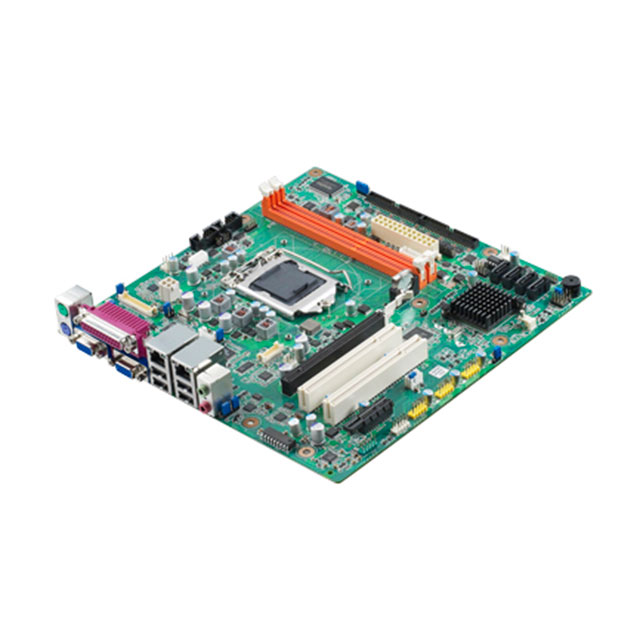

AIMB-501G2-KSA1E

Advantech

Manufacturer : Advantech Corp
Series : -
Part Status : Active
Core Processor : Intel Core i7/i5/i3/Celeron/Pentium
Speed : 2.5GHz ~ 3.4GHz
Number of Cores : 2/4
Power (Watts) : -
Cooling Type : Heat Sink
Size / Dimension : 9.6" x 9.6" (244mm x 244mm)
Form Factor : Micro-ATX (without Processor)
Expansion Site/Bus : PCI, PCIe
RAM Capacity/Installed : 16GB/0GB
Storage Interface : SATA 2.0 (4)
Video Outputs : CRT, DVI, LVDS, VGA
Ethernet : 10/100/1000 Mbps
USB : USB 2.0 (10)
RS-232 (422, 485) : 10
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

AIMB-501G2-KSA2E

Advantech

Manufacturer : Advantech Corp
Series : -
Part Status : Active
Core Processor : Intel Core i7/i5/i3/Celeron/Pentium
Speed : 2.5GHz ~ 3.4GHz
Number of Cores : 2/4
Power (Watts) : -
Cooling Type : Heat Sink
Size / Dimension : 9.6" x 9.6" (244mm x 244mm)
Form Factor : Micro-ATX (without Processor)
Expansion Site/Bus : PCI, PCIe
RAM Capacity/Installed : 16GB/0GB
Storage Interface : SATA 2.0 (4)
Video Outputs : CRT, DVI, LVDS, VGA
Ethernet : 10/100/1000 Mbps
USB : USB 2.0 (2), USB 3.0 (8)
RS-232 (422, 485) : 10
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

AIMB-501L-KSA1E

Advantech

Manufacturer : Advantech Corp
Series : -
Part Status : Active
Core Processor : Intel Core i7/i5/i3/Celeron/Pentium
Speed : 2.5GHz ~ 3.4GHz
Number of Cores : 2/4
Power (Watts) : -
Cooling Type : Heat Sink
Size / Dimension : 9.6" x 9.6" (244mm x 244mm)
Form Factor : Micro-ATX (without Processor)
Expansion Site/Bus : PCI, PCIe
RAM Capacity/Installed : 16GB/0GB
Storage Interface : SATA 2.0 (4)
Video Outputs : CRT, DVI, LVDS, VGA
Ethernet : 10/100/1000 Mbps
USB : USB 2.0 (10)
RS-232 (422, 485) : 2
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

AIMB-501VG-KSA1E

Advantech

100 in stock

AIMB-502QG2-00A1E

Advantech

Manufacturer : Advantech Corp
Series : -
Part Status : Active
Core Processor : Intel Core i7/i5/i3/Celeron/Pentium/Xeon
Speed : 2.5GHz ~ 3.5GHz
Number of Cores : 2/4
Power (Watts) : -
Cooling Type : Heat Sink
Size / Dimension : 9.6" x 9.6" (244mm x 244mm)
Form Factor : Micro-ATX (without Processor)
Expansion Site/Bus : Mini-PCIe, PCIe
RAM Capacity/Installed : 32GB/0GB
Storage Interface : SATA 2.0 (6), SATA 3.0 (2)
Video Outputs : CRT, DVI, HDMI
Ethernet : 10/100/1000 Mbps
USB : USB 2.0 (2), USB 3.0 (4)
RS-232 (422, 485) : 6
Digital I/O Lines : 14
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

AIMB-502WG2-00A1E

Advantech

Manufacturer : Advantech Corp
Series : -
Part Status : Active
Core Processor : Intel Core i7/i5/i3/Celeron/Pentium/Xeon
Speed : 2.5GHz ~ 3.5GHz
Number of Cores : 2/4
Power (Watts) : -
Cooling Type : Heat Sink
Size / Dimension : 9.6" x 9.6" (244mm x 244mm)
Form Factor : Micro-ATX (without Processor)
Expansion Site/Bus : Mini-PCIe, PCIe
RAM Capacity/Installed : 32GB/0GB
Storage Interface : SATA 2.0 (2), SATA 3.0 (2)
Video Outputs : CRT, DVI, HDMI
Ethernet : 10/100/1000 Mbps
USB : USB 2.0 (2), USB 3.0 (4)
RS-232 (422, 485) : 6
Digital I/O Lines : 14
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

AIMB-503F-00A1E

Advantech

Manufacturer : Advantech Corp
Series : *
Part Status : Active
Core Processor : -
Speed : -
Number of Cores : -
Power (Watts) : -
Cooling Type : -
Size / Dimension : -
Form Factor : -
Expansion Site/Bus : -
RAM Capacity/Installed : -
Storage Interface : -
Video Outputs : -
Ethernet : -
USB : -
RS-232 (422, 485) : -
Digital I/O Lines : -
Analog Input:Output : -
Watchdog Timer : -
Operating Temperature : -

100 in stock

AIMB-503G2-00A1E

Advantech

Manufacturer : Advantech Corp
Series : -
Part Status : Active
Core Processor : Intel Core i7/i5/i3/Pentium
Speed : 2.3GHz ~ 3.5GHz
Number of Cores : 2/4
Power (Watts) : -
Cooling Type : Heat Sink
Size / Dimension : 9.6" x 9.6" (244mm x 244mm)
Form Factor : Micro-ATX (without Processor)
Expansion Site/Bus : Mini-PCIe, PCI, PCIe
RAM Capacity/Installed : 16GB/0GB
Storage Interface : SATA 2.0 (1), SATA 3.0 (2)
Video Outputs : CRT, DVI, DP, LVDS, VGA
Ethernet : 10/100/1000 Mbps
USB : USB 2.0 (7), USB 3.0 (2)
RS-232 (422, 485) : 10
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

AIMB-503G2-00A2E

Advantech

Manufacturer : Advantech Corp
Series : -
Part Status : Active
Core Processor : Intel Core i7/i5/i3/Pentium
Speed : 2.3GHz ~ 3.5GHz
Number of Cores : 2/4
Power (Watts) : -
Cooling Type : Heat Sink
Size / Dimension : 9.6" x 9.6" (244mm x 244mm)
Form Factor : Micro-ATX (without Processor)
Expansion Site/Bus : Mini-PCIe, PCI, PCIe
RAM Capacity/Installed : 24GB/0GB
Storage Interface : SATA 2.0 (1), SATA 3.0 (2)
Video Outputs : CRT, DVI, DP, LVDS, VGA
Ethernet : 10/100/1000 Mbps
USB : USB 2.0 (7), USB 3.0 (2)
RS-232 (422, 485) : 9
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

AIMB-503L-00A1E

Advantech

Manufacturer : Advantech Corp
Series : -
Part Status : Active
Core Processor : Intel Core i7/i5/i3/Pentium
Speed : 2.3GHz ~ 3.5GHz
Number of Cores : 2/4
Power (Watts) : -
Cooling Type : Heat Sink
Size / Dimension : 9.6" x 9.6" (244mm x 244mm)
Form Factor : Micro-ATX (without Processor)
Expansion Site/Bus : Mini-PCIe, PCI, PCIe
RAM Capacity/Installed : 16GB/0GB
Storage Interface : SATA 2.0 (1), SATA 3.0 (2)
Video Outputs : CRT, DVI, DP, LVDS, VGA
Ethernet : 10/100/1000 Mbps
USB : USB 2.0 (7), USB 3.0 (2)
RS-232 (422, 485) : 2
Digital I/O Lines : 8
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock

AIMB-562L-KSA1E

Advantech

Manufacturer : Advantech Corp
Series : -
Part Status : Active
Core Processor : Intel Core 2 Duo/Celeron/Pentium
Speed : 2.0GHz ~ 3.4GHz
Number of Cores : 1/2
Power (Watts) : -
Cooling Type : Heat Sink
Size / Dimension : 9.6" x 9.6" (244mm x 244mm)
Form Factor : Micro-ATX (without Processor)
Expansion Site/Bus : PCI, PCIe
RAM Capacity/Installed : 4GB/0GB
Storage Interface : SATA 2.0 (2)
Video Outputs : CRT, LVDS, VGA
Ethernet : 10/100/1000 Mbps
USB : USB 2.0 (8)
RS-232 (422, 485) : 10
Digital I/O Lines : 16
Analog Input:Output : -
Watchdog Timer : Yes
Operating Temperature : 0°C ~ 60°C

100 in stock
