Part Number

Manufacturer

Description

Unit Price

In Stock

OAB22569-22-1WB

Orion Fans

Manufacturer : Orion Fans
Series : OAB22569
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 255mm Dia
Width : 69.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 2.305 in H2O (574.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Capacitor
Noise : 72.0 dB
Power (Watts) : 125W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : -
Weight : 5.1 lbs (2.3kg)

8 in stock

OAB22585-11-1WB

Orion Fans

Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -

8 in stock

OAB22585-22-1WB

Orion Fans

8 in stock

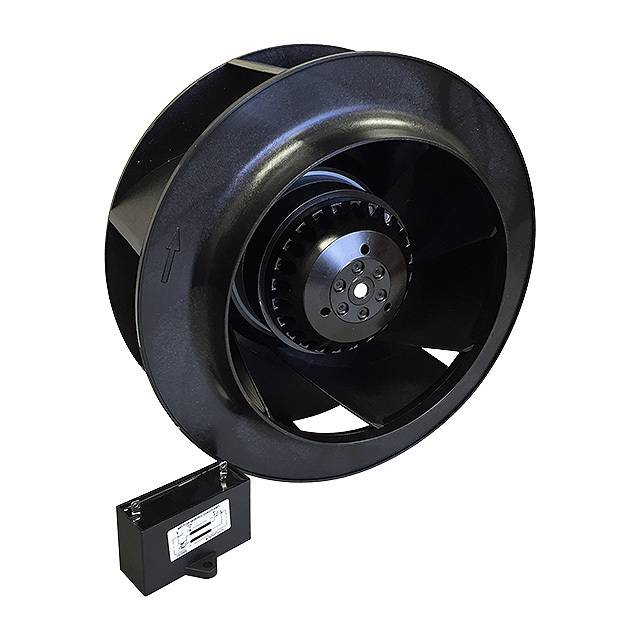

OAB22599-11-1B

Orion Fans

Manufacturer : Orion Fans
Series : OAB225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 770.0 CFM (21.56m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 160W
RPM : 2950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 32 ~ 113°F (0 ~ 45°C)
Approvals : -
Weight : -

194 in stock

OAB22599-22-1B

Orion Fans

Manufacturer : Orion Fans
Series : OAB225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 770.0 CFM (21.56m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 71.0 dB(A)
Power (Watts) : 157W
RPM : 2950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 32 ~ 113°F (0 ~ 45°C)
Approvals : -
Weight : -

15 in stock

OAB250-11-1

Orion Fans

Manufacturer : Orion Fans
Series : OAB250
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 251.5mm Dia
Width : 98.10mm
Air Flow : 850.0 CFM (23.80m鲁/min)
Static Pressure : 2.900 in H2O (722.4 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 76.0 dB(A)
Power (Watts) : 240W
RPM : 2700 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -

6 in stock

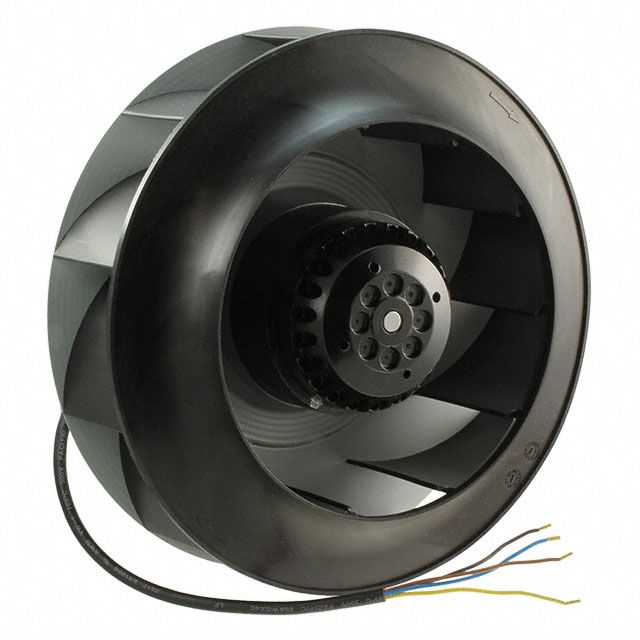

OAB250-22-1

Orion Fans

Manufacturer : Orion Fans
Series : OAB250
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 251.5mm Dia
Width : 98.10mm
Air Flow : 850.0 CFM (23.80m鲁/min)
Static Pressure : 2.900 in H2O (722.4 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 76.0 dB(A)
Power (Watts) : 240W
RPM : 2700 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -

9 in stock

OAB318-11-1

Orion Fans

Manufacturer : Orion Fans
Series : OAB318
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 318mm Dia
Width : 154.5mm
Air Flow : 1165.0 CFM (32.62m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Capacitor
Noise : -
Power (Watts) : 155W
RPM : 1580 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : -
Weight : -

5 in stock

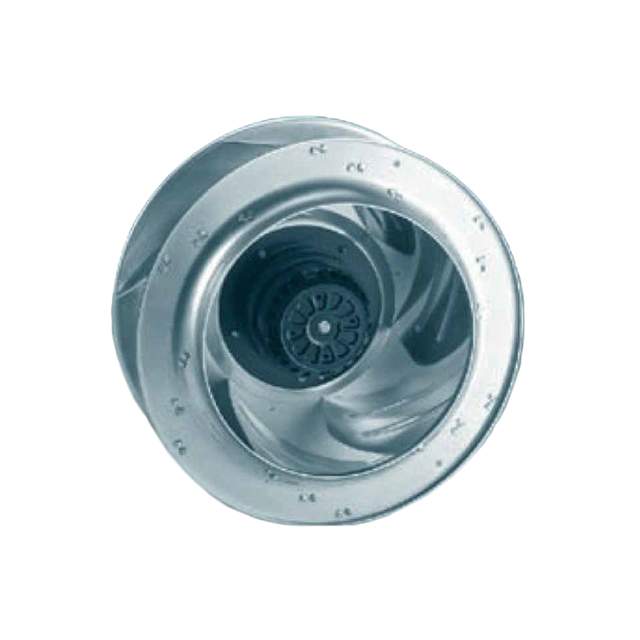

OAB318-22-1

Orion Fans

Manufacturer : Orion Fans
Series : OAB318
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 318mm Dia
Width : 154.5mm
Air Flow : 1165.0 CFM (32.62m鲁/min)
Static Pressure : 1.600 in H2O (398.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Capacitor
Noise : -
Power (Watts) : 155W
RPM : 1580 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : -
Weight : -

100 in stock

OAB360-11-1

Orion Fans

Manufacturer : Orion Fans
Series : OAB360
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 360mm Dia
Width : 167.3mm
Air Flow : 1645.0 CFM (46.06m鲁/min)
Static Pressure : 2.200 in H2O (548.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Capacitor
Noise : 70.0 dB
Power (Watts) : 270W
RPM : 1600 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 176°F (-40 ~ 80°C)
Approvals : cURus, TUV
Weight : -

34 in stock

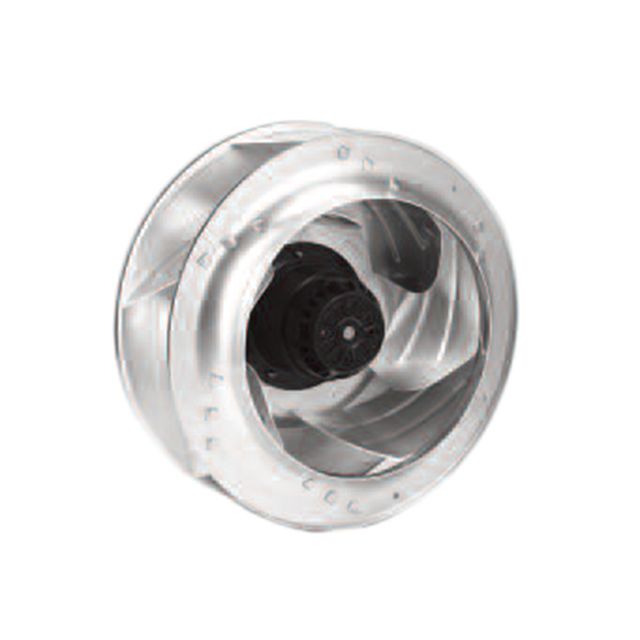

OAB360-22-1

Orion Fans

Manufacturer : Orion Fans
Series : OAB360
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 360mm Dia
Width : 167.3mm
Air Flow : 1645.0 CFM (46.06m鲁/min)
Static Pressure : 2.200 in H2O (548.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Capacitor
Noise : 70.0 dB
Power (Watts) : 265W
RPM : 1600 RPM
Termination : 4 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 176°F (-40 ~ 80°C)
Approvals : cURus, TUV
Weight : -

16 in stock

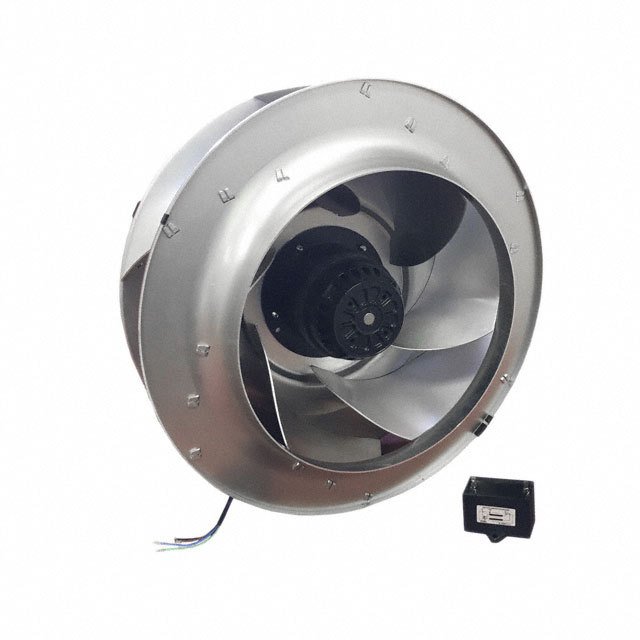

OAB400-22-1

Orion Fans

Manufacturer : Orion Fans
Series : OAB400
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 404mm Dia
Width : 162.4mm
Air Flow : 1900.0 CFM (53.20m鲁/min)
Static Pressure : 5.400 in H2O (1345.1 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : 73.0 dB(A)
Power (Watts) : 287W
RPM : 1250 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 176°F (-40 ~ 80°C)
Approvals : cURus
Weight : 12 lbs (5.4kg)

8 in stock
