Category
  • AC Fans
Part Number
Manufacturer
Description
Unit Price
In Stock
Picture of UF220APA23-H1C2A

UF220APA23-H1C2A UF220APA23-H1C2A

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF220APA
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Round - 223mm Dia
Width : 71.00mm
Air Flow : 500.0 CFM (14.00m鲁/min)
Static Pressure : 1.700 in H2O (423.5 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 70.0 dB(A)
Power (Watts) : 117W
RPM : 2650 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 3.2 lbs (1.5kg)
0
100 in stock
Picture of UF220APA23-H2C2A

UF220APA23-H2C2A UF220APA23-H2C2A

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF220APA
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 223mm Dia
Width : 71.00mm
Air Flow : 530.0 CFM (14.84m鲁/min)
Static Pressure : 1.700 in H2O (423.5 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 70.0 dB(A)
Power (Watts) : 117W
RPM : 2650 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 3.2 lbs (1.5kg)
0
3 in stock
Picture of UF220APA23-H2C2F

UF220APA23-H2C2F UF220APA23-H2C2F

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF220APA
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 259mm Dia
Width : 97.80mm
Air Flow : 434.0 CFM (12.15m鲁/min)
Static Pressure : 1.700 in H2O (423.5 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 65.0 dB(A)
Power (Watts) : 117W
RPM : 2650 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 4.1 lbs (1.9kg)
0
19 in stock
Picture of UF225(69)APA12-H1C2A

UF225(69)APA12-H1C2A UF225(69)APA12-H1C2A

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 225mm Dia
Width : 69.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 2.305 in H2O (574.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 72.0 dB(A)
Power (Watts) : 125W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
13 in stock
Picture of UF225(69)APA23-H1C2A

UF225(69)APA23-H1C2A UF225(69)APA23-H1C2A

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 225mm Dia
Width : 69.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 2.305 in H2O (574.2 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 72.0 dB(A)
Power (Watts) : 125W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
100 in stock
Picture of UF225(85)APA12-H1C2A

UF225(85)APA12-H1C2A UF225(85)APA12-H1C2A

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 225mm Dia
Width : 85.00mm
Air Flow : 680.0 CFM (19.04m鲁/min)
Static Pressure : 2.500 in H2O (622.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 75.0 dB(A)
Power (Watts) : 135W
RPM : 3000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
100 in stock
Picture of UF225(85)APA23-H1C2A

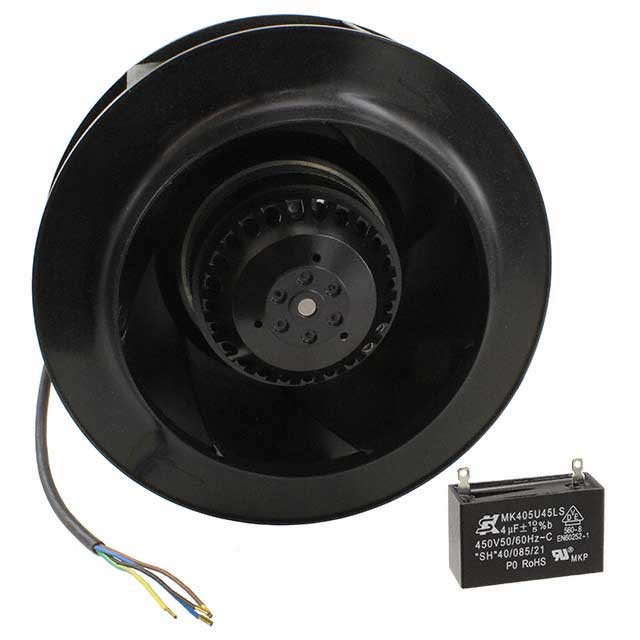

UF225(85)APA23-H1C2A UF225(85)APA23-H1C2A

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 225mm Dia
Width : 85.00mm
Air Flow : 680.0 CFM (19.04m鲁/min)
Static Pressure : 2.500 in H2O (622.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 75.0 dB(A)
Power (Watts) : 135W
RPM : 3000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
100 in stock
Picture of UF225(99)APA12-H1C2A

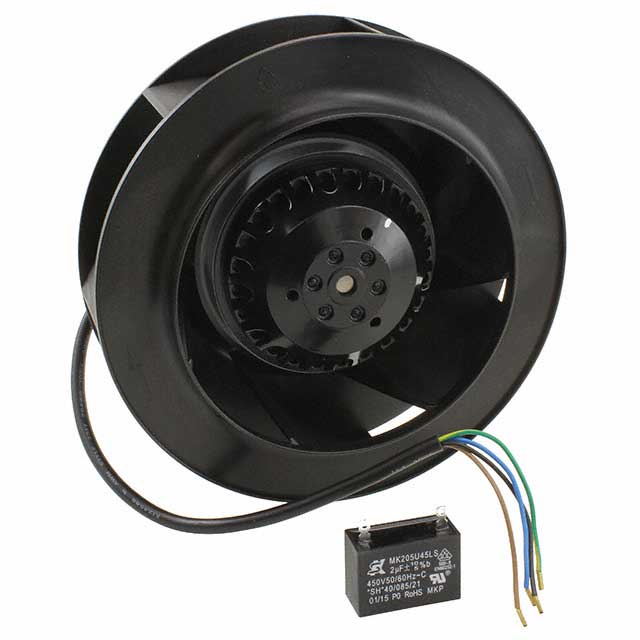

UF225(99)APA12-H1C2A UF225(99)APA12-H1C2A

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 770.0 CFM (21.56m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 160W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
1 in stock
Picture of UF225(99)APA12-H1C2F

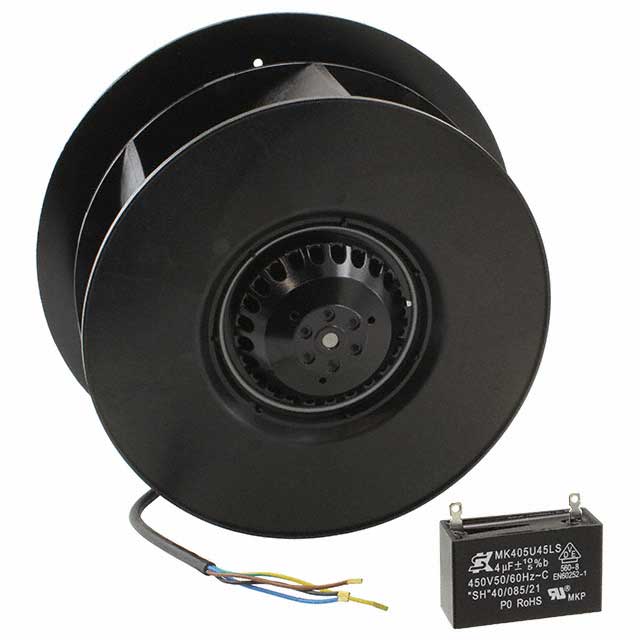

UF225(99)APA12-H1C2F UF225(99)APA12-H1C2F

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 259mm Dia
Width : 117.0mm
Air Flow : 547.0 CFM (15.32m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 160W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5.7 lbs (2.6kg)
0
5 in stock
Picture of UF225(99)APA23-H1C2A

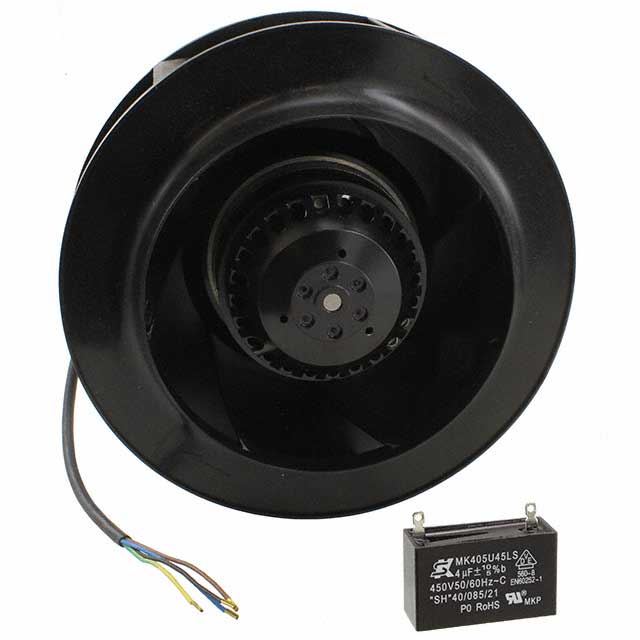

UF225(99)APA23-H1C2A UF225(99)APA23-H1C2A

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 770.0 CFM (21.56m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 157W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5 lbs (2.3kg)
0
10 in stock
Picture of UF225(99)APA23-H1C2F

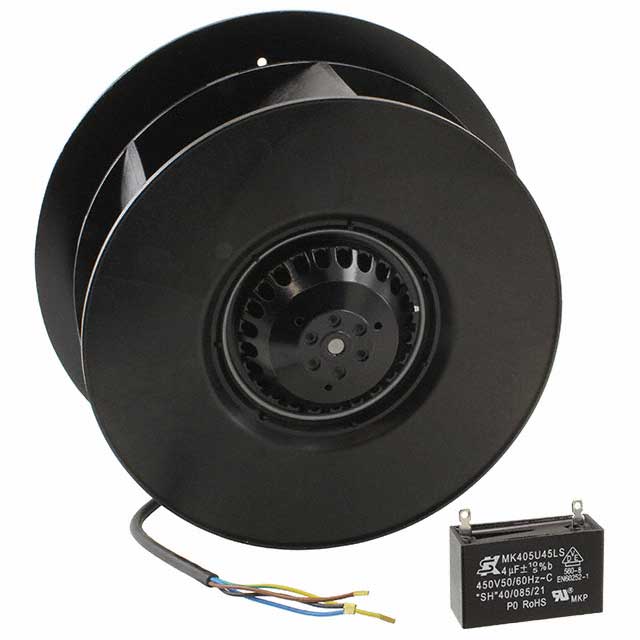

UF225(99)APA23-H1C2F UF225(99)APA23-H1C2F

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 259mm Dia
Width : 117.0mm
Air Flow : 547.0 CFM (15.32m鲁/min)
Static Pressure : 2.600 in H2O (647.7 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : Permanent Split Capacitor Motor
Noise : 71.0 dB(A)
Power (Watts) : 157W
RPM : 2950 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 122°F (-40 ~ 50°C)
Approvals : CE, cUL, TUV, UL
Weight : 5.7 lbs (2.6kg)
0
8 in stock
Picture of UF22F23-BTHR

UF22F23-BTHR UF22F23-BTHR

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : UF22F
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE
Weight : -
0
16 in stock
