AC Fans Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

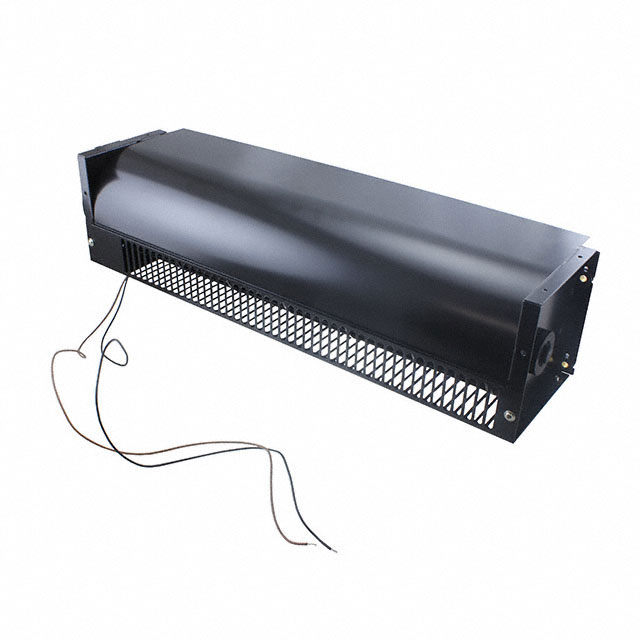

UF9446CBP12H-L

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : UF9446
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Rectangular - 570mm L x 130mm H
Width : 125.0mm
Air Flow : 354.0 CFM (9.91m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 50.0W
RPM : 1550 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 7.9 lbs (3.6kg)

9 in stock

UF9446CBP23H-L

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : UF9446
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular - 570mm L x 130mm H
Width : 125.0mm
Air Flow : 354.0 CFM (9.91m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Blower, Cross Flow
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 50.0W
RPM : 1550 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, TUV
Weight : 7.9 lbs (3.6kg)

4 in stock

UM12A12-BTHR

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : UM12A12
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : -

100 in stock

UM12A12-BWHR

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : UM12A12
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : -

100 in stock

UM12A23-BTHR

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : UM12A23
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : -

100 in stock

UM12A23-STHR

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : UM12A23
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Sleeve
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : -

100 in stock

UM15ACM12-BTHR

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : UM15ACM12
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Rectangular - 172mm L x 150mm H
Width : 38.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE
Weight : -

100 in stock

UM25GC12-BTHR

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : UM25GC12
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : Permanent Split Capacitor Motor
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : -

100 in stock

UM25GC23-BTHR

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : UM25GC23
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : Permanent Split Capacitor Motor
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : -

100 in stock

UX12A12-BTH-7

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : -
Part Status : Obsolete
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : -

100 in stock

UX12AC12-BTHR-7

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : UX12A
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 130.0 CFM (3.64m鲁/min)
Static Pressure : 0.500 in H2O (124.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 47.0 dB(A)
Power (Watts) : 22.00W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.1 lbs (499g)

100 in stock

UX12AC23-BTHR-7

Mechatronics

Manufacturer : Mechatronics Fan Group
Series : UX12A
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 130.0 CFM (3.64m鲁/min)
Static Pressure : 0.500 in H2O (124.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Permanent Split Capacitor Motor
Noise : 47.0 dB(A)
Power (Watts) : 21.00W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.1 lbs (499g)

100 in stock
