4715HS-23T-B50-AM0
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938SB
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 105.9 CFM (2.97m鲁/min)
Static Pressure : 0.400 in H2O (99.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB
Power (Watts) : 15.50W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, UL, VDE
Weight : 1.3 lbs (589.7g)
Series : 11938SB
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 105.9 CFM (2.97m鲁/min)
Static Pressure : 0.400 in H2O (99.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB
Power (Watts) : 15.50W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, UL, VDE
Weight : 1.3 lbs (589.7g)
0
62 in stock

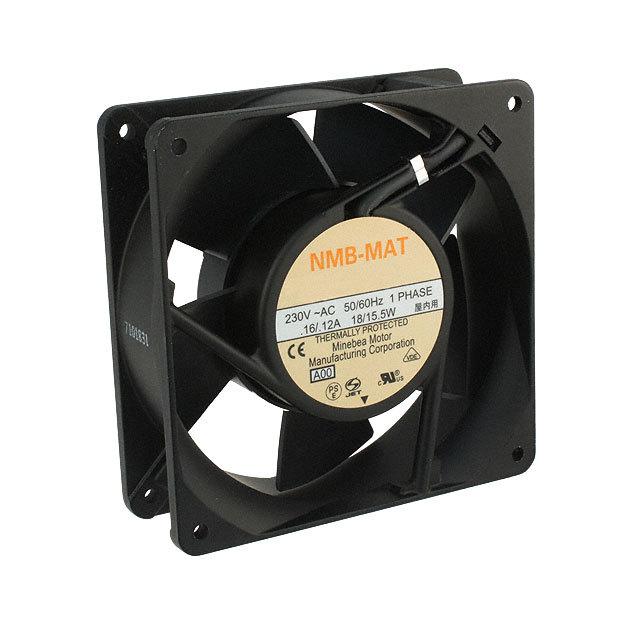

4715HS-23T-B5A-A00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938SB
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 105.9 CFM (2.97m鲁/min)
Static Pressure : 0.400 in H2O (99.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB
Power (Watts) : 15.50W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, UL, VDE
Weight : 1.3 lbs (589.7g)
Series : 11938SB
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 105.9 CFM (2.97m鲁/min)
Static Pressure : 0.400 in H2O (99.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB
Power (Watts) : 15.50W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, UL, VDE
Weight : 1.3 lbs (589.7g)
0
100 in stock
4715MS-10T-B50-B00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938MB
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.0 CFM (2.86m鲁/min)
Static Pressure : 0.306 in H2O (76.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.0 dB
Power (Watts) : 14.00W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
Series : 11938MB
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.0 CFM (2.86m鲁/min)
Static Pressure : 0.306 in H2O (76.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.0 dB
Power (Watts) : 14.00W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
0
65 in stock
4715MS-12T-B10-A00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 49.4 CFM (1.38m鲁/min)
Static Pressure : 0.066 in H2O (16.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : 5.50W
RPM : 1450 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 49.4 CFM (1.38m鲁/min)
Static Pressure : 0.066 in H2O (16.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : 5.50W
RPM : 1450 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
0
1994 in stock

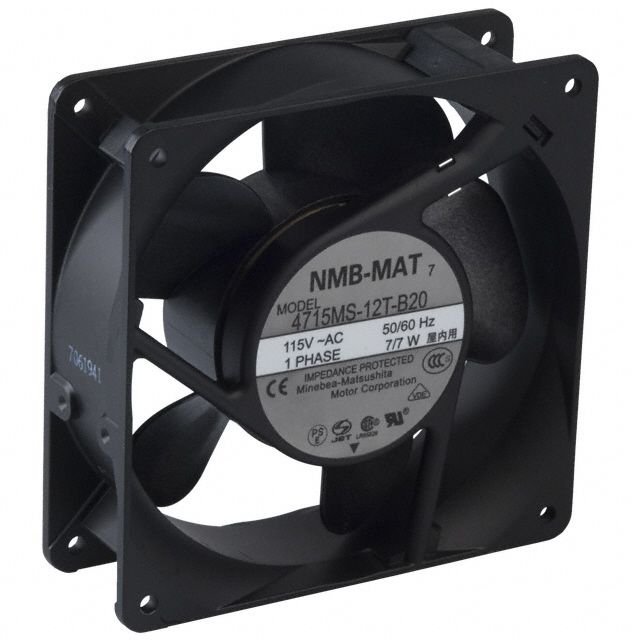

4715MS-12T-B20-A00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 67.0 CFM (1.88m鲁/min)
Static Pressure : 0.098 in H2O (24.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB
Power (Watts) : 7.00W
RPM : 1950 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 67.0 CFM (1.88m鲁/min)
Static Pressure : 0.098 in H2O (24.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB
Power (Watts) : 7.00W
RPM : 1950 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
0
229 in stock

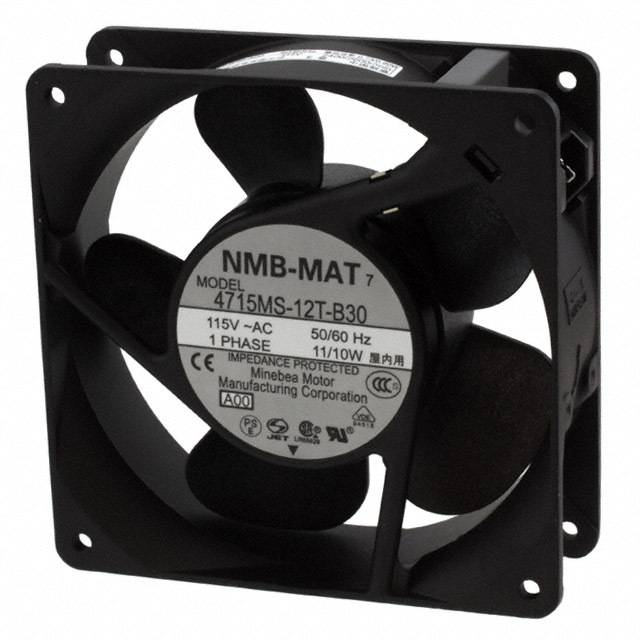

4715MS-12T-B30-A00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 88.2 CFM (2.47m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB
Power (Watts) : 10.00W
RPM : 2600 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 88.2 CFM (2.47m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB
Power (Watts) : 10.00W
RPM : 2600 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
0
799 in stock
4715MS-12T-B40-A00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 95.0 CFM (2.66m鲁/min)
Static Pressure : 0.259 in H2O (64.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB
Power (Watts) : 13.00W
RPM : 2750 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 95.0 CFM (2.66m鲁/min)
Static Pressure : 0.259 in H2O (64.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB
Power (Watts) : 13.00W
RPM : 2750 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
0
818 in stock

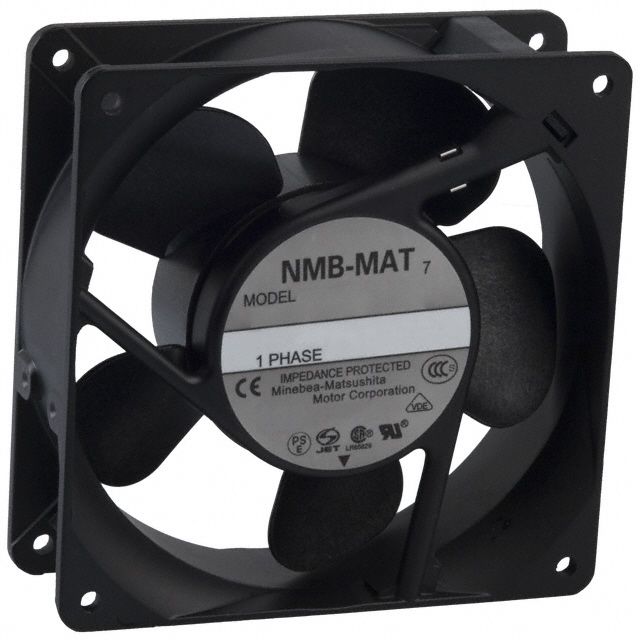

4715MS-12T-B50-A00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.0 CFM (2.86m鲁/min)
Static Pressure : 0.306 in H2O (76.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.0 dB
Power (Watts) : 14.50W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.0 CFM (2.86m鲁/min)
Static Pressure : 0.306 in H2O (76.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.0 dB
Power (Watts) : 14.50W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
0
3767 in stock

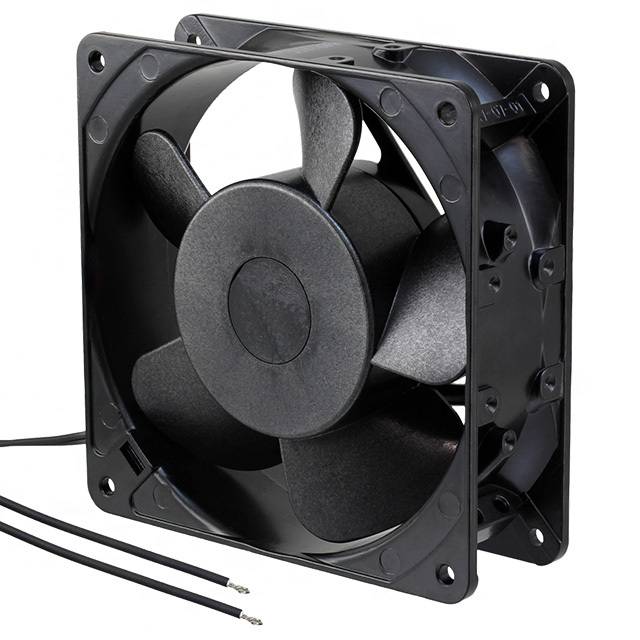

4715MS-12W-B10-A00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 49.4 CFM (1.38m鲁/min)
Static Pressure : 0.066 in H2O (16.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : 5.50W
RPM : 1450 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 49.4 CFM (1.38m鲁/min)
Static Pressure : 0.066 in H2O (16.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : 5.50W
RPM : 1450 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
0
33 in stock
4715MS-12W-B50-A00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.0 CFM (2.86m鲁/min)
Static Pressure : 0.306 in H2O (76.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.0 dB
Power (Watts) : 14.50W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
Series : 11938MB
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.0 CFM (2.86m鲁/min)
Static Pressure : 0.306 in H2O (76.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.0 dB
Power (Watts) : 14.50W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
0
339 in stock

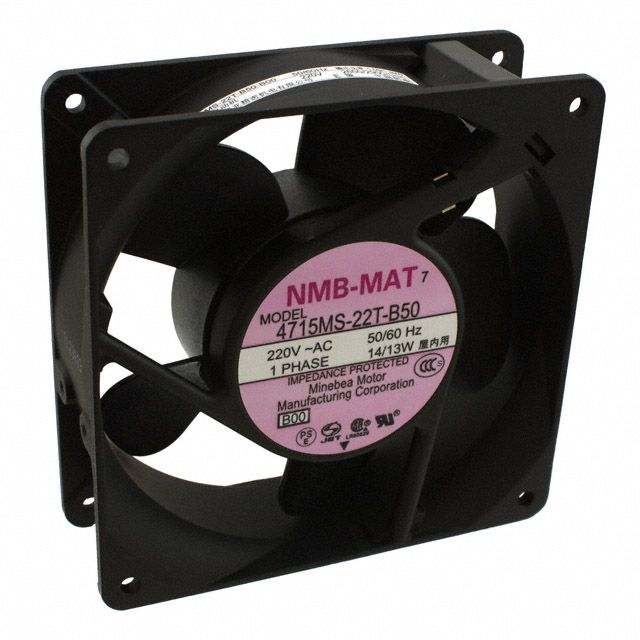

4715MS-22T-B50-B00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938MB
Part Status : Active
Voltage - Rated : 220VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.0 CFM (2.86m鲁/min)
Static Pressure : 0.302 in H2O (75.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.0 dB
Power (Watts) : 13.00W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
Series : 11938MB
Part Status : Active
Voltage - Rated : 220VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.0 CFM (2.86m鲁/min)
Static Pressure : 0.302 in H2O (75.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.0 dB
Power (Watts) : 13.00W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
0
205 in stock
4715MS-23T-B10-A00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938MB
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 49.4 CFM (1.38m鲁/min)
Static Pressure : 0.059 in H2O (14.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : 6.00W
RPM : 1450 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
Series : 11938MB
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 49.4 CFM (1.38m鲁/min)
Static Pressure : 0.059 in H2O (14.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : 6.00W
RPM : 1450 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, TUV, UL, VDE
Weight : 1.2 lbs (544.3g)
0
241 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
