109S024
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : PSE
Weight : 1.2 lbs (544.3g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : PSE
Weight : 1.2 lbs (544.3g)
0
15 in stock
109S024UL
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
0
40 in stock
109S025UL
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 95.4 CFM (2.67m鲁/min)
Static Pressure : 0.264 in H2O (65.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB(A)
Power (Watts) : 12.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
0
27 in stock
109S031
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80
Part Status : Active
Voltage - Rated : 200VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 22.3 CFM (0.624m鲁/min)
Static Pressure : 0.114 in H2O (28.4 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 30.0 dB(A)
Power (Watts) : 7.00W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.597 lb (270.79g)
Series : San Ace 80
Part Status : Active
Voltage - Rated : 200VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 22.3 CFM (0.624m鲁/min)
Static Pressure : 0.114 in H2O (28.4 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 30.0 dB(A)
Power (Watts) : 7.00W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.597 lb (270.79g)
0
100 in stock
109S034
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 22.3 CFM (0.624m鲁/min)
Static Pressure : 0.114 in H2O (28.4 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 30.0 dB(A)
Power (Watts) : 7.00W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.597 lb (270.79g)
Series : San Ace 80
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 22.3 CFM (0.624m鲁/min)
Static Pressure : 0.114 in H2O (28.4 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 30.0 dB(A)
Power (Watts) : 7.00W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.597 lb (270.79g)
0
100 in stock

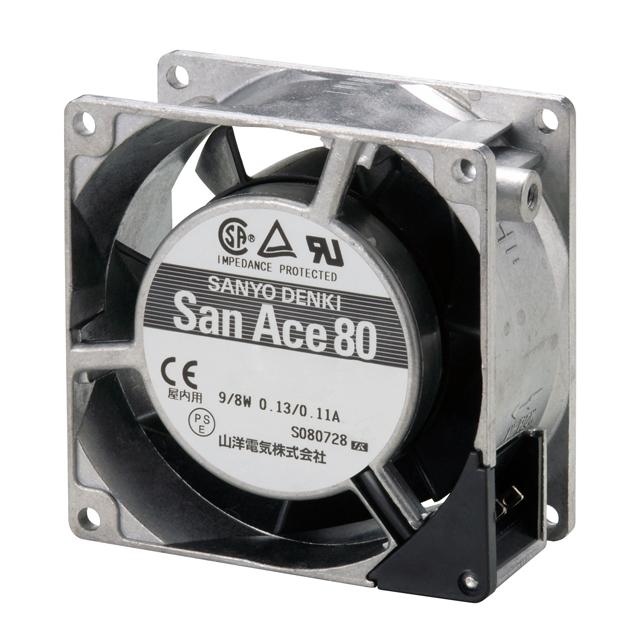

109S053
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 26.9 CFM (0.753m鲁/min)
Static Pressure : 0.154 in H2O (38.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 7.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.595 lb (269.89g)
Series : San Ace 80
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 26.9 CFM (0.753m鲁/min)
Static Pressure : 0.154 in H2O (38.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 7.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.595 lb (269.89g)
0
20 in stock
109S054
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 80
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 26.9 CFM (0.753m鲁/min)
Static Pressure : 0.154 in H2O (38.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 7.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.595 lb (269.89g)
Series : San Ace 80
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 26.9 CFM (0.753m鲁/min)
Static Pressure : 0.154 in H2O (38.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB(A)
Power (Watts) : 7.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.595 lb (269.89g)
0
38 in stock
109S072UL
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.5 CFM (2.87m鲁/min)
Static Pressure : 0.276 in H2O (68.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.0 dB(A)
Power (Watts) : 16.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.5 CFM (2.87m鲁/min)
Static Pressure : 0.276 in H2O (68.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.0 dB(A)
Power (Watts) : 16.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
0
68 in stock
109S074UL
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.5 CFM (2.87m鲁/min)
Static Pressure : 0.276 in H2O (68.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.0 dB(A)
Power (Watts) : 16.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.5 CFM (2.87m鲁/min)
Static Pressure : 0.276 in H2O (68.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.0 dB(A)
Power (Watts) : 16.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
0
55 in stock

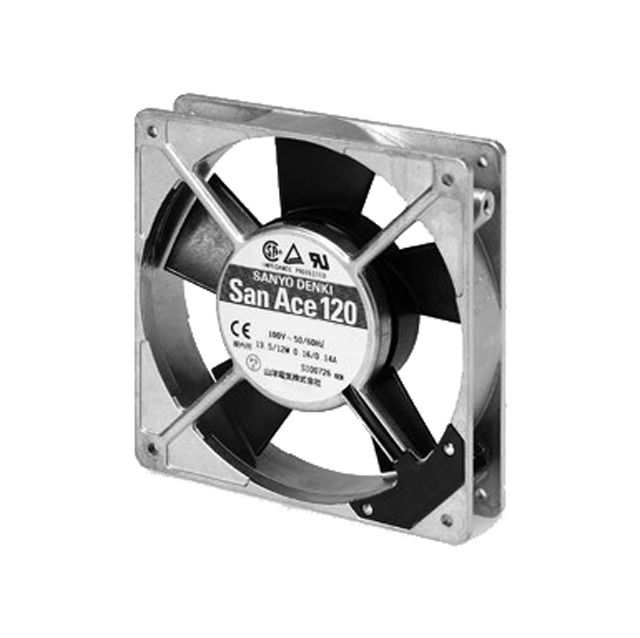

109S075UL
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.5 CFM (2.87m鲁/min)
Static Pressure : 0.276 in H2O (68.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.0 dB(A)
Power (Watts) : 16.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.5 CFM (2.87m鲁/min)
Static Pressure : 0.276 in H2O (68.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.0 dB(A)
Power (Watts) : 16.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
0
105 in stock

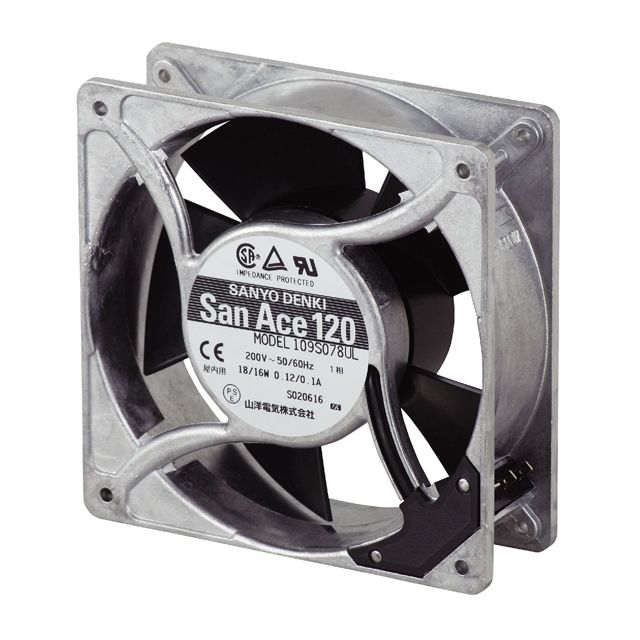

109S078UL
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 200VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.5 CFM (2.87m鲁/min)
Static Pressure : 0.276 in H2O (68.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.0 dB(A)
Power (Watts) : 16.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 200VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 102.5 CFM (2.87m鲁/min)
Static Pressure : 0.276 in H2O (68.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.0 dB(A)
Power (Watts) : 16.00W
RPM : 3100 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 1.2 lbs (544.3g)
0
174 in stock
109S081
Sanyo Denki
Manufacturer : Sanyo Denki America Inc.
Series : San Ace 120
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 63.6 CFM (1.78m鲁/min)
Static Pressure : 0.106 in H2O (26.4 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 35.0 dB(A)
Power (Watts) : 8.50W
RPM : 2350 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.816 lb (370.13g)
Series : San Ace 120
Part Status : Active
Voltage - Rated : 100VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 63.6 CFM (1.78m鲁/min)
Static Pressure : 0.106 in H2O (26.4 Pa)
Bearing Type : -
Fan Type : Tubeaxial
Features : Locked Rotor Protection
Noise : 35.0 dB(A)
Power (Watts) : 8.50W
RPM : 2350 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 140°F (-30 ~ 60°C)
Approvals : CE, CSA, PSE, TUV, UL
Weight : 0.816 lb (370.13g)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
