Part Number

Manufacturer

Description

Unit Price

In Stock

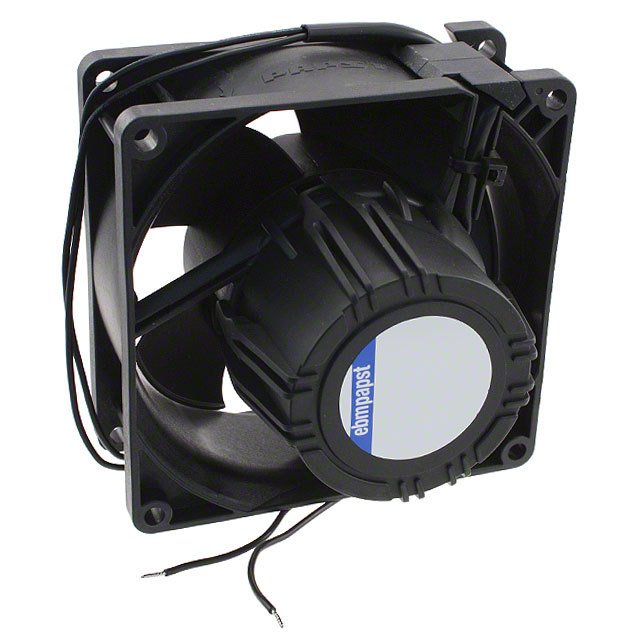

AC3200JH

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : ACmaxx, AC3200J
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 86.0 CFM (2.41m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC), Locked Rotor Protection
Noise : 55.0 dB(A)
Power (Watts) : 11.00W
RPM : 6800 RPM
Termination : 2 Wire Leads
Ingress Protection : IP20
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CCC, CE, CSA, UL, VDE
Weight : 0.716 lb (324.77g)

248 in stock

AC3200JHU

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -

100 in stock

AC4300/19H-012

ebm-papst Inc.

100 in stock

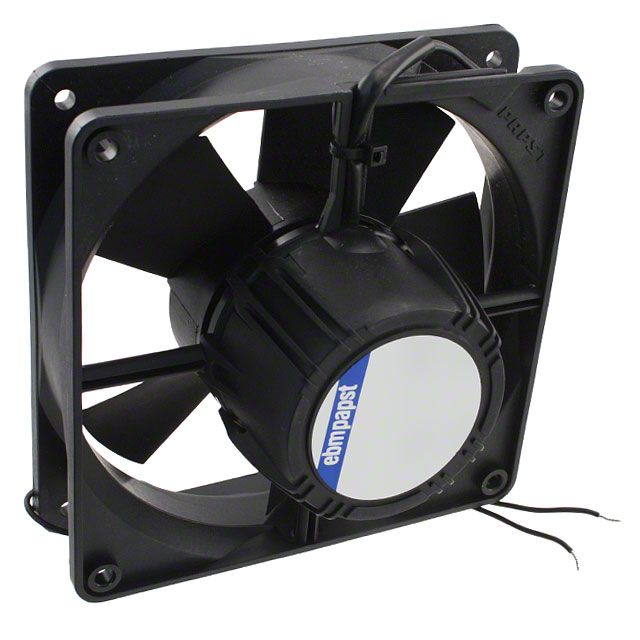

AC4300H

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : ACmaxx, AC4300
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 32.00mm
Air Flow : 120.0 CFM (3.36m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC), Locked Rotor Protection
Noise : 51.0 dB(A)
Power (Watts) : 11.00W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : IP21
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, UL, VDE
Weight : 0.716 lb (324.77g)

23 in stock

AC4300HU

ebm-papst Inc.

100 in stock

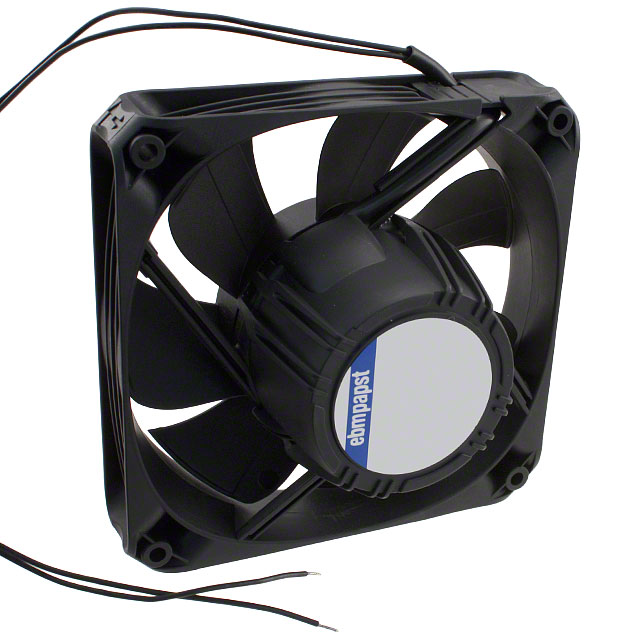

AC4400FNN

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : ACmaxx, AC4400FN
Part Status : Active
Voltage - Rated : 115/230VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 25.00mm
Air Flow : 120.7 CFM (3.38m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Dual Voltage, Electronic Commutation (EC)
Noise : 53.0 dB(A)
Power (Watts) : 12.00W
RPM : 4850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CCC, CE, CSA, UL, VDE
Weight : 0.816 lb (370.13g)

185 in stock

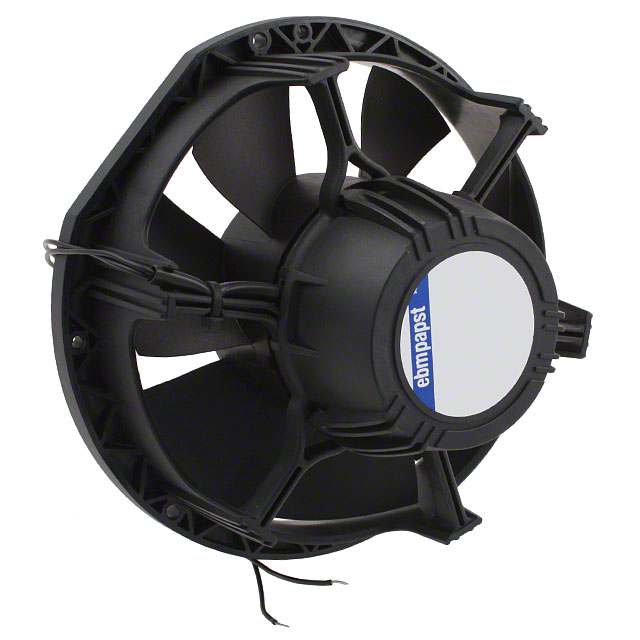

AC6100NM

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : ACmaxx, AC6100N
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 165mm L x 178mm H
Width : 51.00mm
Air Flow : 206.0 CFM (5.77m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC), Locked Rotor Protection
Noise : 52.0 dB(A)
Power (Watts) : 14.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CCC, CE, CSA, UL, VDE
Weight : 1.7 lbs (771.1g)

100 in stock

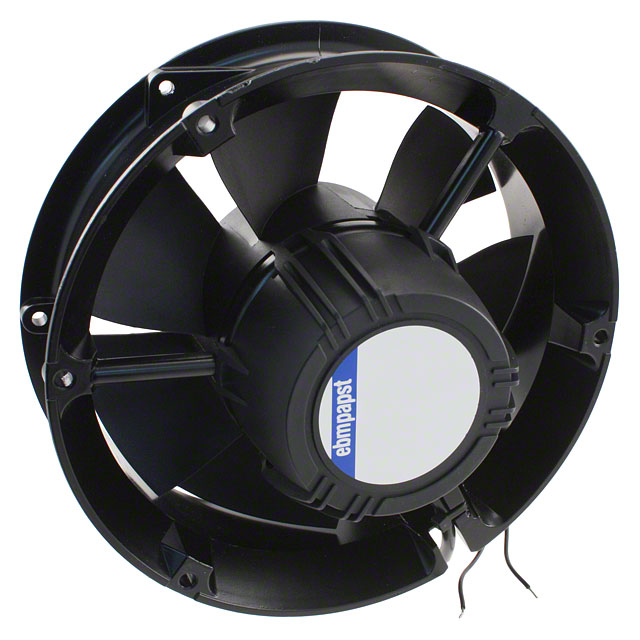

AC6200NM

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : ACmaxx, AC6200N
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 206.0 CFM (5.77m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC), Locked Rotor Protection
Noise : 50.0 dB(A)
Power (Watts) : 14.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CSA, UL, VDE
Weight : 2 lbs (907.2g)

181 in stock

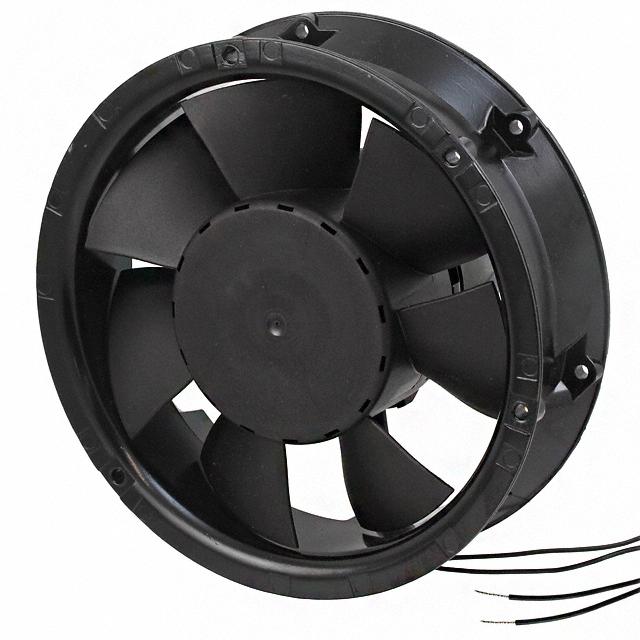

AC6200NMU

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : 6200NU
Part Status : Active
Voltage - Rated : 115/230VAC
Size / Dimension : Round - 171.5mm Dia
Width : 50.80mm
Air Flow : 206.0 CFM (5.77m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Dual Voltage
Noise : 50.0 dB(A)
Power (Watts) : 14.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : CCC, CE, CSA, TUV, UL
Weight : 2 lbs (907.2g)

48 in stock

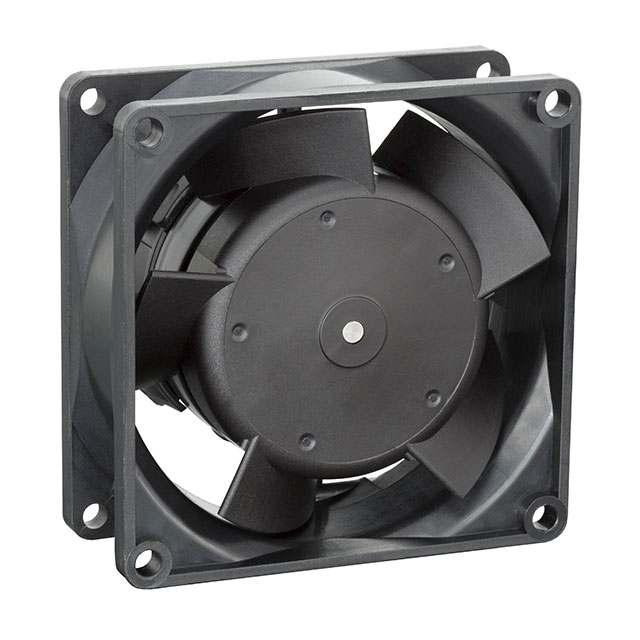

AC8300H

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : AC8300H
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 46.9 CFM (1.31m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.0 dB(A)
Power (Watts) : 8.30W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : CCC, CE, CSA, UL, VDE
Weight : 0.717 lb (325.22g)

100 in stock

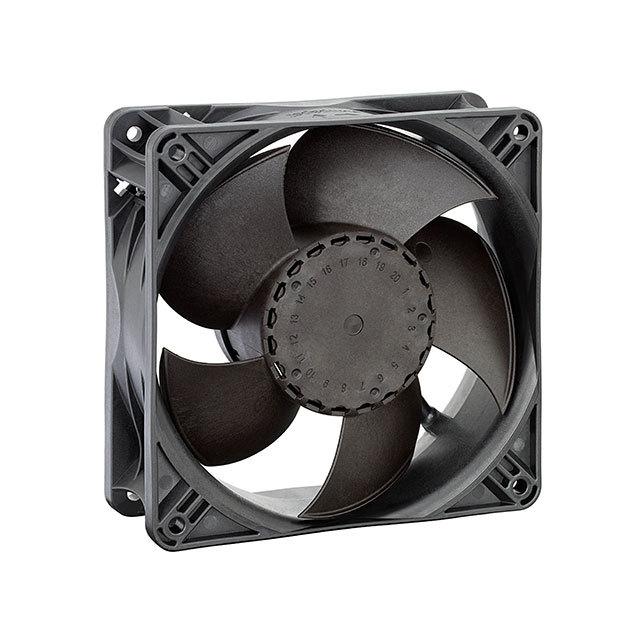

ACI4400/2HHP

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : ACi4400
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 103.0 CFM (2.88m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC), Locked Rotor Sensor, PWM Control, Speed Sensor (Tach)
Noise : 43.0 dB(A)
Power (Watts) : 4.50W
RPM : 3300 RPM
Termination : 5 Terminals
Ingress Protection : IP20
Operating Temperature : -40 ~ 167°F (-40 ~ 75°C)
Approvals : CSAus, cURus
Weight : 0.606 lb (274.88g)

99 in stock

ACI4400H

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : ACi4400
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.00mm
Air Flow : 103.0 CFM (2.88m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC), Locked Rotor Sensor
Noise : 43.0 dB(A)
Power (Watts) : 3.80W
RPM : 3000 RPM
Termination : 3 Terminals
Ingress Protection : IP20
Operating Temperature : -40 ~ 167°F (-40 ~ 75°C)
Approvals : CSAus, cURus
Weight : 0.606 lb (274.88g)

90 in stock
