AC Fans Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

CF4113MBL-000U-ABD

Sunon

Manufacturer : Sunon Fans
Series : CF
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 90.1 CFM (2.52m鲁/min)
Static Pressure : 0.310 in H2O (77.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC), Dual Voltage
Noise : 40.2 dB(A)
Power (Watts) : 3.40W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : ATEX, CE, CUR, TUV, UL
Weight : 0.699 lb (317.06g)

100 in stock

CF4113MBL-000U-AE9

Sunon

Manufacturer : Sunon Fans
Series : CF
Part Status : Active
Voltage - Rated : 110/230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 90.1 CFM (2.52m鲁/min)
Static Pressure : 0.310 in H2O (77.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC), Dual Voltage
Noise : 40.2 dB(A)
Power (Watts) : 3.40W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.699 lb (317.06g)

100 in stock

CF4113MBL-000U-AED

Sunon

Manufacturer : Sunon Fans
Series : CF
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 90.1 CFM (2.52m鲁/min)
Static Pressure : 0.310 in H2O (77.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC), Dual Voltage
Noise : 40.2 dB(A)
Power (Watts) : 3.40W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : ATEX, CE, CUR, TUV, UL
Weight : 0.699 lb (317.06g)

100 in stock

CF4113MBT-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : CF
Part Status : Active
Voltage - Rated : 110/230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 90.1 CFM (2.52m鲁/min)
Static Pressure : 0.310 in H2O (77.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC), Dual Voltage
Noise : 40.2 dB(A)
Power (Watts) : 3.40W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.595 lb (269.89g)

36 in stock

CF4113MBT-000U-AA9

Sunon

Manufacturer : Sunon Fans
Series : CF
Part Status : Active
Voltage - Rated : 110/230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 90.1 CFM (2.52m鲁/min)
Static Pressure : 0.310 in H2O (77.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC), Dual Voltage
Noise : 40.2 dB(A)
Power (Watts) : 3.40W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : IP21
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.595 lb (269.89g)

34 in stock

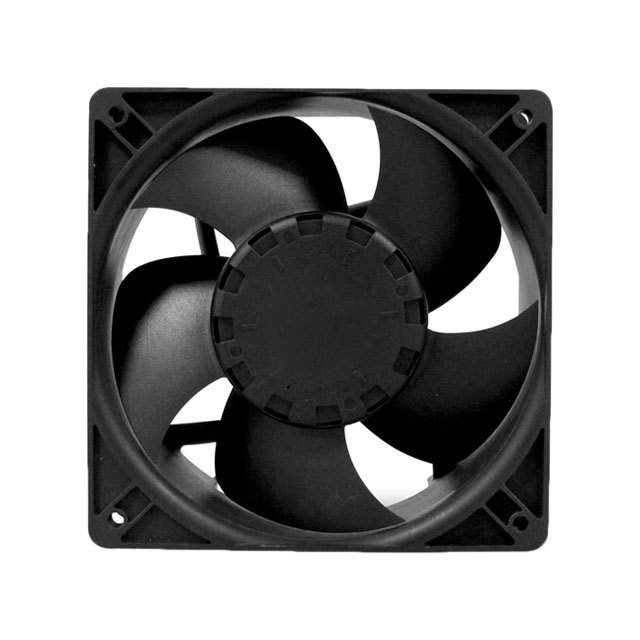

CF4113MBT-000U-AB9

Sunon

Manufacturer : Sunon Fans
Series : CF
Part Status : Active
Voltage - Rated : 110/230VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 90.1 CFM (2.52m鲁/min)
Static Pressure : 0.310 in H2O (77.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC), Dual Voltage
Noise : 40.2 dB(A)
Power (Watts) : 3.40W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.699 lb (317.06g)

35 in stock

CF4113MBT-000U-ABD

Sunon

Manufacturer : Sunon Fans
Series : CF
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 90.1 CFM (2.52m鲁/min)
Static Pressure : 0.310 in H2O (77.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC), Dual Voltage
Noise : 40.2 dB(A)
Power (Watts) : 3.40W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : ATEX, CE, CUR, TUV, UL
Weight : 0.699 lb (317.06g)

100 in stock

D2D133-AB02-07

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -

100 in stock

D2E097-BE01-02

ebm-papst Inc.

100 in stock

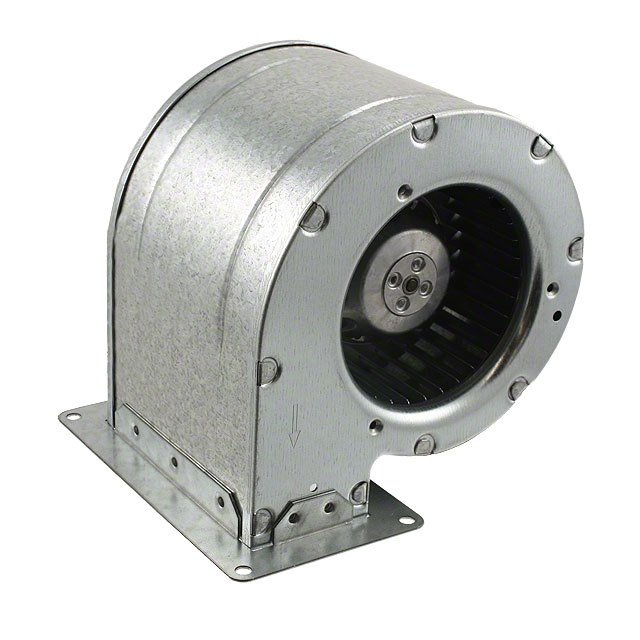

D2E097-BE01-65

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : D2E097
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular - 162mm L x 165mm H (97mm Dia)
Width : 180.0mm
Air Flow : 156.0 CFM (4.37m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower, Centrifugal
Features : -
Noise : 47.0 dB(A)
Power (Watts) : 54.0W
RPM : -
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : 3.3 lbs (1.5kg)

100 in stock

D2E097-BE11-77

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : D2E097
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular - 162mm L x 165mm H (97mm Dia)
Width : 180.0mm
Air Flow : 156.0 CFM (4.37m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower, Centrifugal
Features : -
Noise : 45.0 dB(A)
Power (Watts) : 50.0W
RPM : 1100 RPM
Termination : 2 Wire Leads
Ingress Protection : IP22
Operating Temperature : -40 ~ 176°F (-40 ~ 80°C)
Approvals : CE, CSA, UL
Weight : 3.5 lbs (1.6kg)

10 in stock

D2E097-BI52-A4

ebm-papst Inc.

10 in stock
