AC Fans Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

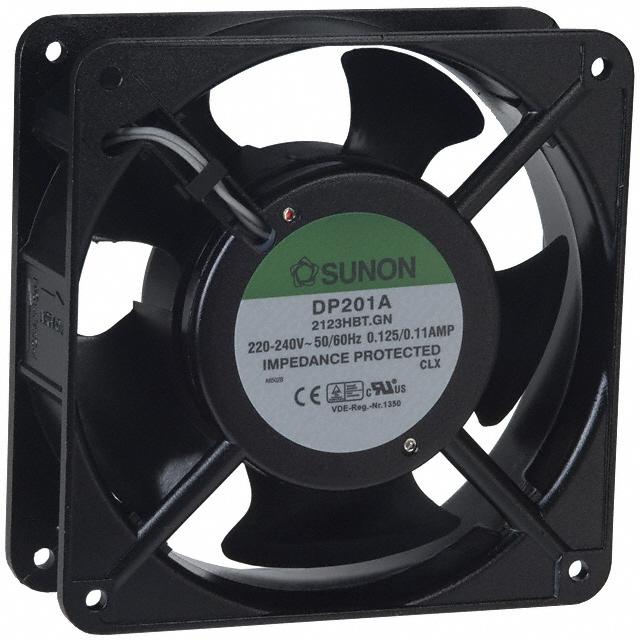

DP201A-2123HBT.GN

Sunon

Manufacturer : Sunon Fans
Series : DP
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 107.0 CFM (3.00m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 50.0 dB(A)
Power (Watts) : 19.00W
RPM : 3050 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 1.2 lbs (544.3g)

0

2131 in stock

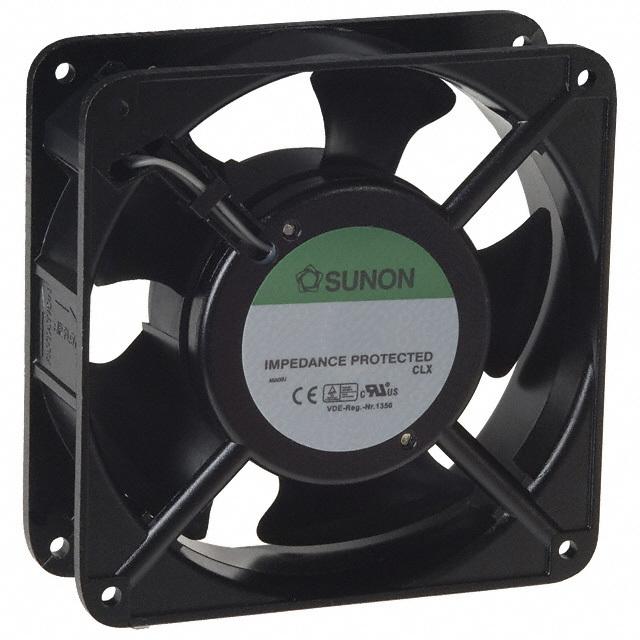

DP201A-2123HST.GN

Sunon

Manufacturer : Sunon Fans
Series : DP
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 119.5mm L x 119.5mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 48.0 dB(A)
Power (Watts) : 19.00W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 1.2 lbs (544.3g)

0

29 in stock

DP201AT-2122HBL.GN

Sunon

Manufacturer : Sunon Fans
Series : DP
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 25.50mm
Air Flow : 80.0 CFM (2.24m鲁/min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.0 dB(A)
Power (Watts) : 19.00W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.65 lb (294.84g)

0

30 in stock

DP201AT-2122HBT.GN

Sunon

Manufacturer : Sunon Fans
Series : DP
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 25.50mm
Air Flow : 80.0 CFM (2.24m鲁/min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.0 dB(A)
Power (Watts) : 19.00W
RPM : 2500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.65 lb (294.84g)

0

29 in stock

DP201AT-2122HST.GN

Sunon

Manufacturer : Sunon Fans
Series : DP
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 25.50mm
Air Flow : 78.0 CFM (2.18m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 46.0 dB(A)
Power (Watts) : 19.00W
RPM : 2300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.65 lb (294.84g)

0

30 in stock

DP202A2-123MSL.GN

Sunon

Manufacturer : Sunon Fans
Series : DP
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.50mm
Air Flow : 84.0 CFM (2.35m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 38.0 dB(A)
Power (Watts) : 15.00W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, TUV, UL
Weight : 1.2 lbs (544.3g)

0

29 in stock

DP203A-2123LBL.GN

Sunon

Manufacturer : Sunon Fans
Series : DP
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 78.0 CFM (2.18m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB(A)
Power (Watts) : 10.00W
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 1.2 lbs (544.3g)

0

30 in stock

DP203A-2123LSL.GN

Sunon

Manufacturer : Sunon Fans
Series : DP
Part Status : Active
Voltage - Rated : 220 ~ 240VAC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.50mm
Air Flow : 63.0 CFM (1.76m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : 10.00W
RPM : 1800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 1.2 lbs (544.3g)

0

30 in stock

EE1G-115-140-02

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -

0

100 in stock

EE1G-115-140-03

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -

0

100 in stock

EE1G-115-180-04

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -

0

2 in stock

EE1G-115-180-05

ebm-papst Inc.

Manufacturer : ebm-papst Inc.
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -

0

100 in stock
