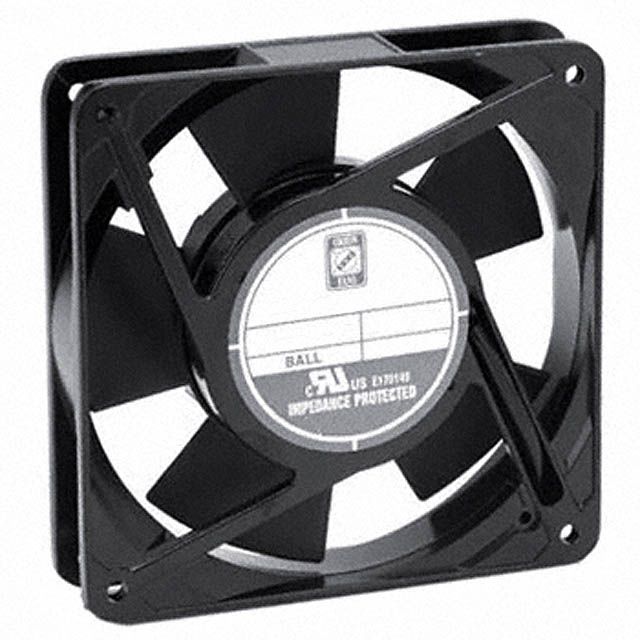

OA125AP-22-1TB
Orion Fans
Manufacturer : Orion Fans
Series : OA125
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120.1mm L x 120.1mm H
Width : 25.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 13.00W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA125
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120.1mm L x 120.1mm H
Width : 25.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 13.00W
RPM : 2900 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
179 in stock

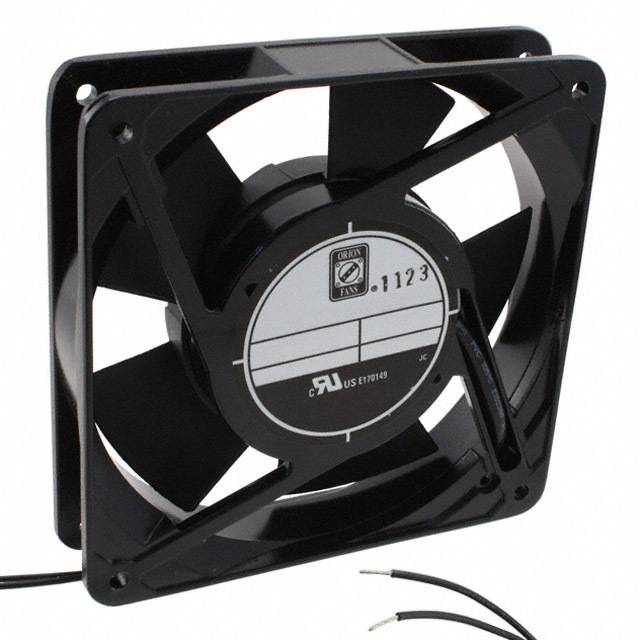

OA125AP-22-1WB
Orion Fans
Manufacturer : Orion Fans
Series : OA125
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120.1mm L x 120.1mm H
Width : 25.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 13.00W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA125
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 120.1mm L x 120.1mm H
Width : 25.00mm
Air Flow : 81.0 CFM (2.27m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : 13.00W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
8 in stock

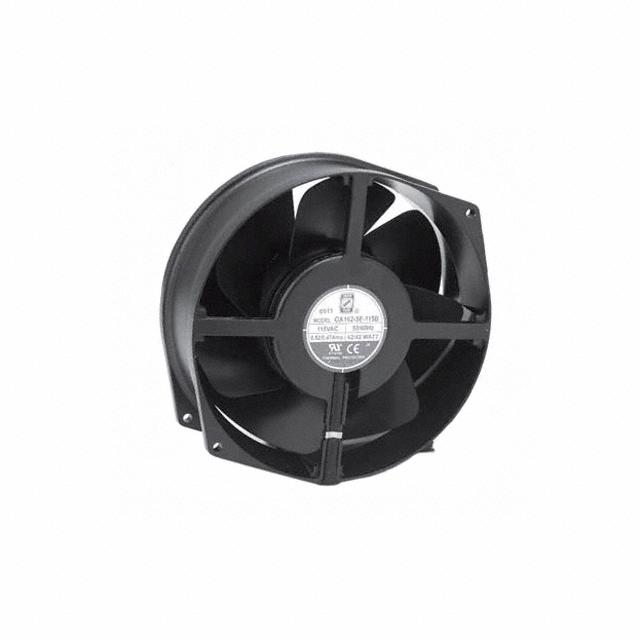

OA162-5E-115WB
Orion Fans
Manufacturer : Orion Fans
Series : OA162
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 55.00mm
Air Flow : 241.0 CFM (6.75m鲁/min)
Static Pressure : 0.730 in H2O (181.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.0 dB
Power (Watts) : 31.00W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OA162
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 55.00mm
Air Flow : 241.0 CFM (6.75m鲁/min)
Static Pressure : 0.730 in H2O (181.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.0 dB
Power (Watts) : 31.00W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
152 in stock
OA162-5E-230WB
Orion Fans
Manufacturer : Orion Fans
Series : OA162
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 172mm Dia
Width : 55.00mm
Air Flow : 241.0 CFM (6.75m鲁/min)
Static Pressure : 0.730 in H2O (181.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.0 dB
Power (Watts) : 31.00W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OA162
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 172mm Dia
Width : 55.00mm
Air Flow : 241.0 CFM (6.75m鲁/min)
Static Pressure : 0.730 in H2O (181.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.0 dB
Power (Watts) : 31.00W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
40 in stock
OA162AP-11-1TB1855
Orion Fans
Manufacturer : Orion Fans
Series : OA162
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
Series : OA162
Part Status : Obsolete
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
0
100 in stock

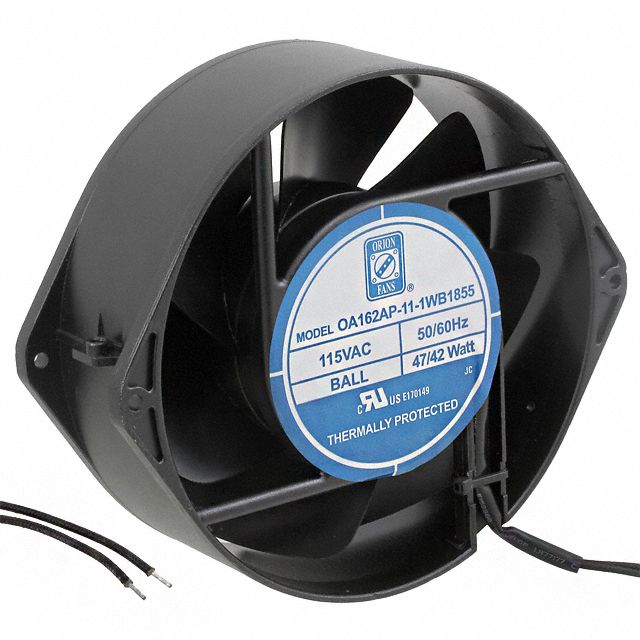

OA162AP-11-1WB1855
Orion Fans
Manufacturer : Orion Fans
Series : OA162
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
Series : OA162
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
0
20 in stock
OA162AP-22-1TB1855
Orion Fans
Manufacturer : Orion Fans
Series : OA162
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
Series : OA162
Part Status : Obsolete
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
0
100 in stock

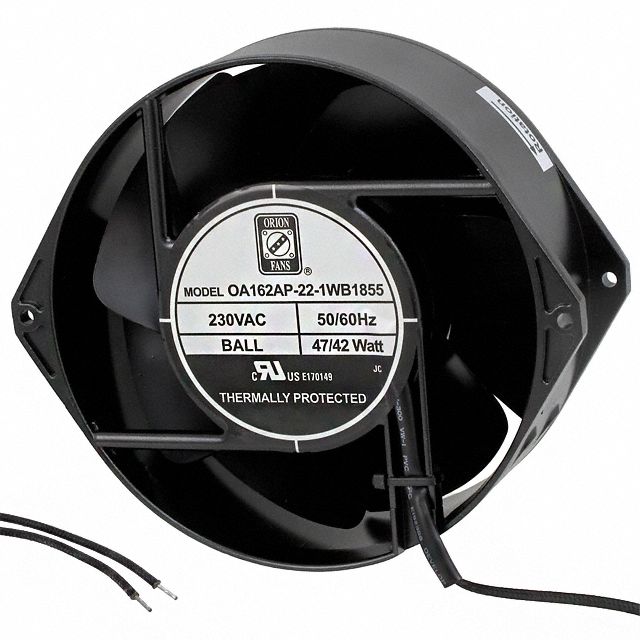

OA162AP-22-1WB1855
Orion Fans
Manufacturer : Orion Fans
Series : OA162
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
Series : OA162
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
0
27 in stock

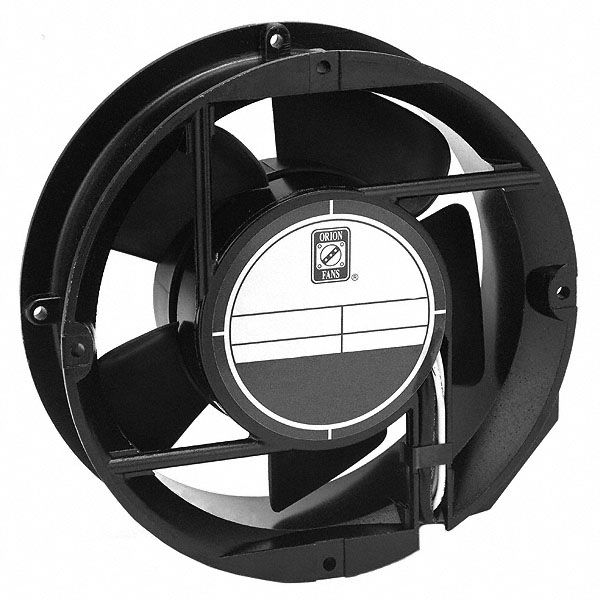

OA172AN-11-1TB
Orion Fans
Manufacturer : Orion Fans
Series : OA172
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 50.80mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OA172
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 50.80mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
3 in stock

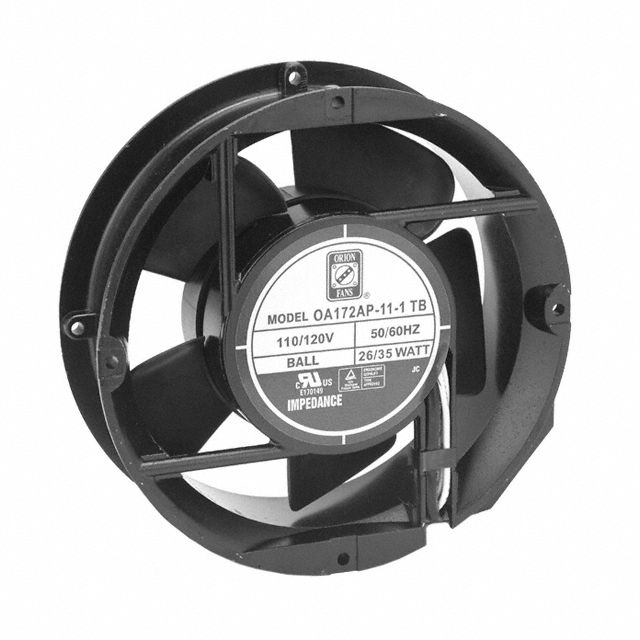

OA172AP-11-1TB
Orion Fans
Manufacturer : Orion Fans
Series : OA172AP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OA172AP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
292 in stock

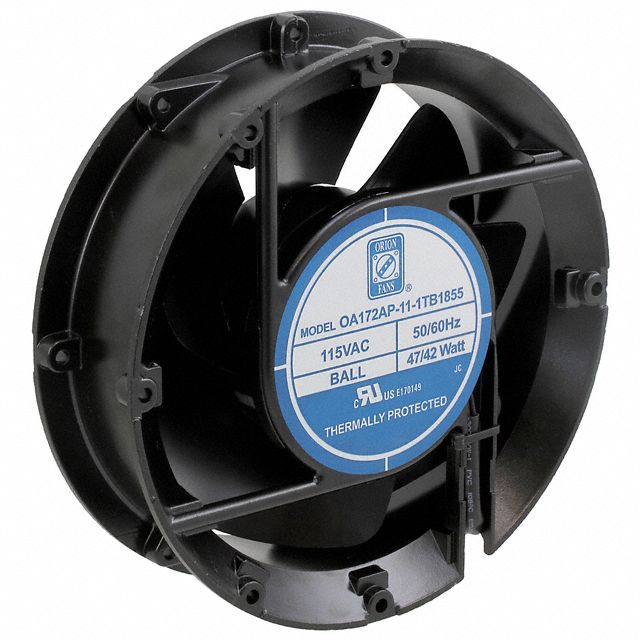

OA172AP-11-1TB1855
Orion Fans
Manufacturer : Orion Fans
Series : OA172AP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 215.0 CFM (6.02m鲁/min)
Static Pressure : 0.510 in H2O (127.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 3 lbs (1.4kg)
Series : OA172AP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 215.0 CFM (6.02m鲁/min)
Static Pressure : 0.510 in H2O (127.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 42.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 3 lbs (1.4kg)
0
10 in stock

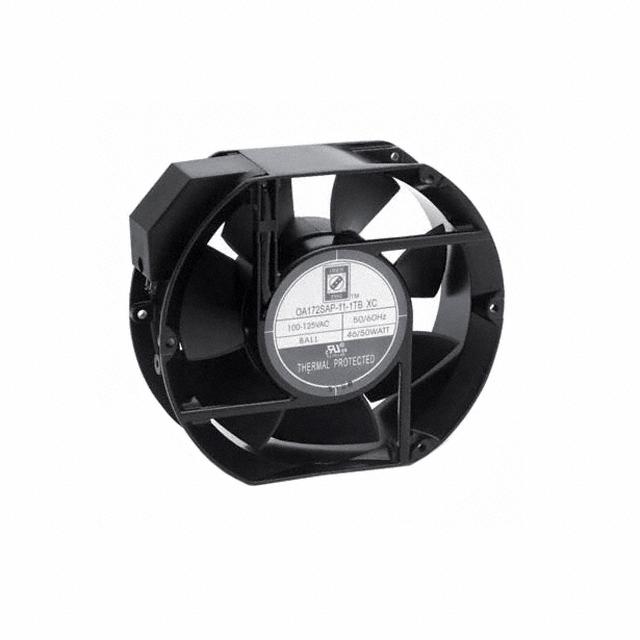

OA172AP11-1TBXC
Orion Fans
Manufacturer : Orion Fans
Series : OA172AP
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 50.0W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : -
Weight : -
Series : OA172AP
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Round - 172mm Dia
Width : 51.00mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 50.0W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : -
Weight : -
0
27 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
