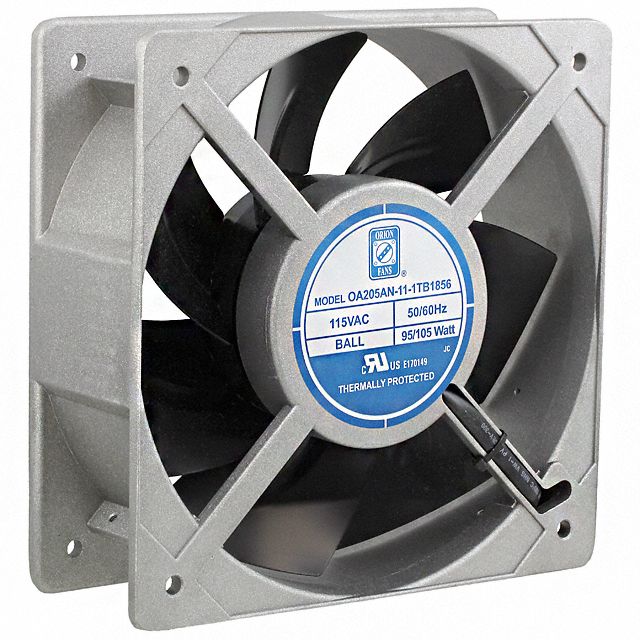

OA205AN-11-1TB1856
Orion Fans
Manufacturer : Orion Fans
Series : OA205AN
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 72.00mm
Air Flow : 650.0 CFM (18.20m鲁/min)
Static Pressure : 1.080 in H2O (269.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 105W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 5.1 lbs (2.3kg)
Series : OA205AN
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 72.00mm
Air Flow : 650.0 CFM (18.20m鲁/min)
Static Pressure : 1.080 in H2O (269.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 105W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 5.1 lbs (2.3kg)
0
233 in stock
OA205AN-11-1WB1856
Orion Fans
Manufacturer : Orion Fans
Series : OA205AN
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 72.00mm
Air Flow : 650.0 CFM (18.20m鲁/min)
Static Pressure : 1.080 in H2O (269.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 105W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 5.1 lbs (2.3kg)
Series : OA205AN
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 72.00mm
Air Flow : 650.0 CFM (18.20m鲁/min)
Static Pressure : 1.080 in H2O (269.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 105W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 5.1 lbs (2.3kg)
0
22 in stock

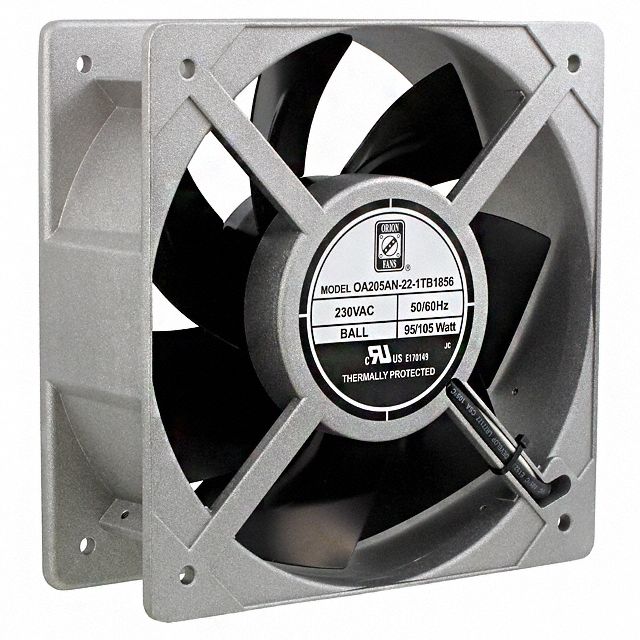

OA205AN-22-1TB1856
Orion Fans
Manufacturer : Orion Fans
Series : OA205AN
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 72.00mm
Air Flow : 650.0 CFM (18.20m鲁/min)
Static Pressure : 1.080 in H2O (269.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 105W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 5.1 lbs (2.3kg)
Series : OA205AN
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 72.00mm
Air Flow : 650.0 CFM (18.20m鲁/min)
Static Pressure : 1.080 in H2O (269.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 105W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 5.1 lbs (2.3kg)
0
8 in stock
OA205AN-22-1WB1856
Orion Fans
Manufacturer : Orion Fans
Series : OA205AN
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 72.00mm
Air Flow : 650.0 CFM (18.20m鲁/min)
Static Pressure : 1.080 in H2O (269.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 105W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 5.1 lbs (2.3kg)
Series : OA205AN
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 205mm L x 205mm H
Width : 72.00mm
Air Flow : 650.0 CFM (18.20m鲁/min)
Static Pressure : 1.080 in H2O (269.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 105W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 5.1 lbs (2.3kg)
0
20 in stock

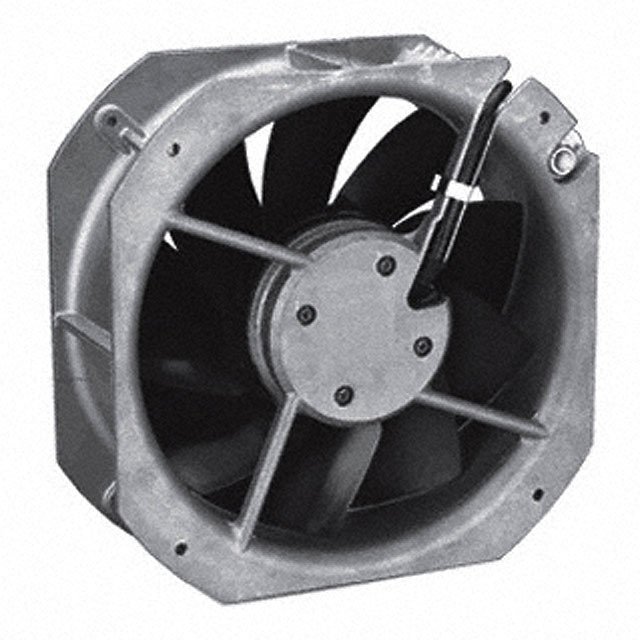

OA225AN-11-1TB18
Orion Fans
Manufacturer : Orion Fans
Series : OA225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 225mm Dia
Width : 80.00mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 72.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
Series : OA225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 225mm Dia
Width : 80.00mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 72.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
0
33 in stock
OA225AN-22-1TB18
Orion Fans
Manufacturer : Orion Fans
Series : OA225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 225mm Dia
Width : 80.00mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 80.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
Series : OA225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 225mm Dia
Width : 80.00mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 80.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
0
33 in stock

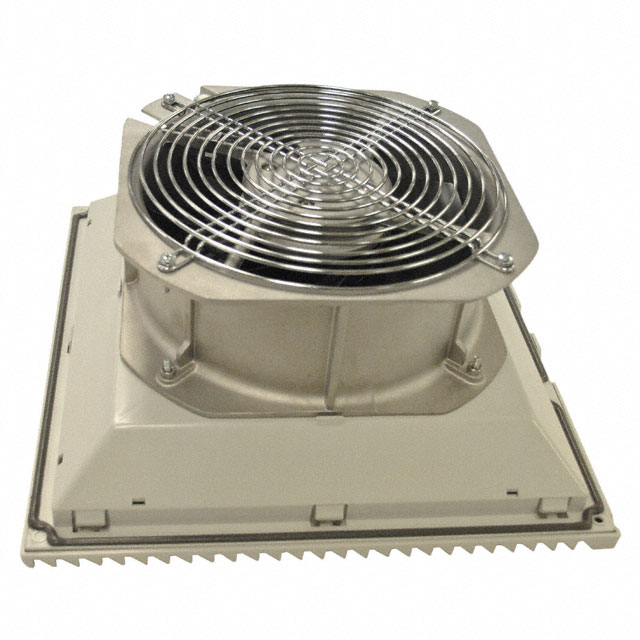

OA225LFG111T
Orion Fans
Manufacturer : Orion Fans
Series : OA225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 141.5mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 59.0 dB(A)
Power (Watts) : 72.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 176°F (-40 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA225
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 141.5mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 59.0 dB(A)
Power (Watts) : 72.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 176°F (-40 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
6 in stock
OA225LFG221T
Orion Fans
Manufacturer : Orion Fans
Series : OA225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 141.5mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 61.0 dB
Power (Watts) : 80.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 176°F (-40 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OA225
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 141.5mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 61.0 dB
Power (Watts) : 80.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 176°F (-40 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
100 in stock
OA225LFGH111T
Orion Fans
Manufacturer : Orion Fans
Series : OA225LFGH
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 322.7mm L x 322.7mm H
Width : 133.4mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 59.0 dB
Power (Watts) : 72.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 104 ~ 158°F (40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OA225LFGH
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 322.7mm L x 322.7mm H
Width : 133.4mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 59.0 dB
Power (Watts) : 72.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 104 ~ 158°F (40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
2 in stock

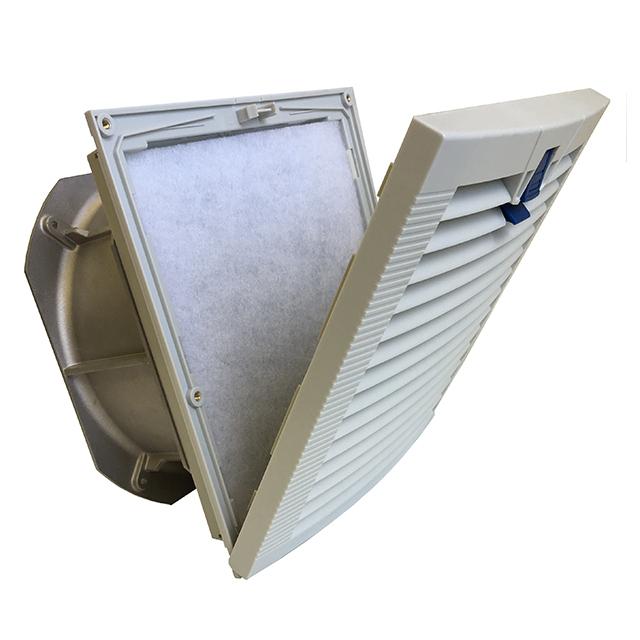

OA225LFGH221T
Orion Fans
Manufacturer : Orion Fans
Series : OA225LFGH
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 322.7mm L x 322.7mm H
Width : 133.4mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 59.0 dB
Power (Watts) : 80.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 104 ~ 158°F (40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OA225LFGH
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 322.7mm L x 322.7mm H
Width : 133.4mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 59.0 dB
Power (Watts) : 80.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 104 ~ 158°F (40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
2 in stock
OA225LFGS111T
Orion Fans
Manufacturer : Orion Fans
Series : OA225LFGS
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 317mm L x 317mm H
Width : 125.5mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 59.0 dB
Power (Watts) : 72.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 104 ~ 158°F (40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OA225LFGS
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 317mm L x 317mm H
Width : 125.5mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 59.0 dB
Power (Watts) : 72.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 104 ~ 158°F (40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
3 in stock

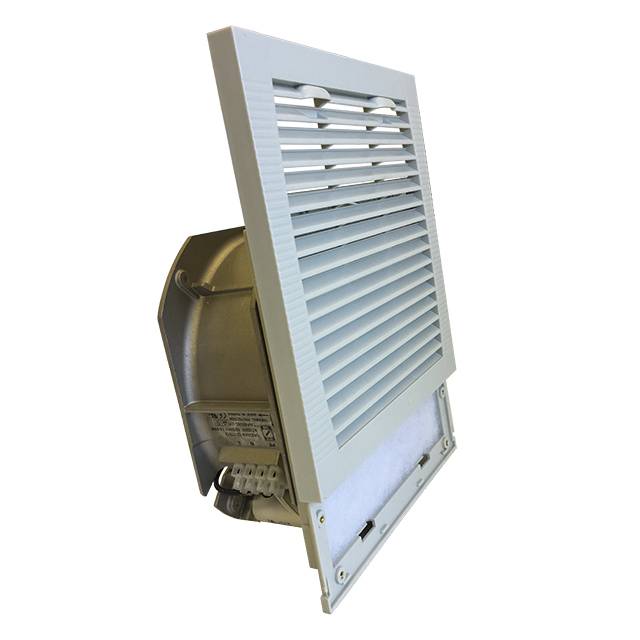

OA225LFGS221T
Orion Fans
Manufacturer : Orion Fans
Series : OA225LFGS
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 317mm L x 317mm H
Width : 125.5mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 59.0 dB
Power (Watts) : 80.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 104 ~ 158°F (40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OA225LFGS
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 317mm L x 317mm H
Width : 125.5mm
Air Flow : 600.0 CFM (16.80m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 59.0 dB
Power (Watts) : 80.0W
RPM : 2800 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 104 ~ 158°F (40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
2 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
