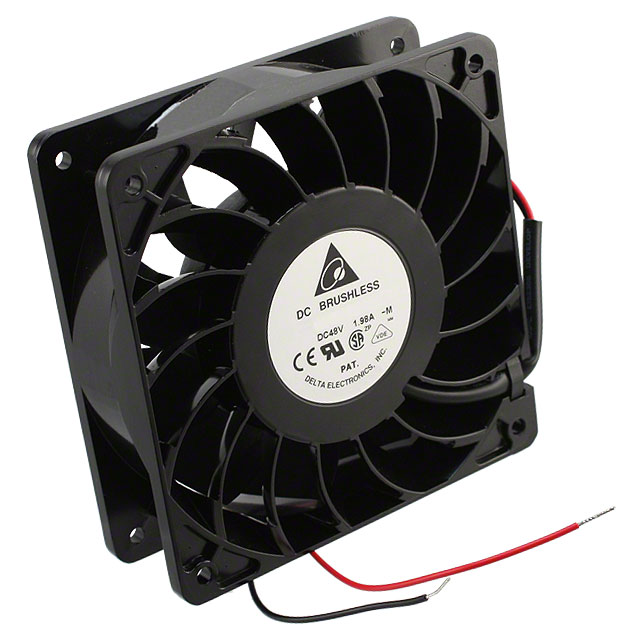

FFB1248XHE-M
Delta Electronics
Manufacturer : Delta Electronics
Series : FFB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 264.6 CFM (7.41m鲁/min)
Static Pressure : 1.705 in H2O (424.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 73.5 dB(A)
Power (Watts) : 79.2W
RPM : 6300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 1.102 lb (500.0g)
Series : FFB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 264.6 CFM (7.41m鲁/min)
Static Pressure : 1.705 in H2O (424.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 73.5 dB(A)
Power (Watts) : 79.2W
RPM : 6300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 1.102 lb (500.0g)
0
57 in stock

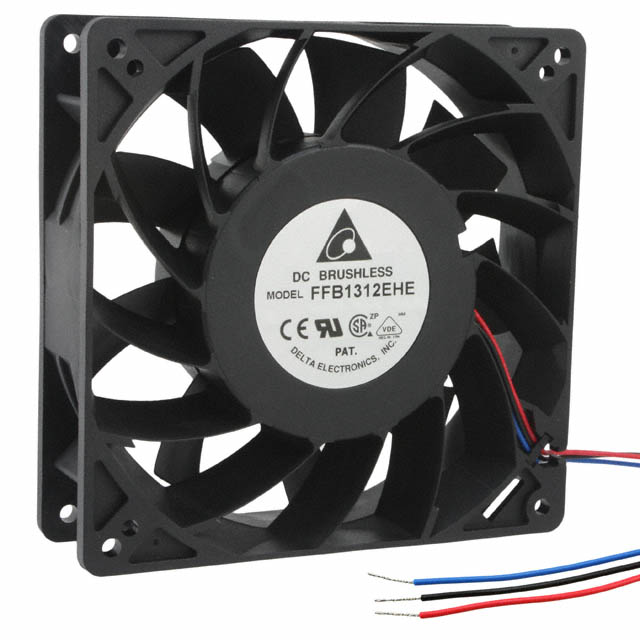

FFB1312EHE-F00
Delta Electronics
Manufacturer : Delta Electronics
Series : FFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 200.0 CFM (5.60m鲁/min)
Static Pressure : 0.799 in H2O (199.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 59.5 dB(A)
Power (Watts) : 32.90W
RPM : 3850 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 1 lb (453.59g)
Series : FFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 200.0 CFM (5.60m鲁/min)
Static Pressure : 0.799 in H2O (199.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 59.5 dB(A)
Power (Watts) : 32.90W
RPM : 3850 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 1 lb (453.59g)
0
194 in stock
FFB1312SHE
Delta Electronics
Manufacturer : Delta Electronics
Series : FFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 180.0 CFM (5.04m鲁/min)
Static Pressure : 0.642 in H2O (159.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.5 dB(A)
Power (Watts) : 22.20W
RPM : 3450 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 1.102 lb (500.0g)
Series : FFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 180.0 CFM (5.04m鲁/min)
Static Pressure : 0.642 in H2O (159.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.5 dB(A)
Power (Watts) : 22.20W
RPM : 3450 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 1.102 lb (500.0g)
0
130 in stock
FFB1324EHE
Delta Electronics
Manufacturer : Delta Electronics
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 200.0 CFM (5.60m鲁/min)
Static Pressure : 0.799 in H2O (199.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.5 dB(A)
Power (Watts) : 28.80W
RPM : 3850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 1 lb (453.59g)
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 200.0 CFM (5.60m鲁/min)
Static Pressure : 0.799 in H2O (199.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.5 dB(A)
Power (Watts) : 28.80W
RPM : 3850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 1 lb (453.59g)
0
137 in stock

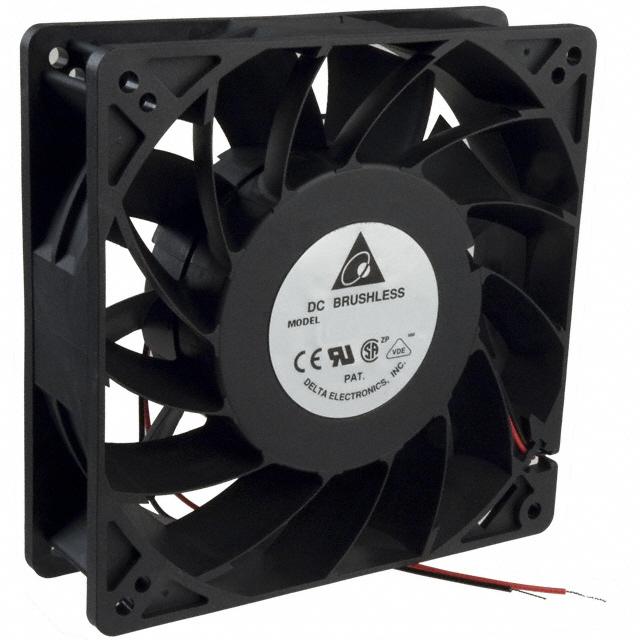

FFB1324SHE-B
Delta Electronics
Manufacturer : Delta Electronics
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 180.0 CFM (5.04m鲁/min)
Static Pressure : 0.642 in H2O (159.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.5 dB(A)
Power (Watts) : 20.20W
RPM : 3450 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 1.102 lb (500.0g)
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 180.0 CFM (5.04m鲁/min)
Static Pressure : 0.642 in H2O (159.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.5 dB(A)
Power (Watts) : 20.20W
RPM : 3450 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 1.102 lb (500.0g)
0
305 in stock

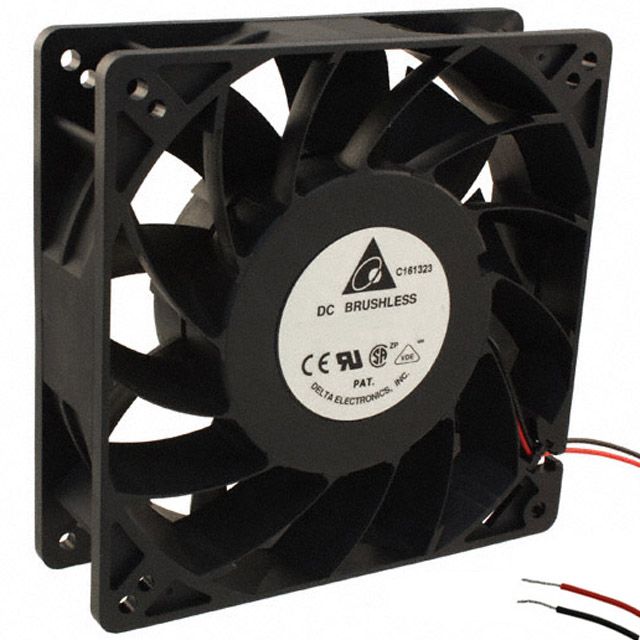

FFB1324VHE
Delta Electronics
Manufacturer : Delta Electronics
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 160.0 CFM (4.48m鲁/min)
Static Pressure : 0.504 in H2O (125.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 14.40W
RPM : 3050 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 1 lb (453.59g)
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 160.0 CFM (4.48m鲁/min)
Static Pressure : 0.504 in H2O (125.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 14.40W
RPM : 3050 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 1 lb (453.59g)
0
28 in stock

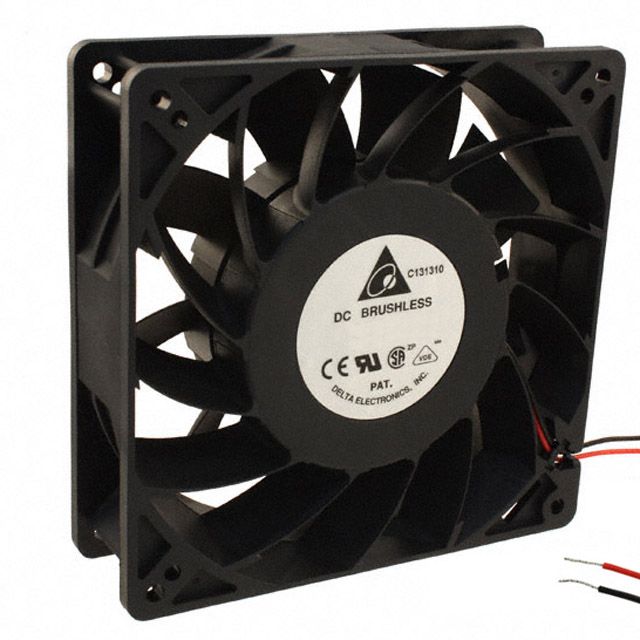

FFB1324VHE-B
Delta Electronics
Manufacturer : Delta Electronics
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 160.0 CFM (4.48m鲁/min)
Static Pressure : 0.504 in H2O (125.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 14.40W
RPM : 3050 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 1 lb (453.59g)
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 127mm L x 127mm H
Width : 38.00mm
Air Flow : 160.0 CFM (4.48m鲁/min)
Static Pressure : 0.504 in H2O (125.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 53.0 dB(A)
Power (Watts) : 14.40W
RPM : 3050 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 1 lb (453.59g)
0
92 in stock

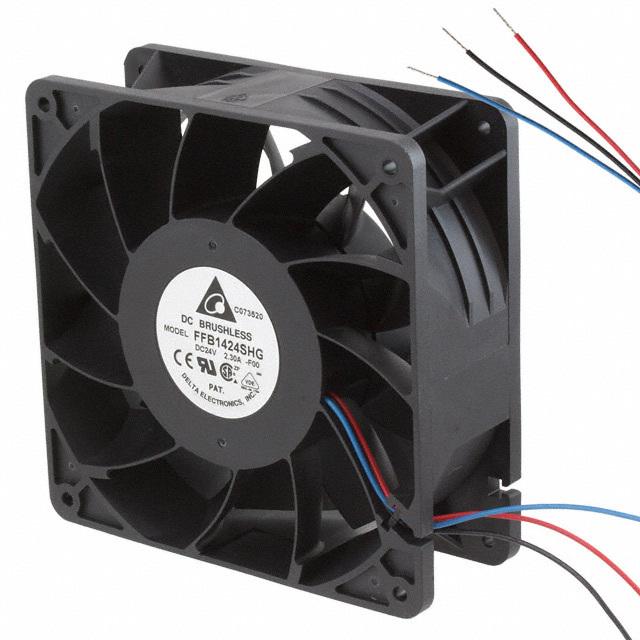

FFB1424SHG-F00
Delta Electronics
Manufacturer : Delta Electronics
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 139.7mm L x 139.7mm H
Width : 50.80mm
Air Flow : 273.1 CFM (7.65m鲁/min)
Static Pressure : 0.781 in H2O (194.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 61.7 dB(A)
Power (Watts) : 36.00W
RPM : 3600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 122°F (-10 ~ 50°C)
Approvals : CE, CSA, UL, VDE
Weight : 1.5 lbs (680.4g)
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 139.7mm L x 139.7mm H
Width : 50.80mm
Air Flow : 273.1 CFM (7.65m鲁/min)
Static Pressure : 0.781 in H2O (194.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 61.7 dB(A)
Power (Watts) : 36.00W
RPM : 3600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 122°F (-10 ~ 50°C)
Approvals : CE, CSA, UL, VDE
Weight : 1.5 lbs (680.4g)
0
19 in stock

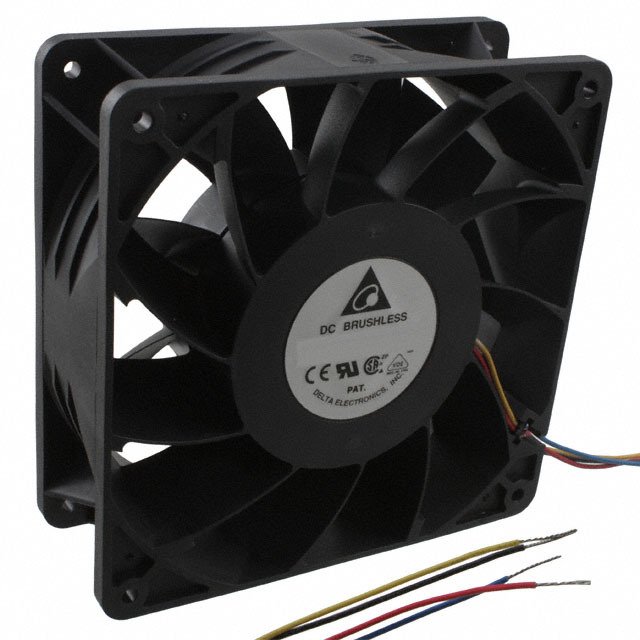

FFB1424VHG-EP
Delta Electronics
Manufacturer : Delta Electronics
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 139.7mm L x 139.7mm H
Width : 50.80mm
Air Flow : 252.1 CFM (7.06m鲁/min)
Static Pressure : 0.644 in H2O (160.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : GR-487, PWM Control, Speed Sensor (Tach)
Noise : 58.5 dB(A)
Power (Watts) : 24.00W
RPM : 3200 RPM
Termination : 4 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 1.5 lbs (680.4g)
Series : FFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 139.7mm L x 139.7mm H
Width : 50.80mm
Air Flow : 252.1 CFM (7.06m鲁/min)
Static Pressure : 0.644 in H2O (160.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : GR-487, PWM Control, Speed Sensor (Tach)
Noise : 58.5 dB(A)
Power (Watts) : 24.00W
RPM : 3200 RPM
Termination : 4 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 1.5 lbs (680.4g)
0
39 in stock

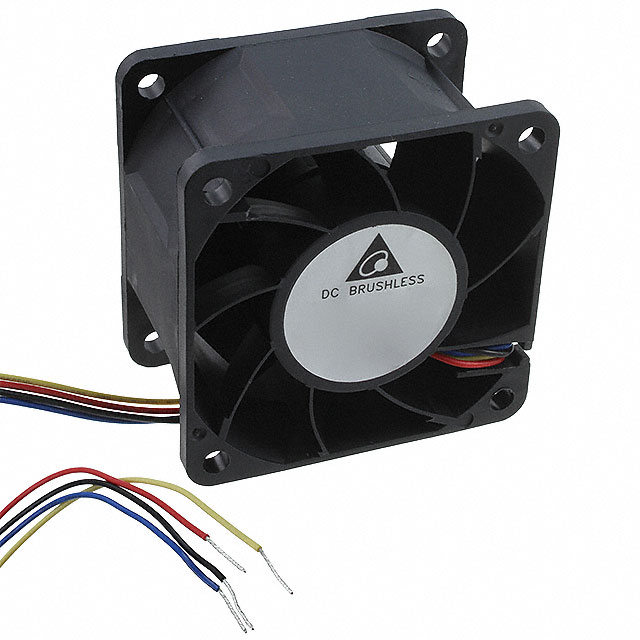

FFC0612DE-PP01
Delta Electronics
Manufacturer : Delta Electronics
Series : FFC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 54.8 CFM (1.53m鲁/min)
Static Pressure : 1.182 in H2O (294.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 60.0 dB(A)
Power (Watts) : 10.80W
RPM : 9000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.234 lb (106.14g)
Series : FFC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 54.8 CFM (1.53m鲁/min)
Static Pressure : 1.182 in H2O (294.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 60.0 dB(A)
Power (Watts) : 10.80W
RPM : 9000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.234 lb (106.14g)
0
314 in stock

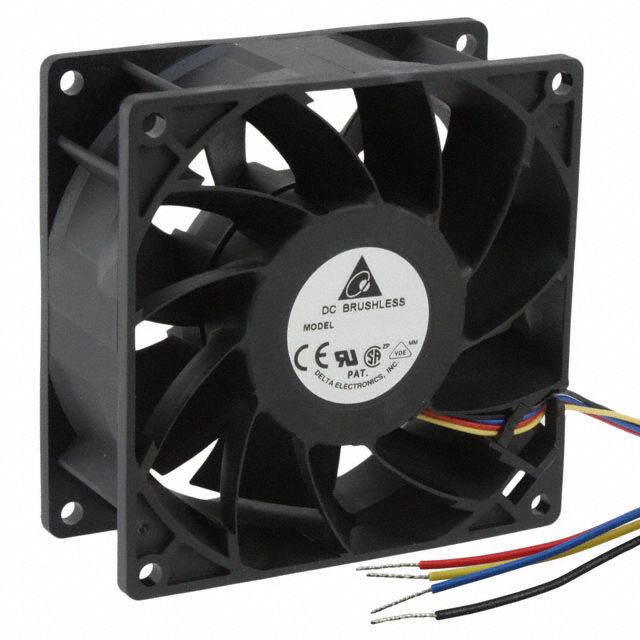

FFC0912DE-TP04
Delta Electronics
Manufacturer : Delta Electronics
Series : FFC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 110.2 CFM (3.09m鲁/min)
Static Pressure : 0.665 in H2O (165.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 55.0 dB(A)
Power (Watts) : 9.60W
RPM : 4800 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.436 lb (197.77g)
Series : FFC
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 110.2 CFM (3.09m鲁/min)
Static Pressure : 0.665 in H2O (165.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 55.0 dB(A)
Power (Watts) : 9.60W
RPM : 4800 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.436 lb (197.77g)
0
28 in stock

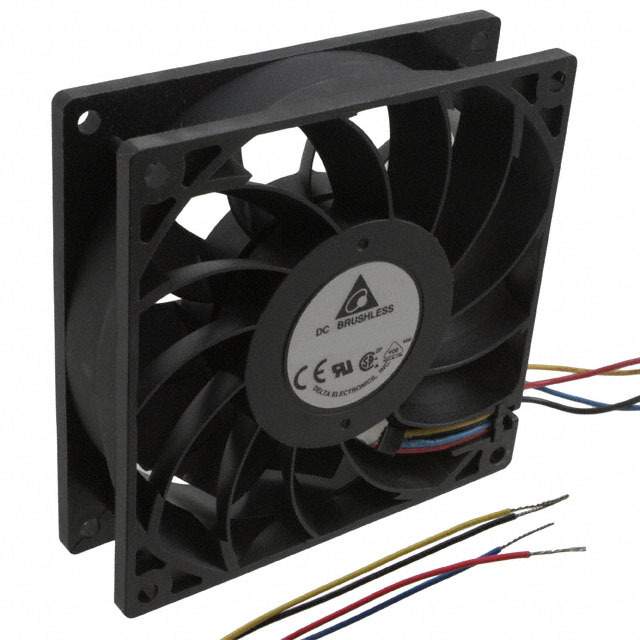

FFC0948BY7T
Delta Electronics
Manufacturer : Delta Electronics
Series : FFC
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.40mm
Air Flow : 86.4 CFM (2.42m鲁/min)
Static Pressure : 0.355 in H2O (88.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : GR-487, PWM Control, Speed Sensor (Tach)
Noise : 49.5 dB(A)
Power (Watts) : 8.16W
RPM : 3900 RPM
Termination : 4 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.331 lb (150.14g)
Series : FFC
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.40mm
Air Flow : 86.4 CFM (2.42m鲁/min)
Static Pressure : 0.355 in H2O (88.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : GR-487, PWM Control, Speed Sensor (Tach)
Noise : 49.5 dB(A)
Power (Watts) : 8.16W
RPM : 3900 RPM
Termination : 4 Wire Leads
Ingress Protection : IP56 - Dust Protected, Water Resistant
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.331 lb (150.14g)
0
3970 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
